CH High Quality Stainless Steel Flat Fan Spray Nozzle

Stainless steel single-fluid fan spray nozzle, multi-piece quick release design, easy to disassemble and replace the nozzle, saving labor and time costs, suitable for conveyor belts, film, copper foil, paper making, glass panels, and various sheet cleaning; metal cooling; defoaming and dispersion.

Brand: LORRIC
Spray Pattern: Flat Fan
Fluid: Single Fluid
Material: SS303, SS316, Brass
Thread Type: BSPT, NPT

Catalogue



Flat Fan Nozzle

A flat fan nozzle works by forcing liquid through an oval-shaped orifice, spreading it into a fan shape. This design provides strong central flow and weaker edges, ideal for uniform coverage in industries like semiconductors, PCB manufacturing, and steel. It offers precise control, resists clogging, and delivers high impact force.

Flat Fan Nozzle
Fan Spray Nozzle Spray Pattern

Fan Spray Nozzle Spray Pattern

A single-fluid fan spray nozzle produces a spray pattern resembling a fan, hence the name. The coverage pattern, when viewed from above the target area, forms a single-line shape with tapered edges on both sides.

Mountain-Shaped Flow Distribution

The fan spray nozzle has maximum spray volume in the center, decreasing towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform spraying, install nozzles closer together to overlap coverage areas and improve uniformity.distribution.

Mountain-Shaped Flow Distribution
Multiple Flow Rates Available

Multiple Flow Rates Available

The fan spray nozzle offers a wide range of flow rates. For example, at a standard design pressure of 3 Kg/cm², the flow rates range from 0.39 Lpm to 11.73 Lpm. (For other flow rate requirements, please refer to the specification sheet or contact us directly.)

Offers 0° to 110° Spray Angles

The fan spray nozzle provides various angle options, with 0° producing a straight jet for maximum impact, and 110° offering the widest coverage. For specific inventory details, please contact us.

Offers 0° to 110° Spray Angles
Three-piece structure designed

Three-piece structure designed

Three-piece structure facilitates maintenance cleaning and replacement, and can save the cost of replacing the nozzle head. The base must be connected to the pipeline by welding. Please confirm that the installation environment meets the requirements.

Material Options

Material Options

About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • For a 1/4" base with internal thread, choose a matching 1/4" external threaded nozzle, and ensure base thread is NPT or BSPT.
    • Choose the H or NH series for a one-piece fan nozzle that fits your needs.
    • To find the nozzle flow rate that matches your requirements, specifically the spray flow rate for each nozzle based on your needs, please consult the "Flow Rate and Angle Comparison Chart" below.
    • To determine the nozzle angle that meets your requirements, which corresponds to the spray coverage area of each nozzle based on your needs, please consult the "Flow Rate and Angle Comparison Chart" below.
    • Choose the right nozzle material to match your needs, as different environments demand specific materials. Select accordingly based on your usage context.

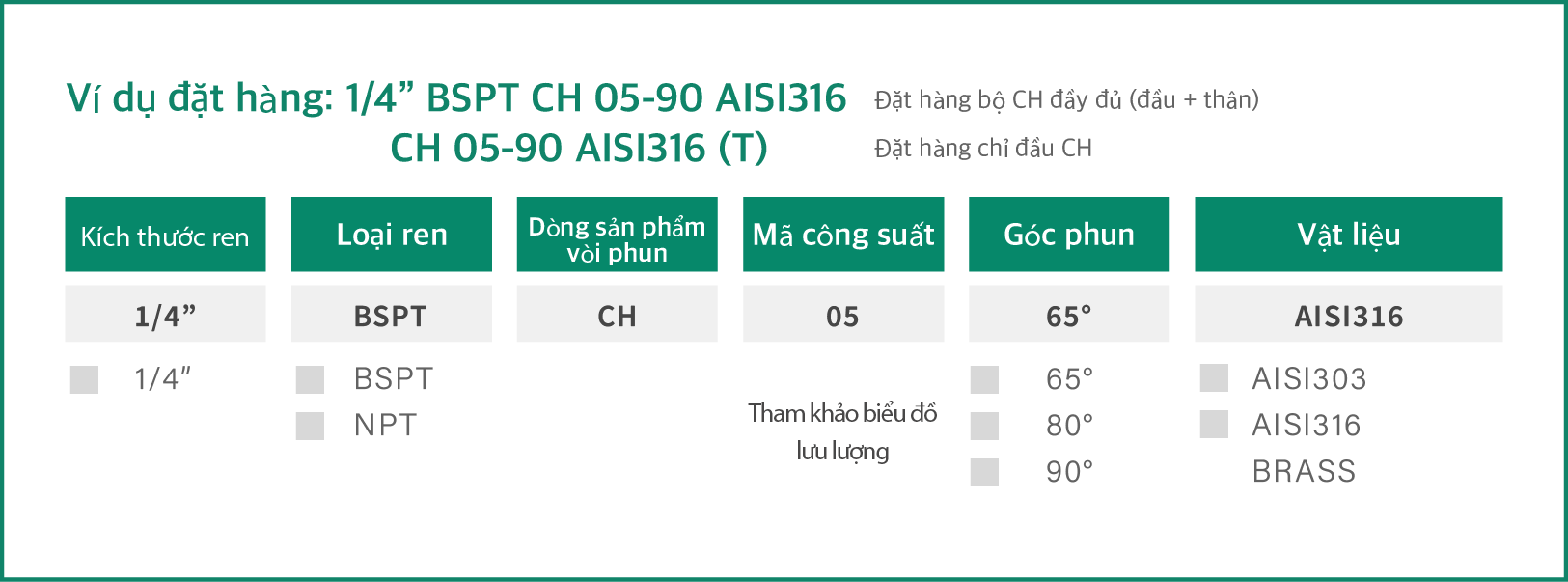

  • Example specification: 1/4” BSPT CH 05 90° SS303. Each number corresponds to the following options and meanings.


Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
kgf/cm²
1.0
kgf/cm²
2.0
kgf/cm²
3.0
kgf/cm²
4.0
kgf/cm²
6.0
kgf/cm²
8.0
kgf/cm²
10.0
kgf/cm²
15.0
kgf/cm²
65° 01 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
65° 02 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
65° 2.5 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
65° 03 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
65° 04 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
65° 05 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
65° 06 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
65° 07 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
65° 7.5 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
65° 08 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
65° 09 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
65° 10 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
65° 12.5 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
65° 15 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
65° 20 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
65° 25 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
65° 30 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
80° 01 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
80° 02 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
80° 2.5 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
80° 03 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
80° 04 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
80° 05 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
80° 06 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
80° 07 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
80° 7.5 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
80° 08 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
80° 09 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
80° 10 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
80° 12.5 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
80° 15 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
80° 20 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
80° 25 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
80° 30 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
90° 01 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
90° 02 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
90° 2.5 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
90° 03 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
90° 04 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
90° 05 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
90° 06 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
90° 07 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
90° 7.5 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
90° 08 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
90° 09 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
90° 10 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
90° 12.5 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
90° 15 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
90° 20 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
90° 25 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
90° 30 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.05
MPa
0.1
MPa
0.2
MPa
0.3
MPa
0.4
MPa
0.6
MPa
0.8
MPa
1.0
MPa
1.5
MPa
65° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
65° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
65° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
80° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
80° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
90° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
90° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
bar
1.0
bar
2.0
bar
3.0
bar
4.0
bar
6.0
bar
8.0
bar
10.0
bar
15.0
bar
65° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
65° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
65° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
80° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
80° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
90° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
90° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
90° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
7
psi
10
psi
28
psi
40
psi
60
psi
80
psi
100
psi
150
psi
200
psi
65° 01 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
65° 02 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
65° 2.5 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
65° 03 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
65° 04 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
65° 05 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
65° 06 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
65° 07 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
65° 7.5 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
65° 08 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
65° 09 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
65° 10 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
65° 12.5 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
65° 15 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
65° 20 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
65° 25 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
65° 30 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
80° 01 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
80° 02 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
80° 2.5 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
80° 03 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
80° 04 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
80° 05 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
80° 06 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
80° 07 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
80° 7.5 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
80° 08 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
80° 09 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
80° 10 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
80° 12.5 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
80° 15 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
80° 20 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
80° 25 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
80° 30 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
90° 01 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
90° 02 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
90° 2.5 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
90° 03 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
90° 04 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
90° 05 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
90° 06 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
90° 07 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
90° 7.5 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
90° 08 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
90° 09 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
90° 10 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
90° 12.5 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
90° 15 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
90° 20 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
90° 25 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
90° 30 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
  • * Standard Pressure: Column in red.
  • * This product for spray angle 0°, 15°, 25°, 40°, 50°, 100° and 110° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.

Applications

流量計監控冷卻水與氣體流量,確保金屬處理的準確性和能效最佳化;噴嘴在電鍍過程中精確控制化學液體的噴灑,確保鍍層均勻與品質穩定。

Size

Thread(BSPT) Size(mm) Weight(g)
A B SS303 SS316 Brass
1/8"外牙 21 41.3 - - -
1/4"外牙 21 43 - - -
3/8"外牙 21 43 70 71 77.2

Thread installation

Easy installing with 2 simple steps!

Step 1
Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2
Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3
Step 3

Complete the installation.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.

Working Process and matters need attention of Nozzle Customization

  • We provide custom nozzle services according to standard operating procedures.
  • Please note
    • There are minimum quantity requirements
    • There are exclusive sales channels must be mutually agreed upon
Working Process and matters need attention of Nozzle Customization
Products you may also like
Related articles
