H-Plastic Flat Fan Spray Nozzle

PP plastic fan spray nozzle, single-piece single-fluid nozzle, capable of spraying at a wide angle, commonly used in PCB, steel industry, and various applications such as cleaning, cooling, and dispersion.

Brand： LORRIC
Nozzle Type： Fan-shaped
Fluid Type： Single-fluid
Materials： PP
Thread Standards： BSPT, NPT
Thread Sizes： 1/8", 1/4"

Catalogue

Inquire now

Fan Spray Nozzle

A flat fan nozzle works by forcing liquid through an oval-shaped orifice, spreading it into a fan shape. This design provides strong central flow and weaker edges, ideal for uniform coverage in industries like semiconductors, PCB manufacturing, and steel. It offers precise control, resists clogging, and delivers high impact force.

Fan Spray Nozzle
Fan Spray Nozzle Spray Pattern

Fan Spray Nozzle Spray Pattern

A single-fluid fan spray nozzle produces a spray pattern resembling a fan, hence the name. The coverage pattern, when viewed from above the target area, forms a single-line shape with tapered edges on both sides.
Learn more : Nozzle Spray Pattern

Mountain-Shaped Flow Distribution

The fan spray nozzle has maximum spray volume in the center, decreasing towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform spraying, install nozzles closer together to overlap coverage areas and improve uniformity.
Learn more : Nozzle Flow Distribution

Mountain-Shaped Flow Distribution
Multiple Flow Rates Available

Multiple Flow Rates Available

The fan spray nozzle offers a wide range of flow rates. For example, at a standard design pressure of 3 Kg/cm², the flow rates range from 0.39 Lpm to 39.1 Lpm. (For other flow rate requirements, please refer to the specification sheet or contact us directly.)

Offers 0° to 110° Spray Angles

The fan spray nozzle provides various angle options, with 0° producing a straight jet for maximum impact, and 110° offering the widest coverage. For specific inventory details, please contact us.
Learn more : Nozzle Spray Angle & Coverage

Offers 0° to 110° Spray Angles
Single-piece design

Single-piece design

This nozzle attaches to pipelines directly. Usage time and environment impact spray performance (flow and angle). Regular maintenance or replacement needed. For tougher conditions, we have a quick-release multi-piece nozzle for easy replacement, saving time and effort.

Material Options


Material Options

About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • Choose the nozzle diameter (thread size) and specifications that meet your requirements.
    • Choose the spray flow rate for each nozzle, please refer to the chart below.
    • Select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

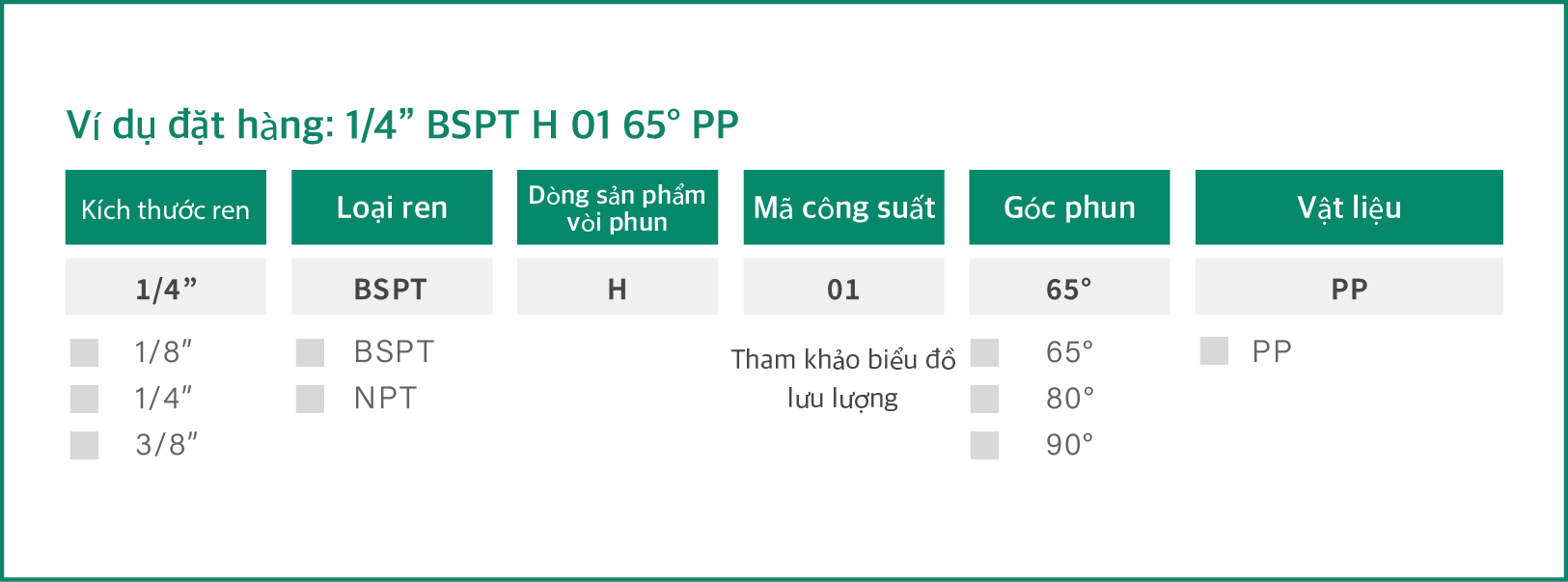

  • Example specification: 1/4” BSPT H 01 65° PP. Each number corresponds to the following options and meanings.

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 0.5
kgf/cm²		 1.0
kgf/cm²		 2.0
kgf/cm²		 3.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
65° 01 V
 V
 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
65° 02 V
 V
 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
65° 2.5 V
 V
 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
65° 03 V
 V
 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
65° 04 V
 V
 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
65° 05 V
 V
 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
65° 06 V
 V
 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
65° 07 V V
 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
65° 7.5 V V
 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
65° 08 V V
 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
65° 09 V V
 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
65° 10 V V 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
65° 12.5 V V 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
65° 15 V V 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
65° 20 V V 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
65° 25
V 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
65° 30
V 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
65° 35
V 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
65° 40
V 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
65° 50
V 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
65° 60

9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
65° 80

12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
65° 100

15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
80° 01 V
 V
 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
80° 02 V
 V
 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
80° 2.5 V
 V
 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
80° 03 V
 V
 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
80° 04 V
 V
 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
80° 05 V
 V
 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
80° 06 V
 V
 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
80° 07 V V
 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
80° 7.5 V V
 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
80° 08 V V
 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
80° 09 V V
 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
80° 10 V V 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
80° 12.5 V V 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
80° 15 V V 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
80° 20 V V 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
80° 25
V 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
80° 30
V 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
80° 35
V 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
80° 40
V 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
80° 50
V 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
80° 60

9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
80° 80

12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
80° 100

15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
90° 01 V
 V
 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
90° 02 V
 V
 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
90° 2.5 V
 V
 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
90° 03 V
 V
 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
90° 04 V
 V
 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
90° 05 V
 V
 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
90° 06 V
 V
 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
90° 07 V V
 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
90° 7.5 V V
 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
90° 08 V V
 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
90° 09 V V
 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
90° 10 V V 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
90° 12.5 V V 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
90° 15 V V 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
90° 20 V V 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
90° 25
V 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
90° 30
V 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
90° 35
V 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
90° 40
V 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
90° 50
V 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
90° 60

9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
90° 80

12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
90° 100

15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 0.05
MPa		 0.1
MPa		 0.2
MPa 		0.3
MPa		 0.4
MPa
 0.6
MPa		 0.8
MPa		 1.0
MPa		 1.5
MPa
65° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 V
 V
 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
65° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 V V 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
65° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
65° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
65° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
65° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
65° 60

9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
65° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
65° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
80° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 V
 V
 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
80° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 V V 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
80° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
80° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
80° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
80° 60

9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
80° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
80° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
90° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 V
 V
 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
90° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
90° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 V V 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
90° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
90° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
90° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
90° 60

9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
90° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
90° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 0.5
bar
 1.0
bar		 2.0
bar 		3.0
bar		 4.0
bar 		6.0
bar		 8.0
bar		 10.0
bar		 15.0
bar
65° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 V
 V
 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
65° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 V V 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
65° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
65° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
65° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
65° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
65° 60

9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
65° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
65° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
80° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 V
 V
 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
80° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 V V 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
80° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
80° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
80° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
80° 60

9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
80° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
80° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
90° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 V
 V
 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
90° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
90° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 V V 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
90° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
90° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
90° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
90° 60

9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
90° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
90° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 7
psi		 10
psi		 28
psi 		40
psi		 60
psi 		80
psi		 100
psi		 150
psi		 200
psi
65° 01 V
 V
 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
65° 02 V
 V
 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
65° 2.5 V
 V
 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
65° 03 V
 V
 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
65° 04 V
 V
 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
65° 05 V
 V
 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
65° 06 V
 V
 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
65° 07 V V
 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
65° 7.5 V V
 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
65° 08 V V
 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
65° 09 V V
 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
65° 10 V V 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
65° 12.5 V V 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
65° 15 V V 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
65° 20 V V 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
65° 25
V 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
65° 30
V 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
65° 35
V 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
65° 40
V 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
65° 50
V 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
65° 60

2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
65° 80

3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
65° 100

4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
80° 01 V
 V
 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
80° 02 V
 V
 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
80° 2.5 V
 V
 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
80° 03 V
 V
 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
80° 04 V
 V
 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
80° 05 V
 V
 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
80° 06 V
 V
 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
80° 07 V V
 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
80° 7.5 V V
 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
80° 08 V
 V
 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
80° 09 V V
 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
80° 10 V V 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
80° 12.5 V V 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
80° 15 V V 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
80° 20 V V 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
80° 25 V
 V 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
80° 30
V 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
80° 35
V 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
80° 40
V 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
80° 50
V 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
80° 60

2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
80° 80

3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
80° 100

4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
90° 01 V
 V
 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
90° 02 V
 V
 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
90° 2.5 V
 V
 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
90° 03 V
 V
 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
90° 04 V
 V
 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
90° 05 V
 V
 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
90° 06 V
 V
 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
90° 07 V V
 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
90° 7.5 V V
 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
90° 08 V V
 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
90° 09 V V
 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
90° 10 V V 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
90° 12.5 V V 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
90° 15 V V 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
90° 20 V V 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
90° 25
V 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
90° 30
V 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
90° 35
V 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
90° 40
V 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
90° 50
V 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
90° 60

2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
90° 80

3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
90° 100

4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
  • * Standard Pressure: Column in red.
  • * This product for spray angle 0°, 15°, 25°, 40°, 50°, 100° and 110° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

Size

Thread(BSPT) Size(mm) Weight(g)
A B C
1/8" 11.9 10.4 19.4 -
1/4" 13.6 13.4 25 25

Thread installation

Easy installing with 2 simple steps!

Step 1
Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2
Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3
Step 3

Complete the installation.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.

Working Process and matters need attention of Nozzle Customization

  • We provide custom nozzle services according to standard operating procedures.
  • Please note
    • There are minimum quantity requirements
    • There are exclusive sales channels must be mutually agreed upon
Working Process and matters need attention of Nozzle Customization
Products you may also like
H-Metal Stainless Steel Flat Fan Spray Nozzle H-Metal Stainless Steel Flat Fan Spray Nozzle
QFH High Impact Quick-Release Fan Nozzle - QF Series QFH High Impact Quick-Release Fan Nozzle - QF Series
FU-ES EchoSense cảm biến lưu lượng siêu âm FU-ES EchoSense cảm biến lưu lượng siêu âm
Related articles
Bảy điều bạn cần biết trước khi mua vòi phun Bảy điều bạn cần biết trước khi mua vòi phun
Inquire now
