QSWP Hollow Cone Clamp Spray Nozzle

NYLON Plastic single-fluid hollow cone nozzle, providing uniform impact force and a larger foreign object passage diameter, with fine spray droplets. Two-piece design for easy disassembly and cleaning. Commonly used for applications such as gas washing, dust suppression, and cooling.

Brand: LORRIC
Nozzle Type: Hollow Cone
Fluid Type: Single-fluid
Materials: Nozzle - PP
Nozzle Holder - Glass Fiber Reinforced PP (FRPP)
Clamp Size: 3/4"

Catalogue



Hollow Cone Nozzles

The liquid forms a vortex inside the nozzle's cavity, creating a hollow cone spray through the curved opening. Commonly used in scrubbers, cooling, dust suppression, and humidification, hollow cone nozzles have large channels that prevent clogging and produce fine atomized spray.

Hollow Cone Nozzles
Hollow Cone Nozzle Spray Pattern

Hollow Cone Nozzle Spray Pattern

A single-fluid nozzle, known as a hollow cone nozzle, produces a spray pattern shaped like a hollow cone. The coverage pattern, when viewed from above, forms a hollow circular shape on the target surface.

Donut-shaped Flow Distribution

The flow distribution of a hollow cone nozzle features a donut-shaped pattern, with stronger flow at the edges and weaker flow in the center.

Donut-shaped Flow Distribution
Multi-piece design

Multi-piece design

The nozzle part adopts a two-piece structure. The nozzle part can be disassembled to facilitate maintenance, cleaning and replacement; the nozzle part and the base buckle are positioned by the clamp, and the installation can be completed with bare hands without tools.



Material Options

Material Options
Clog-resistant performance with right-angle design

Clog-resistant performance with right-angle design

The spray direction is 90 degrees to the installation direction. Please make sure that the installation environment meets the requirements (The base is shared with the QSH and QSF nozzles. If the spray direction is limited, QSH can be used with the QSF nozzle head)




About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 10% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 10% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • To choose the spray flow rate for each nozzle, please refer to the chart below.
    • To select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

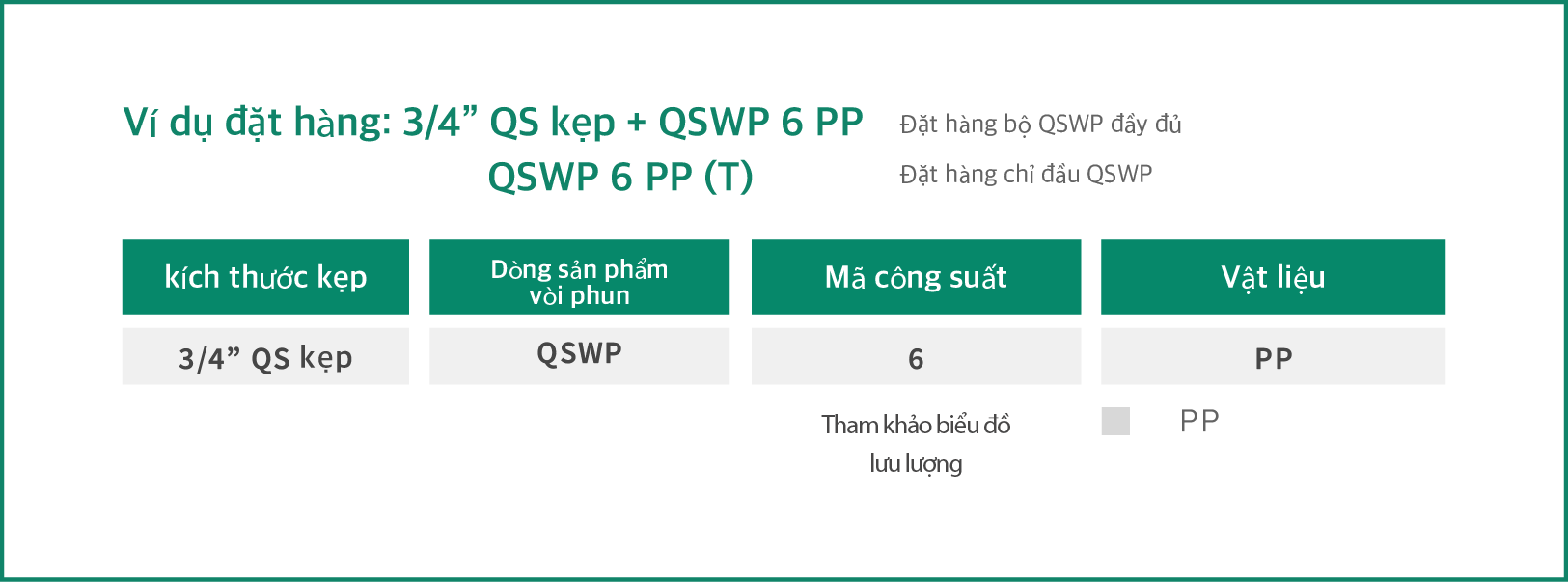

  • Specification example: 3/4” BSPT QSWP 6 PP. Each number corresponds to the following options and meanings.


Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Clamp Size Capacity at Pressure Capacity at Pressure
3/4" 1" 0.5
kgf/cm²
0.7
kgf/cm²
1.0
kgf/cm²
1.5
kgf/cm²
2.0
kgf/cm²
2.5
kgf/cm²
3.0
kgf/cm²
4.0
kgf/cm²
6.0
kgf/cm²
90° 6 v
v
1.00 1.18 1.41 1.73 2.00 2.24 2.45 2.83 3.46
Spray Angle Capacity Code Clamp Size Capacity at Pressure Capacity at Pressure
3/4" 1" 0.05
MPa
0.07
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.25
MPa
0.3
MPa
0.4
MPa
0.6
MPa
90° 6 v v
1.01 1.19 1.43 1.75 2.02 2.26 2.47 2.86 3.50
Spray Angle Capacity Code Clamp Size Capacity at Pressure Capacity at Pressure
3/4" 1" 0.5
bar
0.7
bar
1
 bar
1.5
 bar
2
 bar
2.5
 bar
3
 bar
4
 bar
6
 bar
90° 6 v v
1.01 1.19 1.43 1.75 2.02 2.26 2.47 2.86 3.50
Spray Angle Capacity Code Clamp Size Capacity at Pressure Capacity at Pressure
3/4" 1" 7
psi
10
psi
15
psi
20
psi
28
psi
40
psi
50
psi
70
psi
90
psi
90° 6 v v
0.26 0.31 0.38 0.44 0.52 0.63 0.70 0.83 0.94
  • * Standard Pressure: Column in red.
  • * This product for spray angle 90° and 120° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.


Application

  • Cleaning: Gas cleaning, etc.
  • Cooling: Gas, liquid, air conditioning, machinery, metal, plastic molding cooling processes, etc.
  • Dispersion: Wetting, aeration, water curtain (fire prevention, dust prevention, odor prevention, etc.).

Size

Drilling hole size Size(mm) Weight(g)
A B C D
3/4" 23.5 27.3  14 60.3 27
1" 28.3 33.2 22 62

Installation

Easy installing with 5 simple steps !

Step 1
Step 1

Aim the installation hole of the clamp at the pipe installation hole.

Step 2
Step 2

Fasten with the pipe clamp.



Step 3
Step 3

Tighten the screw by hand, and tighten again by electric screwdriver.

Step 4
Step 4

Put the nozzle and the union nut on the pipe clamp.

Step 5
Step 5

Aim the bottom of nozzle at the pipe clamp.

Finished
Finished

Tighten the nozzle clockwise.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.

Working Process and matters need attention of Nozzle Customization

  • We provide custom nozzle services according to standard operating procedures.
  • Please note
    • There are minimum quantity requirements
    • There are exclusive sales channels must be mutually agreed upon
Working Process and matters need attention of Nozzle Customization
