QSWP Hollow Cone Clamp Spray Nozzle

Name: QSWP Hollow Cone Clamp Spray Nozzle
Brand: LORRIC
Price: Please inquire

Easy-to-Adjust, Easy-to-Install, Easy-to-Maintain Plastic Single Fluid Hollow Cone Nozzle by LORRIC, featuring uniform impact force and a larger foreign object pass-through diameter. It produces fine spray particles and is commonly used in applications such as cooling towers and exhaust gas treatment.

Brand: LORRIC
Nozzle Type: Hollow Cone
Fluid Type: Single Fluid
Materials: Nozzle - PP / Nozzle Holder - Glass Fiber Reinforced PP (FRPP)
Applicable Pipe Diameter: 3/4"

File download

Catalogue

Inquire now

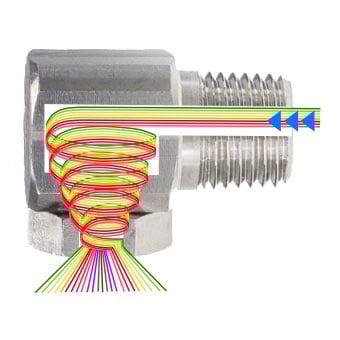

About Hollow Cone Nozzles

Spray patterns

Hollow Cone. The shape of the spray is circular (circular Impact).

Flow distribution

A valley-shaped flow distribution with stronger flow at both ends and weaker flow in the middle.

Multi-piece design

The nozzle part adopts a two-piece structure. The nozzle part can be disassembled to facilitate maintenance, cleaning and replacement; the nozzle part and the base buckle are positioned by the clamp, and the installation can be completed with bare hands without tools.

Material Options

Nozzle：PP
Clamp：Strengthened Fiberglass PP (FRPP)

The nozzle channel has a simple structure, with a 40mm diameter to effectively prevent foreign objects from causing blockages.

Install by hands

The nozzle is positioned with a snap-fit connection to the base, requiring no tools, and can be easily installed by hand.

The spray direction is 90 degrees to the installation direction. Please make sure that the installation environment meets the requirements (The base is shared with the QSH and QSF nozzles. If the spray direction is limited, QSH can be used with the QSF nozzle head)

About engineering tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 10% of the standard flow rate.

Angle tolerance

Angle tolerance is within a range of plus or minus 10% of the standard angle.

Material Guarantees

Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic

We promise never to use recycled materials.

High Quality

All material is purchased from world top providers.

Please place your order according below information.

Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
- To choose the spray flow rate for each nozzle, please refer to the chart below.
- To select the spray angle for each nozzle, please refer to the chart below.
- Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

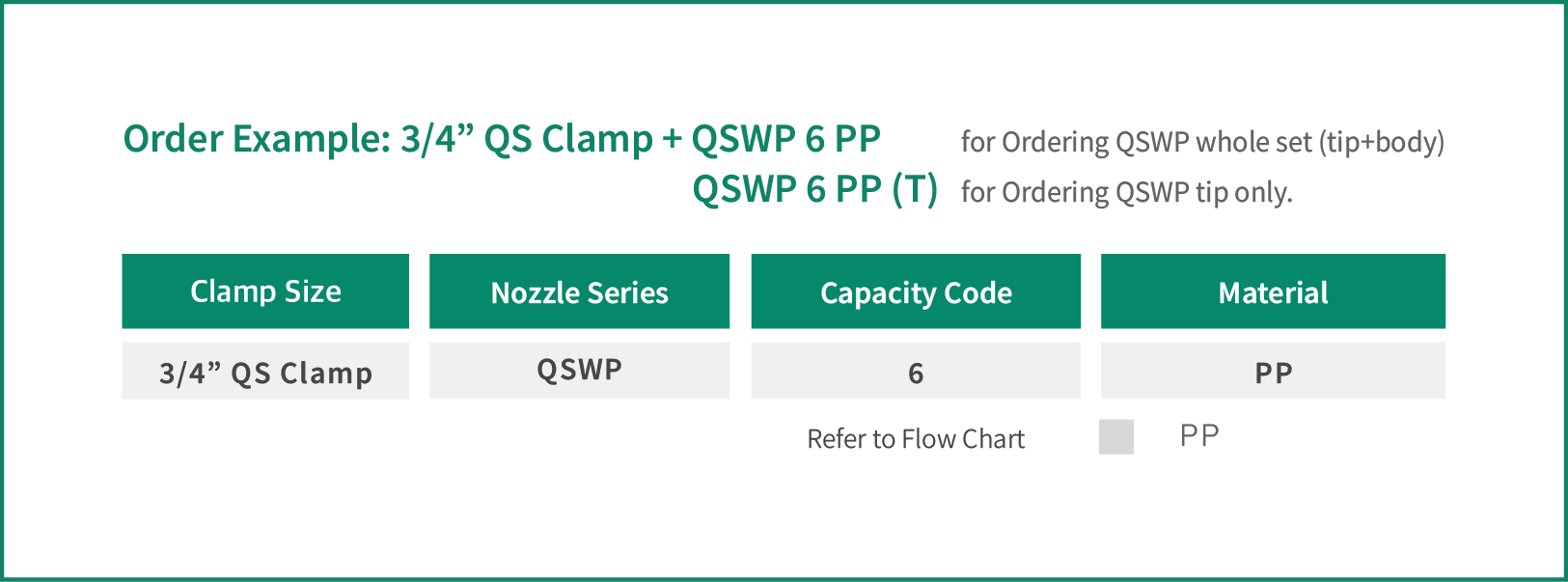

Specification example: 3/4” BSPT QSWP 6 PP. Each number corresponds to the following options and meanings.

Select
Unit

Spray Angle	Capacity Code	Clamp Size		Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	3/4"	1"	0.5 kgf/cm²	0.7 kgf/cm²	1.0 kgf/cm²	1.5 kgf/cm²	2.0 kgf/cm²	2.5 kgf/cm²	3.0 kgf/cm²	4.0 kgf/cm²	6.0 kgf/cm²
90°	6	v	v	1.00	1.18	1.41	1.73	2.00	2.24	2.45	2.83	3.46

Spray Angle	Capacity Code	Clamp Size		Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	3/4"	1"	0.05 MPa	0.07 MPa	0.1 MPa	0.15 MPa	0.2 MPa	0.25 MPa	0.3 MPa	0.4 MPa	0.6 MPa
90°	6	v	v	1.01	1.19	1.43	1.75	2.02	2.26	2.47	2.86	3.50

Spray Angle	Capacity Code	Clamp Size		Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	3/4"	1"	0.5 bar	0.7 bar	1 bar	1.5 bar	2 bar	2.5 bar	3 bar	4 bar	6 bar
90°	6	v	v	1.01	1.19	1.43	1.75	2.02	2.26	2.47	2.86	3.50

Spray Angle	Capacity Code	Clamp Size		Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	3/4"	1"	7 psi	10 psi	15 psi	20 psi	28 psi	40 psi	50 psi	70 psi	90 psi
90°	6	v	v	0.26	0.31	0.38	0.44	0.52	0.63	0.70	0.83	0.94

* Standard Pressure: Column in red.
* This product for spray angle 90° and 120° is able to be made to order.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
* Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Application

Wastewater Treatment

Flow meters monitor the flow of inlet and outlet water, enhancing treatment efficiency and accuracy; nzzles spray chemicals in wastewater treatment, meeting environmental standards

Cleaning: Gas cleaning, etc.
Cooling: Gas, liquid, air conditioning, machinery, metal, plastic molding cooling processes, etc.
Dispersion: Wetting, aeration, water curtain (fire prevention, dust prevention, odor prevention, etc.).

Size

Drilling hole size	Size(mm)				Weight(g)
Drilling hole size	A	B	C	D	Weight(g)
3/4"	23.5	27.3	14	60.3	27
1"	28.3	33.2	22	62	27

Installation

Easy installing with 5 simple steps !

Step 1

Aim the installation hole of the clamp at the pipe installation hole.

Step 2

Fasten with the pipe clamp.

Step 3

Tighten the screw by hand, and tighten again by electric screwdriver.

Step 4

Put the nozzle and the union nut on the pipe clamp.

Step 5

Aim the bottom of nozzle at the pipe clamp.

Finished

Tighten the nozzle clockwise.

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.
