Electrolytic copper foil, known for its high conductivity, purity, uniform thickness, and smooth surface, is crucial in advanced electronics, particularly in PCB (Printed Circuit Board) manufacturing and internal connections in electronic devices. This foil is produced through an electrolytic deposition process, involving several key steps:
Electrolytic Copper Deposition: A substrate, either glass fiber cloth or cellulose paper, is suspended in an electrolytic bath filled with a copper sulfate solution. When electricity is applied, copper ions are reduced and deposited onto a cathode, forming a uniform copper layer.
Peeling Process: The deposited copper foil is then separated from the substrate.

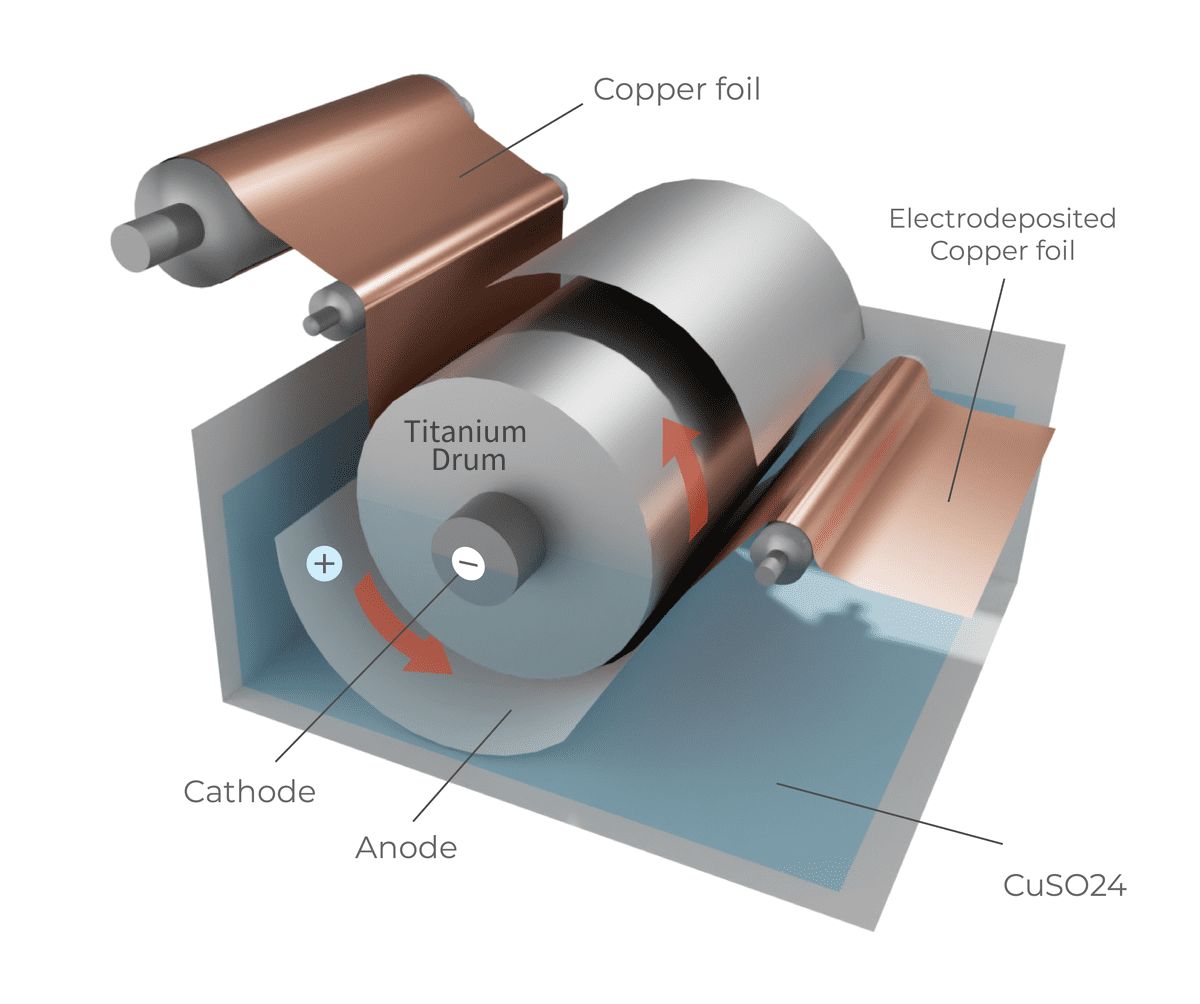

Strengthening the Plating: Here, a titanium drum connected to a DC voltage source is used. The drum slowly rotates, and copper ions from the electrolytic solution deposit on its surface, creating a strengthened copper layer.
Etching: Chemical or mechanical methods are employed to etch the desired circuit pattern onto the copper foil's surface.
Cutting: Finally, the large copper foil is cut into the required sizes and rolled for ease of transportation and future use.
