FP-P015 |
FP-P020 |
FP-P025 |
FP-P032 |
FP-P040 |
FP-P050 |
FP-P065 |
Installation method
|
in-line
|
Applicable pipe
diameter |
d 20 (mm)
DN 15
(mm)
DN 1/2
(inch) |
d 25 (mm)
DN 20
(mm)
DN 3/4
(inch) |
d 32 (mm)
DN 25
(mm)
DN 1
(inch) |
d 40 (mm)
DN 32
(mm)
DN 1-1/4
(inch) |
d 50 (mm)
DN 40
(mm)
DN 1-1/2
(inch) |
d 63 (mm)
DN 50
(mm)
DN 2
(inch) |
d 76 (mm)
DN 65
(mm)
DN 2-1/2
(inch) |
T-connector material
|
UPVC / PPH / PVDF (Made to order)/ 316L Stainless Steel |
Paddle material
|
PVDF or PPH with embedded magnet + ceramic bearing and shaft |
Applicable fluid
|
Various fluid with less impurities (<1%)
|
Applicable fluid maximum
dynamic viscosity
|
300cSt ** |
| Fluid in pipes temperature |
UPVC ：0~45°C (32~122°F)
PPH： 0-80
PVDF：0-100
ss316L：0-100 ** |
Device working environment temperature
|
-10~60°C (14~140°F)
|
| Velocity range |
± 0.3~10m/s Can extend to ± 0.15m ~ 10m/s
(Please note that the minimum flow value may vary slightly due to flow field factors specific to individual models.) |
| Flow range |
3.6-120.6
LPM |
5.7-188.5
LPM |
8.8-294.5
LPM |
13.6-452.9
LPM |
22.6-754.0
LPM |
36.8-1225.7
LPM |
65.4-2179.0
LPM |
0.95-28.4
gpm |
1.5-49.86
gpm |
2.32-80.81
gpm |
3.59-139.86
gpm |
5.97-190.36
gpm |
9.72-313.77
gpm |
17.27-526.29
gpm |
| Language |
English, Chinese
|
| Unit |
Metric: Liter, cubic meters, meters
Time: second, minute, hour, day
Imperial: foot, Cubic foot, Uk gallon, US gallon |
| Display |
16x3 3-Color Backlight 10-bit LCD display |
| Display update cycle |
1s
|
| Measurement accuracy |
±2.5% OR***
|
| Linearity |
± 0.5 % FS (>0.3m/s) |
Power supply
|
DC 24V 100mA(not included in the communication current) |
Power I/O Connector
|
6-pin connector
|
| Input/Output |
FP-AS310A (A version): Analog output with self-powered 10-bit 4-20mA / NPN
FP-AS310R (R version): Modbus RTU RS485
|
Protection circuit
|
Power reverse connection protection, Power surge protection |
Waterproof level
|
IP66 **** |
| Transient data |
Instantaneous flow rate
|
| Cumulative data |
Positive flow |
| Operation button |
4 Key touch buttons |
| Cable length |
2 meters long |
* The device is calibrated with water at normal temperature before leaving the factory. Using fluids with viscosities different from water may result in inaccurate calibration values and could affect the minimum and maximum flow rates.
** The working temperature range for each material is provided as a reference. Please use your design experience to make the final material selection.
*** The measurement accuracy is determined through laboratory testing with clean water at a controlled room temperature of 25 degrees Celsius. Actual usage conditions may introduce errors.
**** IP66 stands for 'Ingress Protection,' which signifies the degree of protection an electrical device's enclosure offers against foreign object intrusion. The IP rating format consists of two digits, expressed as IPXX. The first digit denotes the level of protection against solid objects, particularly dust resistance, while the second digit indicates the waterproof protection level. A higher number signifies better protection. In the case of IP66, the first '6' indicates full dust protection, while the second '6' means no harm from high-pressure water splashes.
| FP-P015 |
| Size |
Connector |
Spec |
Material |
| 1/2" |
Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| FP-P020 |
| Size |
Connector |
Spec |
Material |
| 3/4" |
| Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| FP-P025 |
| Size |
Connector |
Spec |
Material |
| 1" |
| Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| FP-PO32 |
| Size |
Connector |
Spec |
Material |
| 1-1/4" |
| Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| FP-P040 |
| Size |
Connector |
Spec |
Material |
| 1-1/2" |
| Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| FP-P050 |
| Size |
Connector |
Spec |
Material |
| 2" |
| Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| flange |
JIS 10K
|
UPVC
|
| FP-P065 |
| Size |
Connector |
Spec |
Material |
| 2-1/2" |
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| Socket |
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| flange |
JIS 10K |
UPVC |
⚠Safety instructions:
1. After the warranty, the electronic components of the product will age due to time and operating environment. Under long-term use, please replace the new product according to the condition of the product.
2. Do not operate the product under an Orange or Red LCD Backlight for a long time. Product damage and related losses may occur.
Conditions and Disclaimer:
CONDITIONS: Equipment sold by LORRIC is not intended to be used, nor shall it be used:
(1) As a "Basic Component" under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) In medical applications or used on humans. Should any product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, LORRIC assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify LORRIC and hold LORRIC harmless from any liability or damage whatsoever arising out of the use of the product(s) in such a manner.
DISCLAIMER: Please be aware that magnetic fields or residual magnetism may cause interference to the flowmeter which may result in damage if they are used near the installation site. The purchaser must determine the applicability of the product for its desired use and assumes all risks in connection therewith. LORRIC assumes no responsibility or liability for any omissions or errors in connection with the use of its products.
The alarm used to detect paddle damage or loss is intended to assist on-site operators to find out what is causing equipment abnormalities. Because there are a myriad of variables involved with on-site operation and magnetic fields that come from other equipment, the alarm function is liable to fail. Please do not take the alarm function as a single source for monitoring your flow system. Please contact LORRIC for advanced help.

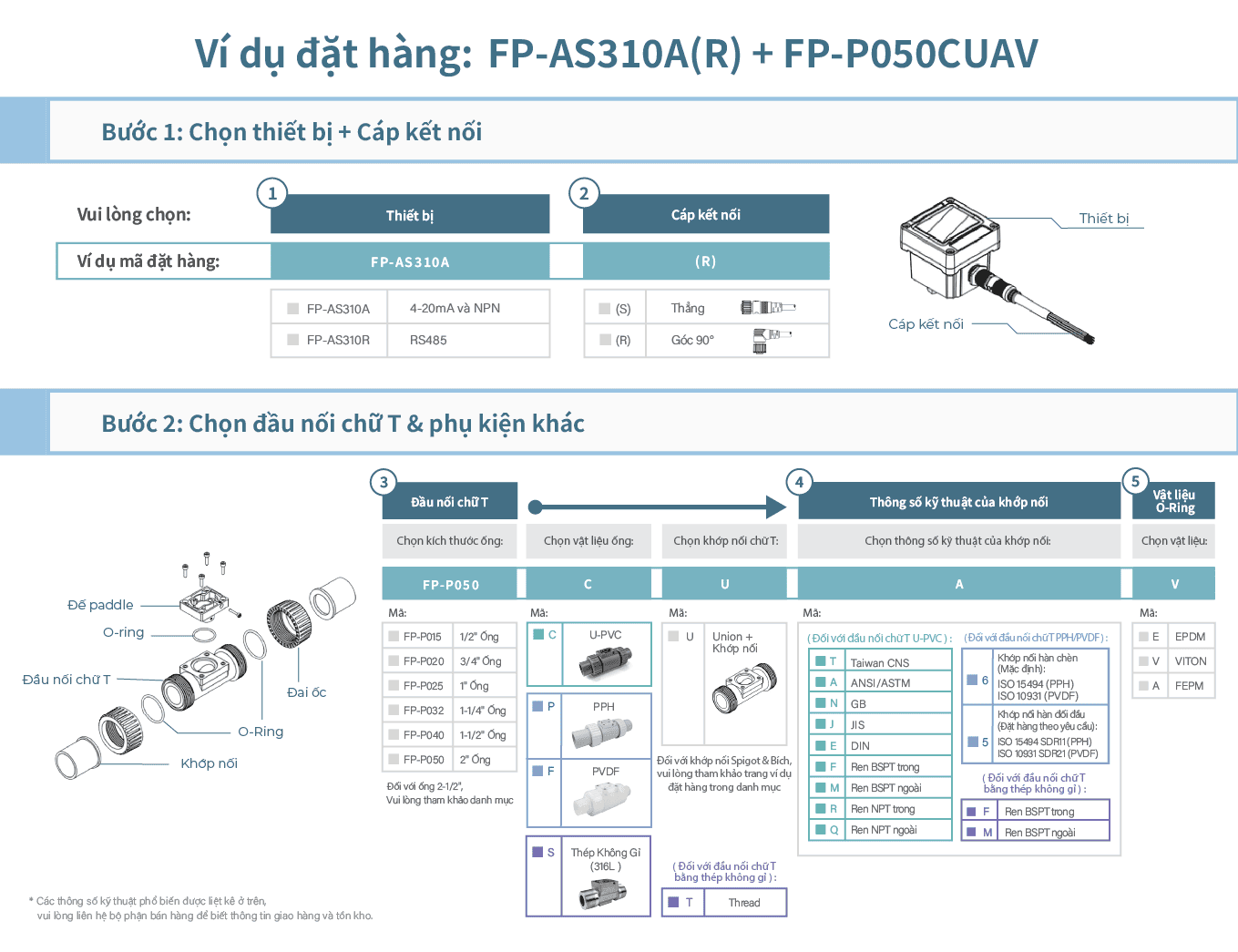

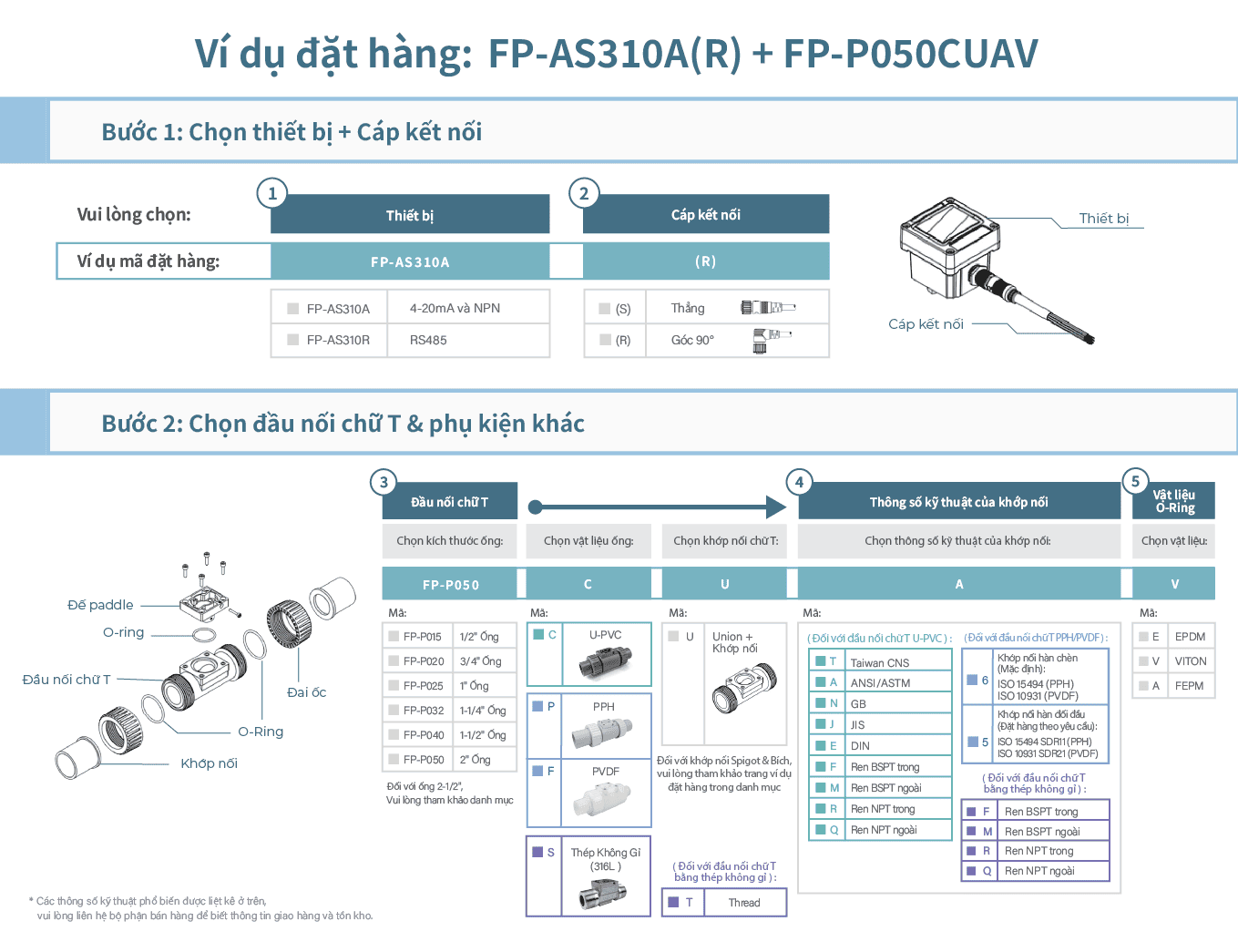

Vui lòng đặt hàng theo thông tin dưới đây
-
Bộ lưu lượng kế bánh guồng bao gồm: Thiết bị, bộ bánh guồng, đầu nối chữ T.
-
Chọn thiết bị lưu lượng kế và đầu nối cáp (Mã đặt hàng ví dụ: FP-AS310A(R))
- Chọn đầu nối chữ T + bộ bánh guồng theo kích thước, vật liệu, loại và thông số ống (Ví dụ: FP-P050CUAV)
- Để đặt hàng trọn bộ, kết hợp cả hai mã
- Ví dụ: FP-AS310A(R) + FP-P050CUAV
(Tải danh mục để xem chi tiết)
Size
| UPVC pipe - union diameter size(mm) |
|
A |
B
|
C
|
D
|
E
|
F
|
G
|
H
|
| ½" |
164 |
100 |
27.6 |
36 |
62.3 |
46.2 |
115.7 |
86.2 |
¾"
|
168 |
100 |
32.6 |
41.9 |
62.3 |
50.5 |
115.7 |
&85.7 |
1"
|
168 |
100 |
40.6 |
50 |
62.3 |
60 |
115.7 |
85.7 |
1¼"
|
210 |
114 |
50.2 |
59.6 |
65 |
75.6 |
127 |
89.2 |
1½"
|
218 |
120 |
56 |
65.7 |
70 |
83 |
134 |
92.5 |
2"
|
269.5 |
133.3 |
72 |
81 |
81 |
99.7 |
148.8 |
99 |
| UPVC pipe - spigot pipe diameter size(mm) |
|
A |
B
|
C
|
D
|
E
|
F
|
| 2½" |
160 |
70 |
76 |
92 |
106.5 |
152.5 |
| Device size(mm) |
| I |
J |
| 63 |
63 |
| Connector (mm) |
| K |
L |
| 47.8 |
30.0 |
Applications
Chất bán dẫn
Lưu lượng kế giám sát cung cấp chất lỏng hóa học và nước tinh khiết; vòi phun kiểm soát việc phun chất lỏng hóa học để đảm bảo độ tinh khiết và ổn định của quy trình.
PCB
Lưu lượng kế đo lượng hóa chất trong các quy trình ướt như mạ điện, hiện ảnh, ăn mòn; vòi phun hỗ trợ phun chính xác hóa chất trong mạ điện và rửa nước
AC
Lưu lượng kế theo dõi và điều khiển lưu lượng nước lạnh và nóng, trong khi các vòi phun cân bằng lưu lượng nước, giúp nâng cao hiệu quả hoạt động
Ngành công nghiệp nước tinh khiết
Lưu lượng kế giám sát lượng nước sử dụng ở mỗi giai đoạn để kiểm soát hiệu quả quy trình; đầu phun tối ưu hóa việc phun nước nhằm đảm bảo hiệu quả xử lý nước và giảm chi phí xử lý.
Xử lý nước thải
Lưu lượng kế giám sát dòng chảy, đầu phun phân phối hóa chất, nâng cao hiệu quả xử lý nước thải và đáp ứng tiêu chuẩn môi trường.
