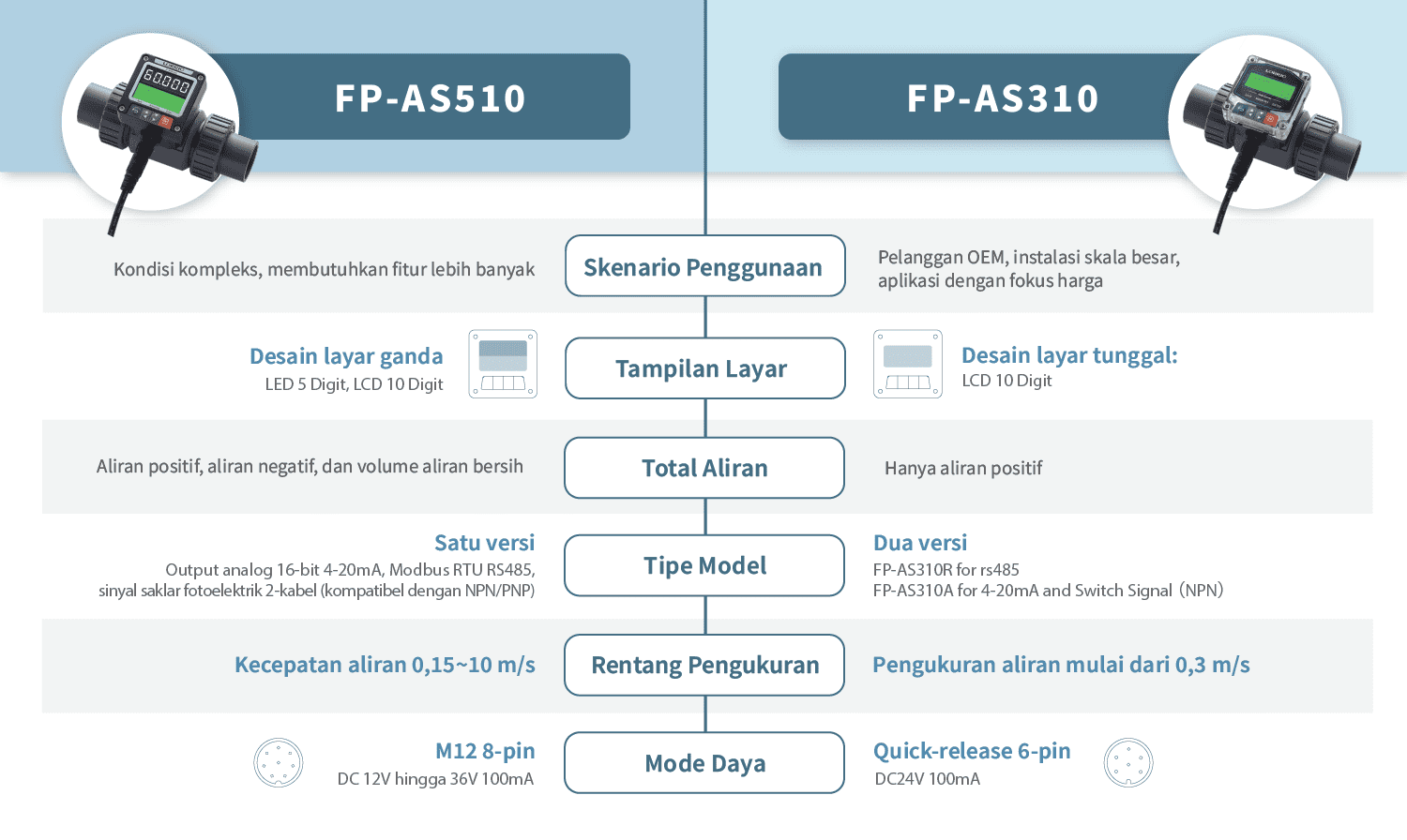

Paddle Wheel Flow Meter
Flow meter paddle wheel mengukur aliran dengan memanfaatkan fluida yang memutar baling (paddle wheel), di mana kecepatan putarannya sebanding dengan laju aliran. Cocok untuk cairan viskositas rendah seperti air, minyak, dan bahan kimia. Alat ini memiliki akurasi moderat, respons cepat, serta instalasi dan perawatan mudah. Karena bersentuhan langsung dengan cairan, pembersihan dan pemeriksaan rutin diperlukan.
Deteksi Cerdas Real-Time
Memberikan peringatan jelas tentang anomali pada paddle, yang penting untuk integrasi Industri 4.0. Dengan cepat mengatasi masalah aliran dengan menyinkronkan sistem manajemen pabrik. Sensor magnetik bawaan memeriksa kekuatan magnet pada paddlewheel, memastikan akurasi aliran yang konsisten melalui pemantauan rutin dan penggantian terjadwal.
Sambungan Pipa Berkualitas Premium: Dibuat untuk Tahan Lama dan Sempurna Tanpa Kebocoran
LORRIC menghadirkan sambungan pipa berkualitas dari material **Extruded Rod**, tahan lama dengan ukuran stabil. Dinding halus bebas gelombang meminimalkan gangguan, meningkatkan presisi pengukuran. Proses pengolahan kami lebih unggul dari cetakan injeksi, tanpa flash, short shots, atau garis sambungan.
Metode cetakan injeksi tradisional sering menghasilkan sambungan tiga arah dengan dinding dalam bergelombang, penyusutan di area tebal, serta aliran fluida tidak stabil yang memengaruhi akurasi. Sambungan ini juga rentan terhadap flash, short shots, dan garis las lemah. Sebaliknya, sambungan LORRIC dibuat dengan teknik canggih untuk kinerja halus dan andal. Pilih LORRIC untuk sambungan pipa tahan lama dan presisi!
Fleksibilitas Tampilan Horizontal maupun Vertikal
Layar dapat disesuaikan untuk orientasi vertikal atau horizontal, memudahkan pemantauan aliran dalam berbagai situasi pipa.
Learn more: Cara Memasang Paddle Wheel Flow Meter

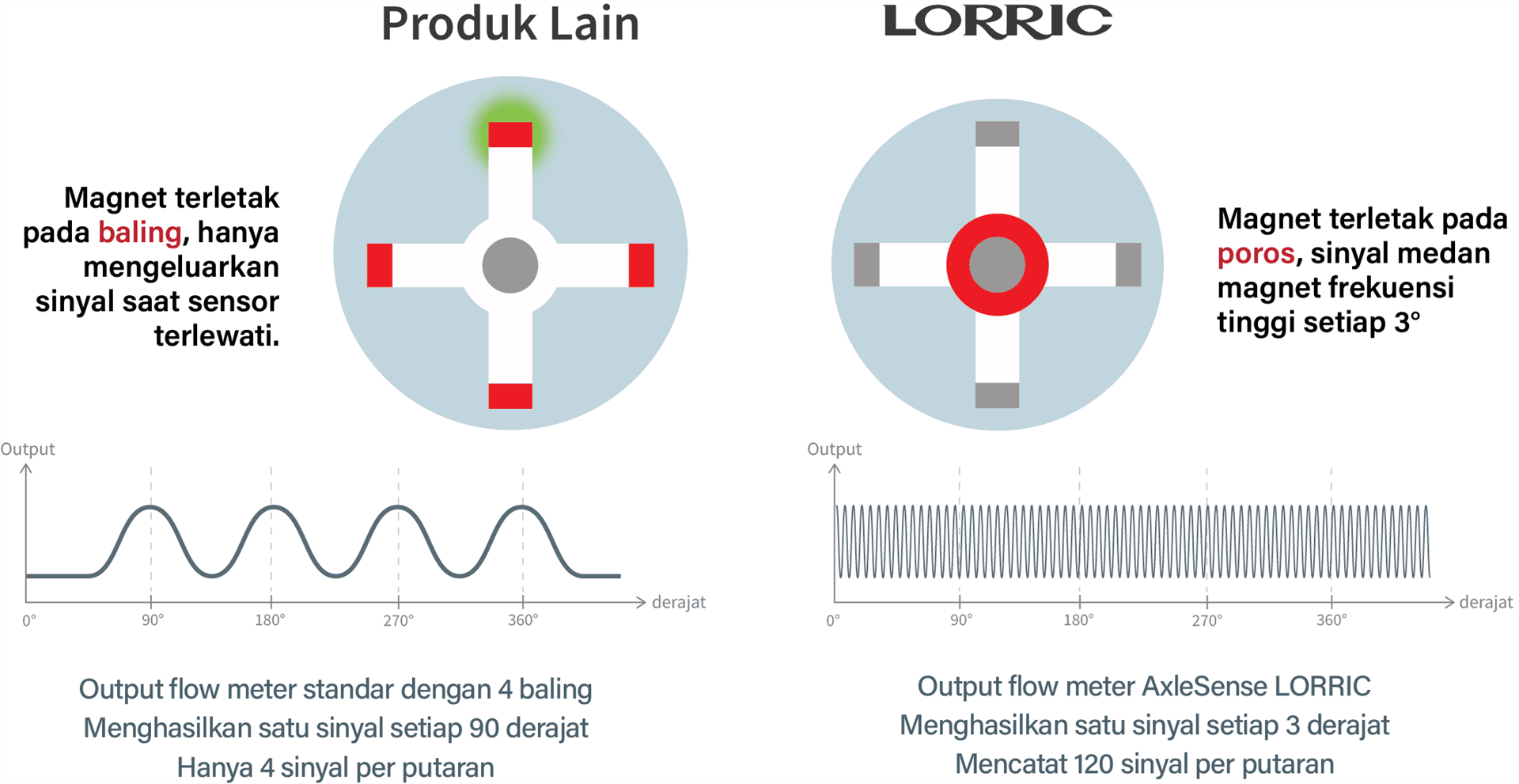

Teknologi Pulse 2.0
Flow meter paddle wheel tradisional menggunakan nilai K tetap, yang dapat menyebabkan kesalahan saat kecepatan aliran bervariasi. Misalnya, di pipa DN15, flow meter biasa mengeluarkan satu sinyal setiap 90°, dengan 106,55 pulse setara 1L, tanpa memperhitungkan kecepatan aliran. Teknologi **Pulse 2.0** LORRIC dengan **AxleSense** menghasilkan satu pulse setiap 0,01L, menyesuaikan dengan kecepatan aliran dan mengurangi kesalahan pengukuran.
|
FP-P015 |
FP-P020 |
FP-P025 |
FP-P032 |
FP-P040 |
FP-P050 |
FP-P065 |
Installation method
|
in-line
|
Applicable pipe
diameter |
d 20 (mm)
DN 15
(mm)
DN 1/2
(inch) |
d 25 (mm)
DN 20
(mm)
DN 3/4
(inch) |
d 32 (mm)
DN 25
(mm)
DN 1
(inch) |
d 40 (mm)
DN 32
(mm)
DN 1-1/4
(inch) |
d 50 (mm)
DN 40
(mm)
DN 1-1/2
(inch) |
d 63 (mm)
DN 50
(mm)
DN 2
(inch) |
d 76 (mm)
DN 65
(mm)
DN 2-1/2
(inch) |
T-connector material
|
UPVC / PPH / PVDF (Made to order)/ 316L Stainless Steel |
Paddle material
|
PVDF or PPH with embedded magnet + ceramic bearing and shaft |
Applicable fluid
|
Various fluid with less impurities (<1%)
|
Applicable fluid maximum
dynamic viscosity
|
300cSt ** |
| Fluid in pipes temperature |
UPVC ：0~45°C (32~122°F)
PPH： 0-80
PVDF：0-100
ss316L：0-100 ** |
Device working environment temperature
|
-10~60°C (14~140°F)
|
| Velocity range |
± 0.3~10m/s Can extend to ± 0.15m ~ 10m/s
(Please note that the minimum flow value may vary slightly due to flow field factors specific to individual models.) |
| Flow range |
3.6-120.6
LPM |
5.7-188.5
LPM |
8.8-294.5
LPM |
13.6-452.9
LPM |
22.6-754.0
LPM |
36.8-1225.7
LPM |
65.4-2179.0
LPM |
0.95-28.4
gpm |
1.5-49.86
gpm |
2.32-80.81
gpm |
3.59-139.86
gpm |
5.97-190.36
gpm |
9.72-313.77
gpm |
17.27-526.29
gpm |
| Language |
English, Chinese
|
| Unit |
Metric: Liter, cubic meters, meters
Time: second, minute, hour, day
Imperial: foot, Cubic foot, Uk gallon, US gallon |
| Display |
16x3 3-Color Backlight 10-bit LCD display |
| Display update cycle |
1s
|
| Measurement accuracy |
±2.5% OR***
|
| Linearity |
± 0.5 % FS (>0.3m/s) |
Power supply
|
DC 24V 100mA(not included in the communication current) |
Power I/O Connector
|
6-pin connector
|

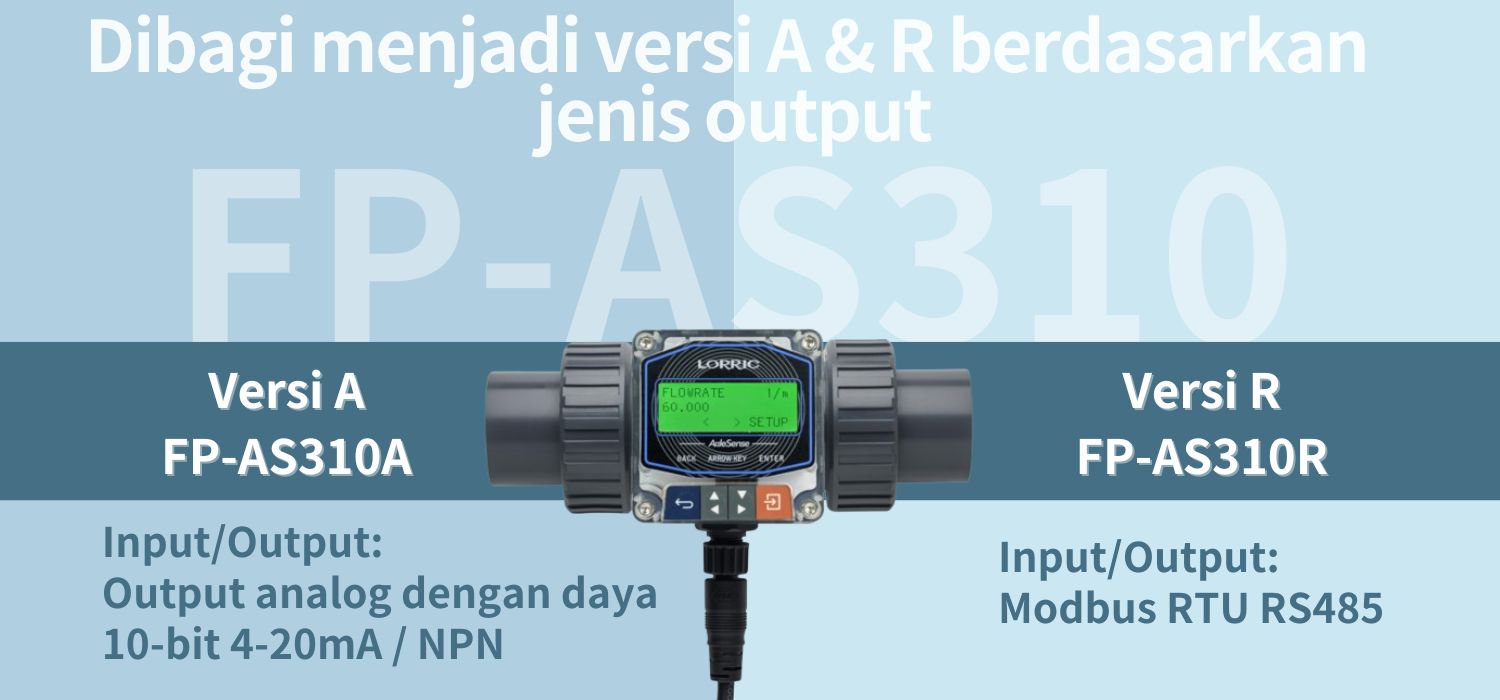

| Input/Output |
FP-AS310A (A version): Analog output with self-powered 10-bit 4-20mA / NPN
FP-AS310R (R version): Modbus RTU RS485
|
Protection circuit
|
Power reverse connection protection, Power surge protection |
Waterproof level
|
IP66 **** |
| Transient data |
Instantaneous flow rate
|
| Cumulative data |
Positive flow |
| Operation button |
4 Key touch buttons |
| Cable length |
2 meters long |
* The device is calibrated with water at normal temperature before leaving the factory. Using fluids with viscosities different from water may result in inaccurate calibration values and could affect the minimum and maximum flow rates.
** The working temperature range for each material is provided as a reference. Please use your design experience to make the final material selection.
*** The measurement accuracy is determined through laboratory testing with clean water at a controlled room temperature of 25 degrees Celsius. Actual usage conditions may introduce errors.
**** IP66 stands for 'Ingress Protection,' which signifies the degree of protection an electrical device's enclosure offers against foreign object intrusion. The IP rating format consists of two digits, expressed as IPXX. The first digit denotes the level of protection against solid objects, particularly dust resistance, while the second digit indicates the waterproof protection level. A higher number signifies better protection. In the case of IP66, the first '6' indicates full dust protection, while the second '6' means no harm from high-pressure water splashes.
| FP-P015 |
| Size |
Connector |
Spec |
Material |
| 1/2" |
Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| FP-P020 |
| Size |
Connector |
Spec |
Material |
| 3/4" |
| Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| FP-P025 |
| Size |
Connector |
Spec |
Material |
| 1" |
| Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| FP-PO32 |
| Size |
Connector |
Spec |
Material |
| 1-1/4" |
| Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| FP-P040 |
| Size |
Connector |
Spec |
Material |
| 1-1/2" |
| Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| FP-P050 |
| Size |
Connector |
Spec |
Material |
| 2" |
| Male Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Female Thread
|
BSPT |
UPVC / PVDF |
| NPT |
UPVC / PVDF |
| Socket
|
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| flange |
JIS 10K
|
UPVC
|
| FP-P065 |
| Size |
Connector |
Spec |
Material |
| 2-1/2" |
| Butt Fusion |
ISO |
PPH / PVDF |
| Socket Fusion |
ISO |
PPH / PVDF |
| Socket |
CNS |
UPVC |
| JIS |
UPVC |
| ANS |
UPVC
|
| DIN |
UPVC
|
| flange |
JIS 10K |
UPVC |
⚠Safety instructions:
1. After the warranty, the electronic components of the product will age due to time and operating environment. Under long-term use, please replace the new product according to the condition of the product.
2. Do not operate the product under an Orange or Red LCD Backlight for a long time. Product damage and related losses may occur.
Conditions and Disclaimer:
CONDITIONS: Equipment sold by LORRIC is not intended to be used, nor shall it be used:
(1) As a "Basic Component" under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) In medical applications or used on humans. Should any product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, LORRIC assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify LORRIC and hold LORRIC harmless from any liability or damage whatsoever arising out of the use of the product(s) in such a manner.
DISCLAIMER: Please be aware that magnetic fields or residual magnetism may cause interference to the flowmeter which may result in damage if they are used near the installation site. The purchaser must determine the applicability of the product for its desired use and assumes all risks in connection therewith. LORRIC assumes no responsibility or liability for any omissions or errors in connection with the use of its products.
The alarm used to detect paddle damage or loss is intended to assist on-site operators to find out what is causing equipment abnormalities. Because there are a myriad of variables involved with on-site operation and magnetic fields that come from other equipment, the alarm function is liable to fail. Please do not take the alarm function as a single source for monitoring your flow system. Please contact LORRIC for advanced help.

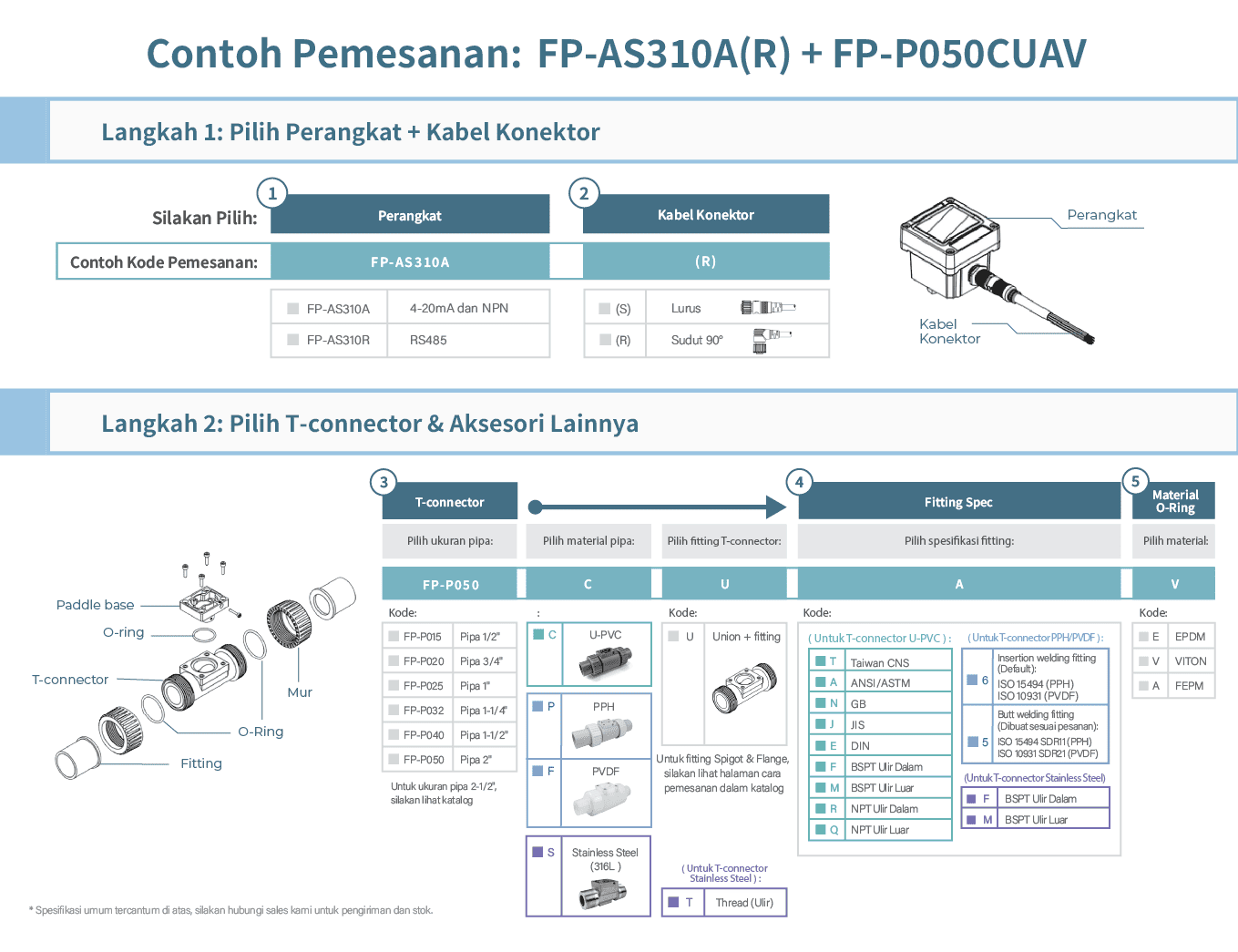

Silakan lakukan pemesanan berdasarkan informasi berikut
-
Set lengkap flow meter paddle wheel terdiri dari: Perangkat, set paddle, T-connector.
-
Pilih perangkat flow meter dan konektor kabel (Contoh kode pesanan: FP-AS310A(R))
- Pilih T-connector + set paddle berdasarkan ukuran, bahan, tipe, dan spesifikasi pipa (Contoh: FP-P050CUAV)
- Untuk memesan set lengkap, gabungkan kedua kode
- Contoh: FP-AS310A(R) + FP-P050CUAV
(Unduh katalog untuk info detail)
Size
| UPVC pipe - union diameter size(mm) |
|
A |
B
|
C
|
D
|
E
|
F
|
G
|
H
|
| ½" |
164 |
100 |
27.6 |
36 |
62.3 |
46.2 |
115.7 |
86.2 |
¾"
|
168 |
100 |
32.6 |
41.9 |
62.3 |
50.5 |
115.7 |
&85.7 |
1"
|
168 |
100 |
40.6 |
50 |
62.3 |
60 |
115.7 |
85.7 |
1¼"
|
210 |
114 |
50.2 |
59.6 |
65 |
75.6 |
127 |
89.2 |
1½"
|
218 |
120 |
56 |
65.7 |
70 |
83 |
134 |
92.5 |
2"
|
269.5 |
133.3 |
72 |
81 |
81 |
99.7 |
148.8 |
99 |
| UPVC pipe - spigot pipe diameter size(mm) |
|
A |
B
|
C
|
D
|
E
|
F
|
| 2½" |
160 |
70 |
76 |
92 |
106.5 |
152.5 |
| Device size(mm) |
| I |
J |
| 63 |
63 |
| Connector (mm) |
| K |
L |
| 47.8 |
30.0 |
Applications
Semikonduktor
Flow meter memantau pasokan cairan kimia dan cairan pengolahan air murni; nozzle mengontrol penyemprotan cairan kimia untuk menjaga kemurnian dan kestabilan proses produksi.
PCB
Flow meter dalam proses elektroplating, pengembangan, dan etsa PCB memonitor aliran cairan kimia dan pembersih yang tepat; nozel mengontrol pelapisan kimia dan pembilasan
AC
flow meter memantau dan mengontrol aliran air panas dan pendinginan, melacak penggunaan energi pendingin; nozzle menyeimbangkan aliran air dalam sistem ini, meningkatkan efisie
Industri Purifikasi air
Flowmeter memantau penggunaan air di setiap tahap untuk efisiensi proses, sedangkan nozzle mengoptimalkan semprotan air untuk meningkatkan efisiensi pemurnian dan mengurangi biaya
Pengolahan air limbah
Flowmeter memantau aliran air, meningkatkan efisiensi pengolahan, sementara nozzle menyemprotkan bahan kimia pada air limbah untuk memenuhi regulasi standar lingkungan.
