Flow Meter Paddle Wheel
Flow meter paddle wheel mengukur aliran dengan memanfaatkan aliran fluida untuk memutar baling ( Paddle wheel) , di mana kecepatan putarannya sebanding dengan laju aliran. Alat ini cocok untuk mengukur cairan dengan viskositas rendah seperti air, minyak, dan bahan kimia. Flow meter ini dikenal dengan akurasi yang moderat, memiliki respons cepat, serta instalasi dan perawatan yang mudah. Karena alat ini bersentuhan langsung dengan cairan, pembersihan dan pemeriksaan rutin perlu diperlukan.

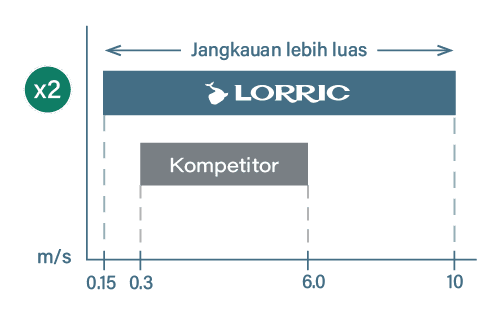

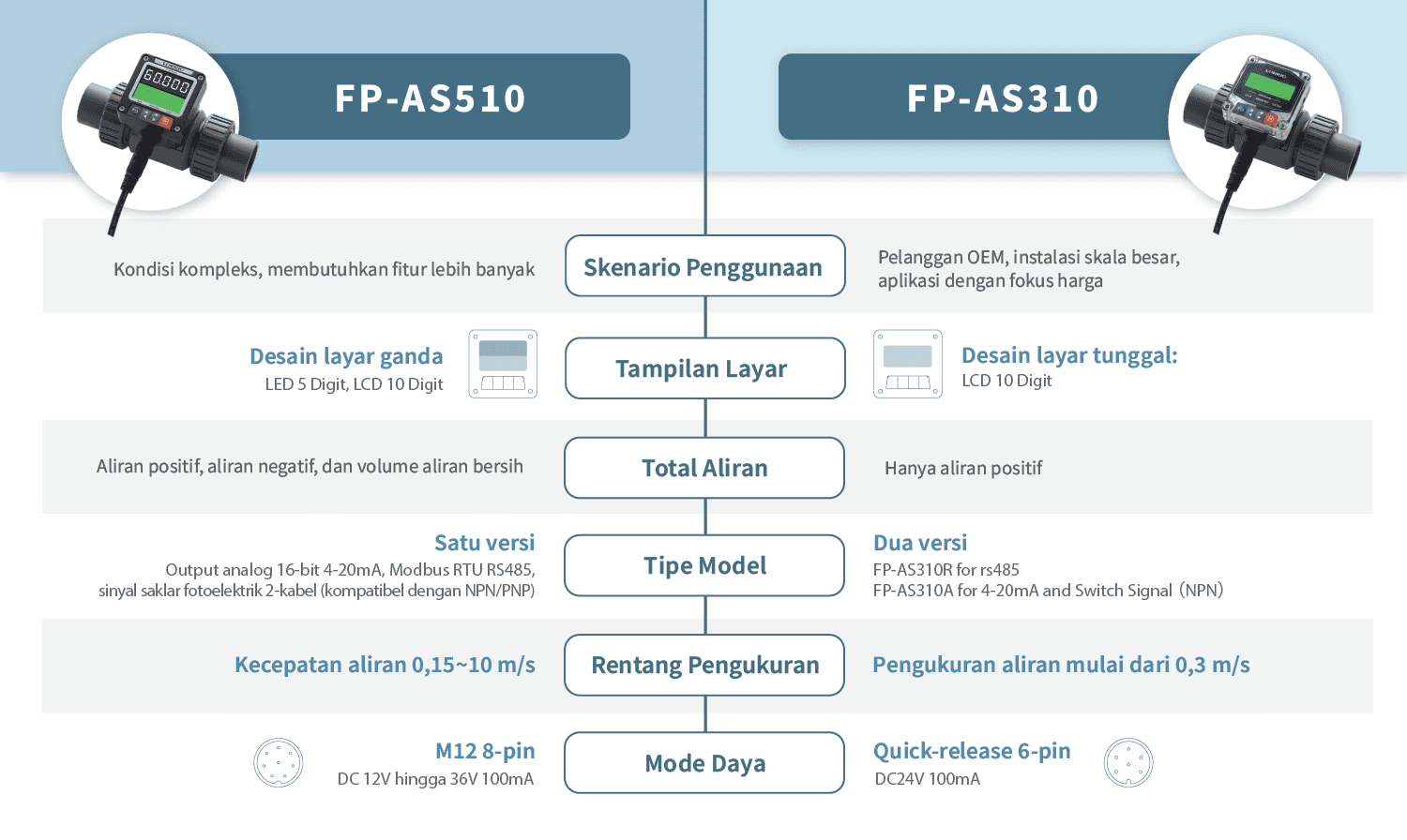

Rentang Deteksi yang Lebih Luas
Flow meter paddle wheel tradisional sering memiliki kesalahan signifikan atau tidak mampu mendeteksi aliran yang pelan di dalam pipa. Tingkatkan kemampuan pengukuran aliran Anda dengan teknologi AxleSense dari LORRIC! Tidak perlu lagi khawatir tentang pembacaan yang tidak akurat atau aliran rendah yang terlewatkan. Inovasi canggih kami memastikan akurasi yang lebih baik dan rentang pengukuran lebih luas, mulai dari 0,15 m/s hingga 10 m/s—dua kali lipat dari merek pesaing.
Deteksi Aliran Dua Arah
Teknologi Paten AxleSense memungkinkan deteksi aliran dua arah dengan mengukur arah rotasi paddlewheel, meng keterbatasan merek lain yang menggunakan sensor Hall effect yang hanya dapat mendeteksi rotasi tanpa arah. Teknologi ini juga menyediakan informasi arah aliran fluida, perhitungan aliran positif/negatif/neto, serta riwayat akumulasi harian selama 14 hari, yang membantu mengoptimalkan operasi dan meningkatkan efisiensi manajemen di lokasi.

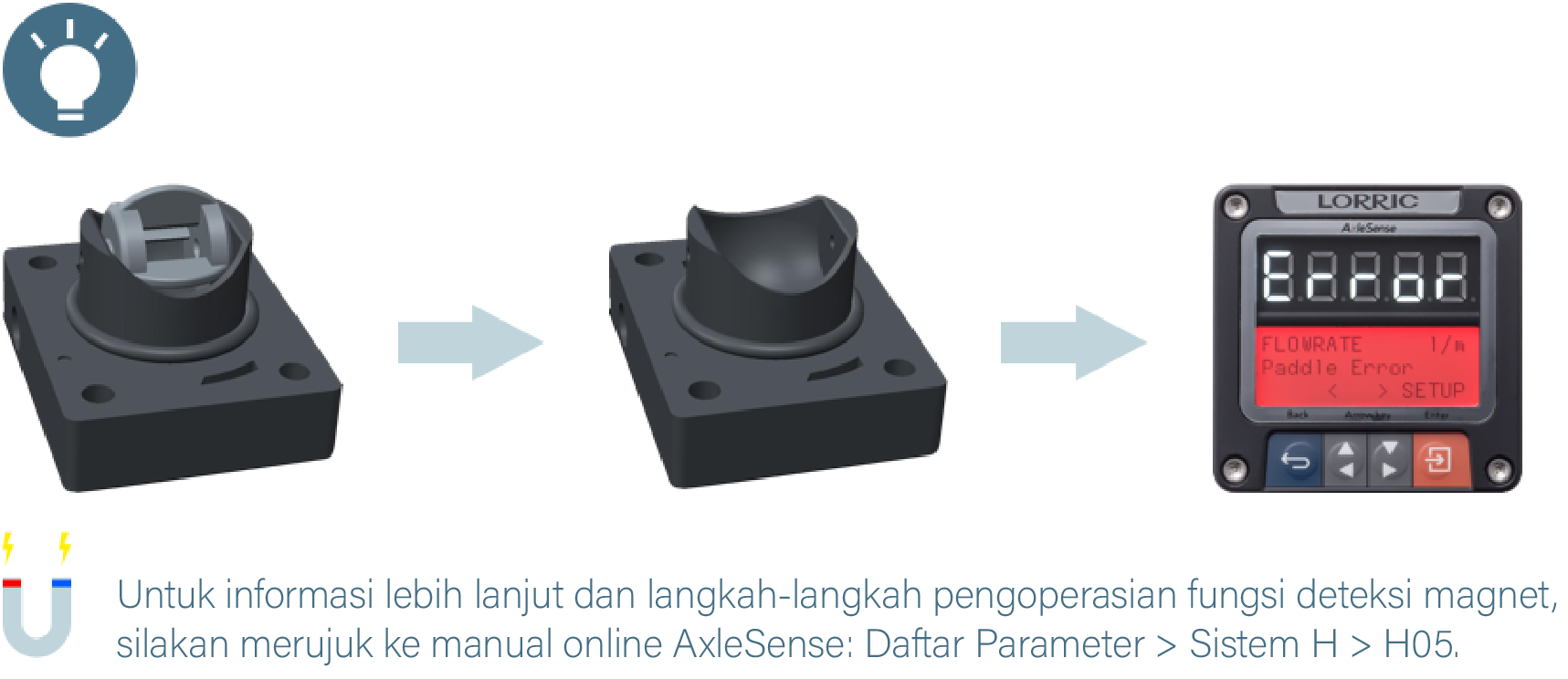

Deteksi Cerdas Real-Time
Memberikan peringatan jelas tentang anomali pada paddle, yang penting untuk integrasi Industri 4.0. Dengan cepat mengatasi masalah aliran dengan menyinkronkan sistem manajemen pabrik. Sensor magnetik bawaan memeriksa kekuatan magnet pada paddlewheel, memastikan akurasi aliran yang konsisten melalui pemantauan rutin dan penggantian terjadwal.
Sambungan Pipa Berkualitas Premium: Dibuat untuk Tahan Lama dan Sempurna Tanpa Kebocoran
LORRIC mempersembahkan sambungan pipa berkualitas tinggi yang terbuat dari material Extruded Rod. Tidak hanya tahan lama, sambungan ini juga menawarkan ukuran yang stabil dan andal. Dengan dinding pipa yang halus dan bebas gelombang, gangguan dapat diminimalisir, memastikan pengukuran yang lebih presisi. Proses pengolahan plastik kami menghasilkan kekuatan yang lebih unggul dibandingkan produk yang dicetak injeksi, tanpa masalah flash, short shots, atau garis sambungan yang mengganggu.

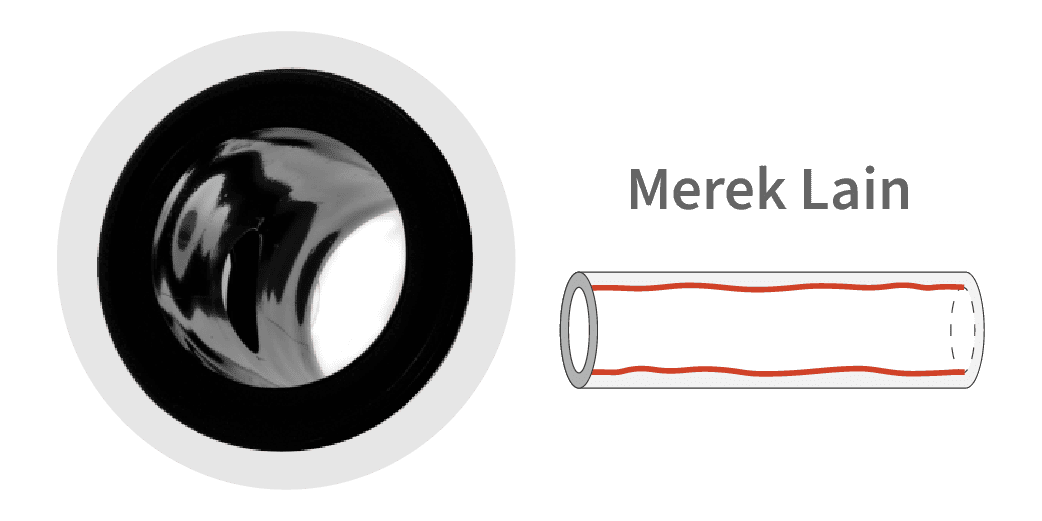

Metode pencetakan injeksi plastik tradisional sering kali menghasilkan sambungan tiga arah dengan permukaan tidak rata dan pola gelombang di dinding dalam pipa. Penyusutan lebih besar di area tebal akibat tekanan pada plastik cair menyebabkan aliran fluida yang tidak stabil dan perhitungan yang kurang akurat. Sambungan ini juga rentan terhadap masalah seperti flash, short shots, dan garis las lemah, membuatnya lebih mudah rusak.
Sebaliknya, sambungan tiga arah dari LORRIC diproduksi dengan teknik canggih, memastikan kinerja halus dan andal. Pilih LORRIC untuk sambungan pipa yang tahan lama dan presisi, sehingga Anda dapat fokus pada efisiensi operasi Anda!

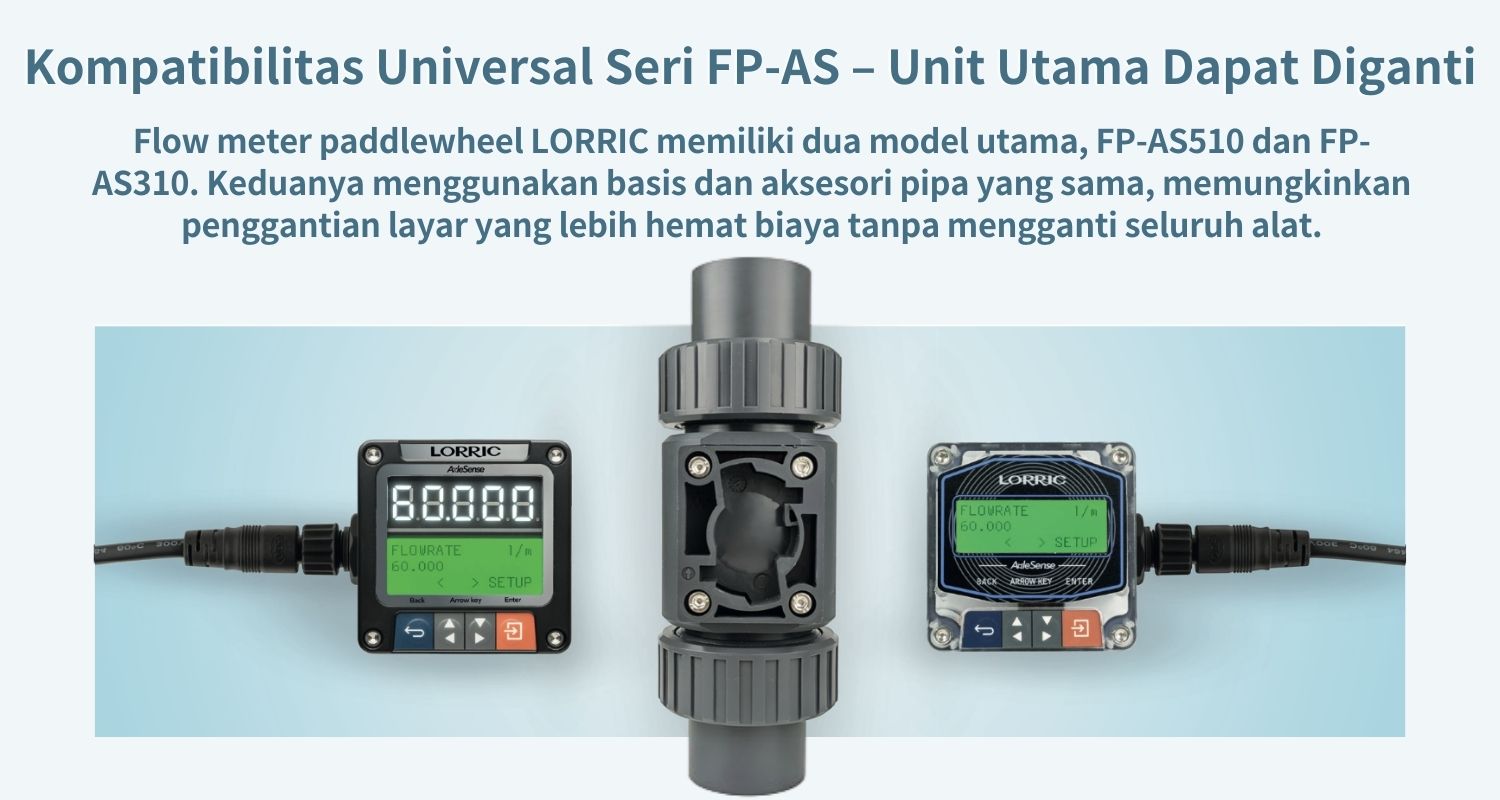

Layar LCD/LED Ganda untuk Memantau Aliran dan Status Peralatan dengan Mudah
- Layar LED besar dengan tingkat kecerahan tinggi memudahkan pembacaan angka aliran dari jarak jauh.
- Layar LCD dilengkapi lampu di latar belakang dan lampu peringatan tiga warna untuk memudahkan memantau kondisi flow meter secara visual dalam kondisi normal maupun tidak normal.
Fleksibilitas Tampilan Horizontal maupun Vertikal
Layar dapat disesuaikan untuk orientasi vertikal atau horizontal, memudahkan pemantauan aliran dalam berbagai situasi pipa.
Learn more: Cara Memasang Paddle Wheel Flow Meter
Beragam Output Komunikasi
FU-ES mendukung berbagai mode komunikasi, termasuk output analog bertenaga mandiri 16-bit 4-20mA, Modbus RTU RS485, dan sinyal saklar fotoelektrik 2-kawat (kompatibel dengan NPN/PNP). Tanpa perlu modul komunikasi tambahan—semua sudah ada di sini!
Learn more:
•Apa itu Analog Output
•Apa itu Modbus RTU RS485
•Apa itu Switch Signal

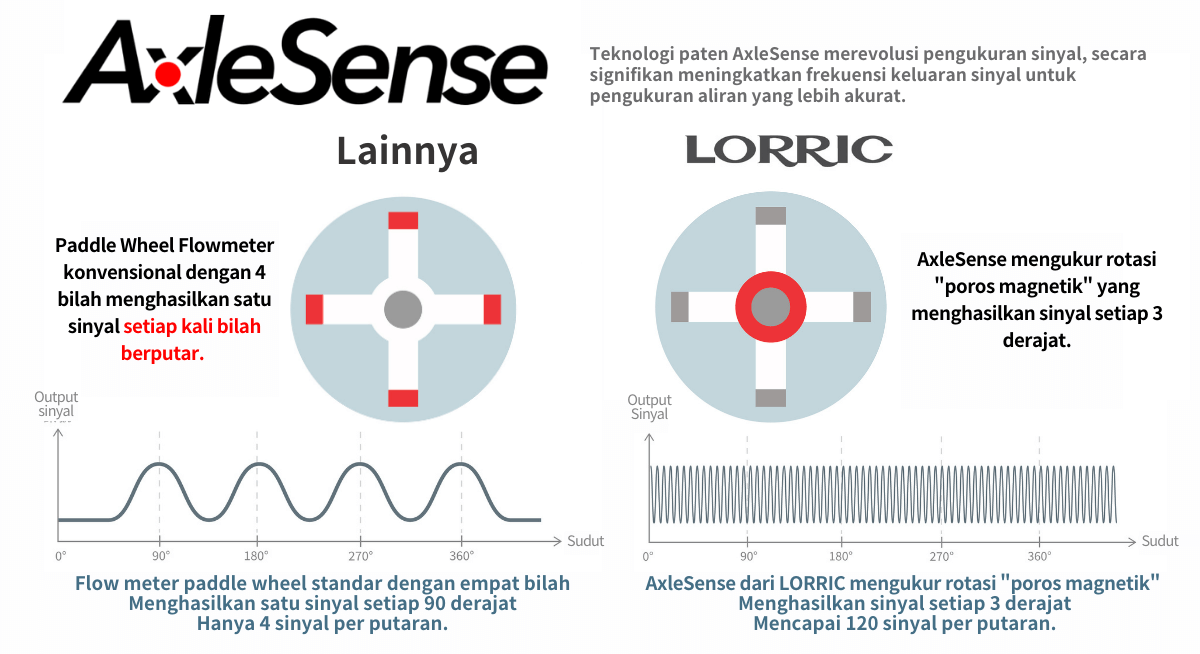

Teknologi Pulse 2.0
Flow meter paddle wheel tradisional mengandalkan nilai K yang tetap untuk semua rentang pengukuran, yang mungkin menyebabkan kesalahan perhitungan, terutama saat kecepatan aliran bervariasi. Contohnya, flow meter biasa di pipa DN15 mengeluarkan satu sinyal setiap 90°, di mana 106,55 pulse setara dengan 1L, tanpa memperhatikan seberapa cepat aliran tersebut.
Dengan Teknologi Pulse 2.0 dari LORRIC yang didukung oleh AxleSense, setiap 0,01L akan menghasilkan satu pulse. Teknologi ini dapat mengurangi kesalahan pengukuran karena dapat menyesuaikan dengan kecepatan aliran yang berbeda.
Perbandingan Flow Meter di Pasaran
Jenis Flow Meter |
Variable area flow meter |
Flow Meter Paddle wheel |
Flow Meter Paddle wheel LORRIC |
Electromagnetic flowmeter |
Ultrasonic flow meters |
Kehilangan Aliran di Pipa
|
Rendah
|
Rendah
|
Rendah
|
Tidak ada |
Tidak ada |
Instalasi Non-Invasif |
Tidak |
Tidak |
Tidak |
Tidak |
Ya |
Presisi |
Sedang |
Sedang |
Sedang |
Tinggi |
Tinggi |
Deteksi Aliran Dua Arah
|
Tidak |
Tidak |
Ya |
Ya
|
Ya |
Kemungkinan Penyumbatan |
Mungkin |
Mungkin |
Mungkin |
Tidak |
Tidak |
Jenis cairan |
Udara / Cairan |
Cairan |
Cairan |
Cairan Konduktif |
Cairan |
Biaya |
Biaya terendah untuk pipa diameter kecil, meningkat dengan diameter pipa |
Biaya rendah, meningkat seiring dengan bertambahnya diameter pipa
|
Biaya rendah, meningkat seiring dengan bertambahnya diameter pipa |
Biaya tinggi, meningkat seiring dengan bertambahnya diameter pipa |
Biaya sedang, tidak meningkat dengan diameter pipa
|
|
FP-P015 |
FP-P020 |
FP-P025 |
FP-P032 |
FP-P040 |
FP-P050 |
FP-P065 |
Installation method
|
in-line
|
Applicable pipe
diameter |
d 20 (mm)
DN 15
(mm)
DN 1/2
(inch) |
d 25 (mm)
DN 20
(mm)
DN 3/4
(inch) |
d 32 (mm)
DN 25
(mm)
DN 1
(inch) |
d 40 (mm)
DN 32
(mm)
DN 1-1/4
(inch) |
d 50 (mm)
DN 40
(mm)
DN 1-1/2
(inch) |
d 63 (mm)
DN 50
(mm)
DN 2
(inch) |
d 76 (mm)
DN 65
(mm)
DN 2-1/2
(inch) |
T-connector material
|
UPVC / PPH / PVDF (Made to order)/ 316L Stainless Steel |
Paddle material
|
PVDF or PPH with embedded magnet + ceramic bearing and shaft |
Applicable fluid
|
Various fluid with less impurities (<1%)
|
Applicable fluid maximum
dynamic viscosity
|
300cSt ** |
Fluid in pipes temperature |
UPVC :0~45°C (32~122°F)
PPH: 0-80
PVDF:0-100
ss316L:0-100 ** |
Device working environment temperature
|
-10~60°C (14~140°F)
|
Velocity range |
± 0.3~10m/s Can extend to ± 0.15m ~ 10m/s
(Please note that the minimum flow value may vary slightly due to flow field factors specific to individual models.) |
Flow range |
1.8-120.6
LPM |
2.9-188.5
LPM |
4.4-294.5
LPM |
6.8-452.9
LPM |
11.3-754.0
LPM |
18.4-1225.7
LPM |
32.7-2179.0
LPM |
0.47-28.4
gpm |
0.83-49.86
gpm |
1.35-80.81
gpm |
2.33-139.86
gpm |
3.17-190.36
gpm |
5.23-313.77
gpm |
8.77-526.29
gpm |
Language |
English, Traditional Chinese, Simplified Chinese (Others customizable)
|
Unit |
Metric: Liter, cubic meters, meters
Time: second, minute, hour, day
Imperial: foot, Cubic foot, Uk gallon, US gallon |
Display |
Double screen display :Large 5-Digit LED, 16x3 3-Color Backlight LCD display |
Display update cycle |
0.5s、1s
|
Display resolution |
Maximum resolution 0.0001 (fineest) |
Measurement accuracy |
±2.5% OR***
|
Linearity |
± 0.5 % FS (>0.3m/s) |
Reproducibility
|
± 0.4 % |
Power supply
|
DC 12V to 36V 100mA |
Power I/O Connector
|
M12 8-pin connector (2 meters long)
|
Input/Output |
Analog output with self-powered 16-bit 4-20mA
Modbus RTU RS485
Two-wire optocoupler switch signal (with 2 meters long signal line) |
Consumption current |
<200mA@12V when starting up and working stably (not included in the communication current) |
Protection circuit
|
Power reverse connection protection, Power surge protection |
Waterproof level
|
IP66 **** |
Transient data |
Instantaneous flow rate, instantaneous flow rate
|
Cumulative data |
Volume accumulation (positive flow\negative flow\net flow)
Accumulated daily volume in the past 14 days (enable the date function after installing the date battery) |
Display digits
|
ED 5 Digits (4 digits when negative value)
LCD 10 Digits (Not including sign and decimal point) |
Operation button |
4 Key touch buttons |
Calendar function battery |
CR2032 |
* The device is calibrated with water at normal temperature before leaving the factory. Using fluids with viscosities different from water may result in inaccurate calibration values and could affect the minimum and maximum flow rates.
** The working temperature range for each material is provided as a reference. Please use your design experience to make the final material selection.
*** The measurement accuracy is determined through laboratory testing with clean water at a controlled room temperature of 25 degrees Celsius. Actual usage conditions may introduce errors.
**** IP66 stands for 'Ingress Protection,' which signifies the degree of protection an electrical device's enclosure offers against foreign object intrusion. The IP rating format consists of two digits, expressed as IPXX. The first digit denotes the level of protection against solid objects, particularly dust resistance, while the second digit indicates the waterproof protection level. A higher number signifies better protection. In the case of IP66, the first '6' indicates full dust protection, while the second '6' means no harm from high-pressure water splashes.
FP-P015 |
Size |
Connector |
Spec |
Material |
1/2" |
Male Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Female Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Socket
|
CNS |
UPVC |
JIS |
UPVC |
ANS |
UPVC
|
DIN |
UPVC
|
Butt Fusion |
ISO |
PPH / PVDF |
Socket Fusion |
ISO |
PPH / PVDF |
FP-P020 |
Size |
Connector |
Spec |
Material |
3/4" |
Male Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Female Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Socket
|
CNS |
UPVC |
JIS |
UPVC |
ANS |
UPVC
|
DIN |
UPVC
|
Butt Fusion |
ISO |
PPH / PVDF |
Socket Fusion |
ISO |
PPH / PVDF |
FP-P025 |
Size |
Connector |
Spec |
Material |
1" |
Male Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Female Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Socket
|
CNS |
UPVC |
JIS |
UPVC |
ANS |
UPVC
|
DIN |
UPVC
|
Butt Fusion |
ISO |
PPH / PVDF |
Socket Fusion |
ISO |
PPH / PVDF |
FP-PO32 |
Size |
Connector |
Spec |
Material |
1-1/4" |
Male Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Female Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Socket
|
CNS |
UPVC |
JIS |
UPVC |
ANS |
UPVC
|
DIN |
UPVC
|
Butt Fusion |
ISO |
PPH / PVDF |
Socket Fusion |
ISO |
PPH / PVDF |
FP-P040 |
Size |
Connector |
Spec |
Material |
1-1/2" |
Male Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Female Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Socket
|
CNS |
UPVC |
JIS |
UPVC |
ANS |
UPVC
|
DIN |
UPVC
|
Butt Fusion |
ISO |
PPH / PVDF |
Socket Fusion |
ISO |
PPH / PVDF |
FP-P050 |
Size |
Connector |
Spec |
Material |
2" |
Male Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Female Thread
|
BSPT |
UPVC / PVDF |
NPT |
UPVC / PVDF |
Socket
|
CNS |
UPVC |
JIS |
UPVC |
ANS |
UPVC
|
DIN |
UPVC
|
Butt Fusion |
ISO |
PPH / PVDF |
Socket Fusion |
ISO |
PPH / PVDF |
flange |
JIS 10K |
UPVC
|
FP-P065 |
Size |
Connector |
Spec |
|
Material |
2-1/2" |
Butt Fusion |
ISO |
|
PPH / PVDF |
Socket Fusion |
ISO |
|
PPH / PVDF |
Socket |
CNS |
|
UPVC |
JIS |
|
UPVC |
ANS |
|
UPVC
|
DIN |
|
UPVC
|
flange |
JIS 10K |
|
UPVC |
⚠Safety instructions:
1. After the warranty, the electronic components of the product will age due to time and operating environment. Under long-term use, please replace the new product according to the condition of the product.
2. Do not operate the product under an Orange or Red LCD Backlight for a long time. Product damage and related losses may occur.
Conditions and Disclaimer:
CONDITIONS: Equipment sold by LORRIC is not intended to be used, nor shall it be used:
(1) As a "Basic Component" under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) In medical applications or used on humans. Should any product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, LORRIC assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify LORRIC and hold LORRIC harmless from any liability or damage whatsoever arising out of the use of the product(s) in such a manner.
DISCLAIMER: Please be aware that magnetic fields or residual magnetism may cause interference to the flowmeter which may result in damage if they are used near the installation site. The purchaser must determine the applicability of the product for its desired use and assumes all risks in connection therewith. LORRIC assumes no responsibility or liability for any omissions or errors in connection with the use of its products.
The alarm used to detect paddle damage or loss is intended to assist on-site operators to find out what is causing equipment abnormalities. Because there are a myriad of variables involved with on-site operation and magnetic fields that come from other equipment, the alarm function is liable to fail. Please do not take the alarm function as a single source for monitoring your flow system. Please contact LORRIC for advanced help.

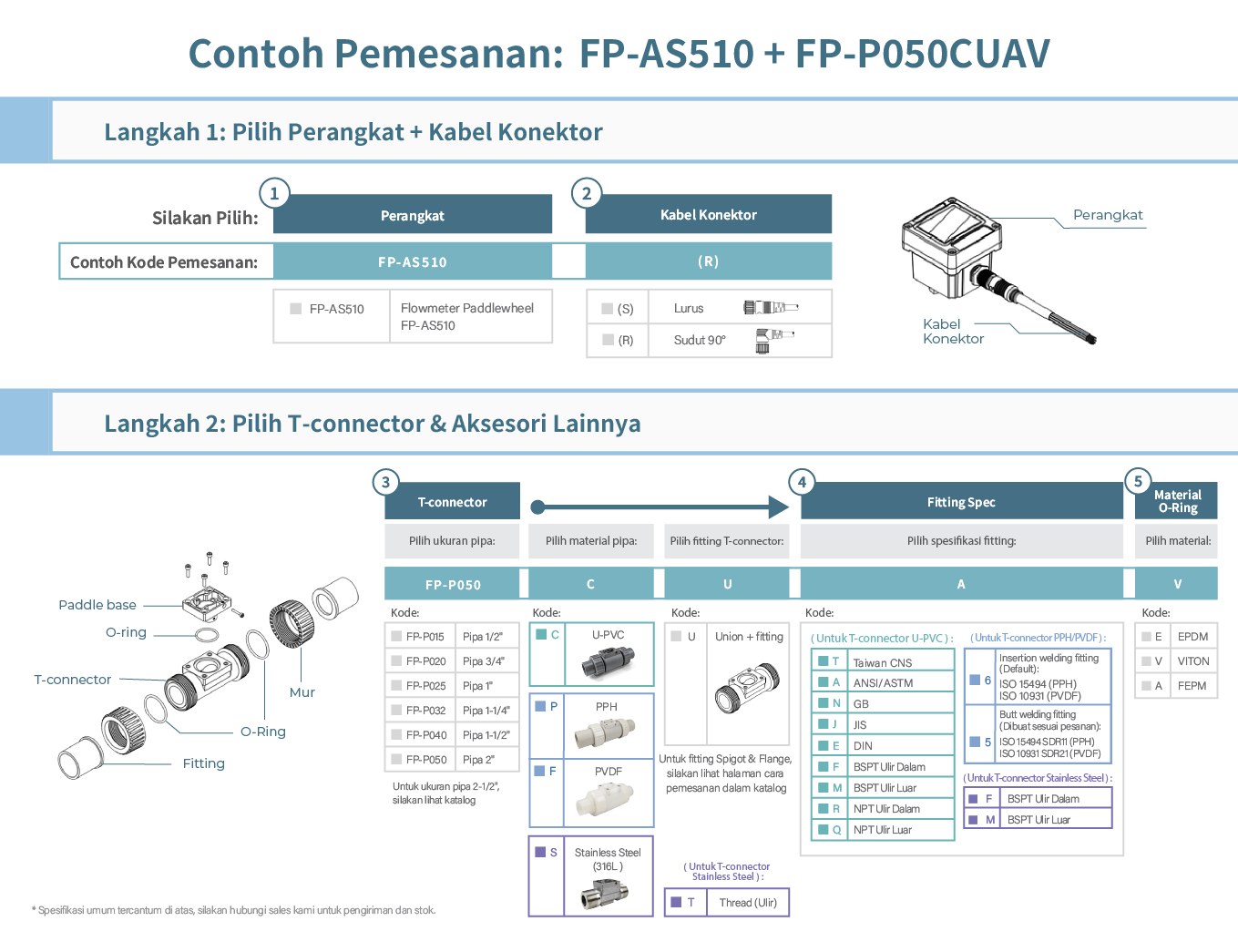

Please place your order according below information.
-
Paddle wheel flowmeter contains: Device, Paddle set, T-connector. Users need to check the material and size of the T-connector and paddle set. • Please refer to following order example for placing order to LORRIC.
-
Please refer to following order example for placing order to LORRIC.
- T-connector + paddle set (T-connector is generally shipped with a paddle set.)
Order example and corresponding description of paddle wheel flowmeter |
Serial Number
|
Description |
FP-P020CSJV |
3/4" UPVC T-connector JIS Spigot fitting,Viton oring + UPVC paddle base,PVDF paddle,Viton oring + FP-W010CFV |
FP-P050CUTV
|
2" UPVC T-connector Union Taiwan CNS fitting,Viton oring + UPVC paddle base,PVDF paddle,Viton oring + FP-W010CFV
|
FP-P020CUEE
|
3/4" UPVC T-connector Union DIN fitting,EPDM oring + UPVC paddle base,PVDF paddle,EPDM oring + FP-W010CFE
|
Size
UPVC pipe - union diameter size(mm) |
|
A |
B
|
C
|
D
|
E
|
F
|
G
|
H
|
½" |
164 |
100 |
27.6 |
36 |
62.3 |
46.2 |
115.7 |
86.2 |
¾"
|
168 |
100 |
32.6 |
41.9 |
62.3 |
50.5 |
115.7 |
&85.7 |
1"
|
168 |
100 |
40.6 |
50 |
62.3 |
60 |
115.7 |
85.7 |
1¼"
|
210 |
114 |
50.2 |
59.6 |
65 |
75.6 |
127 |
89.2 |
1½"
|
218 |
120 |
56 |
65.7 |
70 |
83 |
134 |
92.5 |
2"
|
269.5 |
133.3 |
72 |
81 |
81 |
99.7 |
148.8 |
99 |
UPVC pipe - spigot pipe diameter size(mm) |
|
A |
B
|
C
|
D
|
E
|
F
|
2½" |
160 |
70 |
76 |
92 |
106.5 |
152.5 |
Device size(mm) |
I |
J |
63 |
63 |
Connector (mm) |
K |
L |
47.8 |
30.0 |
Applications
Semiconductor
Flow meter memantau pasokan cairan kimia dan cairan pengolahan air murni; nozzle mengontrol penyemprotan cairan kimia untuk menjaga kemurnian dan kestabilan proses produksi.
PCBs
Flow meters in PCB electroplating, developing, and etching processes monitor precise chemical and cleaning fluid flow; nozzles control chemical coating and rinsing
Wastewater Treatment
Flow meters monitor the flow of inlet and outlet water, enhancing treatment efficiency and accuracy; nzzles spray chemicals in wastewater treatment, meeting environmental standards
Purified Water Industries
Flow meters monitor water usage at each stage to control process efficiency; nozzles optimize water spray to ensure water purification efficiency and reduce treatment costs
Car Wash
Flow meters ensure cleaning efficiency and reduce water wastage; nozzles uniformly distribute water, enhancing the cleaning effect while simultaneously reducing water consumption
AC
Flow meters monitor and control cooling and hot water flows, tracking chiller energy use; nozzles balance water flow in these systems, enhancing efficiency
