FP-AS510 Patent AxleSense Paddle wheel Flow Meter

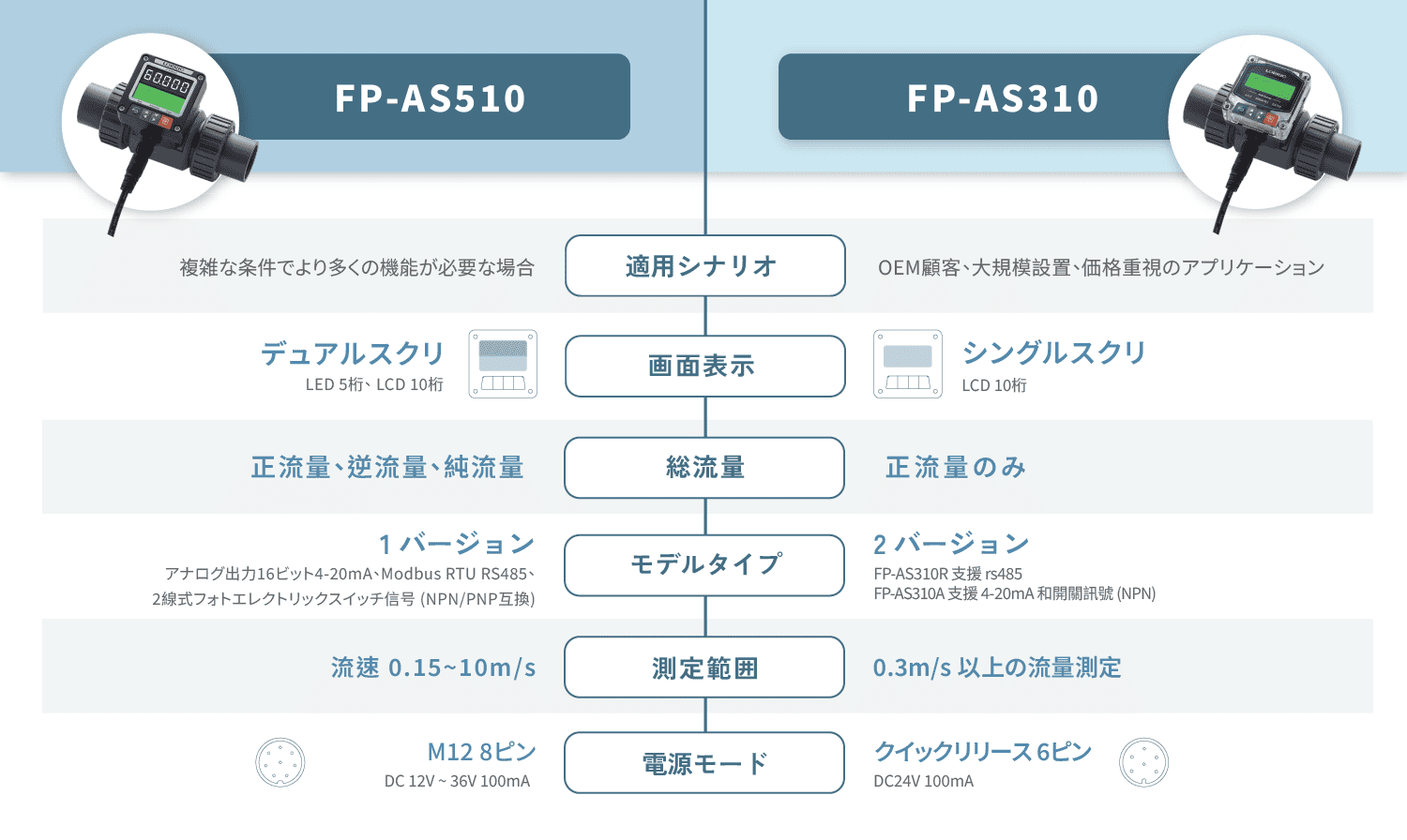

The FP-AS paddlewheel flow meter features patented AxleSense technology, SGS tested, RoHS compliant, with double the measuring range of other brands. It detects paddle loss, preventing zero-flow issues, and includes large indicator lights and a big screen for easier on-site supervision.

Pipe size：	DN15-65 (½" to 2-½")
Fluid temperature：	0~50°C (32~122°F)
	> 50 °, please choose PPH, PVDF, SS316
Applicable fluid：	Clear water, oil or
	chemicals with less impurities
Measure accuracy：	±2.5% OR
Waterproof level：	IP66
Power demand：	DC 12V to 36V 100mA
Displayed Flow Rate：	Instantaneous / Totalized Flow Rate
Input/Output：	Analog output 16bit 4-20mA
	Modbus RTU RS485
	2-wire photoelectric switch signal
	(compatible with NPN/PNP)

File download

Inquire now

Paddle Wheel Flow Meter

Paddle wheel flow meter measure flow by using fluid to drive the rotation of blades, with the rotational speed proportional to the flow rate. Suitable for measuring low-viscosity liquids like water, oil, and chemicals, these meters are characterized by moderate accuracy, quick response, and easy installation and maintenance. Due to direct contact with the liquid, regular cleaning and inspection are required.

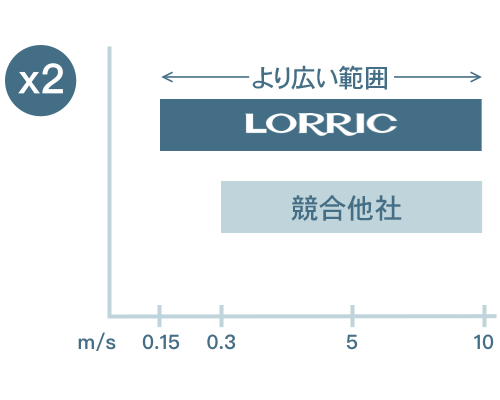

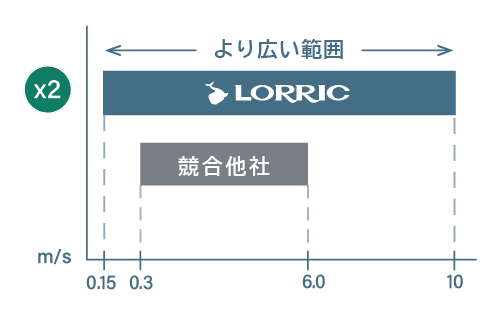

Wider Detection Range

Traditional paddle wheel flow meter often have significant errors or cannot detect flow at low flow rates in the fluid inside the pipe. Upgrade your flow measurement capabilities with LORRIC's AxleSense technology! No more worries about inaccurate readings or missed low flow rates. Our advanced innovation ensures enhanced accuracy and a broader measurement range, spanning from 0.15 m/s to 10 m/s—double that of competing brands.

Bi-Directional Flow Detection

AxleSense's patented technology enables bidirectional flow detection by measuring paddlewheel rotation direction, overcoming the limitations of other brands that use Hall effect sensors, which can detect rotation but not direction. This technology also provides fluid flow direction information, positive/negative/net flow calculations, and a 14-day history of daily accumulations, optimizing operations and enhancing on-site management efficiency.

Real-Time Smart Detection

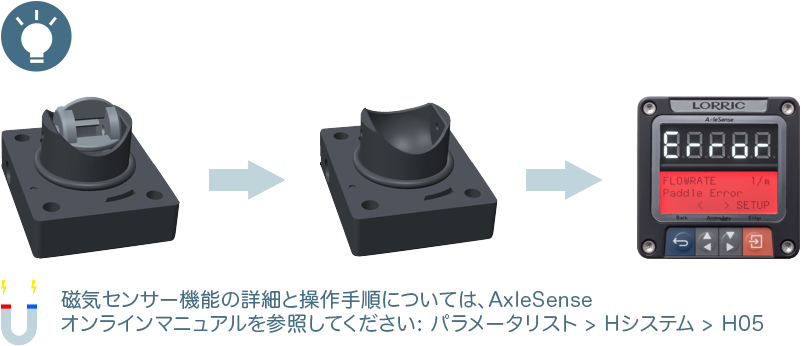

Provides clear paddle anomaly alerts, essential for Industry 4.0 integration. It quickly resolves flow issues by syncing with factory management systems. Built-in magnetic sensing checks paddlewheel magnet strength, ensuring consistent flow accuracy through regular monitoring and scheduled replacements.

Premium-grade pipe fitting: Built to last and leak-free perfection

Experience the pinnacle of durability with LORRIC's precision-turned pipe fittings. Crafted from extruded rod material, these fittings offer unwavering size consistency and a flawless, wave-free inner surface. The result? Reduced disturbances and higher measurement precision. With superior strength compared to injection-molded alternatives, our machined plastic pipe fittings eliminate concerns like flash, short shots, and weld lines. Say goodbye to compromises and embrace the reliability and quality you deserve.

Traditional plastic injection molding methods often result in uneven surfaces and wave-like patterns on the inner walls of tee fittings. This is because the melted plastic is compressed, causing greater shrinkage in thicker areas. As a consequence, the pipe's cross-sectional area becomes inconsistent, leading to unstable fluid flow and inaccurate calculations. Additionally, injection-molded fittings are prone to issues like flash, short shots, and weak weld lines, making them more susceptible to damage over time. In contrast, LORRIC's tee fittings are manufactured using a different approach, ensuring smooth and reliable performance while overcoming the limitations of conventional techniques.

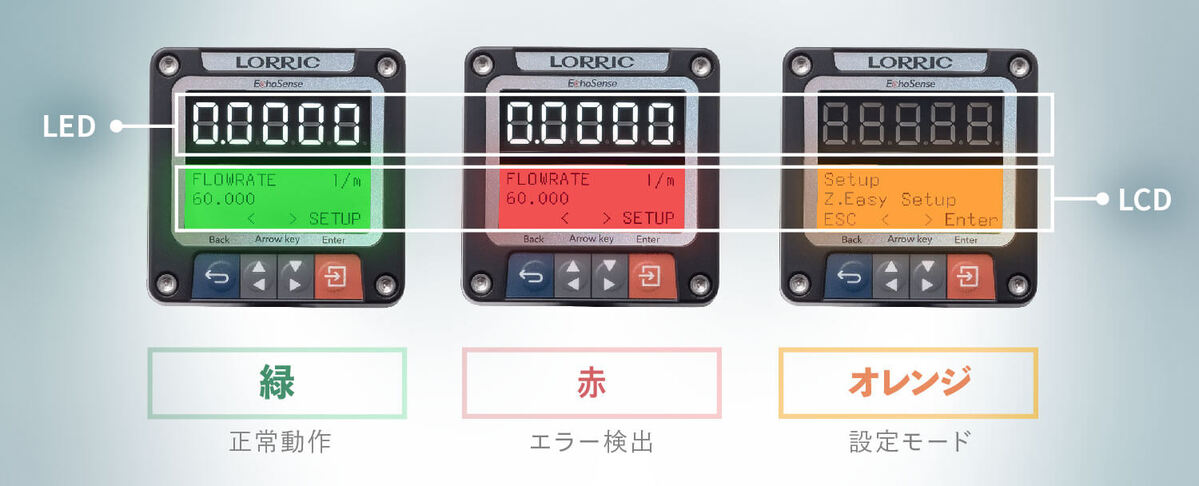

Dual LCD/LED screens for easy traffic and equipment status monitoring

High-brightness large LED screen for easy long-distance flow number reading.
LCD screen backlight with three-color warning light signal for visual monitoring of flow meter's normal and abnormal conditions.

Screen can be switched according to vertical or horizontal piping

Adjust the viewing direction of the screen according to the piping direction, which is convenient for flow monitoring in different piping situations.
Learn more: How to Install Paddle Wheel Flow Meter

Multiple Communication Outputs

FU-ES supports various communication modes like Analog output with self-powered 16-bit 4-20mA, Modbus RTU RS485, 2-wire photoelectric switch signal (compatible with NPN/PNP). No need for additional communication modules – we've got you covered!
Learn more:
•What is Analog Output
•What is Modbus RTU RS485
•What is Switch Signal

Pulse 2.0 Technology

Traditional pulse output paddle wheel flow meter use a constant K-value across the entire range, leading to higher errors, especially at varying flow rates. For instance, a conventional paddle wheel flow meter in a DN15 pipe outputs one signal every 90 degrees, with 106.55 pulses equaling 1L, regardless of flow speed.
LORRIC’s exclusive Pulse 2.0, powered by AxleSense technology, outputs one pulse per 0.01L, reducing errors by adjusting for different flow speeds.

Comparison with other principle flowmeters on the market

	Variable area flowmeter	Paddle wheel flowmeters	LORRIC's Paddle wheel flowmeter	Electromagnetic flowmeter	Ultrasonic flowmeters
Pipeline loss	Low	Low	Low	No	No
Non-invasive install	No	No	No	No	Yes123
Precision	Middle	Middle	Middle	High	High
Bidirectional flow detectable	No	No	Yes	Yes123	Yes
Blockages	Possible	Possible	Possible	Not possible	Not possible
Applicable fluid	Air / Liquid	Liquid	Liquid	Conductive liquid	Liquid
Cost	Lowest-costs in small diameter pipe, cost increases with pipe diameter	Low-costs, cost increases with pipe diameter	Low-costs, cost increases with pipe diameter	High-costs, cost increases with pipe diameter	Middle-costs Cost does not increase with pipe diameter

Spec

	FP-P015		FP-P020	FP-P025	FP-P032	FP-P040	FP-P050	FP-P065
Installation method	in-line
Applicable pipe diameter	d 20 (mm) DN 15 (mm) DN 1/2 (inch)	d 25 (mm) DN 20 (mm) DN 3/4 (inch)		d 32 (mm) DN 25 (mm) DN 1 (inch)	d 40 (mm) DN 32 (mm) DN 1-1/4 (inch)	d 50 (mm) DN 40 (mm) DN 1-1/2 (inch)	d 63 (mm) DN 50 (mm) DN 2 (inch)	d 76 (mm) DN 65 (mm) DN 2-1/2 (inch)
T-connector material	UPVC / PPH / PVDF (Made to order)/ 316L Stainless Steel
Paddle material	PVDF or PPH with embedded magnet + ceramic bearing and shaft
Applicable fluid	Various fluid with less impurities (<1%)
Applicable fluid maximum dynamic viscosity	300cSt **
Fluid in pipes temperature	UPVC ：0~45°C (32~122°F) PPH： 0-80 PVDF：0-100 ss316L：0-100 **
Device working environment temperature	-10~60°C (14~140°F)
Velocity range	± 0.3~10m/s Can extend to ± 0.15m ~ 10m/s (Please note that the minimum flow value may vary slightly due to flow field factors specific to individual models.)
Flow range	1.8-120.6 LPM		2.9-188.5 LPM	4.4-294.5 LPM	6.8-452.9 LPM	11.3-754.0 LPM	18.4-1225.7 LPM	32.7-2179.0 LPM
Flow range	0.47-28.4 gpm		0.83-49.86 gpm	1.35-80.81 gpm	2.33-139.86 gpm	3.17-190.36 gpm	5.23-313.77 gpm	8.77-526.29 gpm
Language	English, Traditional Chinese, Simplified Chinese (Others customizable)
Unit	Metric: Liter, cubic meters, meters Time: second, minute, hour, day Imperial: foot, Cubic foot, Uk gallon, US gallon
Display	Double screen display :Large 5-Digit LED, 16x3 3-Color Backlight LCD display
Display update cycle	0.5s、1s
Display resolution	Maximum resolution 0.0001 (fineest)
Measurement accuracy	±2.5% OR***
Linearity	± 0.5 % FS (>0.3m/s)
Reproducibility	± 0.4 %
Power supply	DC 12V to 36V 100mA
Power I/O Connector	M12 8-pin connector (2 meters long)
Input/Output	Analog output with self-powered 16-bit 4-20mA Modbus RTU RS485 Two-wire optocoupler switch signal (with 2 meters long signal line)
Consumption current	<200mA@12V when starting up and working stably (not included in the communication current)
Protection circuit	Power reverse connection protection, Power surge protection
Waterproof level	IP66 ****
Transient data	Instantaneous flow rate, instantaneous flow rate
Cumulative data	Volume accumulation (positive flow\negative flow\net flow) Accumulated daily volume in the past 14 days (enable the date function after installing the date battery)
Display digits	ED 5 Digits (4 digits when negative value) LCD 10 Digits (Not including sign and decimal point)
Operation button	4 Key touch buttons
Calendar function battery	CR2032

* The device is calibrated with water at normal temperature before leaving the factory. Using fluids with viscosities different from water may result in inaccurate calibration values and could affect the minimum and maximum flow rates.
** The working temperature range for each material is provided as a reference. Please use your design experience to make the final material selection.
*** The measurement accuracy is determined through laboratory testing with clean water at a controlled room temperature of 25 degrees Celsius. Actual usage conditions may introduce errors.
**** IP66 stands for 'Ingress Protection,' which signifies the degree of protection an electrical device's enclosure offers against foreign object intrusion. The IP rating format consists of two digits, expressed as IPXX. The first digit denotes the level of protection against solid objects, particularly dust resistance, while the second digit indicates the waterproof protection level. A higher number signifies better protection. In the case of IP66, the first '6' indicates full dust protection, while the second '6' means no harm from high-pressure water splashes.

FP-P015
Size	Connector	Spec	Material
1/2"
	Male Thread	BSPT	UPVC / PVDF
	Male Thread	NPT	UPVC / PVDF
	Female Thread	BSPT	UPVC / PVDF
	Female Thread	NPT	UPVC / PVDF
	Socket	CNS	UPVC
		JIS	UPVC
		ANS	UPVC
		DIN	UPVC
	Butt Fusion	ISO	PPH / PVDF
	Socket Fusion	ISO	PPH / PVDF

FP-P020
Size	Connector	Spec	Material
3/4"
	Male Thread	BSPT	UPVC / PVDF
	Male Thread	NPT	UPVC / PVDF
	Female Thread	BSPT	UPVC / PVDF
	Female Thread	NPT	UPVC / PVDF
	Socket	CNS	UPVC
		JIS	UPVC
		ANS	UPVC
		DIN	UPVC
	Butt Fusion	ISO	PPH / PVDF
	Socket Fusion	ISO	PPH / PVDF

FP-P025
Size	Connector	Spec	Material
1"
	Male Thread	BSPT	UPVC / PVDF
	Male Thread	NPT	UPVC / PVDF
	Female Thread	BSPT	UPVC / PVDF
	Female Thread	NPT	UPVC / PVDF
	Socket	CNS	UPVC
		JIS	UPVC
		ANS	UPVC
		DIN	UPVC
	Butt Fusion	ISO	PPH / PVDF
	Socket Fusion	ISO	PPH / PVDF

FP-PO32
Size	Connector	Spec	Material
1-1/4"
	Male Thread	BSPT	UPVC / PVDF
	Male Thread	NPT	UPVC / PVDF
	Female Thread	BSPT	UPVC / PVDF
	Female Thread	NPT	UPVC / PVDF
	Socket	CNS	UPVC
		JIS	UPVC
		ANS	UPVC
		DIN	UPVC
	Butt Fusion	ISO	PPH / PVDF
	Socket Fusion	ISO	PPH / PVDF

FP-P040
Size	Connector	Spec	Material
1-1/2"
	Male Thread	BSPT	UPVC / PVDF
	Male Thread	NPT	UPVC / PVDF
	Female Thread	BSPT	UPVC / PVDF
	Female Thread	NPT	UPVC / PVDF
	Socket	CNS	UPVC
		JIS	UPVC
		ANS	UPVC
		DIN	UPVC
	Butt Fusion	ISO	PPH / PVDF
	Socket Fusion	ISO	PPH / PVDF

FP-P050
Size	Connector	Spec	Material
2"
	Male Thread	BSPT	UPVC / PVDF
	Male Thread	NPT	UPVC / PVDF
	Female Thread	BSPT	UPVC / PVDF
	Female Thread	NPT	UPVC / PVDF
	Socket	CNS	UPVC
		JIS	UPVC
		ANS	UPVC
		DIN	UPVC
	Butt Fusion	ISO	PPH / PVDF
	Socket Fusion	ISO	PPH / PVDF
	flange	JIS 10K	UPVC

FP-P065
Size	Connector	Spec	Material
2-1/2"
	Butt Fusion	ISO	PPH / PVDF
	Socket Fusion	ISO	PPH / PVDF
	Socket	CNS	UPVC
		JIS	UPVC
		ANS	UPVC
		DIN	UPVC
	flange	JIS 10K	UPVC

⚠Safety instructions:
1. After the warranty, the electronic components of the product will age due to time and operating environment. Under long-term use, please replace the new product according to the condition of the product.
2. Do not operate the product under an Orange or Red LCD Backlight for a long time. Product damage and related losses may occur.

Conditions and Disclaimer:
CONDITIONS: Equipment sold by LORRIC is not intended to be used, nor shall it be used:
(1) As a "Basic Component" under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) In medical applications or used on humans. Should any product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, LORRIC assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify LORRIC and hold LORRIC harmless from any liability or damage whatsoever arising out of the use of the product(s) in such a manner.

DISCLAIMER: Please be aware that magnetic fields or residual magnetism may cause interference to the flowmeter which may result in damage if they are used near the installation site. The purchaser must determine the applicability of the product for its desired use and assumes all risks in connection therewith. LORRIC assumes no responsibility or liability for any omissions or errors in connection with the use of its products.

The alarm used to detect paddle damage or loss is intended to assist on-site operators to find out what is causing equipment abnormalities. Because there are a myriad of variables involved with on-site operation and magnetic fields that come from other equipment, the alarm function is liable to fail. Please do not take the alarm function as a single source for monitoring your flow system. Please contact LORRIC for advanced help.

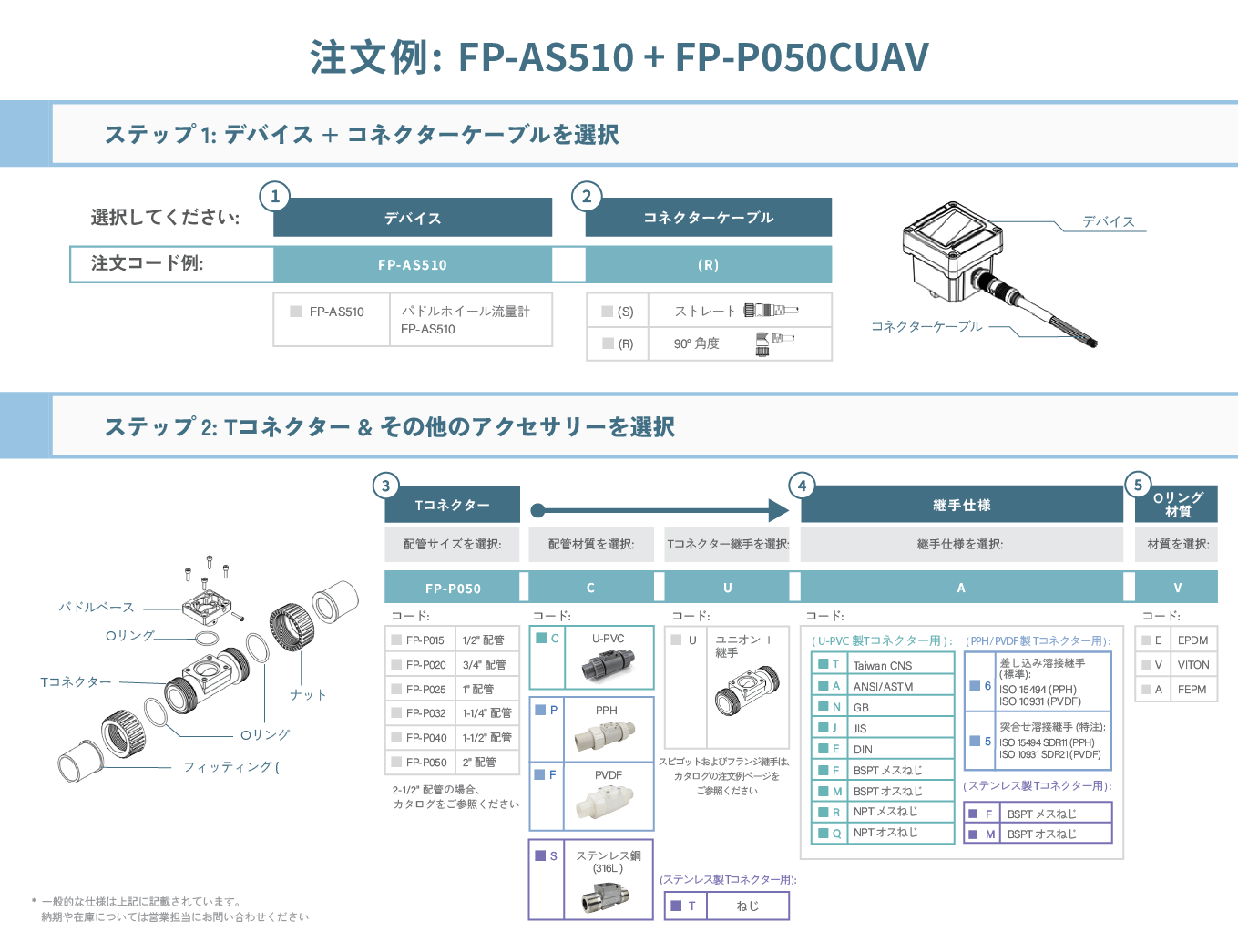

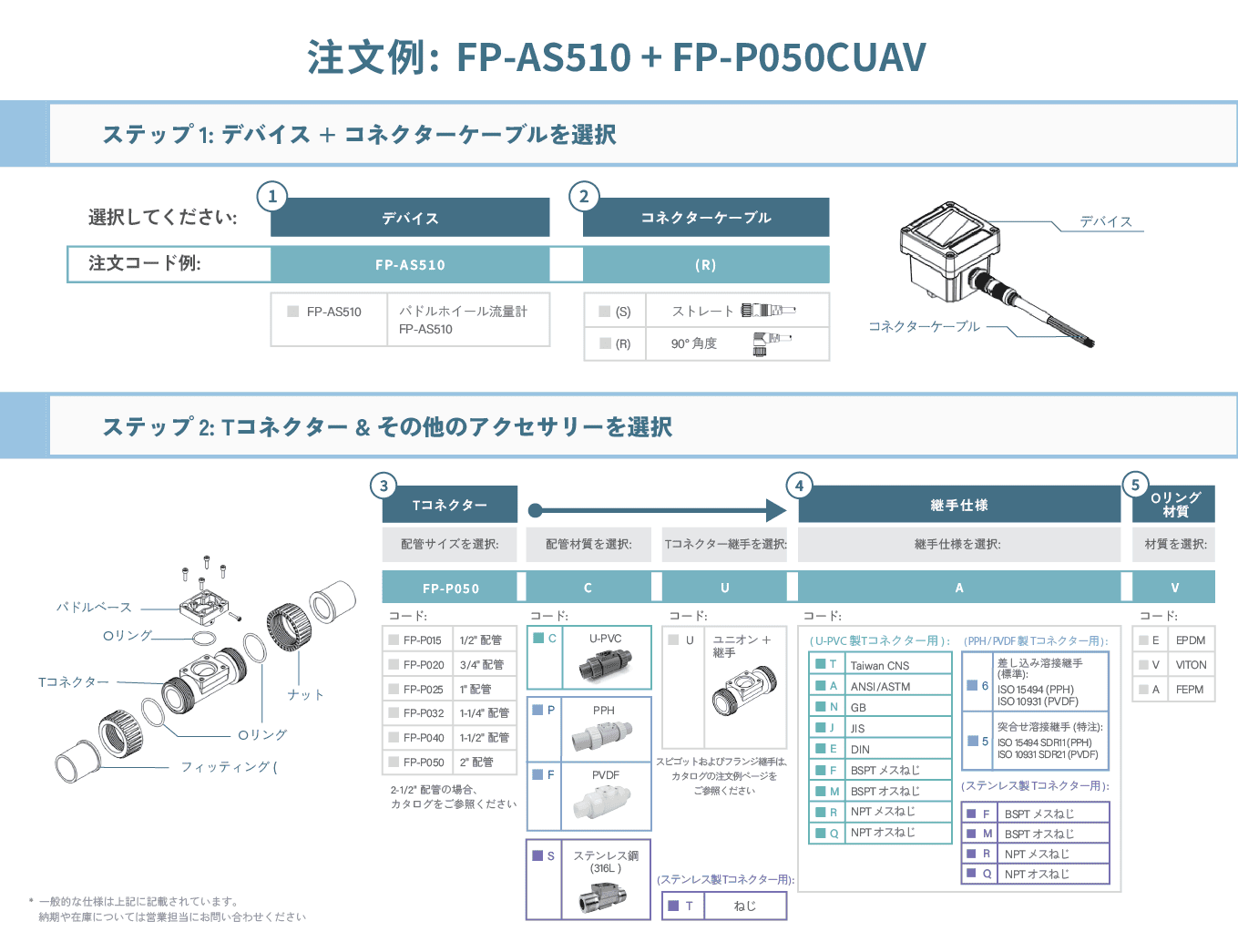

Please place your order according below information.

Paddle wheel flowmeter contains: Device, Paddle set, T-connector. Users need to check the material and size of the T-connector and paddle set. • Please refer to following order example for placing order to LORRIC.
Please refer to following order example for placing order to LORRIC.
T-connector + paddle set (T-connector is generally shipped with a paddle set.)

Order example and corresponding description of paddle wheel flowmeter
Serial Number	Description
FP-P020CSJV	3/4" UPVC T-connector JIS Spigot fitting，Viton oring + UPVC paddle base，PVDF paddle，Viton oring + FP-W010CFV
FP-P050CUTV	2" UPVC T-connector Union Taiwan CNS fitting，Viton oring + UPVC paddle base，PVDF paddle，Viton oring + FP-W010CFV
FP-P020CUEE	3/4" UPVC T-connector Union DIN fitting，EPDM oring + UPVC paddle base，PVDF paddle，EPDM oring + FP-W010CFE

Size

UPVC pipe - union diameter size(mm)
	A	B	C	D	E	F	G	H
½"	164	100	27.6	36	62.3	46.2	115.7	86.2
¾"	168	100	32.6	41.9	62.3	50.5	115.7	&85.7
1"	168	100	40.6	50	62.3	60	115.7	85.7
1¼"	210	114	50.2	59.6	65	75.6	127	89.2
1½"	218	120	56	65.7	70	83	134	92.5
2"	269.5	133.3	72	81	81	99.7	148.8	99
