Taiwan-made clamp-on design allows installation without stopping or cutting pipes. Easy maintenance and disassembly reduce costs. External installation ensures zero pipe damage, no blockages, leaks, or pressure issues.
CATALOG MANUAL

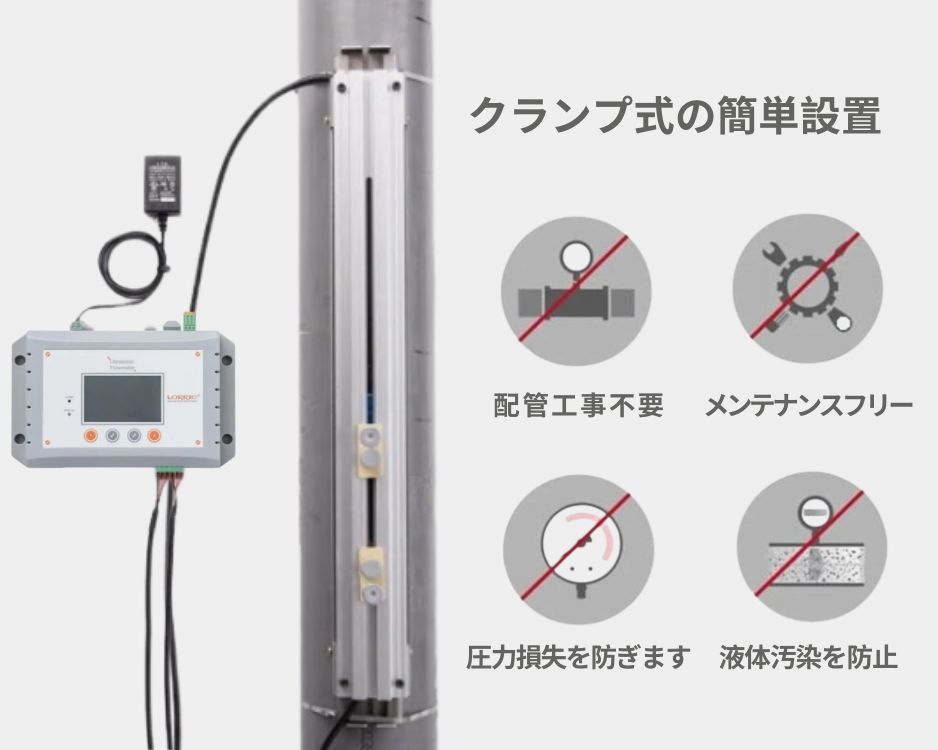

The clamp-on ultrasonic flow meter uses sensors attached to the pipe, requiring no cutting or flow interruption. It is ideal for situations where downtime is not an option and contamination-free measurement is needed. It prevents leakage and pressure issues while ensuring consistent accuracy across different flow conditions.
The FU-TX series ultrasonic flow meter features a split design, with the sensor clamped to the pipe and the display unit is placed in a convenient location for monitoring and operation. Ideal for large elevated pipelines and remote monitoring, such as chilled water systems and long-distance oil and gas pipelines. For smaller pipes : FU-ES Ultrasonic Flow Meter

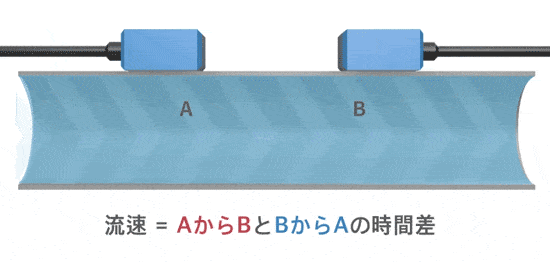

The FU-ES ultrasonic flow meter with EchoSense technology calculates flow rate using the formula: Flow Rate = Pipe Area × Flow Velocity. It measures the time difference between faster downstream (A to B) and slower upstream (B to A) signals to determine flow velocity and, consequently, the flow rate. Learn more: How to Calculate Flowrate
LORRIC's patented FU-TX metal clamp offers a distinct advantage over traditional flow meter brackets. Its unique design allows for precise alignment of the probes, enabling easy installation even in tight spaces, with flexible positioning options. The clamp is suitable for both same-side and opposite-side installations and is designed to resist loosening due to gravity.
FU-TX ultrasonic flowmeter is versatile, working with water, oil, and chemicals. It's compatible with stainless steel, PVC, and even PP, PVDF piping materials. With applications ranging from 2-inch to 16-inch pipes.
FU-ES supports various communication modes like Analog output with self-powered 16-bit 4-20mA, Modbus RTU RS485. No need for additional communication modules – we've got you covered! Learn more: •What is Analog Output •What is Modbus RTU RS485
The LORRIC FU-TX 310 ultrasonic flow meter features data collection capabilities and can be installed without disrupting equipment operations, helping to prevent business losses. By accurately tracking energy consumption and reducing maintenance costs, it supports effective energy monitoring and reporting, aligning with ESG goals.
Flow meters monitor and control cooling and hot water flows, tracking chiller energy use; nozzles balance water flow in these systems, enhancing efficiency
Flow meters monitor water usage at each stage to control process efficiency; nozzles optimize water spray to ensure water purification efficiency and reduce treatment costs
Flow meters monitor the flow of inlet and outlet water, enhancing treatment efficiency and accuracy; nzzles spray chemicals in wastewater treatment, meeting environmental standards
Flow meters in PCB electroplating, developing, and etching processes monitor precise chemical and cleaning fluid flow; nozzles control chemical coating and rinsing
流量計で化学液体や純水処理液を監視、ノズルで噴霧を制御し、プロセスの安定性と純度を維持
Flow meters monitor cooling water and gas flow, ensuring accuracy and optimal efficiency; nozzles precisely control chemical liquid spraying, making even coating and stable quality
Flow meters ensure cleaning efficiency and reduce water wastage; nozzles uniformly distribute water, enhancing the cleaning effect while simultaneously reducing water consumption
