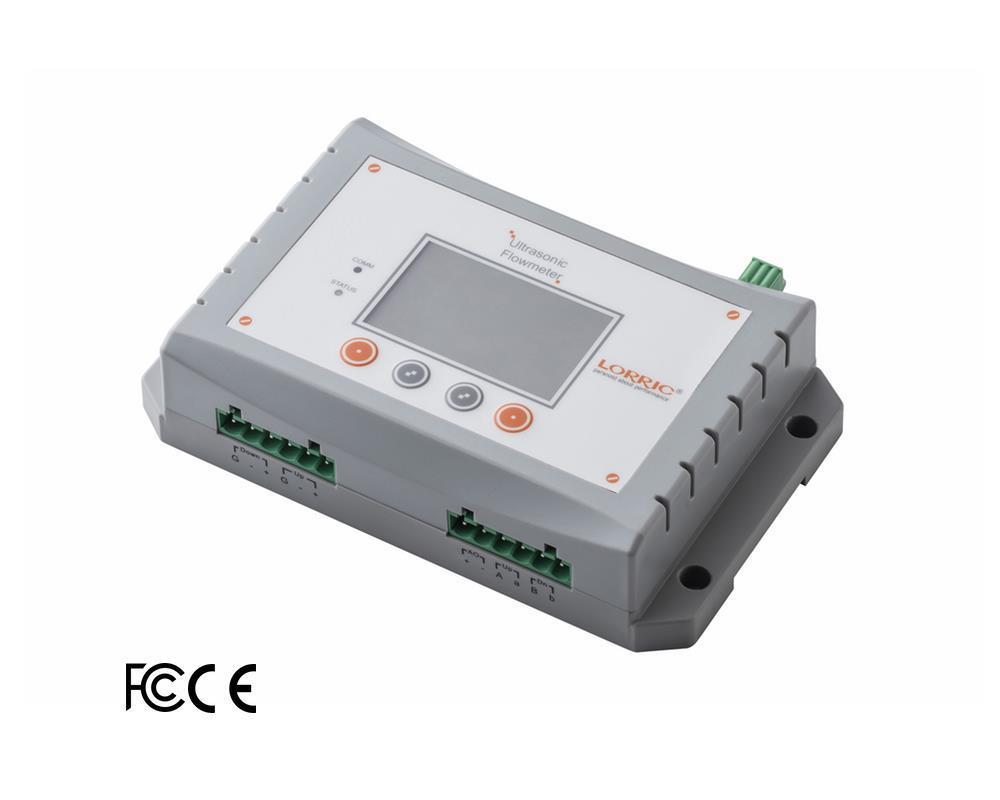

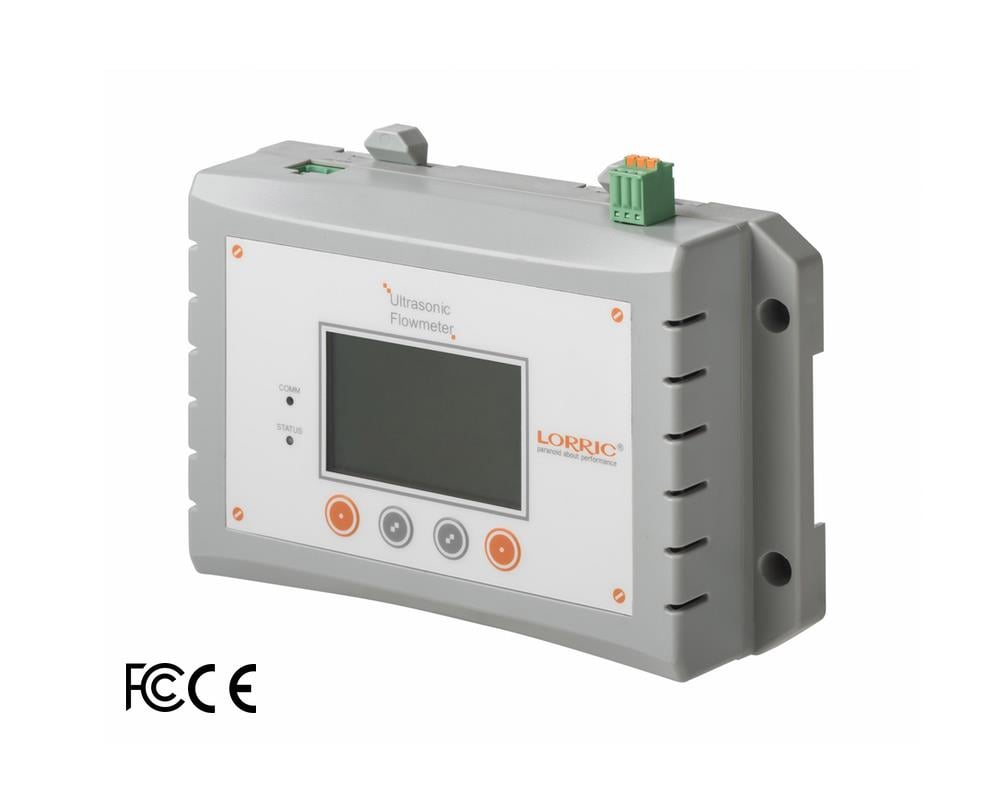

FU-TX 310 클램프 온 초음파 유량계

Taiwan-made clamp-on design allows installation without stopping or cutting pipes. Easy maintenance and disassembly reduce costs. External installation ensures zero pipe damage, no blockages, leaks, or pressure issues.

Pipe Size:	TM1：2"～6"
	TL1 ：7"～16"
Velocity range:	± 0.1~20 m/s
Applicable Fluid:	Clearwater, oil, or
	chemicals with minimal impurities
Fluid Temp:	Standard Probe: 0~80°C
	Heat-resistant Probe: 0~150°C
Accuracy:	< 2% F.S.
Waterproof:	Standard probe IP61
	Chemical-resistant probe IP68
Power Supply:	9~30VDC
	100-240 50/ 60Hz AC transformer
Input/Output:	Analog output 4-20mA
	Modbus RS485 two-wire
Fluid Temp:	Two sets of external PT1000
	-100~300°C with 0.1°C resolution

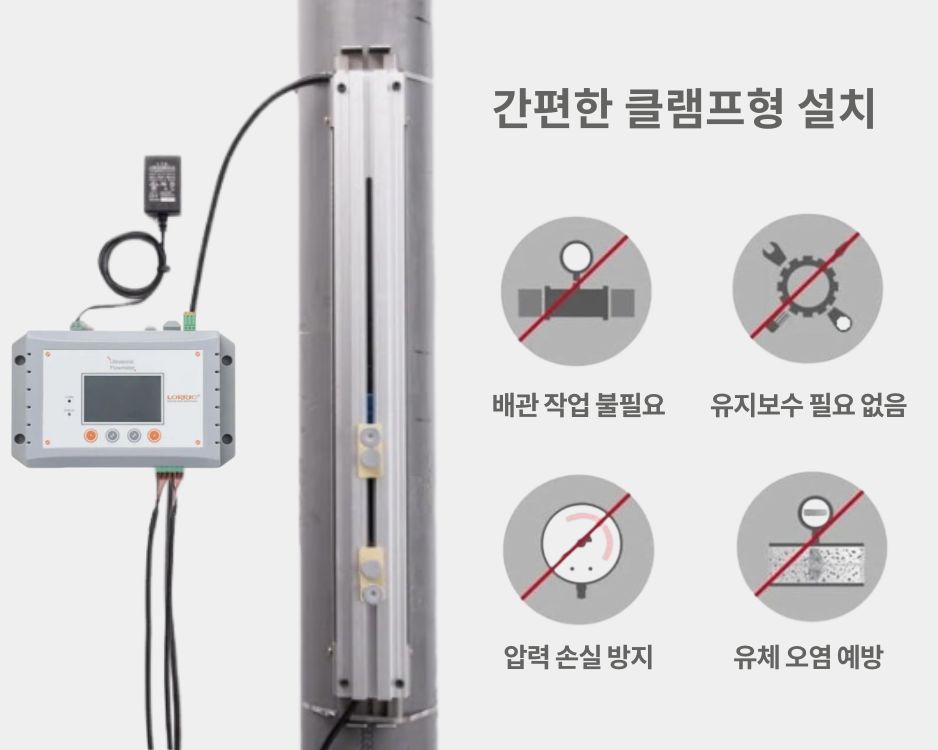

Clamp-on Ultrasonic Flow Meter

The clamp-on ultrasonic flow meter uses sensors attached to the pipe, requiring no cutting or flow interruption. It is ideal for situations where downtime is not an option and contamination-free measurement is needed. It prevents leakage and pressure issues while ensuring consistent accuracy across different flow conditions.

Split Design for Remote Monitoring

The FU-TX series ultrasonic flow meter features a split design, with the sensor clamped to the pipe and the display unit is placed in a convenient location for monitoring and operation. Ideal for large elevated pipelines and remote monitoring, such as chilled water systems and long-distance oil and gas pipelines.
For smaller pipes : FU-ES Ultrasonic Flow Meter

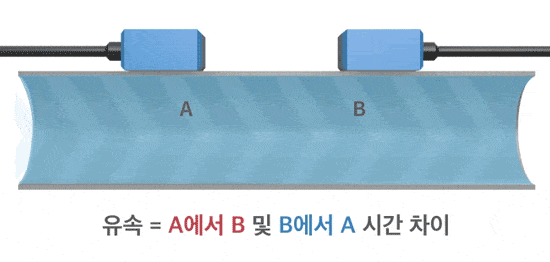

Principle and Technology

The FU-ES ultrasonic flow meter with EchoSense technology calculates flow rate using the formula: Flow Rate = Pipe Area × Flow Velocity. It measures the time difference between faster downstream (A to B) and slower upstream (B to A) signals to determine flow velocity and, consequently, the flow rate.
Learn more: How to Calculate Flowrate

Patented Metal Clamp

LORRIC's patented FU-TX metal clamp offers a distinct advantage over traditional flow meter brackets. Its unique design allows for precise alignment of the probes, enabling easy installation even in tight spaces, with flexible positioning options. The clamp is suitable for both same-side and opposite-side installations and is designed to resist loosening due to gravity.

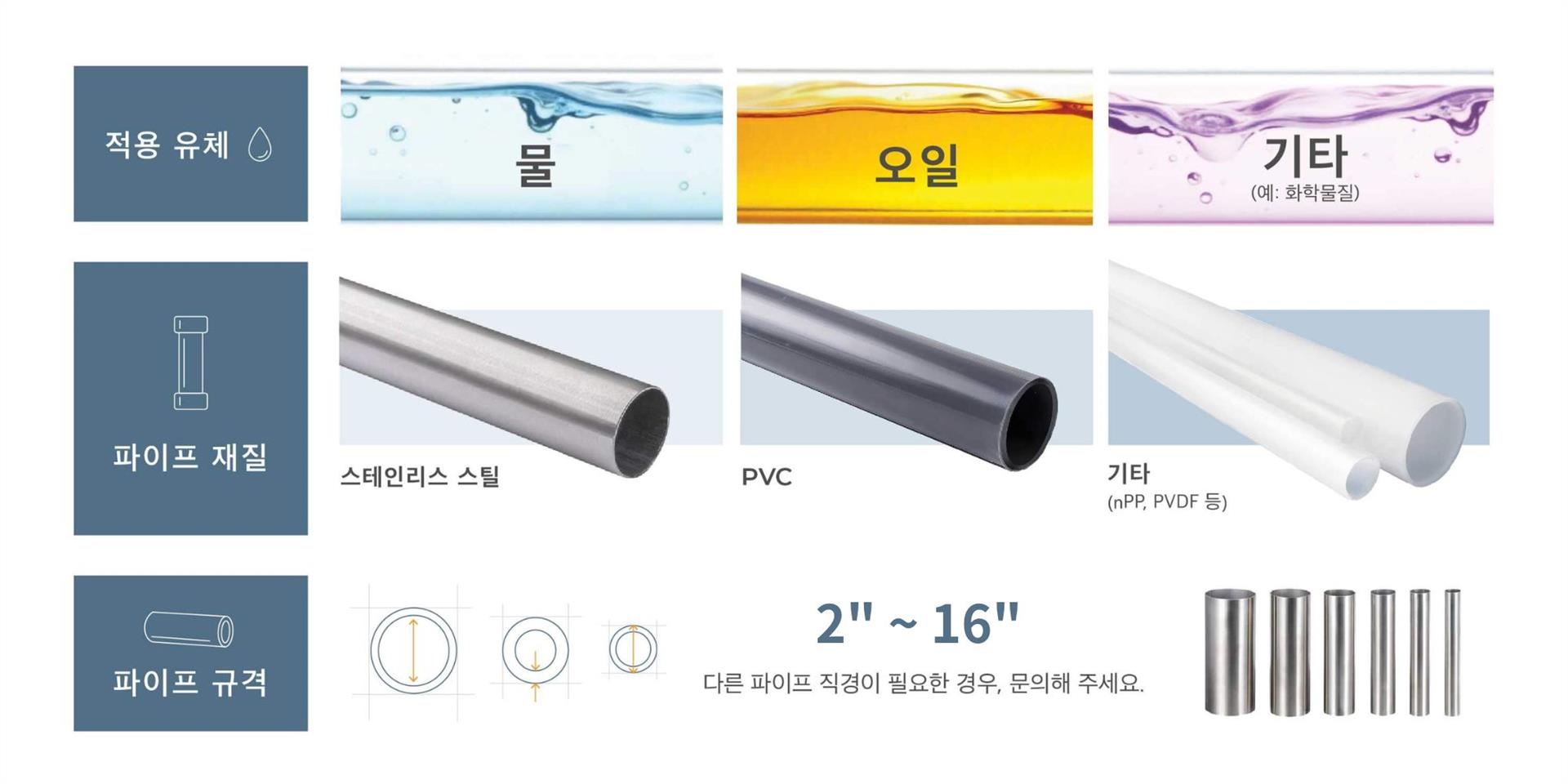

Applicable to variety of fluids, pipe materials and diameters

FU-TX ultrasonic flowmeter is versatile, working with water, oil, and chemicals. It's compatible with stainless steel, PVC, and even PP, PVDF piping materials. With applications ranging from 2-inch to 16-inch pipes.

Multiple Communication Outputs

FU-ES supports various communication modes like Analog output with self-powered 16-bit 4-20mA, Modbus RTU RS485. No need for additional communication modules – we've got you covered!
Learn more:
•What is Analog Output
•What is Modbus RTU RS485

Track Energy Usage to Achieve ESG Goals

The LORRIC FU-TX 310 ultrasonic flow meter features data collection capabilities and can be installed without disrupting equipment operations, helping to prevent business losses. By accurately tracking energy consumption and reducing maintenance costs, it supports effective energy monitoring and reporting, aligning with ESG goals.

Spec

Installation method	Out-line
Applicable pipe diameter	TM 1	TL 1
	DN 50 - 150	DN 175
	2 - 6 inch	> 7 inch
Applicable piping materials	Cast iron, carbon steel, stainless steel, PVC pipe and others
Applicable fluid	Clean water, oil or chemicals containing small amounts of impurities
Applicable fluid temperature	Standard probe:0~80°C / Heat-resistant probe:0~150°C
Velocity range	±0.1~20m/s
Language	English
Unit	Metric and imperial systems can be switched

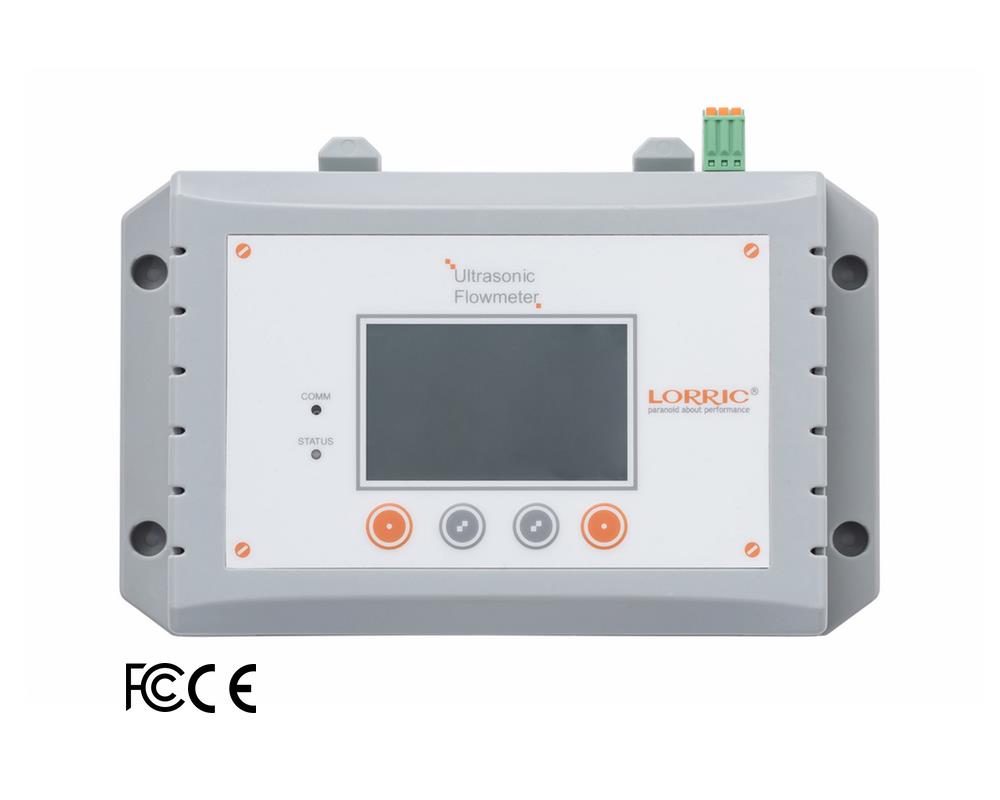

Display	128x64 LDC Backlight display
Display update cycle	< 1s
measurement accuracy	±0.2% F.S.*
Display resolution	0.0001 m/s

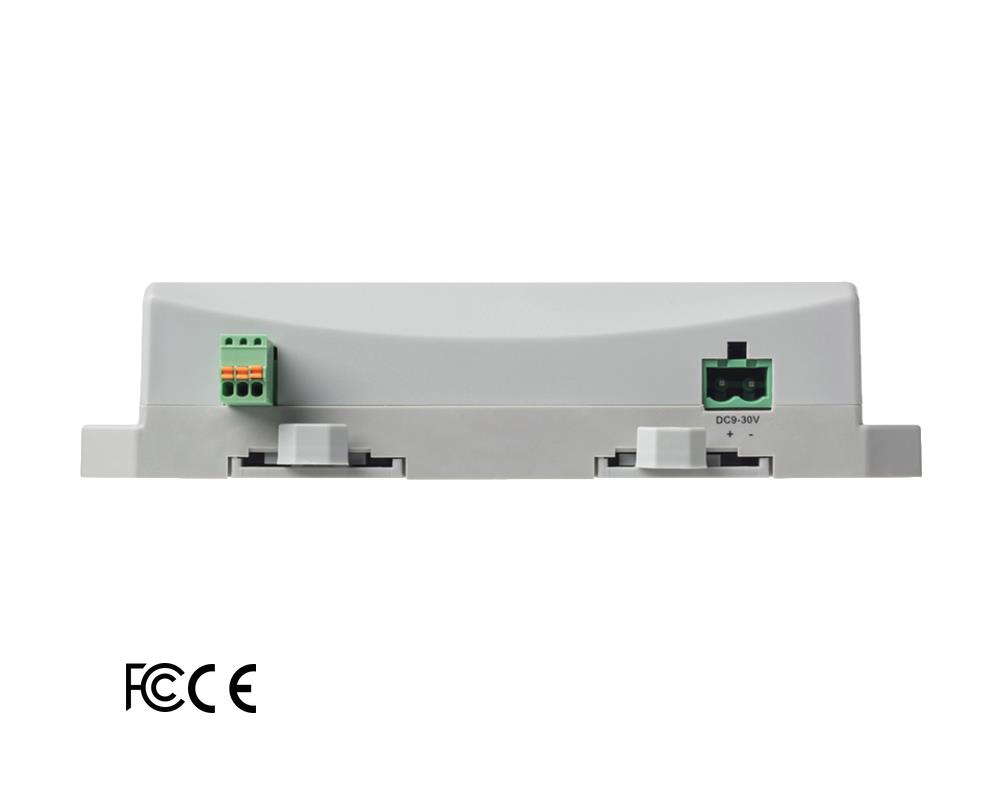

Power supply	DC 9~30V
Power I/O Connector	100-240 50/60Hz AC Transformer

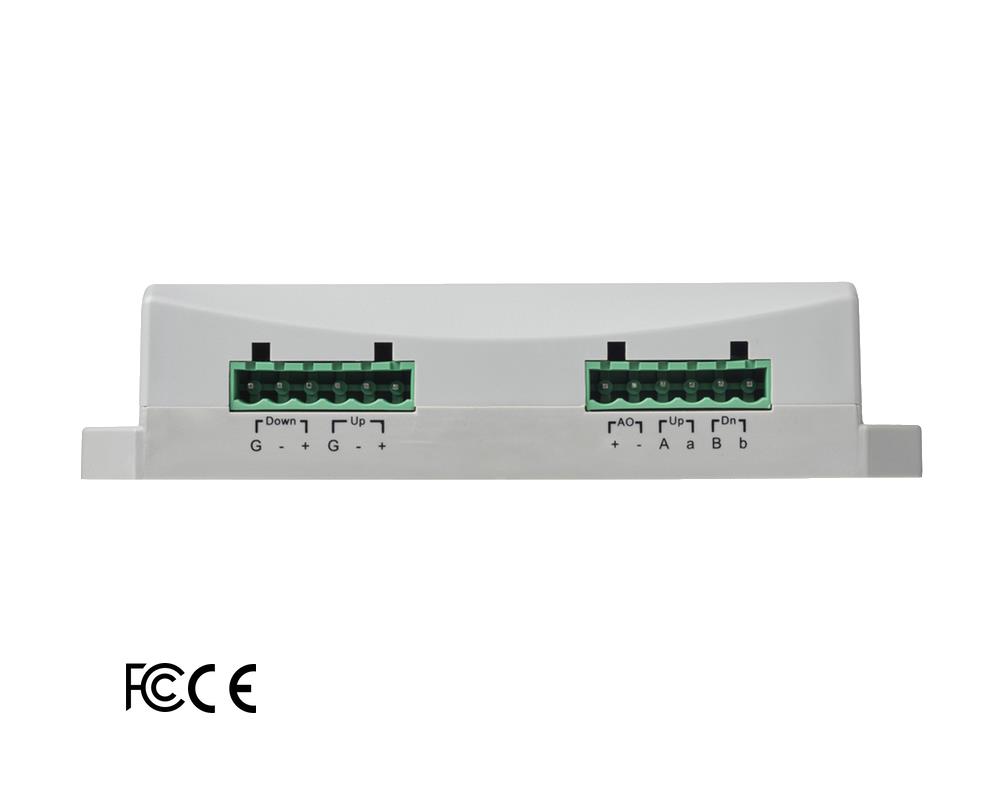

Input/Output	Analog output is self-charged 12 bits 4-20mA / Modbus RTU RS485
Consumption current	> 2W
Protection circuit	Power reverse connection protection, power surge protection
Waterproof level	Since there is no waterproof design, it should be installed in the control box. If you need outdoor installation, you need to purchase an additional waterproof box.
Probe waterproof level	General probe IP61 / Glue probe IP65 / Waterproof and chemical-resistant probe IP68
Ambient temperature	-10~60°C (14~140°F)
Relative humidity	35~ 85%RH (Condensation-free)
Material	Host-ABS
Temperature measurement	Two sets of external PT1000
