F101 로타미터, 1/2" 파이프 크기, 0.2-2.0 LPM에서 2.0-20 LPM까지

Taiwan-made high-quality rotameter, easy to install with machining, leak-free, easy to adjust and position, stable flow, compact size for small spaces, patented dual-pointer design, laser-etched scale, precision-machined metal float, convenient flow monitoring.

Brand：	LORRIC
Adapter size：	1/2"
Body material：	PC / PSU
Applicable fluid：	Tap water (PC)
	Acid-base solutions (PSU)
Float material：	SS316, Ti, Hastelloy C
Measure accuracy：	± 5% F.S.
Pressure resistance：	5.0kg/cm²

Rotameters

The area-type rotameter measures flow by balancing fluid buoyancy and float weight, ideal for direct flow observation. It requires vertical installation with fluid flowing bottom to top. Reading the float position varies by model. Widely used in chemical, pharmaceutical, and food processing industries to monitor liquid or gas flow.
Learn more: How to Read the Float

Patented dual-indicator

From the user's perspective, LORRIC employs a dual-pointer design to monitor upper and lower limit intervals, enabling users to easily identify the flow status at a glance. Users can simply flick the pointer to instantly set the flow monitoring range.

Laser engraved degree scales

LORRIC precisely calibrates each rotameter at the factory to compensate for float weight variations, ensuring ultimate performance. Unlike competitors using mass printing or stickers, our laser engraving offers both accuracy and durability.

Guide Rail Design

The guide rail design effectively limits the movement of the float within the pipe, reducing turbulence-induced oscillation or rotation. This design enhances measurement precision by ensuring the float remains aligned along the rotameter's axis, contrasting with models lacking a guide rod which may lead to off-axis float movement and impact flow rate accuracy.

PC for Water, PSU for Chemical Solutions

The flow meter body is available in two materials: transparent PC (Polycarbonate) for tap water, and light yellow PSU (Polysulfone), which is acid, alkali, and electrolyte resistant, suitable for chemicals like sulfuric acid and sodium hydroxide, etc.

Delicate machining for float

LORRIC leverages 30 years of industry expertise, applying fluid mechanics to refine float design. Using precision CNC machining, each float is crafted with jewelry-like precision, guaranteeing stable monitoring for rotameters.

The unique turning-processed joint, ensuring smooth installation and insertion

Don't settle for subpar joints! While most are injection-molded, resulting in uneven surfaces due to cooling shrinkage, LORRIC's original turning-processed joints offer unmatched quality. With a flawlessly smooth surface, O-ring seal for safety, and zero leakage, choose LORRIC for superior performance!

The flat joint surface ensures O-ring seal without leakage

Rotameter scale customization

Chemicals vary in specific gravity, affecting float buoyancy. LORRIC offers tailored customization for specific gravity, eliminating the need for on-site height adjustments.

Please place your order according below information

How to place an order for LORRIC flowmeters?

Select the ideal flow meter based on your material requirements for each component

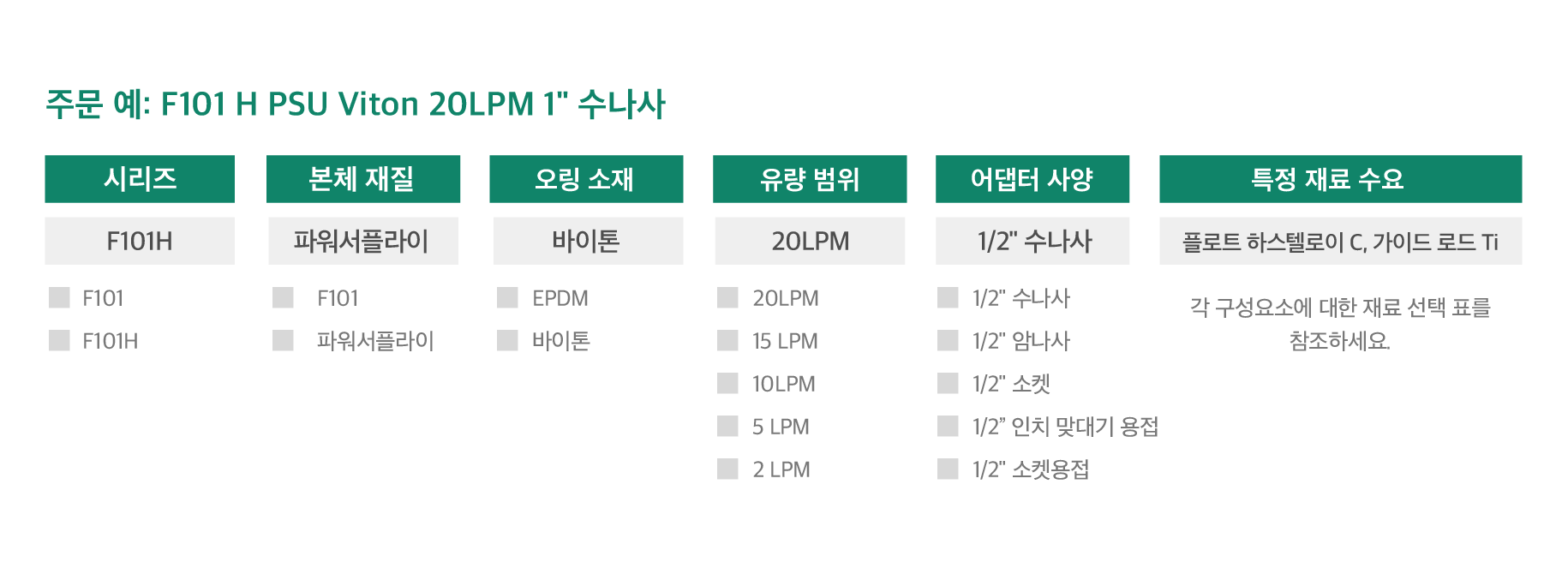

Please refer to following order example for placing order to LORRIC

Series	F101 PC	F101 PSU	F101H PSU
Applicable Fluid	Tap Water	Chemical and Non-organic Solvents	When chemicals are corrosive to stainless steel
Body Material	PC	PSU	PSU
Float Material	AISI 316	AISI 316	Ti/ Hastelloy C
Guide Rod Material	AISI 316	AISI 316	Ti/ Hastelloy C
O-ring Materia	EPDM / VITON
Union Nuts Material	UPVC / Aluminum
Guide Rod Bottom Material	PP
Scale Rang (L/min)	0.2 - 2.0 L/min
	0.5 - 5.0 L/min
	1.0 - 10 L/min
	1.5 - 15 L/min
	2.0 - 20 L/min

Adaptor Size and Adaptor Material
1/2"
	Male Thread	BSPT	UPVC / PVDF
	Male Thread	NPT	UPVC / PVDF
	Female Thread	BSPT	UPVC / PVDF
	Female Thread	NPT	UPVC / PVDF
	Socket	CNS	UPVC
		JIS	UPVC
		ANS	UPVC
		DIN	UPVC
	Butt Fusion	ISO	PPH / PVDF
	Socket Fusion	ISO	PPH / PVDF

Liquid flow meters are calibrated for 20°C water. Gas flow meters are calibrated for normal conditions. ( 0°C , 1 atm)
All adaptors can be manufactured to order, please contact us for price and lead time. Specs: adaptor 1/2" NPT male/ female thread (UPVC / PP / PSU) type is custom made, please contact us for details. Please refer to the chemical resistance chart for understanding if our flowmeters body and parts are acceptable for your solution.
Above temperature information is for reference only and may not be applicable for all environments.
Above flow rate range and materials is for standard specs. Please choose proper products according to your usage and environment conditions. You are welcome to contact us directly for any requests and advice.
Our company refrains from offering model recommendations or suggestions, as diverse industries have unique application scopes and design conditions. We encourage you to select the most suitable model based on your specific design conditions.

크기

단위：mm

어댑터 사양	A	B	C	D	E
어댑터 사양	A	B	C	D	E
1/2" 외부	164	85	39.5	43	49.5
1/2" 내부	166	85	40.5	43	49.5
1/2" CNS	166	85	40.5	43	49.5
1/2" ASTM	166	85	40.5	43	49.5
1/2" JIS	166	85	40.5	43	49.5
1/2" PVDF 내부	166	85	40.5	43	49.5
