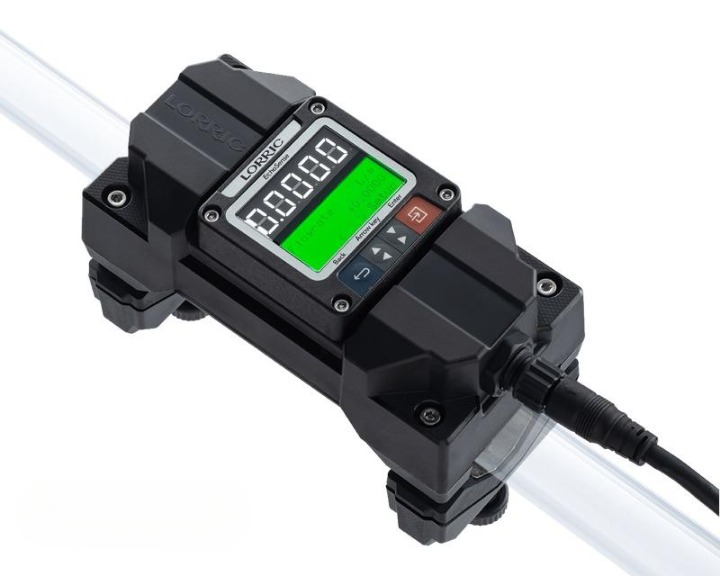

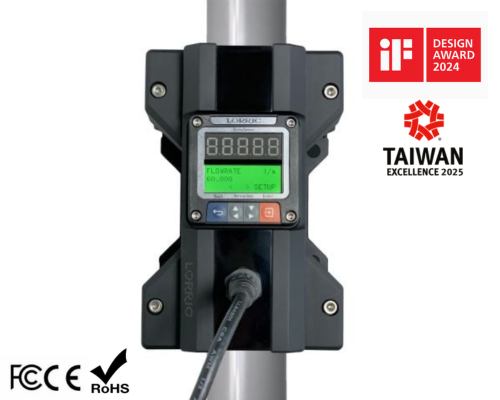

Clamp on Flow Meter
The clamp on ultrasonic flow meter measures by attaching sensors to both sides of the pipe, requiring no cutting or interruption of flow during installation—ideal for situations where downtime is not an option.
This non-invasive method is ideal for contamination-free measurements in semiconductor processes, PCB manufacturing, and water treatment, offering high linearity and consistent accuracy at all flow rates.
ToF (Time of Flight) Principle
Using the formula Flow Rate = Cross-Sectional Area × Flow Velocity, accurate flow measurement depends on precisely measuring fluid velocity. The FU-ES ultrasonic flow meter, with EchoSense technology, calculates velocity by measuring the time difference of ultrasonic waves traveling with and against the flow (Time of Flight).

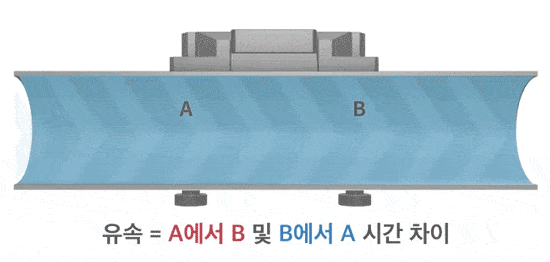

As shown in the diagram, ultrasonic signals move faster with the flow (A to B) and slower against it (B to A) due to the fluid's influence on wave speed. By measuring this time difference, the flow velocity is determined, and combined with the pipe's cross-sectional area, the flow rate can be accurately calculated.
Learn more: How to Calculate Flowrate

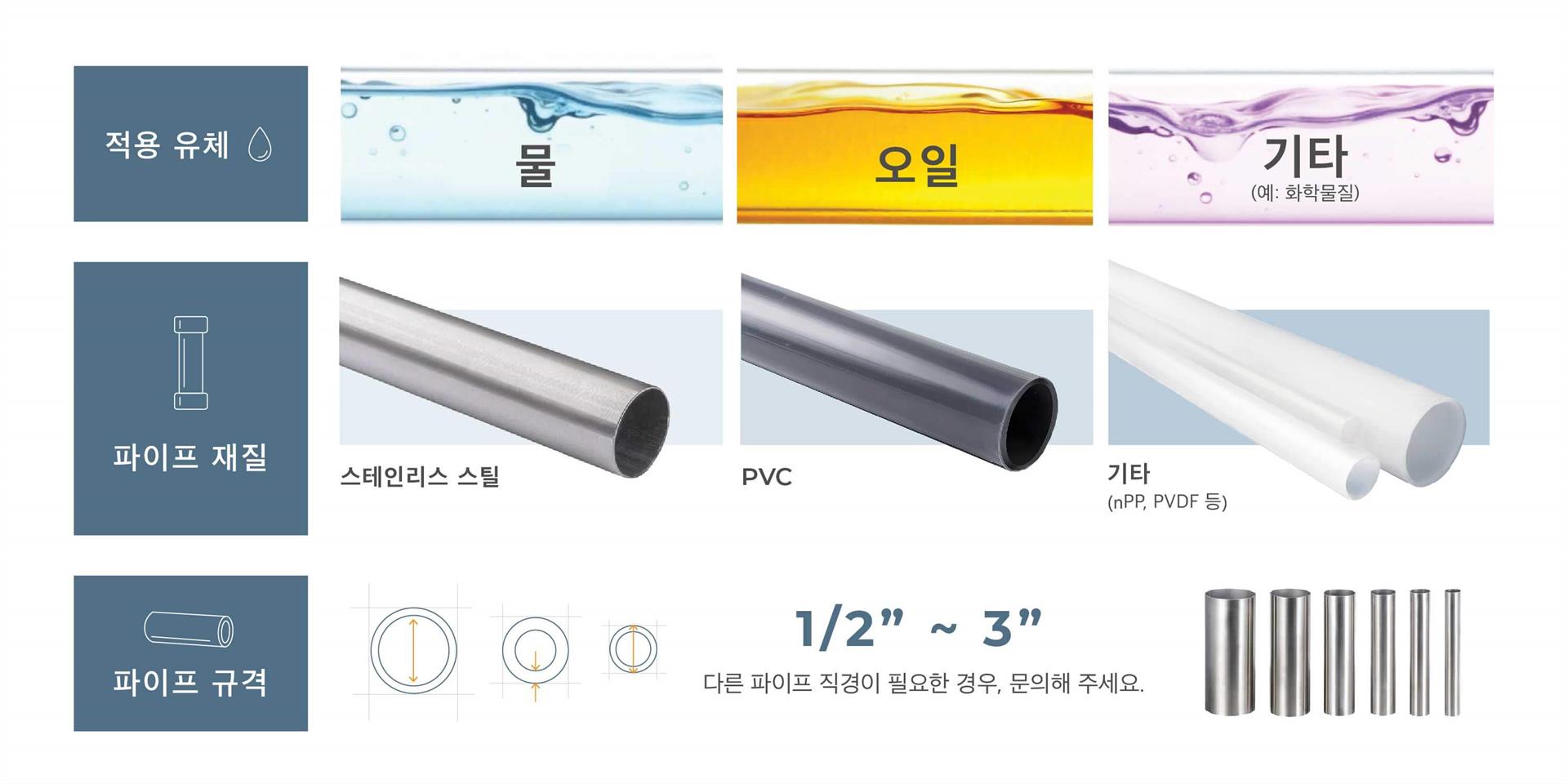

Applicable to variety of fluids, pipe materials and diameters
EchoSense ultrasonic flow meter is versatile, working with water, oil, and chemicals. It's compatible with stainless steel, PVC, and even PP, PVDF piping materials. With applications ranging from 1/2-inch to 3-inch pipes.
Say goodbye to costly ultra sonic gel; Welcome time and cost savings
LORRIC's "ultra sonic gasket pad" is a hassle-free solution that saves you both time and money. No more dealing with the mess and inconvenience of ultrasonic gel.
Complete all settings in 1 click
With EchoSense technology, forget about worrying over pipe materials, inner and outer diameters, thickness, liquid speed of sound, probe placement, and installation complexities. With just one click, we've simplified it all, making installation and setup a breeze. Say goodbye to the hassle!
Automatic Pipe Specification Matching
EchoSense technology features a built-in database of common pipe specifications, including PVC, PP, PVDF, and stainless steel. After installation, one click matches the installed pipe with the database, automatically setting material, outer diameter, and wall thickness. This streamlines installation by removing manual configuration and reducing errors, solving the issue of uncertain pipe specs in traditional setups.
Remarkable measurement accuracy
LORRIC's exclusive algorithm maintains high precision, earning Germany's TrigasFI certification. Test charts show FU-ES measurement accuracy between ±3.0% OR for 10%-100% of full scale (F.S.) and ±0.3% F.S. for 0%-10% of F.S. For a DN25 pipe (3-300LPM range), a 100LPM reading (10%-100%) has a ±3.0% error (97-103). A 20LPM reading (0%-10%) has a ±0.3% error (19.91-20.09).
Multiple Communication Outputs
FU-ES supports various communication modes like Analog output with self-powered 16-bit 4-20mA, Modbus RTU RS485, 2-wire photoelectric switch signal (compatible with NPN/PNP). No need for additional communication modules – we've got you covered!
Learn more:
•What is Analog Output
•What is Modbus RTU RS485
•What is Switch Signal

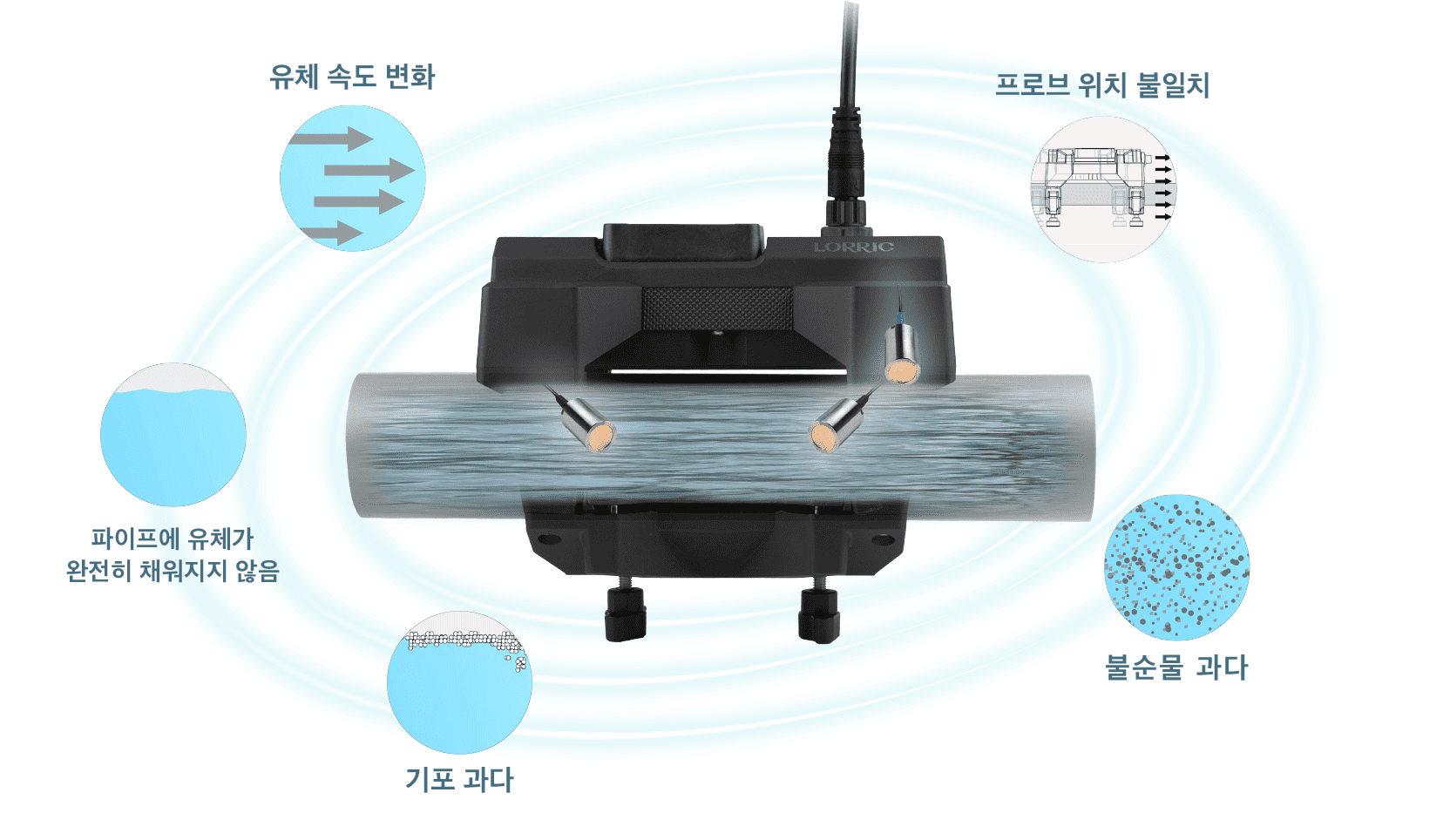

Detect problems instantly and intelligently with this ultrasonic flow meter using automatic sensing environment
Unlock Intelligent Environmental Monitoring with EchoSense! Our cutting-edge algorithm delivers real-time insights into installation issues, pipe saturation, bubbles, impurities, and more. Stay in control of your pipeline's health and troubleshoot issues instantly!
Probes dislocated
Probes dislocated due to installation issues.
Low fluid levels and excessive bubbles
Signal problems arise from low fluid levels and excessive bubbles in the pipe.
Excessive impurities
Signal problems arise from excessive impurities in the pipe.

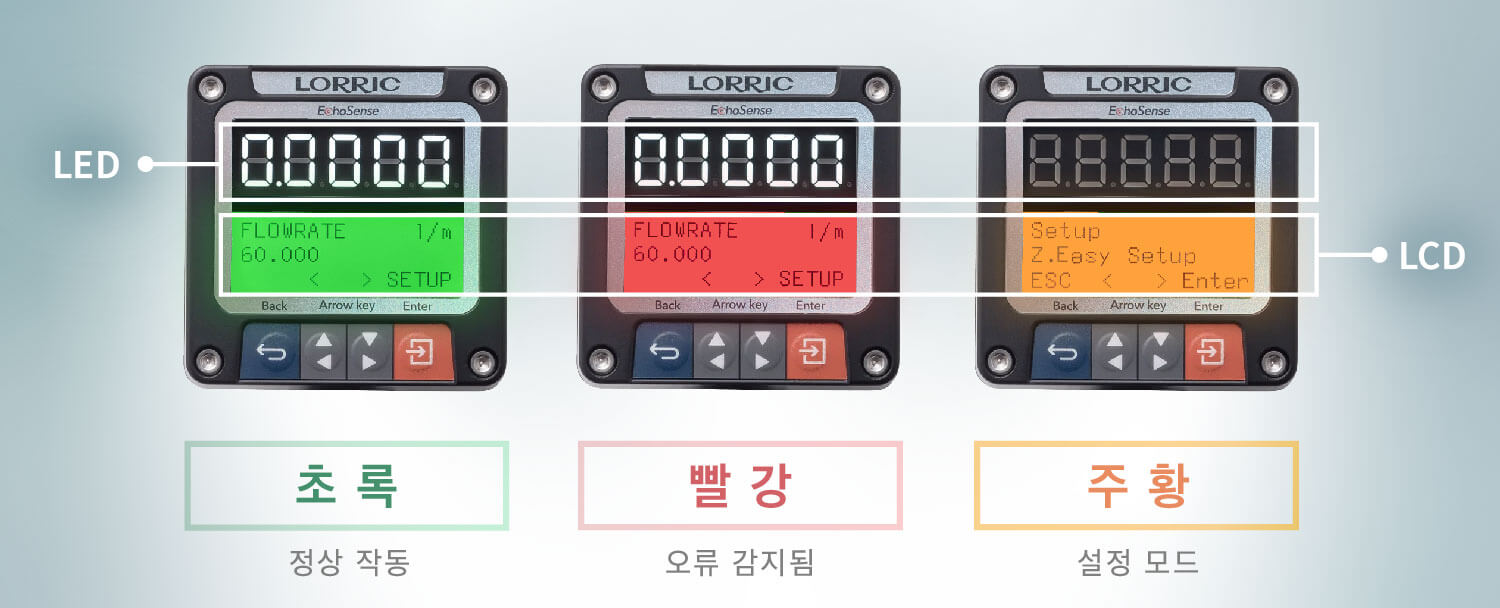

Dual LCD/LED screens for easy traffic and equipment status monitoring
- High-brightness large LED screen for easy long-distance flow number reading.
- LCD screen backlight with three-color warning light signal for visual monitoring of flow meter's normal and abnormal conditions.

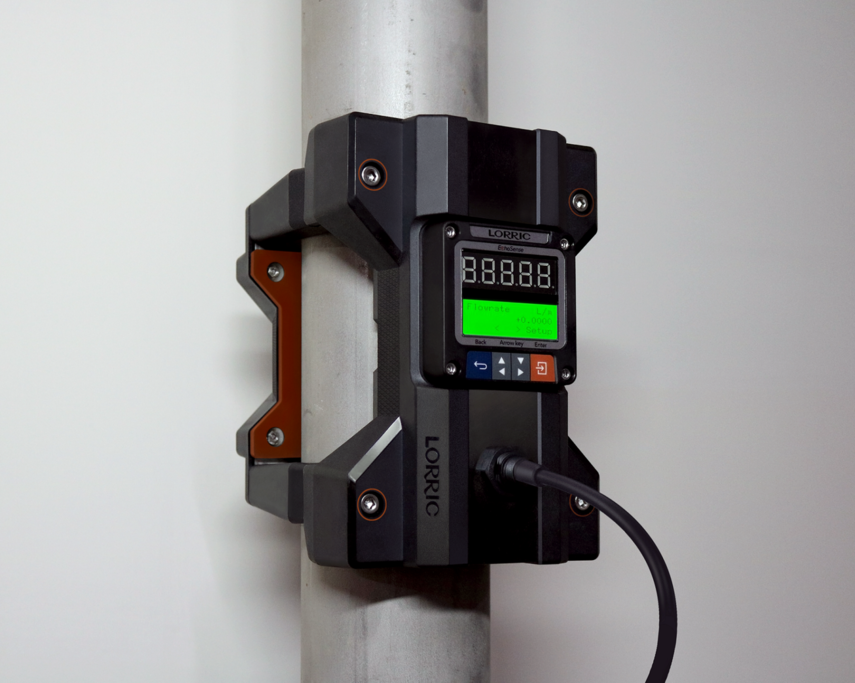

Vertically and Horizontally Installable
The EchoSense ultrasonic flow meter screen features a square design, allowing for both vertical and horizontal installation to suit different usage scenarios. When installing at different angles, simply remove the screws on the four sides of the screen, rotate the screen 90 degrees, and reattach the screws. The display will easily adjust to the new orientation.
Elevate chemical resistance with our engineering plastic housing for the flowmeter.
Experience the Power of FU-ES! Crafted from robust engineering plastics like Nylon, PPS, and PEEK, its outer body boasts incredible strength. Inside, reinforced with 304 stainless steel, ensuring unmatched structural rigidity while prioritizing chemical resistance and product longevity.
|

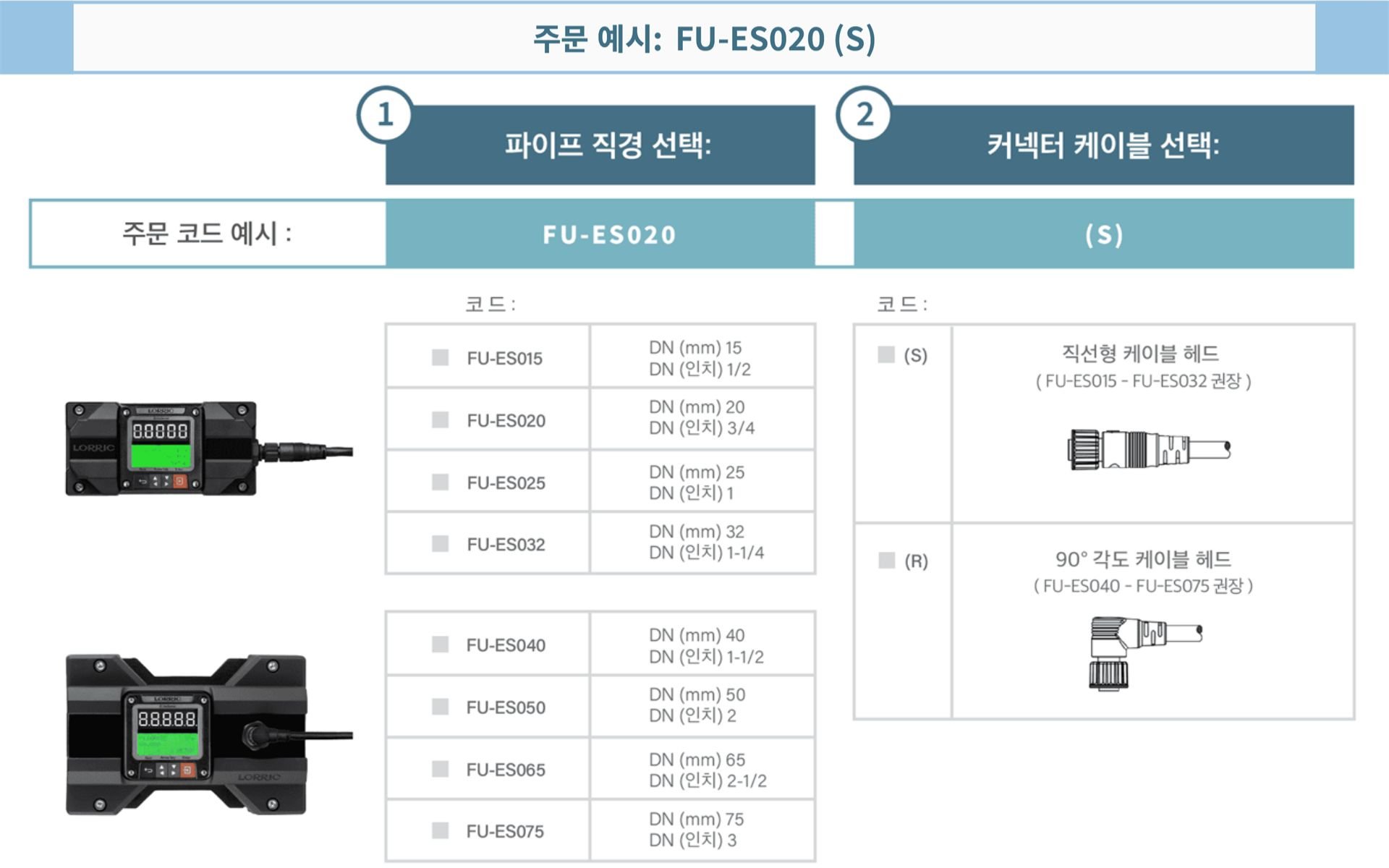

FU-ES015 |
FU-ES020 |
FU-ES025 |
FU-ES032 |
FU-ES040 |
FU-ES050 |
FU-ES065 |
FU-ES075 |
| Installation method |
Outside the pipe (clamp-on type) |
| Applicable diameter |
20-22
mm |
25-27.2
mm |
32-34
mm |
38-42.16
mm |
48-50
mm |
60-63
mm |
73-76.3
mm |
88.9-90
mm |
0.79-0.87
inch
|
0.83-0.87
inch
|
1.26-1.34
inch
|
1.5-1.66
inch
|
1.89-1.97
inch
|
2.36-2.48
inch
|
2.87-3
inch
|
3.5-3.54
inch
|
| Applicable pipe material |
Metal pipe, Plastic pipe (UPVC, PPH, PVDF) |
| Applicable fluid |
Various liquids (no impurities or air bubbles) |
| Applicable fluid temperature |
0 ~ 85°C (no ice on the piping surface) |
| Velocity range |
±0.3 to 6.0 m/s recommended, ±0.1 to 10m/s measurable |
| Flow range |
1.5-120
LPM |
2-200
LPM
|
3-300
LPM
|
5-470
LPM
|
8-770
LPM
|
13-1320
LPM
|
22-1670
LPM
|
30-1870
LPM
|
| 0.4-31.7 gpm |
0.53-52.83 gpm |
0.53-52.83 gpm |
1.32-124.16 gpm |
2.11-203.41 gpm |
3.43-348.71 gpm |
5.81-441.17 gpm |
7.93-494 gpm |
Language
|
English, Traditional and Simplified Chinese (others can be customized) |
| Units |
Metric - Meters, Cubic Meters, Liters
Time - Seconds, Minutes, Hours, Days
Imperial - Feet, Cubic Feet, UK gallon, US gallon |
| Display mode |
Dual screen display: 5-digit LED + 3-color backlight, 3-line 16-character LCD |
| Display update cycle |
0.5s、1s |
| Measurement Accuracy |
±3.0% RD at 10% to 100% of F.S.
±0.3% F.S. at 0% to 10% of F.S.* |
| Display resolution |
Maximum resolution 0.0001 (finest) |
| Power demand |
DC 12V to 36V |
| Power I/O Connector |
M12 8-pin connector (2 meters long) |
| Input/Output |
Analog output with self-powered 16-bit 4-20mA
Modbus RTU RS485
Two-wire optocoupler switch signal (with 2 meters long signal line) |
| Consumption current |
<200mA@12V when starting up and working stably (not included in the communication current) |
| Protection circuit |
Power reverse connection protection, Power surge protection |
| Waterproof level |
IP66** |
| Ambient temperature |
-10 ~ 60°C (no freezing) |
| Relative humidity |
35~ 85%RH (non-condensing) |
| Material |
PPS+GF, PEEK, NBR, Silicon, PA66+GF, PC+GF, SS304, PMMA |
Weight (g)
|
770
|
770
|
785 |
800 |
1390 |
1540 |
1580 |
1650 |
* The measurement accuracy is established in a controlled laboratory environment where the pipe and fluid conditions are set and the instrument is calibrated to zero before conducting tests at 25°C. Although statistical results are obtained under these conditions, there may be variances in accuracy when used in customer environments.
** Incorrect installation when rotating the screen by loosening the screws around it may affect the IP66 waterproof protection.
Size
FU-ES015 / FU-ES020 / FU-ES025 / FU-ES032
Unit：mm
| Model |
A
|
B
|
C
|
D
|
E
|
F
|
| FU-ES015 |
169.85 |
64 |
79 |
115 |
120.53 |
54 |
| FU-ES020 |
169.85 |
64 |
79 |
115 |
124.02 |
54 |
| FU-ES025 |
169.85 |
64 |
79 |
115 |
133.52 |
54 |
| FU-ES032 |
169.85 |
64 |
79 |
115 |
143.02 |
54 |
FU-ES040 / FU-ES050 / FU-ES065 / FU-ES075
Unit：mm
| Model |
A
|
B
|
C
|
D
|
E
|
F
|
| FU-ES040 |
184.90 |
64 |
125.22 |
164.12 |
53.50 |
69.50 |
| FU-ES050 |
184.90 |
64 |
125.30 |
178.12 |
53.50 |
69.50 |
| FU-ES065 |
184.90 |
64 |
126.87 |
193.12 |
53.50 |
69.50 |
| FU-ES075 |
184.90 |
64 |
128.55 |
207.12 |
53.50 |
69.50 |
Cable Head Size
Applications
반도체
유량계는 화학 액체와 순수한 수처리 유체의 공급을 모니터링하고, 노즐은 화학 액체의 분사를 제어하여 공정의 순도와 안정성을 보장합니다.
PCBs
유량계는 도금, 현상, 식각 등 습식 공정에서 화학 약품의 사용량을 측정하는 데 사용됩니다. 노즐은 도금액 도포와 수세, 그리고 습식 공정의 현상 및 식각 과정에서 화학 약품을 정확하게 분사합니다.
폐수 처리
유량계는 유입수와 유출수의 흐름을 모니터링하여 처리 효율과 정확성을 높입니다. 노즐은 폐수 처리에서 화학 물질을 분사하여 환경 기준을 충족시킵니다.
정제수
유량계는 순수 공정의 각 단계에서 물 사용량을 모니터링해 효율을 관리합니다. 노즐은 물 분사를 최적화해 정수 효율을 높이고 비용을 절감합니다.
세차
유량계는 수류를 제어하여 세척 효율을 보장하고, 수자원 낭비를 줄여 환경 보호와 에너지 절감 목표를 달성합니다. 노즐은 세차 과정에서 물을 고르게 분사하여 세척 효과를 높이고, 동시에 물 소비를 줄입니다.
AC
유량계는 냉각수와 온수의 흐름을 모니터링하고 제어하며, 냉수기의 에너지 사용률을 관리합니다. 노즐은 냉각수와 온수 시스템에서 수류를 균형 있게 조절하여 시스템 성능과 에너지 효율을 향상시킵니다.
철강 산업
유량계는 냉각수와 가스 흐름을 모니터링하여 금속 처리의 정확성과 에너지 효율을 최적화합니다. 노즐은 도금 과정에서 화학 액체의 분사를 정밀하게 제어하여 균일한 도금층과 안정된 품질을 보장합니다.
