Clamp on Flow Meter क्लैम्प-ऑन फ्लो मीटर
The clamp on ultrasonic flow meter measures by attaching sensors to both sides of the pipe, requiring no cutting or interruption of flow during installation—ideal for situations where downtime is not an option.
This non-invasive method is ideal for contamination-free measurements in semiconductor processes, PCB manufacturing, and water treatment, offering high linearity and consistent accuracy at all flow rates.
ToF (Time of Flight) Principle समय की उड़ान फ्लो मीटर
अल्ट्रासोनिक फ्लो मीटर कैसे काम करते हैं? अल्ट्रासोनिक फ्लो मीटर कार्य सिद्धांत
Using the formula Flow Rate = Cross-Sectional Area × Flow Velocity, accurate flow measurement depends on precisely measuring fluid velocity. The FU-ES ultrasonic flow meter, with EchoSense technology, calculates velocity by measuring the time difference of ultrasonic waves traveling with and against the flow (Time of Flight).
As shown in the diagram, ultrasonic signals move faster with the flow (A to B) and slower against it (B to A) due to the fluid's influence on wave speed. By measuring this time difference, the flow velocity is determined, and combined with the pipe's cross-sectional area, the flow rate can be accurately calculated.
Learn more: How to Calculate Flowrate

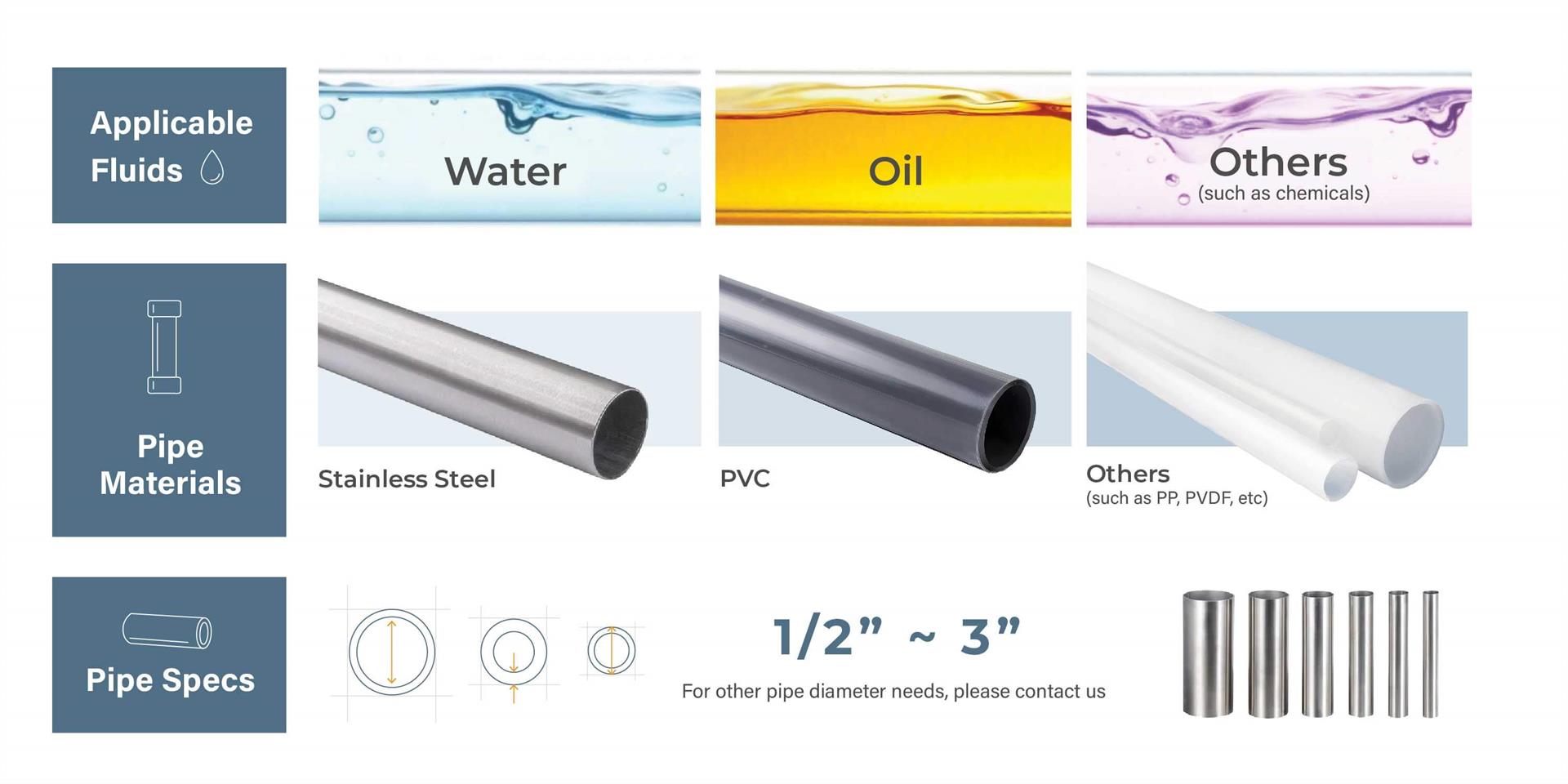

Applicable to variety of fluids, pipe materials and diameters
EchoSense ultrasonic flow meter is versatile, working with water, oil, and chemicals. It's compatible with stainless steel, PVC, and even PP, PVDF piping materials. With applications ranging from 1/2-inch to 3-inch pipes.
Say goodbye to costly ultra sonic gel; Welcome time and cost savings
LORRIC's "ultra sonic gasket pad" is a hassle-free solution that saves you both time and money. No more dealing with the mess and inconvenience of ultrasonic gel.
Complete all settings in 1 click
With EchoSense technology, forget about worrying over pipe materials, inner and outer diameters, thickness, liquid speed of sound, probe placement, and installation complexities. With just one click, we've simplified it all, making installation and setup a breeze. Say goodbye to the hassle!
Automatic Pipe Specification Matching
EchoSense technology features a built-in database of common pipe specifications, including PVC, PP, PVDF, and stainless steel. After installation, one click matches the installed pipe with the database, automatically setting material, outer diameter, and wall thickness. This streamlines installation by removing manual configuration and reducing errors, solving the issue of uncertain pipe specs in traditional setups.
Remarkable measurement accuracy
LORRIC's exclusive algorithm maintains high precision, earning Germany's TrigasFI certification. Test charts show FU-ES measurement accuracy between ±3.0% OR for 10%-100% of full scale (F.S.) and ±0.3% F.S. for 0%-10% of F.S. For a DN25 pipe (3-300LPM range), a 100LPM reading (10%-100%) has a ±3.0% error (97-103). A 20LPM reading (0%-10%) has a ±0.3% error (19.91-20.09).
Multiple Communication Outputs
FU-ES supports various communication modes like Analog output with self-powered 16-bit 4-20mA, Modbus RTU RS485, 2-wire photoelectric switch signal (compatible with NPN/PNP). No need for additional communication modules – we've got you covered!
Learn more:
•What is Analog Output
•What is Modbus RTU RS485
•What is Switch Signal
Detect problems instantly and intelligently with this ultrasonic flow meter using automatic sensing environment
Unlock Intelligent Environmental Monitoring with EchoSense! Our cutting-edge algorithm delivers real-time insights into installation issues, pipe saturation, bubbles, impurities, and more. Stay in control of your pipeline's health and troubleshoot issues instantly!
Probes dislocated
Probes dislocated due to installation issues.
Low fluid levels and excessive bubbles
Signal problems arise from low fluid levels and excessive bubbles in the pipe.
Excessive impurities
Signal problems arise from excessive impurities in the pipe.
Dual LCD/LED screens for easy traffic and equipment status monitoring
- High-brightness large LED screen for easy long-distance flow number reading.
- LCD screen backlight with three-color warning light signal for visual monitoring of flow meter's normal and abnormal conditions.
Vertically and Horizontally Installable
The EchoSense ultrasonic flow meter screen features a square design, allowing for both vertical and horizontal installation to suit different usage scenarios. When installing at different angles, simply remove the screws on the four sides of the screen, rotate the screen 90 degrees, and reattach the screws. The display will easily adjust to the new orientation.
Elevate chemical resistance with our engineering plastic housing for the flowmeter.
Experience the Power of FU-ES! Crafted from robust engineering plastics like Nylon, PPS, and PEEK, its outer body boasts incredible strength. Inside, reinforced with 304 stainless steel, ensuring unmatched structural rigidity while prioritizing chemical resistance and product longevity.
|
FU-ES015 |
FU-ES020 |
FU-ES025 |
FU-ES032 |
FU-ES040 |
FU-ES050 |
FU-ES065 |
FU-ES075 |
| Installation method |
Outside the pipe (clamp-on type) |
| Applicable diameter |
20-22
mm |
25-27.2
mm |
32-34
mm |
38-42.16
mm |
48-50
mm |
60-63
mm |
73-76.3
mm |
88.9-90
mm |
0.79-0.87
inch
|
0.83-0.87
inch
|
1.26-1.34
inch
|
1.5-1.66
inch
|
1.89-1.97
inch
|
2.36-2.48
inch
|
2.87-3
inch
|
3.5-3.54
inch
|
| Applicable pipe material |
Metal pipe, Plastic pipe (UPVC, PPH, PVDF) |
| Applicable fluid |
Various liquids (no impurities or air bubbles) |
| Applicable fluid temperature |
0 ~ 85°C (no ice on the piping surface) |
| Velocity range |
±0.3 to 6.0 m/s recommended, ±0.1 to 10m/s measurable |
| Flow range |
1.5-120
LPM |
2-200
LPM
|
3-300
LPM
|
5-470
LPM
|
8-770
LPM
|
13-1320
LPM
|
22-1670
LPM
|
30-1870
LPM
|
| 0.4-31.7 gpm |
0.53-52.83 gpm |
0.53-52.83 gpm |
1.32-124.16 gpm |
2.11-203.41 gpm |
3.43-348.71 gpm |
5.81-441.17 gpm |
7.93-494 gpm |
Language
|
English, Traditional and Simplified Chinese (others can be customized) |
| Units |
Metric - Meters, Cubic Meters, Liters
Time - Seconds, Minutes, Hours, Days
Imperial - Feet, Cubic Feet, UK gallon, US gallon |
| Display mode |
Dual screen display: 5-digit LED + 3-color backlight, 3-line 16-character LCD |
| Display update cycle |
0.5s、1s |
| Measurement Accuracy |
±3.0% RD at 10% to 100% of F.S.
±0.3% F.S. at 0% to 10% of F.S.* |
| Display resolution |
Maximum resolution 0.0001 (finest) |
| Power demand |
DC 12V to 36V |
| Power I/O Connector |
M12 8-pin connector (2 meters long) |
| Input/Output |
Analog output with self-powered 16-bit 4-20mA
Modbus RTU RS485
Two-wire optocoupler switch signal (with 2 meters long signal line) |
| Consumption current |
<200mA@12V when starting up and working stably (not included in the communication current) |
| Protection circuit |
Power reverse connection protection, Power surge protection |
| Waterproof level |
IP66** |
| Ambient temperature |
-10 ~ 60°C (no freezing) |
| Relative humidity |
35~ 85%RH (non-condensing) |
| Material |
PPS+GF, PEEK, NBR, Silicon, PA66+GF, PC+GF, SS304, PMMA |
Weight (g)
|
770
|
770
|
785 |
800 |
1390 |
1540 |
1580 |
1650 |
* The measurement accuracy is established in a controlled laboratory environment where the pipe and fluid conditions are set and the instrument is calibrated to zero before conducting tests at 25°C. Although statistical results are obtained under these conditions, there may be variances in accuracy when used in customer environments.
** Incorrect installation when rotating the screen by loosening the screws around it may affect the IP66 waterproof protection.
Size
FU-ES015 / FU-ES020 / FU-ES025 / FU-ES032
Unit：mm
| Model |
A
|
B
|
C
|
D
|
E
|
F
|
| FU-ES015 |
169.85 |
64 |
79 |
115 |
120.53 |
54 |
| FU-ES020 |
169.85 |
64 |
79 |
115 |
124.02 |
54 |
| FU-ES025 |
169.85 |
64 |
79 |
115 |
133.52 |
54 |
| FU-ES032 |
169.85 |
64 |
79 |
115 |
143.02 |
54 |
FU-ES040 / FU-ES050 / FU-ES065 / FU-ES075
Unit：mm
| Model |
A
|
B
|
C
|
D
|
E
|
F
|
| FU-ES040 |
184.90 |
64 |
125.22 |
164.12 |
53.50 |
69.50 |
| FU-ES050 |
184.90 |
64 |
125.30 |
178.12 |
53.50 |
69.50 |
| FU-ES065 |
184.90 |
64 |
126.87 |
193.12 |
53.50 |
69.50 |
| FU-ES075 |
184.90 |
64 |
128.55 |
207.12 |
53.50 |
69.50 |
Cable Head Size
Applications
Semiconductor
Flow meters monitor chemical liquids and pure water treatment fluids supply; nozzles control the spraying of chemical liquids to ensure process purity and stability.
PCBs
Flow meters in PCB electroplating, developing, and etching processes monitor precise chemical and cleaning fluid flow; nozzles control chemical coating and rinsing
Wastewater Treatment
Flow meters monitor the flow of inlet and outlet water, enhancing treatment efficiency and accuracy; nzzles spray chemicals in wastewater treatment, meeting environmental standards
Purified Water Industries
Flow meters monitor water usage at each stage to control process efficiency; nozzles optimize water spray to ensure water purification efficiency and reduce treatment costs
Car Wash
Flow meters ensure cleaning efficiency and reduce water wastage; nozzles uniformly distribute water, enhancing the cleaning effect while simultaneously reducing water consumption
AC
Flow meters monitor and control cooling and hot water flows, tracking chiller energy use; nozzles balance water flow in these systems, enhancing efficiency
Steel Industries
Flow meters monitor cooling water and gas flow, ensuring accuracy and optimal efficiency; nozzles precisely control chemical liquid spraying, making even coating and stable quality
