ST Patented Cooling Tower Spray Nozzle

Taiwan-made FRPP single-fluid hollow cone nozzle with fine spray droplets, clog-resistant, and operable at low pressure. Features a 40mm debris passage. Ideal for exhaust gas scrubbing, gas dispersion, machinery cooling, and liquid/gas cooling applications.

Brand: LORRIC
Nozzle Type: Hollow Cone
Fluid Type: Single-fluid
Materials: Glass Fiber-Reinforced PP (FRPP)
Thread Standards: BSPT
Thread Sizes: 1-1/2"

Catalogue



Hollow Cone Nozzles

The liquid forms a vortex inside the nozzle's cavity, creating a hollow cone spray through the curved opening. Commonly used in scrubbers, cooling, dust suppression, and humidification, hollow cone nozzles have large channels that prevent clogging and produce fine atomized spray.

Hollow Cone Nozzles

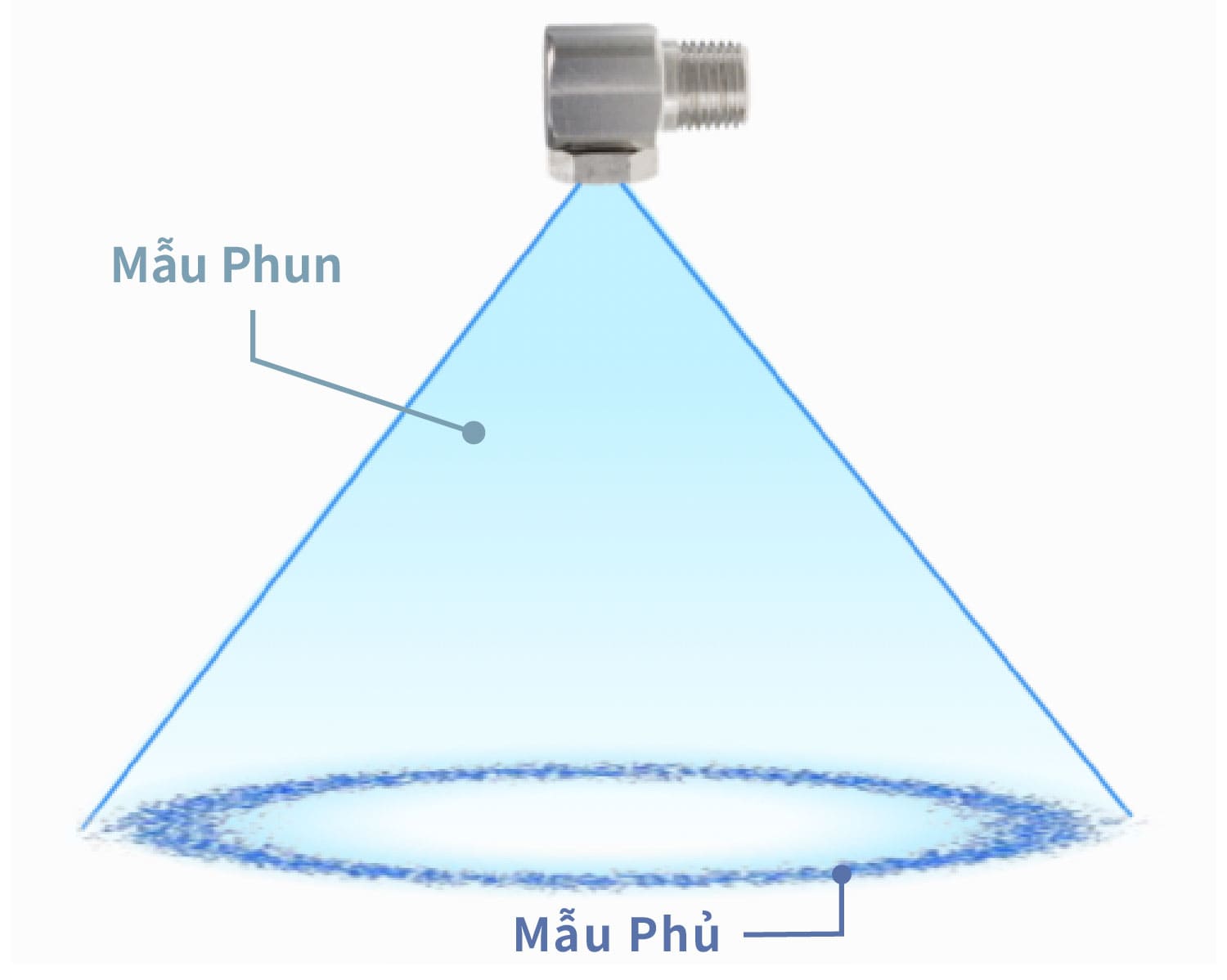

Hollow Cone Nozzle Spray Pattern

Hollow Cone Nozzle Spray Pattern

A single-fluid nozzle, known as a hollow cone nozzle, produces a spray pattern shaped like a hollow cone. The coverage pattern, when viewed from above, forms a hollow circular shape on the target surface.

Donut-shaped Flow Distribution

The flow distribution of a hollow cone nozzle features a donut-shaped pattern, with stronger flow at the edges and weaker flow in the center.

Donut-shaped Flow Distribution
Shark teeth design

Shark teeth design

Shark teeth design provides a more liquid surface for better cooling performance. No complicated structure in the nozzle flow path provides the maximum free passage of 40mm which effectively avoids clogging.

Two-piece design

Two pieces nozzle design enables easy cleaning and installation.

Two-piece design
About engineering tolerance

About engineering tolerance

The flow tolerance is within a range of plus or minus 10% of the standard flow rate.

Material Options


Material Options

Material Guarantees

Metal
Metal

We take high-quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world's top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • To choose the spray flow rate for each nozzle, please refer to the chart below.
    • To select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

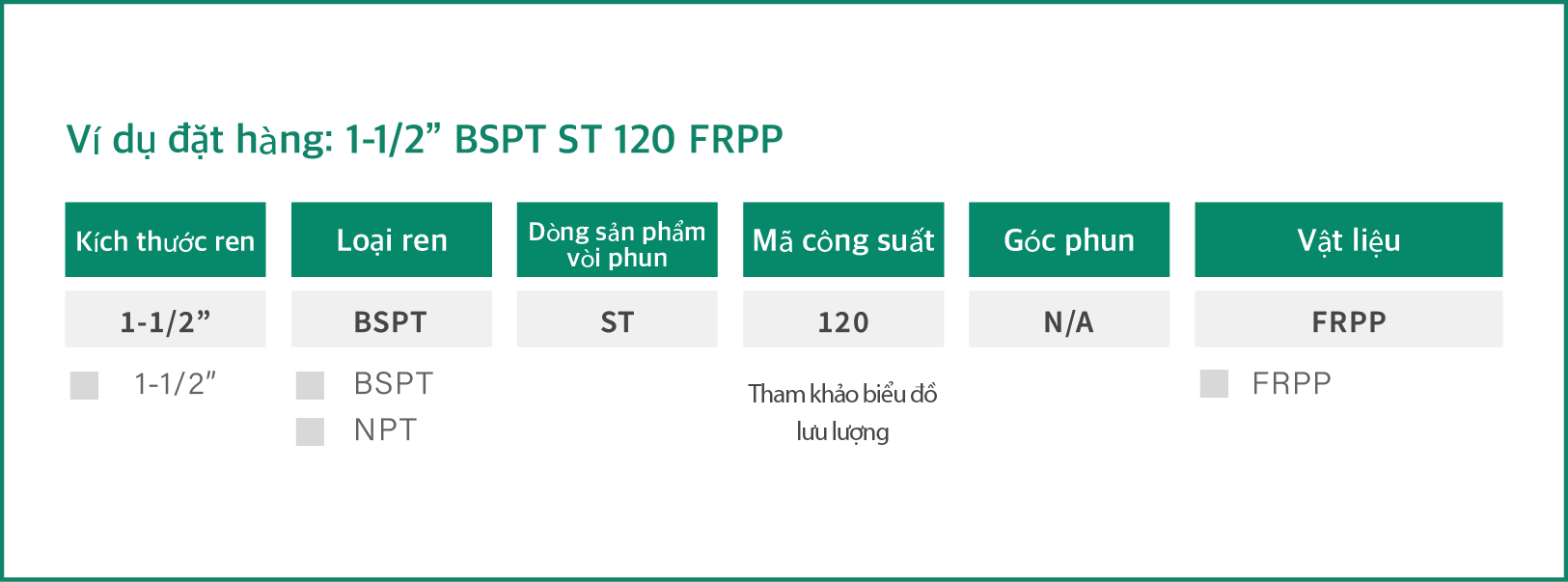

  • Example specification: 1-1/2” BSPT ST 120 FRPP. Each number corresponds to the following options and meanings.

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1-1/2" 0.05
kgf/cm²
0.07
kgf/cm²
0.1
kgf/cm²
0.2
kgf/cm²
0.3
kgf/cm²
0.5
kgf/cm²
0.7
kgf/cm²
1
kgf/cm²
2
kgf/cm²
120 v
84.9 100 120 170 208 268 317 379 537
122 v 86.3 102 122 173 211 273 323 386 546
147 v 104 123 147 208 255 329 389 465 657
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1-1/2" 0.005
MPa
0.007
MPa
0.01
MPa
0.02
MPa
0.03
MPa
0.05
MPa
0.07
MPa
0.1
MPa
0.07
MPa
120 v 85.7 101 121 171 210 271 321 383 321
122 v 87.1 103 123 171 213 275 326 390 326
147
v 105 124 148 210 257 332 393 469 393
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1-1/2" 0.05
bar
0.07
bar
0.1
 bar
0.2
 bar
0.3
 bar
0.5
 bar
0.7
 bar
1
 bar
2
 bar
120 v 85.7
101 121 171 210 271 321 383 542
122
v 87.1 103 123 171 213 275 326 390 551
147
v 105 124 148 210 257 332 393 469 664
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1-1/2" 0.5
psi
1
psi
1.5
psi
2
psi
5
psi
7
psi
10
psi
15
psi
30
psi
120 v 18.8 26.6 32.6 37.6 59.4 70.3 84.1 103 146
122
v 19.1 27.0 33.1 38.2 60.4 71.5 85.5 105 148
147
v 23.0 32.6 39.9 46.0 72.8 86.1 103 126 178
  • * Standard Pressure: Column in red.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
    * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Size

Thread(BSPT) Size(mm) Weight(g)
A B C D
1-1/2" 165 175 119 26 376

Thread installation

Easy installing with 2 simple steps!

Step 1
Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2
Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3
Step 3

Complete the installation.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.

Working Process and matters need attention of Nozzle Customization

  • We provide custom nozzle services according to standard operating procedures.
  • Please note
    • There are minimum quantity requirements
    • There are exclusive sales channels must be mutually agreed upon
Working Process and matters need attention of Nozzle Customization
