KP Metal Anti-Clogging Solid Cone Nozzle

KP Stainless steel single-fluid solid cone nozzles, easily assembled with a hex wrench, offer resistance to clogging and ensure even spray particle distribution. Widely used in semiconductor manufacturing, printed circuit boards, and applications requiring dispersion of cleaning, cooling, and acid treatment chemicals.

Brand：	LORRIC
Nozzle Type：	Solid Cone
Fluid Type：	Single-fluid
Materials：	SS303, SS316, Brass
Thread Standard：	BSPT
Thread Sizes：	1/8", 1/4", 3/8"

File download

Inquire now

X-Shaped Axial Full Cone Nozzle

Liquid passes through multi-porous or X-shaped baffles, creating rotating streams. As it exits, centrifugal force forms a circular spray pattern. The solid cone nozzle works well at low pressure, providing wide coverage and uniform droplets, ideal for semiconductor processes, chemical distribution, and coating.

Full Cone Spray Nozzle Spray Pattern

Single-fluid nozzles produce a conical spray shape, known as solid cone nozzles, resulting in a circular pattern.

Mountain-Shaped Flow Distribution

The Full Cone Spray Nozzle has maximum spray volume in the center, decreasing towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform spraying, install nozzles closer together to overlap coverage areas and improve uniformity.distribution.

Multiple Flow Rates Available

The fan spray nozzle offers a wide range of flow rates. For example, at a standard design pressure of 2 Kg/cm², the flow rates range from 1 Lpm to 14 Lpm. (For other flow rate requirements, please refer to the specification sheet or contact us directly.)

Offers 0° to 120° Spray Angles

The solid cone nozzle offers 0° to 120° spray angles. A 0° angle provides a straight jet with a single-point spray, delivering the highest impact among all nozzle types. The 120° angle offers the widest coverage, while the standard 60° angle provides balanced impact and coverage. For specific specs, contact us.

Single-piece design

This single-unit product can be directly attached to the pipeline. The nozzle, due to usage and environmental factors, requires regular maintenance or replacement. We also offer multi-part quick-disconnect nozzles for time-saving maintenance.

Material Options

About engineering tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic

We promise never to use recycled materials.

High Quality

All material is purchased from world top providers.

Please place your order according below information.

Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
- Choose the nozzle diameter (thread size) and specifications that meet your requirements.
- Choose the spray flow rate for each nozzle, please refer to the chart below.
- Select the spray angle for each nozzle, please refer to the chart below.
- Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

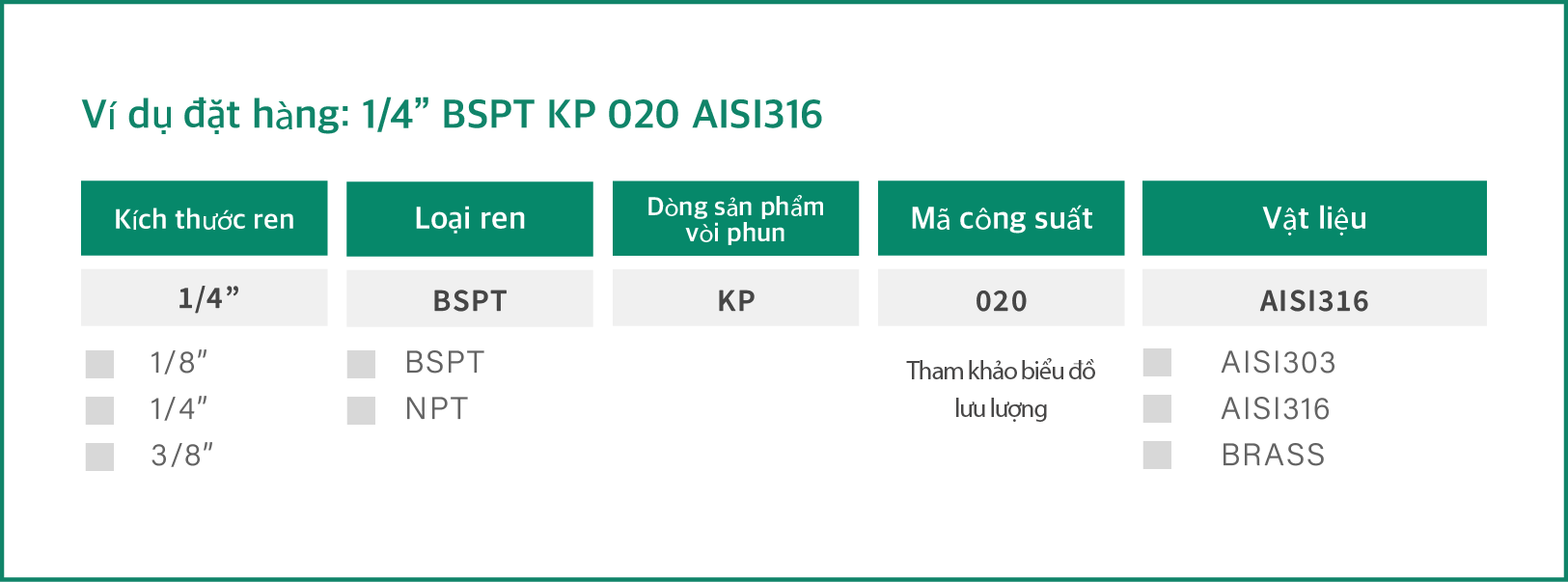

Example specification: 1/8” BSPT KP 020 AISI316. Each number corresponds to the following options and meanings.

Select
Unit

Spray Angle	Capacity Code	Thread Size			Capacity at Pressure
Spray Angle	Capacity Code	1/8"	1/4"	3/8"	0.7 kgf/cm²	1.0 kgf/cm²	1.5 kgf/cm²	2.0 kgf/cm²	4.0 kgf/cm²	6.0 kgf/cm²	8.0 kgf/cm²	10.0 kgf/cm²	15.0 kgf/cm²
50°	010	V	V		0.59	0.71	0.87	1.00	1.41	1.73	2.00	2.24	2.74
	015	V	V		0.89	1.06	1.30	1.50	2.12	2.60	3.00	3.35	4.11
	020	V	V		1.18	1.41	1.73	2.00	2.83	3.46	4.00	4.47	5.48
	025	V	V		1.48	1.77	2.17	2.50	3.54	4.33	5.00	5.59	6.85
	030	V	V		1.77	2.12	2.60	3.00	4.24	5.20	6.00	6.71	8.22
	035	V	V		2.07	2.47	3.03	3.50	4.95	6.06	7.00	7.83	9.59
≀	040	V	V		2.37	2.83	3.46	4.00	5.68	6.93	8.00	8.94	10.95
	050		V	V	2.96	3.54	4.33	5.00	7.07	8.66	10.00	11.18	13.69
	060		V	V	3.55	4.24	5.20	6.00	8.49	10.39	12.00	13.42	16.43
	070		V	V	4.14	4.95	6.06	7.00	9.90	12.12	14.00	15.65	19.17
	080		V	V	4.73	5.66	6.93	8.00	11.31	13.86	16.00	17.89	21.91
	100			V	5.92	7.07	8.66	10.00	14.14	17.32	20.00	22.36	27.39
	120			V	7.10	8.49	10.39	12.00	16.97	20.78	24.00	26.83	32.86
95°	140			V	8.28	9.90	12.12	14.00	19.80	24.25	28.00	31.30	38.34

Spray Angle	Capacity Code	Thread Size			Capacity at Pressure
Spray Angle	Capacity Code	1/8"	1/4"	3/8"	0.07 MPa	0.1 MPa	0.15 MPa	0.2 MPa	0.4 MPa	0.6 MPa	0.8 MPa	1.0 MPa	1.5 MPa
50°	010	V	V		0.60	0.71	0.87	1.01	1.43	1.75	2.02	2.26	2.77
	015	V	V		0.90	1.07	1.31	1.51	2.14	2.62	3.03	3.39	4.15
	020	V	V		1.19	1.43	1.75	2.02	2.86	3.50	4.04	4.52	5.53
	025	V	V		1.49	1.79	2.19	2.52	3.57	4.37	5.05	5.65	6.91
	030	V	V		1.77	2.14	2.62	3.03	4.28	5.25	6.06	6.77	8.30
	035	V	V		2.09	2.50	3.06	3.53	5.00	6.12	7.07	7.90	9.68
≀	040	V	V		2.39	2.86	3.50	4.04	5.71	7.00	8.08	9.03	11.06
	050		V	V	2.99	3.57	4.37	5.05	7.14	8.75	10.10	11.29	13.93
	060		V	V	3.58	4.28	5.25	6.06	8.57	10.49	12.12	13.55	16.59
	070		V	V	4.18	5.00	6.12	7.07	10.00	12.24	14.14	15.81	19.36
	080		V	V	4.78	5.71	7.00	8.08	11.42	13.99	16.16	18.06	22.12
	100			V	5.97	7.14	8.75	10.10	14.28	17.49	20.20	22.58	27.65
	120			V	7.17	8.57	10.49	12.12	16.14	20.99	24.24	26.10	33.19
95°	140			V	8.36	10.00	12.24	14.14	19.99	24.49	28.27	31.61	38.72

Spray Angle	Capacity Code	Thread Size			Capacity at Pressure
Spray Angle	Capacity Code	1/8"	1/4"	3/8"	0.7 bar	1.0 bar	1.5 bar	2.0 bar	4.0 bar	6.0 bar	8.0 bar	10.0 bar	15.0 bar
50°	010	V	V		0.60	0.71	0.87	1.01	1.43	1.75	2.02	2.26	2.77
	015	V	V		0.90	1.07	1.31	1.51	2.14	2.62	3.03	3.39	4.15
	020	V	V		1.19	1.43	1.75	2.02	2.86	3.50	4.04	4.52	5.53
	025	V	V		1.49	1.79	2.19	2.52	3.57	4.37	5.05	5.65	6.91
	030	V	V		1.79	2.14	2.62	3.03	4.28	5.25	6.06	6.77	8.30
	035	V	V		2.09	2.50	3.06	3.53	5.00	6.12	7.07	7.90	9.68
≀	040	V	V		2.39	2.86	3.50	4.04	5.71	7.00	8.08	9.03	11.06
	050		V	V	2.99	3.57	4.37	5.05	7.14	8.75	10.10	11.29	13.83
	060		V	V	3.58	4.28	5.25	6.06	8.57	10.49	12.12	13.55	16.59
	070		V	V	4.18	5.00	6.12	7.07	10.00	12.24	14.14	15.81	19.36
	080		V	V	4.78	5.71	7.00	8.08	11.42	13.99	16.16	18.06	22.12
	100			V	5.97	7.14	8.75	10.10	14.28	17.49	20.20	22.58	27.65
	120			V	7.17	8.57	10.49	12.12	17.14	20.99	24.24	27.10	33.19
95°	140			V	8.36	10.00	12.24	14.14	19.99	24.49	28.27	31.61	38.72

Spray Angle	Capacity Code	Thread Size			Capacity at Pressure
Spray Angle	Capacity Code	1/8"	1/4"	3/8"	10 psi	15 psi	20 psi	28 psi	60 psi	90 psi	120 psi	140 psi	200 psi
50°	010	V	V		0.16	0.19	0.22	0.26	0.38	0.47	0.54	0.59	0.70
	015	V	V		0.23	0.29	0.33	0.39	0.58	0.70	0.81	0.88	1.05
	020	V	V		0.31	0.38	0.44	0.52	0.77	0.94	1.09	1.17	1.40
	025	V	V		0.39	0.48	0.55	0.66	0.96	1.17	1.36	1.47	1.75
	030	V	V		0.47	0.58	0.66	0.79	1.15	1.41	1.63	1.76	2.10
	035	V	V		0.55	0.67	0.78	0.92	1.34	1.64	1.90	2.05	2.45
≀	040	V	V		0.63	0.77	0.89	1.05	1.53	1.88	2.17	2.34	2.80
	050		V	V	0.78	0.96	1.11	1.31	1.92	2.35	2.71	2.93	3.50
	060		V	V	0.94	1.15	1.33	1.57	2.30	2.82	3.26	3.52	4.20
	070		V	V	1.10	1.34	1.55	1.83	2.69	3.29	3.80	4.10	4.90
	080		V	V	1.25	1.53	1.77	2.10	3.07	3.76	4.34	4.69	5.60
	100			V	1.57	1.92	2.22	2.62	3.84	4.70	5.43	5.86	7.00
	120			V	1.88	2.30	2.66	3.15	4.60	5.64	6.51	7.03	8.41
95°	140			V	2.19	2.69	3.10	3.67	5.37	6.58	7.60	8.20	9.81

* Standard Pressure: Column in red.
* This product for spray angle 90° and 120° is able to be made to order.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
* Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

Others

Cleaning: Gas, exhaust gas, dust, cleaning device, tank cleaning, etc.
Cooling: Gas, tank, machinery, metal, roof, etc.
Dispersion: humidif ying, chemicals, firefighting, dust suppression, aeration, defoaming, sewage treatment.

Size

Thread(BSPT)	Size(mm)			Weight(g)
Thread(BSPT)	A	B	C	SS303	SS316	Brass
1/8"Male	12	12	19	15	15.5	16.9
1/4"Male	14	11-15	22-26	18	18.5	19
3/8"Male	18	15	30	28.5	29	32

Thread installation

Easy installing with 2 simple steps!

Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3

Complete the installation.

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.

Working Process and matters need attention of Nozzle Customization

We provide custom nozzle services according to standard operating procedures.
Please note
- There are minimum quantity requirements
- There are exclusive sales channels must be mutually agreed upon
