KJ Multi-Slotted Core Cone Nozzle for Steel and Other Industries

KJ stainless steel single-fluid solid cone nozzle can be assembled with a hex wrench. It offers uniform impact and easy cleaning, commonly used in the steel industry, gas, exhaust, and dust cleaning, cooling of gases, tanks, machinery, metals, and in applications like wetting, firefighting, and dust suppression.

Brand: LORRIC
Nozzle Type: Solid Cone
Fluid Type: Single-fluid
Materials: SS303, SS316, Brass
Thread Standard: BSPT
Thread Size: 3/8"

Catalogue



Multi-slotted Core Cone Spray Nozzle

Liquid flows through the nozzle's multi-slotted core, creating rotating streams. Centrifugal force forms a circular spray pattern. The core ensures uniform flow and spray, ideal for semiconductor processes, chemical distribution, cleaning, and cooling.

Multi-slotted Core Cone Spray Nozzle
Full Cone Spray Nozzle Spray Pattern

Full Cone Spray Nozzle Spray Pattern

Single-fluid nozzles produce a conical spray shape, known as solid cone nozzles, resulting in a circular pattern.

Mountain-Shaped Flow Distribution

The Full Cone Spray Nozzle has maximum spray volume in the center, decreasing towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform spraying, install nozzles closer together to overlap coverage areas and improve uniformity.distribution.

Mountain-Shaped Flow Distribution
Material Options

Material Options



Hexagonal body, convenient installation

Single-piece design, the multi-slotted core is embedded and compressed into the body to avoid losing performance from thermal expansion and shrinkage.

About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • Choose the nozzle diameter (thread size) and specifications that meet your requirements.
    • Choose the spray flow rate for each nozzle, please refer to the chart below.
    • Select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

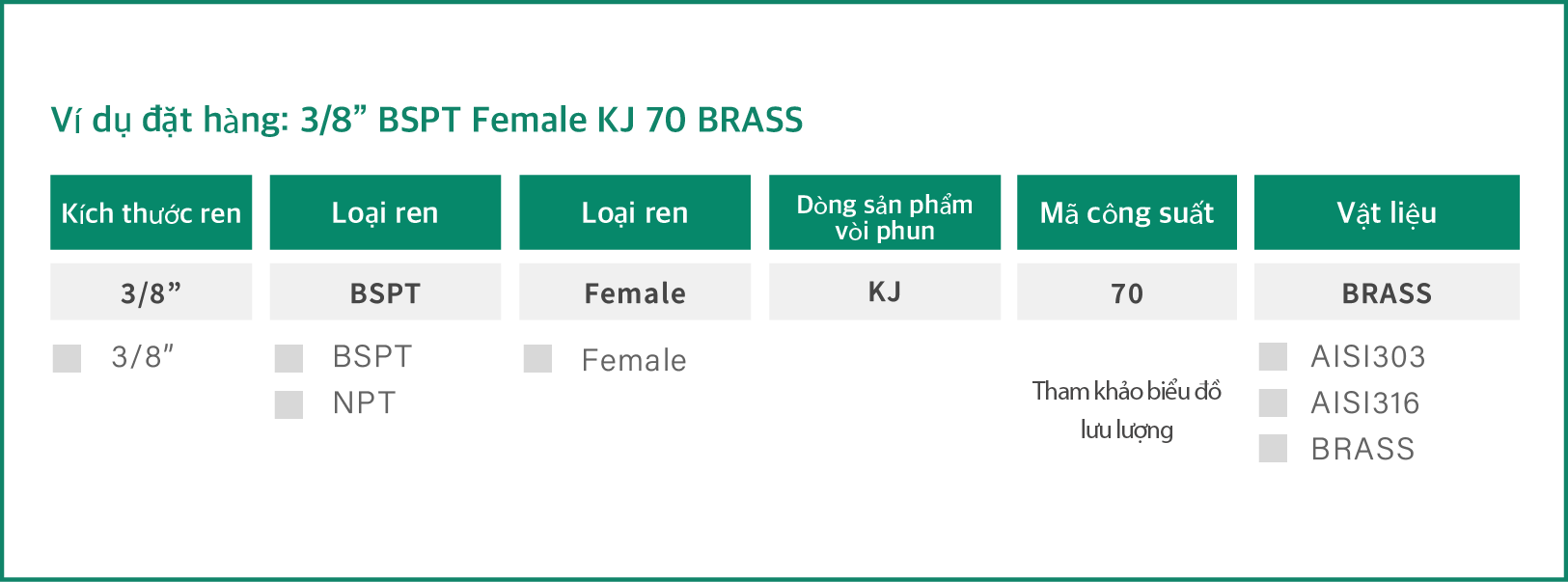

  • Example specification: 1/4” BSPT Female KJ 70 BRASS. Each number corresponds to the following options and meanings.


Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.7
kgf/cm²
1.0
kgf/cm²
1.5
kgf/cm²
2.0
kgf/cm²
2.8
kgf/cm²
4.0
kgf/cm²
6.0
kgf/cm²
10
kgf/cm²
15
kgf/cm²
68° 70 3.50 4.19 5.13 5.92 7.00 8.37 10.25 13.24 16.21
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.07
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.28
MPa
0.4
MPa
0.6
MPa
1
MPa
1.5
MPa
68° 70 3.54 4.23 5.18 5.98 7.07 8.45 10.35 13.37 16.37
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.7
 bar
1.0
 bar
1.5
 bar
2.0
 bar
2.8
bar
4.0
 bar
6.0
 bar
10
 bar
15
 bar
68° 70 3.54 4.23 5.18 5.98 7.07 8.45 10.35 13.37 16.37
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
10
psi
15
psi
20
psi
28
psi
40
psi
60
psi
90
psi
140
psi
200
psi
68° 70 0.93 1.14 1.31 1.55 1.85 2.27 2.78 3.47 4.15
  • * Standard Pressure: Column in red.
  • * This product for spray angle 90° and 120° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

流量計監控冷卻水與氣體流量,確保金屬處理的準確性和能效最佳化;噴嘴在電鍍過程中精確控制化學液體的噴灑,確保鍍層均勻與品質穩定。

Size

Thread(BSPT) Size(mm) Weight(g)
A B SS303 SS316 Brass
3/8"Female Thread 22 26.5 50.4 50 51.8
