KG X-Shaped Axial Cone Nozzle for Steel and Other Industries

KG stainless steel solid cone nozzles are clog-resistant, offer uniform impact, and are easy to clean. KG nozzles are ideal for steel industry use, as well as for exhaust and dust cleaning, gas tank cooling, dust suppression, wetting, and firefighting.

Brand: LORRIC
Nozzle Type: Solid Cone
Fluid Type: Single-fluid
Materials: SS303, Brass
Thread Sizes: 1/8", 1/4", 3/8"

Catalogue



X-Shaped Axial Full Cone Nozzle

Liquid passes through multi-porous or X-shaped baffles, creating rotating streams. As it exits, centrifugal force forms a circular spray pattern. The solid cone nozzle works well at low pressure, providing wide coverage and uniform droplets, ideal for semiconductor processes, chemical distribution, and coating.

X-Shaped Axial Full Cone Nozzle
Full Cone Spray Nozzle Spray Pattern

Full Cone Spray Nozzle Spray Pattern

Single-fluid nozzles produce a conical spray shape, known as solid cone nozzles, resulting in a circular pattern.

Mountain-Shaped Flow Distribution

The Full Cone Spray Nozzle has maximum spray volume in the center, decreasing towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform spraying, install nozzles closer together to overlap coverage areas and improve uniformity.distribution.

Mountain-Shaped Flow Distribution

Material Options

Material Options

About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • Choose the nozzle diameter (thread size) and specifications that meet your requirements.
    • Choose the spray flow rate for each nozzle, please refer to the chart below.
    • Select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

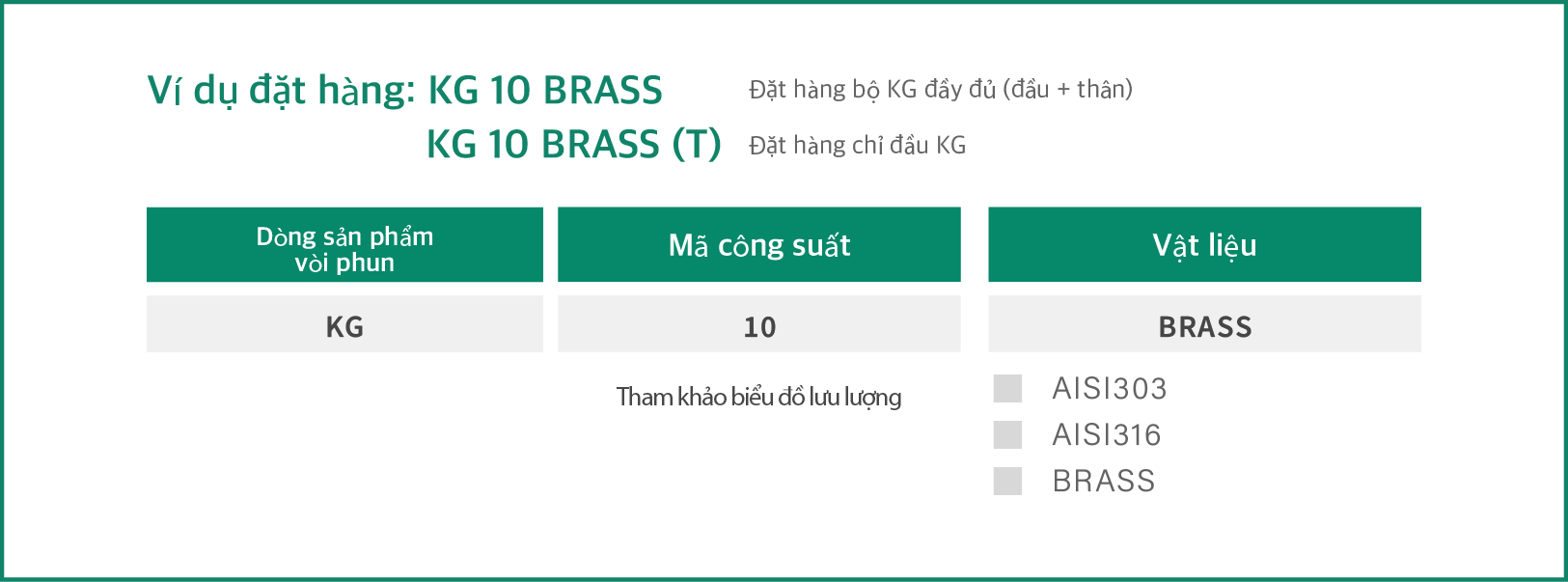

  • Example specification: BSPT KG 10 BRASS - (tip-body) KG 10 BRASS (T) - (tip). Each number corresponds to the following options and meanings.

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
kgf/cm²
0.7
kgf/cm²
1.0
kgf/cm²
1.5
kgf/cm²
2.0
kgf/cm²
2.5
kgf/cm²
3.0
kgf/cm²
5.0
kgf/cm²
10
kgf/cm²
70° 10 3.10 3.67 4.38 5.37 6.20 6.93 7.59 9.80 13.86
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.05
MPa
0.07
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.25
MPa
0.3
MPa
0.5
MPa
1
MPa
70° 10 3.13 3.70 4.43 5.42 6.26 7.00 7.67 9.90 14.00
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
 bar
0.7
 bar
1.0
 bar
1.5
 bar
2.0
bar
2.5
 bar
3.0
 bar
5.0
 bar
10
 bar
70° 10 3.13 3.70 4.43 5.42 6.26 7.00 7.67 9.90 14.00
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
7
psi
10
psi
15
psi
20
psi
28
psi
30
psi
40
psi
80
psi
150
psi
70° 10 0.81 0.97 1.19 1.37 1.62 1.68 1.94 2.75 3.76
  • * Standard Pressure: Column in red.
  • * This product for spray angle 90° and 120° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.


Applications

流量計監控冷卻水與氣體流量,確保金屬處理的準確性和能效最佳化;噴嘴在電鍍過程中精確控制化學液體的噴灑,確保鍍層均勻與品質穩定。

Size

Thread(BSPT) Size(mm) Weight(g)
A B SS303 SS316 Brass
3/8"外牙 21 46.9 10.4 10.6 11.5
Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.

Working Process and matters need attention of Nozzle Customization

  • We provide custom nozzle services according to standard operating procedures.
  • Please note
    • There are minimum quantity requirements
    • There are exclusive sales channels must be mutually agreed upon
Working Process and matters need attention of Nozzle Customization
