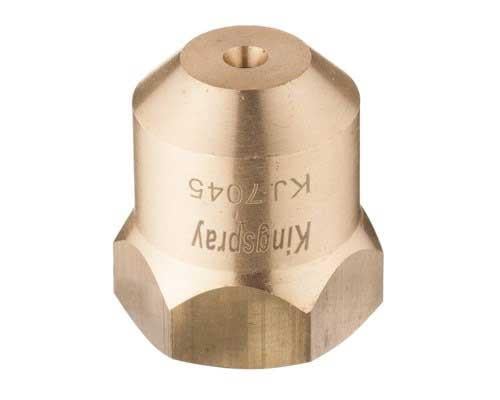

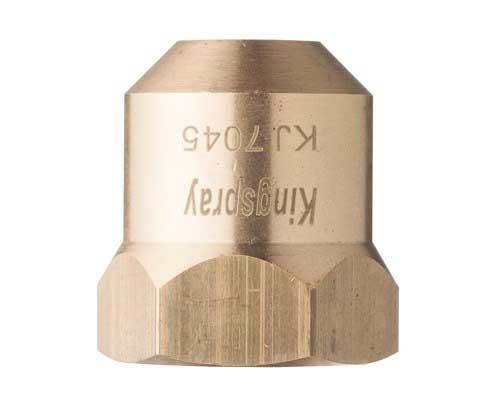

KJ stainless steel single-fluid solid cone nozzle can be assembled with a hex wrench. It offers uniform impact and easy cleaning, commonly used in the steel industry, gas, exhaust, and dust cleaning, cooling of gases, tanks, machinery, metals, and in applications like wetting, firefighting, and dust suppression.
Catalogue

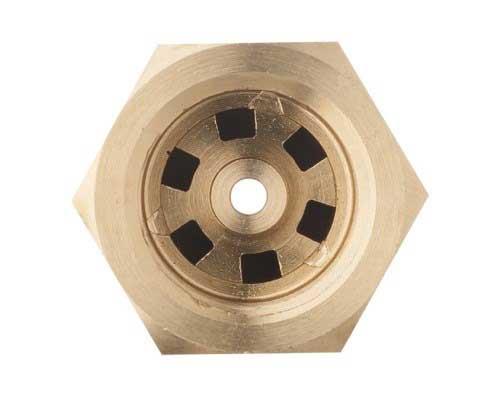

Liquid flows through the nozzle's multi-slotted core, creating rotating streams. Centrifugal force forms a circular spray pattern. The core ensures uniform flow and spray, ideal for semiconductor processes, chemical distribution, cleaning, and cooling.

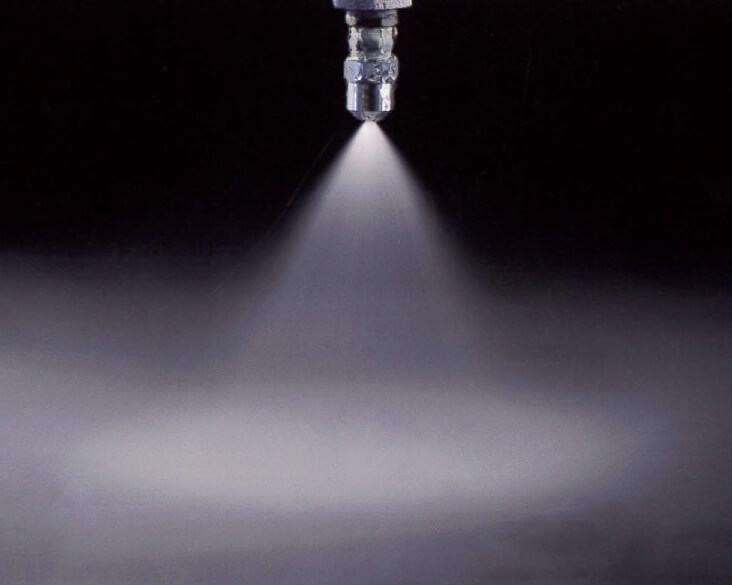

Single-fluid nozzles produce a conical spray shape, known as solid cone nozzles, resulting in a circular pattern.
The Full Cone Spray Nozzle has maximum spray volume in the center, decreasing towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform spraying, install nozzles closer together to overlap coverage areas and improve uniformity.distribution.

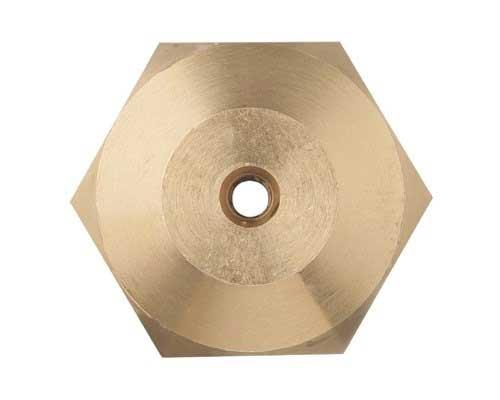

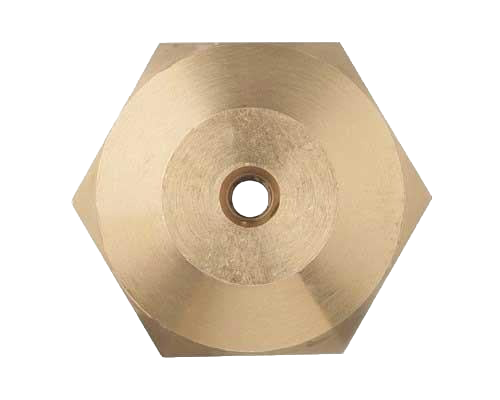

Hexagonal body, convenient installation

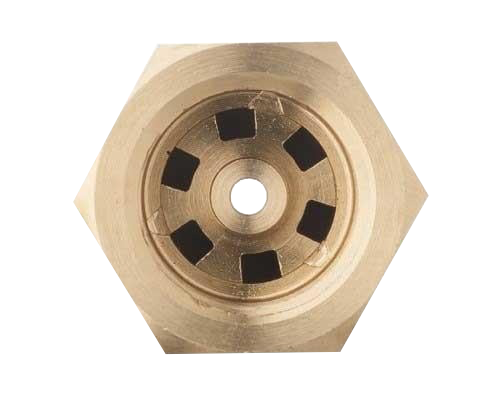

Single-piece design, the multi-slotted core is embedded and compressed into the body to avoid losing performance from thermal expansion and shrinkage.
The flow tolerance is within a range of plus or minus 5% of the standard flow rate.
Angle tolerance is within a range of plus or minus 5% of the standard angle.
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
We promise never to use recycled materials.
All material is purchased from world top providers.
Flow meters monitor cooling water and gas flow, ensuring accuracy and optimal efficiency; nozzles precisely control chemical liquid spraying, making even coating and stable quality
With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!
LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.
Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.
It is the angle by orifice and the loop of gas or liquid sprayed out.
The distribution of particle on surface by sprayed up liquid.
Testing in extreme environments demands data to aid nozzle development.
