HUPE Sandblasting Equipment UPE Fan Spray Nozzle

Specialized single-piece fan-shaped nozzle for sandblasting machines, made of ultra-high molecular weight polyethylene (UPE) for an extended lifespan and reduced maintenance costs.

Brand: LORRIC
Nozzle Type: Fan-shaped
Fluid Type: Single-fluid
Material: UPE
Thread Standards: BSPT
Thread Sizes: 1/4"


Sandblasting Equipment Fan Spray Nozzle

A sandblasting nozzle in sandblasting machines uses high-pressure air to propel abrasives onto surfaces. Adjusting abrasive type, air pressure, spray distance, and angle tailors the effect. It removes paint and rust, roughens surfaces, and enhances friction or adhesion for coating or bonding.

Sandblasting Equipment Fan Spray Nozzle
Flat Fan Nozzle

Flat Fan Nozzle

A flat fan nozzle works by forcing liquid through an oval-shaped orifice, spreading it into a fan shape. This design provides strong central flow and weaker edges, ideal for uniform coverage in industries like semiconductors, PCB manufacturing, and steel. It offers precise control, resists clogging, and delivers high impact force.

Fan Spray Nozzle Spray Pattern

A single-fluid fan spray nozzle produces a spray pattern resembling a fan, hence the name. The coverage pattern, when viewed from above the target area, forms a single-line shape with tapered edges on both sides.
Learn more : Nozzle Spray Pattern

Fan Spray Nozzle Spray Pattern
Mountain-Shaped Flow Distribution

Mountain-Shaped Flow Distribution

The fan spray nozzle has maximum spray volume in the center, decreasing towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform spraying, install nozzles closer together to overlap coverage areas and improve uniformity.
Learn more : Nozzle Flow Distribution

Offers 0° to 110° Spray Angles

The fan spray nozzle provides various angle options, with 0° producing a straight jet for maximum impact, and 110° offering the widest coverage. For specific inventory details, please contact us.
Learn more : Nozzle Spray Angle & Coverage

Offers 0° to 110° Spray Angles
Single-piece design

Single-piece design

This nozzle attaches to pipelines directly. Usage time and environment impact spray performance (flow and angle). Regular maintenance or replacement needed. For tougher conditions, we have a quick-release multi-piece nozzle for easy replacement, saving time and effort.



UPE Material

Cut from ultra-high molecular weight UPE rods, Ideal for applications with solid particles in liquids, requiring high wear resistance, and offering longer-lasting performance compared to stainless steel and ceramics.

UPE Material
Why Choose LORRIC UPE Nozzles?

Why Choose LORRIC UPE Nozzles?

LORRIC UPE nozzles offer a symmetrical spray distribution, ensuring seamless and complete coverage with standard nozzle arrangements. This uniform distribution results in even chemical reactions. In contrast, lower-quality nozzles available in the market may have uneven spray distribution, causing gaps in the spraying pattern and failing to achieve the desired effectiveness, ultimately leading to wastage of chemicals.

About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • Choose the nozzle diameter (thread size) and specifications that meet your requirements.
    • Choose the spray flow rate for each nozzle, please refer to the chart below.
    • Select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

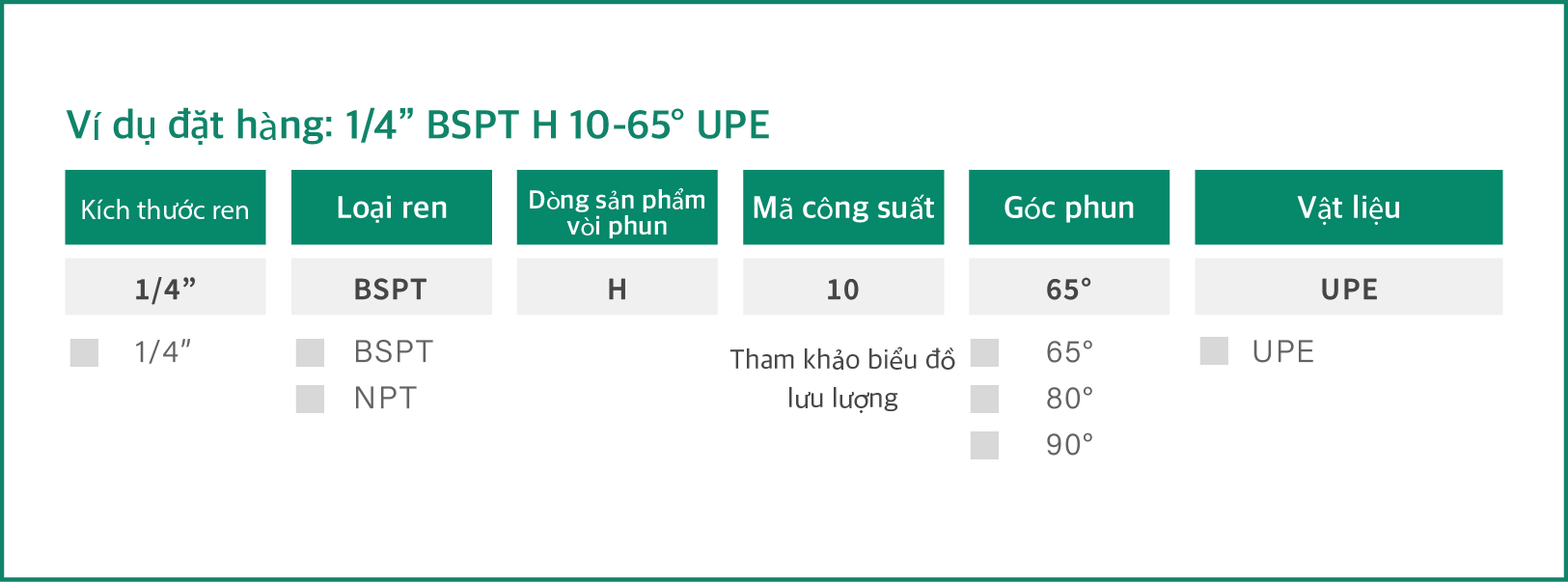

  • Example specification: 1/4” BSPT H 10-65° UPE. Each number corresponds to the following options and meanings.

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/4" 0.5
kgf/cm²
1.0
kgf/cm²
1.5
kgf/cm²
2.0
kgf/cm²
3.0
kgf/cm²
4.0
kgf/cm²
5.0
kgf/cm²
6.0
kgf/cm²
8.0
kgf/cm²
65° 10 V 1.60 2.26 2.76 3.19 3.91 4.51 5.05 5.53 6.39
65° 12.5 V 2.00 2.82 3.46 3.99 4.89 5.64 6.31 6.91 7.98
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/4" 0.05
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.3
MPa
0.4
MPa
0.5
MPa
0.6
MPa
0.8
MPa
65° 10 V 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
65° 12.5 V 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/4" 0.5
bar
1.0
bar
1.5
bar
2.0
bar
3.0
bar
4.0
bar
5.0
bar
6.0
bar
8.0
bar
65° 10 V 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
65° 12.5 V 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/4" 7
psi
10
psi
20
psi
28
psi
40
psi
60
psi
80
psi
100
psi
110
psi
65° 10 V 0.42 0.50 0.71 0.84 1.00 1.22 1.41 1.58 1.66
65° 12.5 V 0.52 0.63 0.88 1.05 1.25 1.53 1.77 1.98 2.07
  • * Standard Pressure: Column in red.
  • * This product for spray angle 0°, 15°, 25°, 40°, 50°, 100° and 110° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.
Dispersion: Abrasives (Sandblasting Machine)

Dispersion: Abrasives (Sandblasting Machine)

UPE nozzles are commonly used in sandblasting machines, which are part of a wet sandblasting process. This equipment can spray abrasive material (12% steel grit, 88% water) as a mist onto the surface of printed circuit boards, ensuring good adhesion and creating a uniformly non-directional ideal surface condition. As a result, it is effective for various pre-treatment processes such as dry film pre-treatment, pre-soldering treatment, pre-metal plating treatment, and liquid solder resist pre-treatment.

Due to the significant wear and frequent replacement of nozzles in wet sandblasting processes, LORRIC's products have a longer lifespan compared to lower-quality competitors. They can improve nozzle longevity by 2 to 4 times, effectively reducing the yield loss caused by nozzle hole enlargement. This, in turn, lowers downtime and labor costs associated with nozzle replacements, helping achieve cost reduction objectives.

Size

Thread(BSPT) Size(mm) Weight(g)
A B C
1/4"外牙 14 15 26 2.5

Thread installation

Easy installing with 2 simple steps!

Step 1
Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2
Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3
Step 3

Complete the installation.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.
