BJ Angle Adjustable Thread Nozzle

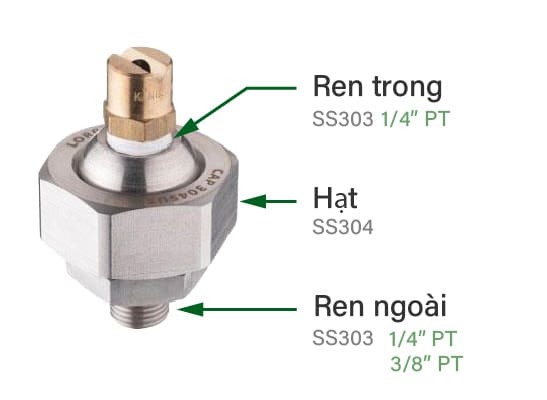

This stainless steel, high-temperature-resistant rotating nozzle connector is durable and allows the nozzle head to be adjusted 38 degrees left or right.

Brand: LORRIC
Body Material: 303SUS
Thread Specification: Male Thread, Female Thread
Thread Size: 1/4", 3/8"


  •  Adjusting nozzle angle up to 38 degree.
  • Stainless steel and brass provide longer life time and higher temperature resistance compare with placstic ones.


Material Options

303SUS

Material Options

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Applications

Size

Materials Thread(BSPT) Size(mm) Weight(g)
A B  C 303SUS
Metal 1/4" female
37.8


43

 38.2



197


1/4"male
3/8"female
3/8"male

Installation

Easy installing with 4 simple steps !

Step 1
Step 1

Drill the nozzle pipe with a threaded opening of the same size as the nozzle.

Step 2
Step 2

Rotate the base clockwise into the female thread opening on the spray pipe until it is securely attached.

Step 3
Step 3

Place the ball seat into the base and screw on the nut.

Step 4
Step 4

Adjust the nozzle head angle.

Finished
Finished

Finished

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.



Working Process and matters need attention of Nozzle Customization



Working Process and matters need attention of Nozzle Customization
