Simple Installation Design
The simple clamp design allows for tool-free nut removal. Just drill a hole in the water pipe, and the nozzle can be securely attached without any additional tools.
Three-piece structure design
EB+HB is a three-piece clamp-type nozzle, designed for easy assembly and maintenance.
HB Fan Nozzle
The HB nozzle, used with the EB+HB ball assembly, provides a fan-shaped spray with 65° and 80° angles. At 1 Kg/cm², flow rates range from 2.26 Lpm to 13.55 Lpm. (For other flow rates, see the specification sheet or contact us.)
Material Options
The EB base offers various pipe and hole sizes. The most commonly selected option is a 1" EB clamp, Ø 15 drilling, paired with an HB 65° flat fan nozzle, flow code 10.
•Clamp Pipe Size:
1"(OD34 +/-0.3mm)
1-1/4"(OD42 +/-0.3mm)
1-1/2"(OD48 +/-0.4mm)
•Nozzle Bore Diameter:
Ø 15 (14.3~1/m)
Ø 17 (16.4~17m/m)
Ø 20 (19.0~20m/m)
About engineering tolerance
Flowrate tolerance
The flow tolerance is within a range of plus or minus 5% of the standard flow rate.
Angle tolerance
Angle tolerance is within a range of plus or minus 5% of the standard angle.
Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never to use recycled materials.
High Quality
All material is purchased from world top providers.
사양
아래 정보에 따라 주문하십시오.
LORRIC 노즐에 대한 주문을 청구하는 방법?
- • 압력, 유량 및 스프레이 각도의 요구 사항에 따라 위에서 제공 한 용량 및 각도 차트로 정확한
용량 코드를 찾을 수 있습니다.

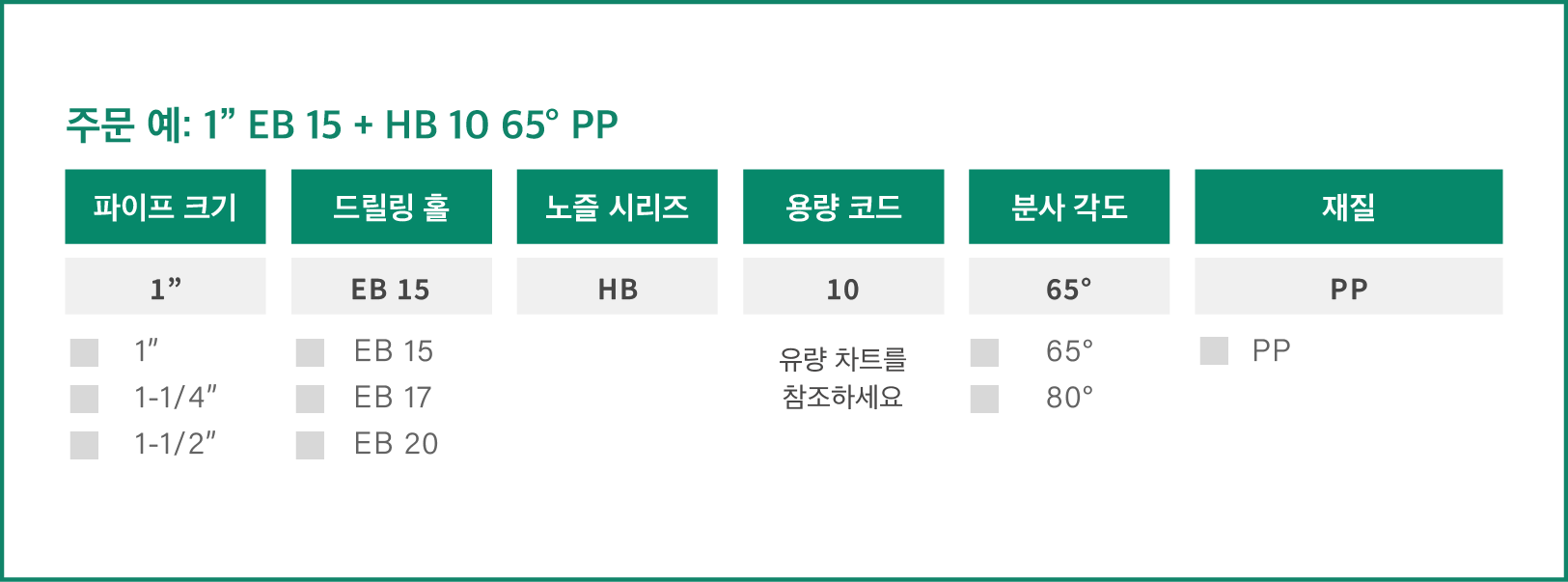

- • LORRIC 에 주문하려면 다음 주문 예제를 참조하십시오.
- 예시:
스프레이 각도 |
스프레이 각도 |
HB의 색깔 |
압력시 용량 |
Capacity at Pressure |
0.5
kgf/cm² |
0.7
kgf/cm² |
1.0
kgf/cm² |
1.5
kgf/cm² |
2.0
kgf/cm² |
2.5
kgf/cm² |
3.0
kgf/cm² |
3.5
kgf/cm² |
4.0
kgf/cm² |
65° |
10 |
Sky Blue
|
1.60 |
1.89 |
2.26 |
2.77 |
3.20 |
3.57 |
3.91 |
4.23 |
4.52 |
65° |
20 |
Red
|
3.20 |
3.78 |
4.52 |
5.54 |
6.39 |
7.15 |
7.83 |
8.46 |
9.04 |
65° |
30 |
Orange
|
4.79 |
5.66 |
6.77 |
8.29 |
9.57 |
10.70 |
11.73 |
12.67 |
13.54 |
65° |
35 |
Black
|
5.59 |
6.61 |
7.90 |
9.68 |
11.17 |
12.49 |
13.68 |
14.78 |
15.80 |
65° |
40 |
Yellow
|
6.39 |
7.56 |
9.03 |
11.06 |
12.77 |
14.28 |
15.64 |
16.89 |
18.06 |
65° |
50 |
Blue
|
7.98 |
9.45 |
11.29 |
13.83 |
15.97 |
17.85 |
19.55 |
21.12 |
22.58 |
65° |
60 |
Green
|
9.58 |
11.34 |
13.55 |
16.60 |
19.16 |
21.42 |
23.74 |
25.35 |
27.10 |
80° |
10 |
Sky Blue
|
1.60 |
1.89 |
2.26 |
2.77 |
3.20 |
3.57 |
3.91 |
4.23 |
4.52 |
80° |
20 |
Red
|
3.20 |
3.78 |
4.52 |
5.54 |
6.39 |
7.15 |
7.83 |
8.46 |
9.04 |
80° |
30 |
Orange
|
4.79 |
5.66 |
6.77 |
8.29 |
9.57 |
10.70 |
11.73 |
12.67 |
13.54 |
80° |
35 |
Black
|
5.59 |
6.61 |
7.90 |
9.68 |
11.17 |
12.49 |
13.68 |
14.78 |
15.80 |
80° |
40 |
Yellow
|
6.39 |
7.56 |
9.03 |
11.06 |
12.77 |
14.28 |
15.64 |
16.89 |
18.06 |
80° |
50 |
Blue
|
7.98 |
9.45 |
11.29 |
13.83 |
15.97 |
17.85 |
19.55 |
21.12 |
22.58 |
80° |
60 |
Green
|
9.58 |
11.34 |
13.55 |
16.60 |
19.16 |
21.42 |
23.74 |
25.35 |
27.10 |
스프레이 각도 |
용량 코드 |
HB의 색깔 |
압력시 용량 |
Capacity at Pressure |
0.05
MPa |
0.07
MPa |
0.1
MPa |
0.15
MPa |
0.2
MPa
|
0.25
MPa |
0.3
MPa |
0.35
MPa |
0.4
MPa |
65° |
10 |
Sky Blue
|
1.61 |
1.91 |
2.28 |
2.80 |
3.23 |
3.61 |
3.95 |
4.27 |
4.56 |
65° |
20 |
Red
|
3.23 |
3.82 |
4.56 |
5.59 |
6.45 |
7.22 |
7.91 |
8.54 |
9.13 |
65° |
30 |
Orange
|
4.83 |
5.72 |
6.84 |
8.37 |
9.67 |
10.81 |
11.84 |
12.79 |
13.67 |
65° |
35 |
Black
|
5.64 |
6.67 |
7.98 |
9.77 |
11.28 |
12.61 |
13.82 |
14.92 |
15.95 |
65° |
40 |
Yellow
|
6.45 |
7.63 |
9.12 |
11.17 |
12.90 |
14.42 |
15.79 |
17.06 |
18.24 |
65° |
50 |
Blue
|
8.06 |
9.54 |
11.40 |
13.96 |
16.12 |
18.03 |
19.75 |
21.33 |
22.80 |
65° |
60 |
Green
|
9.68 |
11.45 |
13.68 |
16.76 |
19.35 |
21.63 |
23.70 |
25.60 |
27.37 |
80° |
10 |
Sky Blue
|
1.61 |
1.91 |
2.28 |
2.80 |
3.23 |
3.61 |
3.95 |
4.27 |
4.56 |
80° |
20 |
Red
|
3.23 |
3.82 |
4.56 |
5.59 |
6.45 |
7.22 |
7.91 |
8.54 |
9.13 |
80° |
30 |
Orange
|
4.83 |
5.72 |
6.84 |
8.37 |
9.67 |
10.81 |
11.84 |
12.79 |
13.67 |
80° |
35 |
Black
|
5.64 |
6.67 |
7.98 |
9.77 |
11.28 |
12.61 |
13.82 |
14.92 |
15.95 |
80° |
40 |
Yellow
|
6.45 |
7.63 |
9.12 |
11.17 |
12.90 |
14.42 |
15.79 |
17.06 |
18.24 |
80° |
50 |
Blue
|
8.06 |
9.54 |
11.40 |
13.96 |
16.12 |
18.03 |
19.75 |
21.33 |
22.80 |
80° |
60 |
Green
|
9.68 |
11.45 |
13.68 |
16.76 |
19.35 |
21.63 |
23.70 |
25.60 |
27.37 |
스프레이 각도 |
용량 코드 |
HB의 색깔 |
압력시 용량 |
Capacity at Pressure |
0.5
bar
|
0.7
bar |
1.0
bar |
1.5
bar |
2.0
bar |
2.5
bar |
3.0
bar |
3.5
bar |
4.0
bar |
65° |
10 |
Sky Blue
|
1.61 |
1.91 |
2.28 |
2.80 |
3.23 |
3.61 |
3.95 |
4.27 |
4.56 |
65° |
20 |
Red
|
3.23 |
3.82 |
4.56 |
5.59 |
6.45 |
7.22 |
7.91 |
8.54 |
9.13 |
65° |
30 |
Orange
|
4.83 |
5.72 |
6.84 |
8.37 |
9.67 |
10.8 |
11.8 |
12.8 |
13.7 |
65° |
35 |
Black
|
5.64 |
6.67 |
7.98 |
9.77 |
11.3 |
12.6 |
13.8 |
14.9 |
16.0 |
65° |
40 |
Yellow
|
6.45 |
7.63 |
9.12 |
11.2 |
12.9 |
14.4 |
15.8 |
17.1 |
18.2 |
65° |
50 |
Blue
|
8.06 |
9.54 |
11.4 |
14.0 |
16.1 |
18.0 |
19.7 |
21.3 |
22.8 |
65° |
60 |
Green
|
9.68 |
11.4 |
13.7 |
16.8 |
19.4 |
21.6 |
23.7 |
25.6 |
27.4 |
80° |
10 |
Sky Blue
|
1.61 |
1.91 |
2.28 |
2.80 |
3.23 |
3.61 |
3.95 |
4.27 |
4.56 |
80° |
20 |
Red
|
3.23 |
3.82 |
4.56 |
5.59 |
6.45 |
7.22 |
7.91 |
8.54 |
9.13 |
80° |
30 |
Orange
|
4.83 |
5.72 |
6.84 |
8.37 |
9.67 |
10.8 |
11.8 |
12.8 |
13.7 |
80° |
35 |
Black
|
5.64 |
6.67 |
7.98 |
9.77 |
11.3 |
12.6 |
13.8 |
14.9 |
16.0 |
80° |
40 |
Yellow
|
6.45 |
7.63 |
9.12 |
11.2 |
12.9 |
14.4 |
15.8 |
17.1 |
18.2 |
80° |
50 |
Blue
|
8.06 |
9.54 |
11.4 |
14.0 |
16.1 |
18.0 |
19.7 |
21.3 |
22.8 |
80° |
60 |
Green
|
9.68 |
11.4 |
13.7 |
16.8 |
19.4 |
21.6 |
23.7 |
25.6 |
27.4 |
스프레이 각도 |
용량 코드 |
HB의 색깔 |
압력시 용량 |
Capacity at Pressure |
7
psi |
10
psi |
15
psi |
20
psi |
25
psi |
30
psi |
40
psi |
50
psi |
60
psi |
65° |
10 |
Sky Blue
|
0.42 |
0.50 |
0.61 |
0.71 |
0.79 |
0.87 |
1.00 |
1.12 |
1.23 |
65° |
20 |
Red
|
0.84 |
1.00 |
1.23 |
1.42 |
1.58 |
1.73 |
2.00 |
2.24 |
2.45 |
65° |
30 |
Orange
|
1.25 |
1.50 |
1.84 |
2.12 |
2.37 |
2.60 |
3.00 |
3.35 |
3.67 |
65° |
35 |
Black
|
1.46 |
1.75 |
2.14 |
2.47 |
2.77 |
3.03 |
3.50 |
3.91 |
4.29 |
65° |
40 |
Yellow
|
1.67 |
2.00 |
2.45 |
2.83 |
3.16 |
3.46 |
4.00 |
4.47 |
4.90 |
65° |
50 |
Blue
|
2.09 |
2.50 |
3.06 |
3.54 |
3.95 |
4.33 |
5.00 |
5.59 |
6.13 |
65° |
60 |
Green
|
2.51 |
3.00 |
3.68 |
4.24 |
4.75 |
5.20 |
6.00 |
6.71 |
7.35 |
80° |
10 |
Sky Blue
|
0.42 |
0.50 |
0.61 |
0.71 |
0.79 |
0.87 |
1.00 |
1.12 |
1.23 |
80° |
20 |
Red
|
0.84 |
1.00 |
1.23 |
1.42 |
1.58 |
1.73 |
2.00 |
2.24 |
2.45 |
80° |
30 |
Orange
|
1.25 |
1.50 |
1.84 |
2.12 |
2.37 |
2.60 |
3.00 |
3.35 |
3.67 |
80° |
35 |
Black
|
1.46 |
1.75 |
2.14 |
2.47 |
2.77 |
3.03 |
3.50 |
3.91 |
4.29 |
80° |
40 |
Yellow
|
1.67 |
2.00 |
2.45 |
2.83 |
3.16 |
3.46 |
4.00 |
4.47 |
4.90 |
80° |
50 |
Blue
|
2.09 |
2.50 |
3.06 |
3.54 |
3.95 |
4.33 |
5.00 |
5.59 |
6.13 |
80° |
60 |
Green
|
2.51 |
3.00 |
3.68 |
4.24 |
4.75 |
5.20 |
6.00 |
6.71 |
7.35 |
- * 표준 압력 : 빨간색의 컬럼.
- * 모바일 친화적 인 경우 3 종류의 압력이있는 3 개의 열 만 표시됩니다. 더 많은 압력 데이터를 보려면 PC 또는 노트북의 차트를 확인하십시오.
재료
재료옵션
재료에 대한 세 가지 보증
금속
우리는단단하고내구성있는금속 제품으로 변하는 견고한단조막대를 사용합니다.
플라스틱
우리는 플라스틱 제품의 높은 품질과 고성능을 유지하기 위해 재활용 재료가 사용되지 않음을 보증합니다.
고품질 보증
모든 자재는 글로벌 1차 협력사로부터 구매하며,각 자재에는 우수한 품질을 증명하는 자재 인증서가 부착되어 있습니다.
크기
크기(mm)
|
무게 (g)
|
A
|
B
|
C
|
52 |
62 |
70 |
62.5 |
구멍사이즈 및 관규격사이즈
- 설치 구멍 직경:
● Ø 15 (14.3~15m/m)
● Ø 17 (16.4~17m/m)
● Ø 20 (19.0~20m/m)
- 1 ", 1-1 / 4", 1-1 / 2 "크기 (대만 표준 PVC 파이프 크기) 파이프에 적합합니다.
- 적용 파이프 게이지: 대만 게이지 PVC
설치
6 단계 간단한 단계로 쉽게 설치!
1단계
EB 설치 구멍의 크기와 일치하는 파이프에 설치 구멍을 뚫습니다.
2 단계
파이프 설치 구멍에서 EB 클램프의 설치 구멍을 조준하고 스냅하십시오.
4 단계.
유니온 너트를 풀어 TB 볼의 각도를 조정합니다.
