Mini-ED Tank Mixing Plating Nozzle

Nozzle pencampuran mini ini dirancang khusus untuk aplikasi pengadukan dan elektroplating, dengan pemasangan tanpa alat. Sangat cocok untuk digunakan dalam pembersihan di scrubber gas dan pengolahan gas buang, pendinginan di menara air, serta pencampuran dalam sistem pemadam kebakaran.

Brand：	LORRIC
Fluid：	Single fluid
Material：	PP
Thread Standard：	BSPT
Ukuran Thread：	1/4"

Dapatkan Penawaran Sekarang

Prinsip Kerja

Nozzle single-fluid ini dirancang untuk pencampuran cairan di bawah permukaan. Struktur khususnya menciptakan pengadukan dan sirkulasi yang efektif, mencampurkan bahan kimia, mengarahkan partikel terlarut menuju filter, dan mencegah sedimentasi. Untuk pencampuran cairan yang efisien secara energi, nozzle ini dapat menyedot hingga 4 kali laju aliran yang disuplai dan mengeluarkannya melalui nozzle yang diperbesar, menjadikannya lebih efisien dibandingkan aerasi tradisional atau lengan mekanis. (Aliran suplai + aliran hisap = total aliran).

Desain Struktur Satu Bagian

Dengan desain satu bagian, nozzle ini dapat dipasang dengan mudah menggunakan tangan tanpa memerlukan alat tambahan.

Pilihan Material

Tersedia untuk Berbagai Laju Aliran

Nozzle semprotan kipas menawarkan berbagai laju aliran. Sebagai contoh, pada tekanan desain standar 0,5 Kg/cm², laju aliran total minimum adalah 62,51 Lpm, dan laju aliran total maksimum adalah 218,74 Lpm. (Untuk kebutuhan laju aliran lainnya, silakan merujuk ke lembar spesifikasi atau hubungi kami langsung.)

Toleransi Teknik

Toleransi laju aliran berada dalam rentang plus atau minus 10% dari laju aliran standar.

Jaminan Material

Logam

Kami menggunakan logam berkualitas tinggi untuk memproduksi nozzle yang solid dan tahan lama melalui proses pemotongan detail.

Plastik

Kami menjamin penggunaan plastik berkualitas yang tidak melalui proses daur ulang.

Berkualitas Tinggi

Setiap bahan kami peroleh dari pemasok terkemuka global.

Please place your order according below information.

Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
- For a 1/4" base with internal thread, choose a matching 1/4" external threaded nozzle, and ensure base thread is NPT or BSPT.
- Choose the H or NH series for a one-piece fan nozzle that fits your needs.
- To find the nozzle flow rate that matches your requirements, specifically the spray flow rate for each nozzle based on your needs, please consult the "Flow Rate and Angle Comparison Chart" below.
- To determine the nozzle angle that meets your requirements, which corresponds to the spray coverage area of each nozzle based on your needs, please consult the "Flow Rate and Angle Comparison Chart" below.
- Choose the right nozzle material to match your needs, as different environments demand specific materials. Select accordingly based on your usage context.

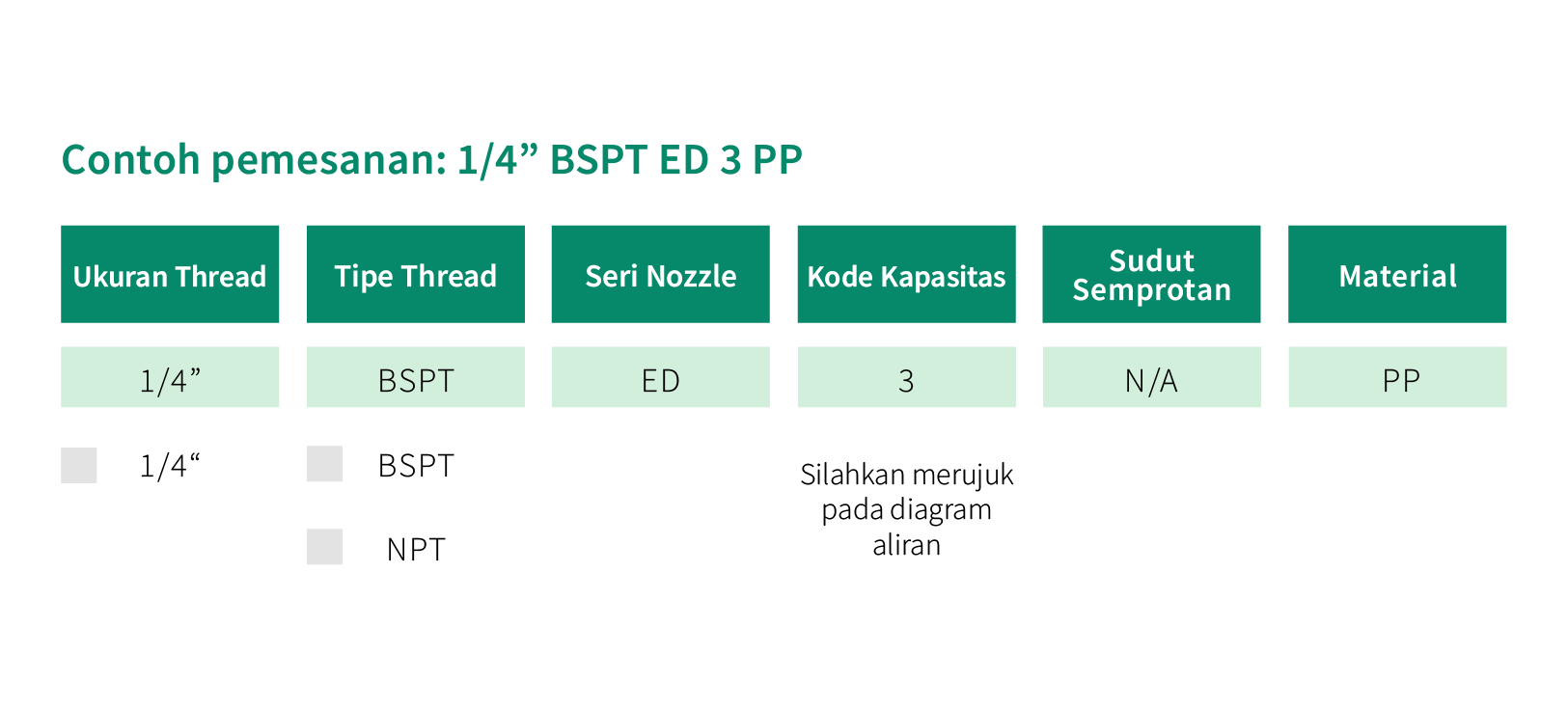

Example specification: 1/4” BSPT ED 3 PP. Each number corresponds to the following options and meanings.

Select
Unit

Capacity Code	Magnification	Definition of flow	Capacity at Pressure
Capacity Code	Magnification	Definition of flow	0.1 kgf/cm²	0.25 kgf/cm²	0.5 kgf/cm²	0.75 kgf/cm²	1 kgf/cm²	1.5 kgf/cm²	2 kgf/cm²	3 kgf/cm²	4 kgf/cm²
3	2.4	Quantity supplied	1.36	2.14	3.03	3.71	4.29	5.25	6.06	7.42	8.57
3	2.4	Intake	1.88	2.97	4.20	5.14	5.94	7.27	8.40	10.29	11.88
3	2.4	Total Flow	3.23	5.11	7.23	8.85	10.22	12.52	14.46	17.71	20.45
9	1.6	Quantity supplied	4.02	6.36	9.00	11.02	12.73	15.59	18.00	22.05	25.46
9	1.6	Intake	2.41	75.0	5.40	6.61	7.64	9.35	10.80	13.23	15.27
9	1.6	Total Flow	6.44	95.7	14.40	17.64	20.36	24.94	28.80	35.27	40.73

Capacity Code	Magnification	Definition of flow	Capacity at Pressure
Capacity Code	Magnification	Definition of flow	0.01 MPa	0.025 MPa	0.05 MPa	0.075 MPa	0.1 MPa	0.15 MPa	0.2 MPa	0.3 MPa	0.4 MPa
3	2.4	Quantity supplied	1.37	2.16	3.06	3.75	4.33	5.30	6.12	7.49	8.65
3	2.4	Intake	1.90	3.00	4.24	5.19	6.00	7.35	8.48	10.39	12.00
3	2.4	Total Flow	3.27	5.16	7.30	8.94	10.33	12.65	14.60	17.88	20.65
9	1.6	Quantity supplied	4.06	6.43	9.09	11.13	12.85	15.74	18.18	22.26	25.71
9	1.6	Intake	2.44	3.86	5.45	6.68	7.71	9.44	10.91	13.36	15.42
9	1.6	Total Flow	6.50	10.28	14.54	17.81	20.56	25.19	29.08	35.62	41.13

Capacity Code	Magnification	Definition of flow	Capacity at Pressure
Capacity Code	Magnification	Definition of flow	0.1 bar	0.25 bar	0.5 bar	0.75 bar	1 bar	1.5 bar	2 bar	3 bar	4 bar
3	2.4	Quantity supplied	1.37	2.16	3.06	3.75	4.33	5.30	6.12	7.49	8.65
3	2.4	Intake	1.9	3.00	4.24	5.19	6.00	7.35	8.48	10.39	12.00
3	2.4	Total Flow	3.27	5.16	7.30	8.94	10.33	12.6	14.6	17.9	20.7
9	1.6	Quantity supplied	4.06	6.43	9.09	11.13	12.9	15.7	18.2	22.3	25.7
9	1.6	Intake	2.44	3.86	5.45	6.7	7.7	9.4	10.9	13.4	15.4
9	1.6	Total Flow	6.50	10.28	14.5	17.8	20.6	25.2	29.1	35.6	41.1

Capacity Code	Magnification	Definition of flow	Capacity at Pressure
Capacity Code	Magnification	Definition of flow	3 psi	5 psi	7 psi	10 psi	15 psi	20 psi	25 psi	30 psi	40 psi
3	2.4	Quantity supplied	0.52	0.67	0.79	0.95	1.16	1.34	1.50	1.64	1.90
3	2.4	Intake	0.72	0.93	1.10	1.32	1.61	1.86	2.08	2.28	2.63
3	2.4	Total Flow	1.24	1.60	1.89	2.26	2.77	3.20	3.58	3.92	4.53
9	1.6	Quantity supplied	1.54	1.99	2.36	2.82	3.45	3.99	4.46	4.88	5.64
9	1.6	Intake	0.93	1.20	1.42	1.69	2.07	2.39	2.67	2.93	66.4
9	1.6	Total Flow	2.47	3.19	3.77	4.51	5.52	6.38	7.13	7.81	9.02

* Standard Pressure: Column in red.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.

Application

PCB

Flow meter dalam proses elektroplating, pengembangan, dan etsa PCB memonitor aliran cairan kimia dan pembersih yang tepat; nozel mengontrol pelapisan kimia dan pembilasan

Electroplating

Flowmeter mengontrol aliran cairan kimia untuk memastikan pelapisan yang merata, sementara nozzle menjamin hasil pelapisan yang konsisten dan berkualitas selama proses elektroplati

Cat Otomotif

Flow meter memastikan rasio cat-pelarut yang tepat untuk kualitas dan keramahan lingkungan, sementara nozel mengendalikan campuran untuk memastikan kualitas dan penghematan

Size

Thread(BSPT)	Size(mm)				Weight(g)
Thread(BSPT)	A	B	C	B	Weight(g)
1/4"外牙	28.87	39.85	17.95	19.6	3.5

Installation

Easy installing with 2 simple steps !

Step 1

Drill correspon-ding female threads on your pipe.

Step 2

For better leakproof-ness, please use Teflon seal tape on nozzle thread. Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.

Finished

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution

The distribution of particle on surface by sprayed up liquid.
