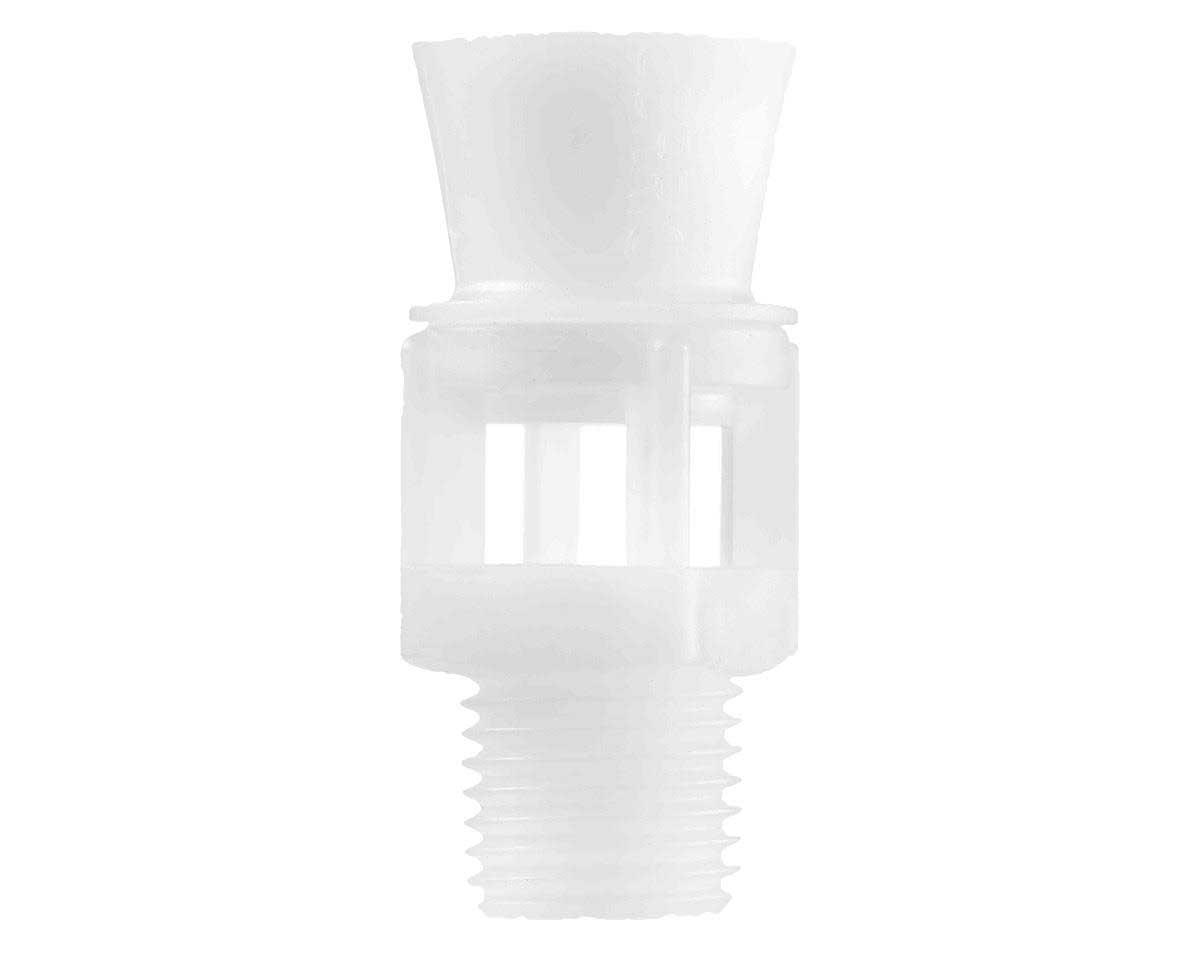

This mini mixing nozzle is designed for stirring and electroplating applications, with tool-free installation. It's ideal for cleaning in gas scrubbers and exhaust treatment, cooling in water towers, and dispersion in firefighting systems.

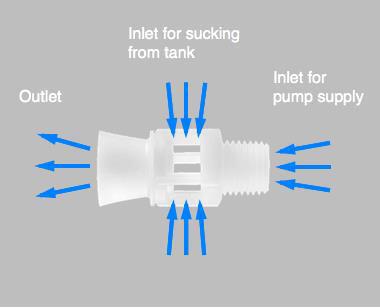

This single-fluid nozzle is designed for sub-surface liquid mixing. Its special structure creates effective stirring and circulation, mixing chemicals, directing suspended particles toward filters, and preventing sedimentation. For energy-efficient liquid mixing, the nozzle can draw in up to 4 times the supplied flow rate and discharge it through an amplified nozzle, making it more efficient than traditional aeration or mechanical arms. (Supply flow + suction flow = total flow).

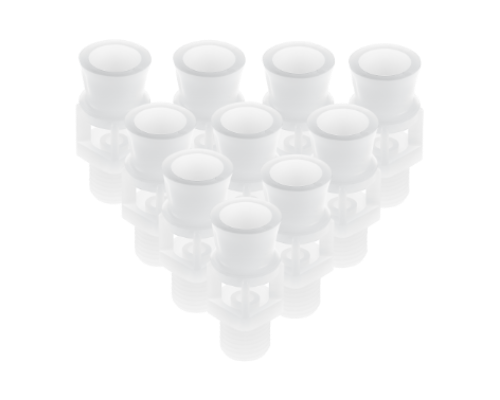

Single piece structure and hand installable without any tools.
The fan spray nozzle offers a wide range of flow rates. For example, at a standard design pressure of 0.5 Kg/cm², the flow rates range from 8.85 Lpm to 17.64 Lpm. (For other flow rate requirements, please refer to the specification sheet or contact us directly.)
Angle tolerance is within a range of plus or minus 10% of the standard angle.
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
We promise never to use recycled materials.
All material is purchased from world top providers.
Flow meters in PCB electroplating, developing, and etching processes monitor precise chemical and cleaning fluid flow; nozzles control chemical coating and rinsing
Flow meter controls the flow of chemical liquids, ensuring a uniform coating for quality assurance; the nozzle ensuring even coating and consistent quality during electroplating
Flow meters ensure precise paint-solvent ratios for quality and eco-friendliness, while nozzles guarantee paint quality and environmental compliance by controlling the mixture
Easy installing with 2 simple steps !
Drill correspon-ding female threads on your pipe.
For better leakproof-ness, please use Teflon seal tape on nozzle thread. Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.
Finished
With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!
LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.
Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.
It is the angle by orifice and the loop of gas or liquid sprayed out.
The distribution of particle on surface by sprayed up liquid.
Testing in extreme environments demands data to aid nozzle development.
