QT High Flow Rate Full Cone Spray Nozzle for Coating and Other Industries

Easy to adjust, install, and maintain, the QT full cone nozzle ensures even distribution and resists clogging. Commonly used in car coating pretreatment, it’s also ideal for dust cleaning, humidifying, fire fighting, and dust suppression.

Brand：	LORRIC
Nozzle Type：	Solid Cone
Fluid Type：	Single-fluid
Materials：	Tip/Clamp - FRPP
	Oirng - NBR
Thread Standard：	BSPT
Thread Size：	1/4", 3/8"

File download

Inquire now

Full Cone Spray Nozzle

Liquid passes through multi-porous or X-shaped baffles, creating rotating streams. As it exits, centrifugal force forms a circular spray pattern. The solid cone nozzle works well at low pressure, providing wide coverage and uniform droplets, ideal for semiconductor processes, chemical distribution, and coating.

Full Cone Spray Nozzle Spray Pattern

Single-fluid nozzles produce a conical spray shape, known as solid cone nozzles, resulting in a circular pattern.

Mountain-Shaped Flow Distribution

The Full Cone Spray Nozzle has maximum spray volume in the center, decreasing towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform spraying, install nozzles closer together to overlap coverage areas and improve uniformity.distribution.

two-piece combination design

The two-piece design consists of a nozzle and a base. The nozzle securely attaches to the base without the need for a locking nut. The base features a special clamp-on design, allowing easy installation by drilling a hole in the outlet pipe and securing the nozzle with a threader.

TIP, Clamp: Strengthened Fiberglass PP(FRPP)
Oring: NBR

About engineering tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 10% of the standard flow rate.

Angle tolerance

Angle tolerance is within a range of plus or minus 10% of the standard angle.

Material Guarantees

Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic

We promise never to use recycled materials.

High Quality

All material is purchased from world top providers.

Please place your order according below information.

Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
- Choose the nozzle diameter (thread size) and specifications that meet your requirements.
- Choose the spray flow rate for each nozzle, please refer to the chart below.
- Select the spray angle for each nozzle, please refer to the chart below.
- Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

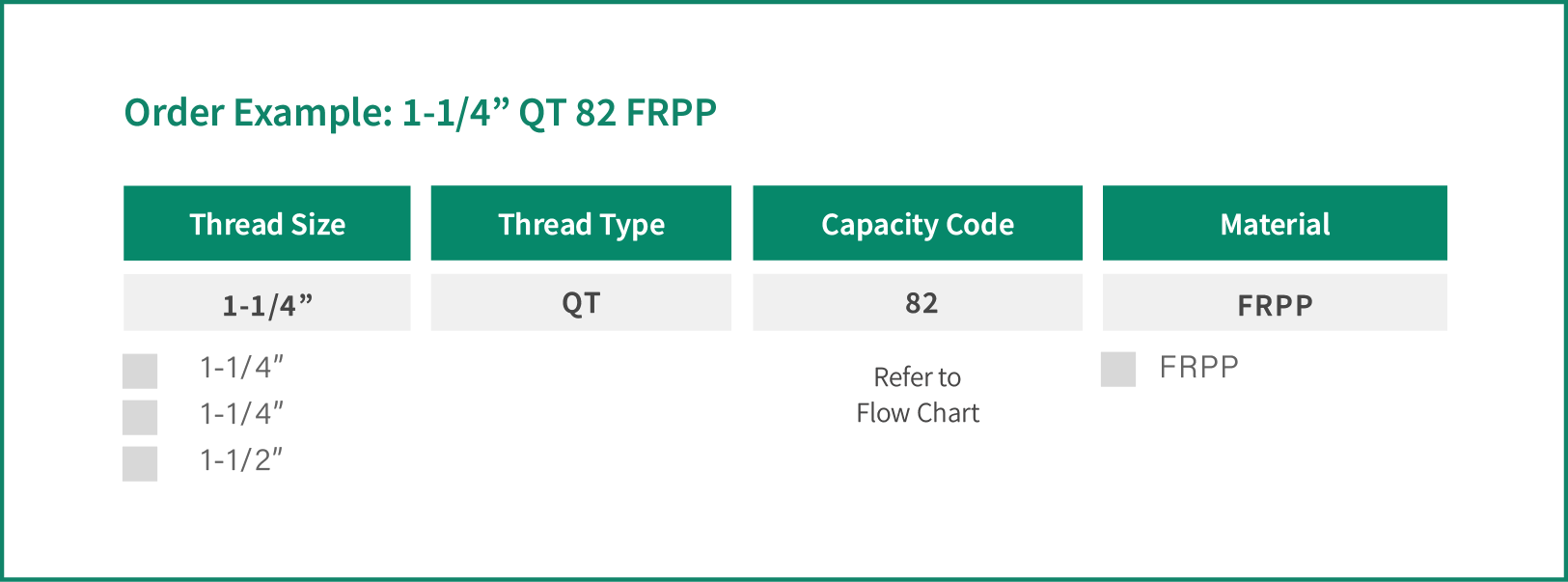

Example specification: 1-1/4" QT 82 FRPP. Each number corresponds to the following options and meanings.

Select
Unit

Spray Angle	Capacity Code	Clamp Size		Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	1-1/4"	1-1/2"	0.5 kgf/cm²	1.0 kgf/cm²	1.5 kgf/cm²	2.0 kgf/cm²	2.5 kgf/cm²	3.0 kgf/cm²	3.5 kgf/cm²	4.0 kgf/cm²	5.0 kgf/cm²
60°	82	v	v	15.0	21.2	26.0	30.0	33.5	36.7	39.7	42.4	47.4

Spray Angle	Capacity Code	Clamp Size		Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	1-1/4"	1-1/2"	0.05 MPa	0.1 MPa	0.15 MPa	0.2 MPa	0.25 MPa	0.3 MPa	0.35 MPa	0.4 MPa	0.5 MPa
60°	82	v	v	15.1	21.4	26.2	30.3	33.9	37.1	40.1	42.8	47.9

Spray Angle	Capacity Code	Clamp Size		Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	1-1/4"	1-1/2"	0.5 bar	1 bar	1.5 bar	2 bar	2.5 bar	3 bar	3.5 bar	4 bar	5 bar
60°	82	v	v	15.1	21.4	26.2	30.3	33.9	37.1	40.1	42.8	47.9

Spray Angle	Capacity Code	Clamp Size		Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	1-1/4"	1-1/2"	10 psi	15 psi	20 psi	30 psi	40 psi	60 psi	70 psi	80 psi	90 psi
60°	82	v	v	4.7	5.75	6.65	8.14	9.40	11.5	12.4	13.3	14.1

* Standard Pressure: Column in red.
* This product for spray angle 90° and 120° is able to be made to order.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
* Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

Automotive Painting

Flow meters ensure precise paint-solvent ratios for quality and eco-friendliness, while nozzles guarantee paint quality and environmental compliance by controlling the mixture

Size

Thread	Size(mm)				Weight(g)
Thread	A	B	C	D	Weight(g)
1-1/4"	42.35	49.5	31	85.3	105.4
1-1/2"	42.35	49.5	31	85.3	100.5

Installation

Easy installing with 5 simple steps !

Step 1

Aim the installation hole of the clamp at the pipe installation hole.

Step 2

Fasten with the pipe clamp.

Step 3

Tighten the screw by hand, and tighten again by electric screwdriver.

Step 4

Put the nozzle and the union nut on the pipe clamp.

Step 5

Adjust the direction of the nozzle and tighten the union nut.

Finished
