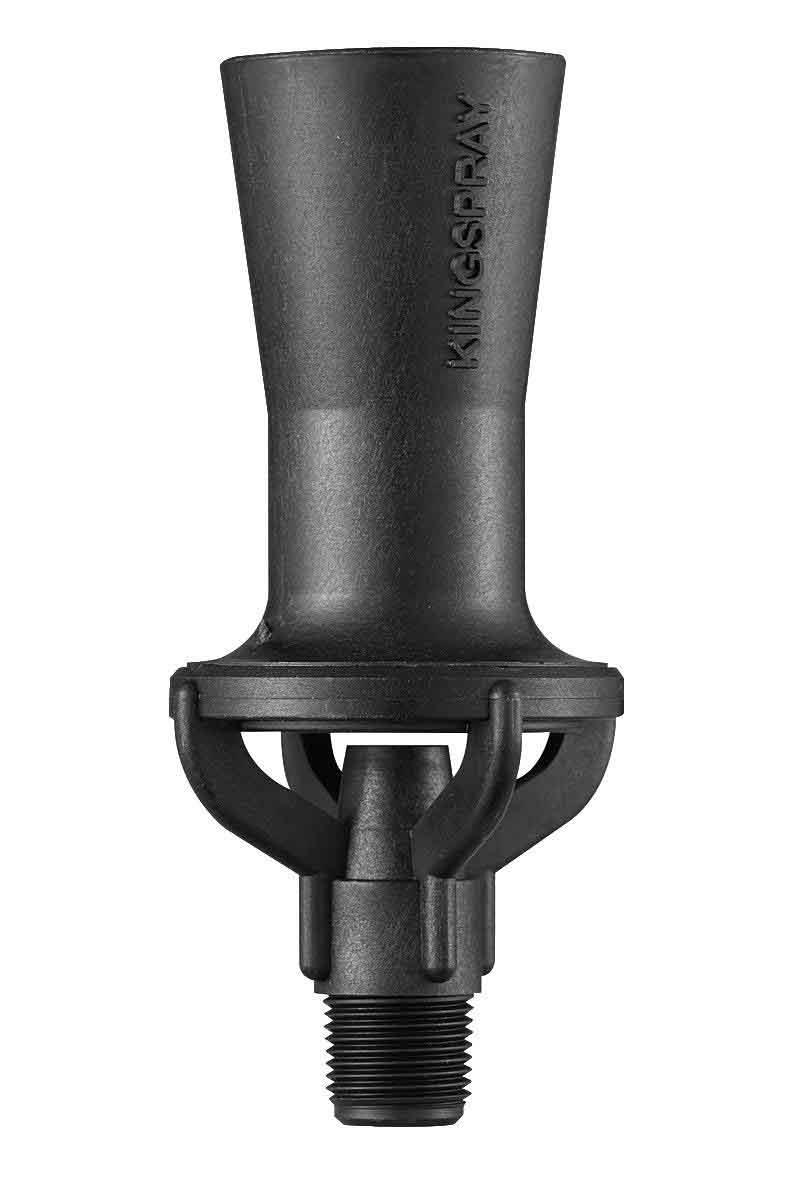

Features
  • Used for liquid stirring under the liquid surface. Specially designed nozzle that creates a stirring and circulating effect. This nozzle can mix chemicals, direct the suspended substances to a filter and prevent precipitation.
  • Energy-efficiency of liquid stirring: the eductor nozzles are designed to suck and spray liquid through the amplified nozzle tube to increase liquid flow rate up to 4 times which provides more efficient stirring than aeration or robot arms (Quantity supplied+Intake=Total Flow).
  • Single piece structure and hand installable without any tools.





  • Recommended working pressure: 0.5 kgf/cm²
  • Flowrate tolerance: ± 10% @ 0.5 ± 0.1 kgf/cm²
    • Applications:

          ● Cleaning: scrubber, off-gas treatment, etc.

          ● Cooling: cooling tower, etc.

          ● Dispersion: firefighting.

Specs

Please place your order according below information.


How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.
  • • Please refer to following order example for placing order to LORRIC.
  •   Example :

Select
Unit
  • *
  • *
  • *
  • *
Thread Size Capacity Code Magnification Definition of flow Capacity at Pressure Capacity at Pressure
0.1
kgf/cm²
0.25
kgf/cm²
0.5
kgf/cm²
0.75
kgf/cm²
1
kgf/cm²
1.5
kgf/cm²
2
kgf/cm²
3
kgf/cm²
4
kgf/cm²
3/8" 063 5.0 Quantity supplied
5.59 8.84 12.50 15.31 17.68 21.65 25.00 30.62 35.36
3/8" 063 5.0 Intake
22.36 35.36 50.01 61.25 70.72 86.61 100.01 122.49 141.44
3/8" 063 5.0 Total Flow 27.95 44.20 62.51 76.56 88.40 108.27 125.02 153.11 176.80
3/8" 152 5.0 Quantity supplied
10.87 17.18 24.30 29.76 34.36 42.08 48.59 59.51 68.72
3/8" 152 5.0 Intake
43.46 68.72 97.18 119.03 137.44 168.33 194.37 238.05 274.88
3/8" 152 5.0 Total Flow 54.33 85.90 121.48 148.78 171.80 210.41 242.96 297.97 343.60
3/4" 5.0 Quantity supplied
19.57 30.94 43.75 53.58 61.87 75.77 87.50 107.16 123.74
3/4" 5.0 Intake
78.26 123.74 174.99 214.32 247.48 303.10 349.99 428.65 494.96
3/4" 5.0 Total Flow 97.83 154.68 218.74 267.90 309.35 378.87 437.49 535.81 618.70
Thread Size Capacity Code Magnification Definition of flow Capacity at Pressure Capacity at Pressure
0.01
MPa
0.025
MPa
0.05
MPa
0.075
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.3
MPa
0.4
MPa
3/8" 063 5.0 Quantity supplied
5.65 8.93 12.62 15.46 17.85 21.87 25.25 30.92 35.71
3/8" 063 5.0 Intake
22.58 35.71 50.50 61.85 71.41 87.46 100.99 123.69 142.83
3/8" 063 5.0 Total Flow 28.23 44.63 63.12 77.31 89.27 109.33 126.24 154.62 178.53
3/8" 152 5.0 Quantity supplied
10.97 17.35 24.53 30.05 34.70 42.50 49.07 60.10 69.39
3/8" 152 5.0 Intake
43.89 69.39 98.14 120.19 138.79 169.98 196.28 240.39 277.58
3/8" 152 5.0 Total Flow 54.86 86.74 122.67 150.24 173.49 212.48 245.35 300.49 346.97
3/4" 5.0 Quantity supplied
19.76 31.24 44.18 54.11 62.48 76.52 88.36 108.21 124.95
3/4" 5.0 Intake
79.03 124.95 176.71 216.43 249.91 306.07 353.42 432.85 499.82
3/4" 5.0 Total Flow 98.78 156.19 220.89 270.53 312.38 382.59 441.78 541.07 624.77
Thread Size Capacity Code Magnification Definition of flow Capacity at Pressure Capacity at Pressure
0.1
bar
0.25
bar
0.5
bar
0.75
bar
1
bar
1.5
bar
2
bar
3
bar
4
bar
3/8" 063 5.0 Quantity supplied
5.65 8.93 12.62 15.46 17.85 21.87 25.25 30.92 35.71
3/8" 063 5.0 Intake
22.58 35.71 50.50 61.85 71.41 87.46 100.99 123.69 142.83
3/8" 063 5.0 Total Flow 28.23 44.63 63.12 77.31 89.27 109.33 126.24 154.62 178.53
3/8" 152 5.0 Quantity supplied
10.97 17.35 24.53 30.05 34.70 42.50 49.07 60.10 69.39
3/8" 152 5.0 Intake
43.89 69.39 98.14 120.19 138.79 169.98 196.28 240.39 277.58
3/8" 152 5.0 Total Flow 54.86 86.74 122.67 150.24 173.49 212.48 245.35 300.49 346.97
3/4" 5.0 Quantity supplied
19.76 31.24 44.18 54.11 62.48 76.52 88.36 108.21 124.95
3/4" 5.0 Intake
79.03 124.95 176.71 216.43 249.91 306.07 353.42 432.85 499.82
3/4" 5.0 Total Flow 98.78 156.19 220.89 270.53 312.38 382.59 441.78 541.07 624.77
Thread Size Capacity Code Magnification Definition of flow Capacity at Pressure Capacity at Pressure
1.5
psi
3.5
psi
7
psi
10
psi
15
psi
20
psi
28
psi
40
psi
60
psi
3/8" 063 5.0 Quantity supplied
1.52 2.32 3.28 3.92 4.80 5.54 6.55 7.83 9.59
3/8" 063 5.0 Intake
6.07 9.27 13.11 15.66 19.19 22.15 26.21 31.33 38.37
3/8" 063 5.0 Total Flow 7.58 11.58 16.38 19.58 23.98 27.69 32.77 39.16 47.96
3/8" 152 5.0 Quantity supplied
2.95 4.50 6.37 7.61 9.32 10.76 12.74 15.22 18.64
3/8" 152 5.0 Intake
11.79 18.01 25.47 30.44 37.29 43.05 50.94 60.89 74.75
3/8" 152 5.0 Total Flow 14.74 22.51 31.84 38.05 46.61 53.82 63.68 76.11 93.21
3/4" 5.0 Quantity supplied
5.31 8.11 11.47 13.70 16.78 19.38 22.93 27.41 33.57
3/4" 5.0 Intake
21.23 32.43 45.86 54.82 67.14 77.52 91.73 109.64 134.28
3/4" 5.0 Total Flow 26.54 40.54 57.33 68.52 83.92 96.91 114.66 137.05 167.85
  • * Standard Pressure: Column in red.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
Material
Material Option






Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials
High Quality
All material is purchased from world top providers.

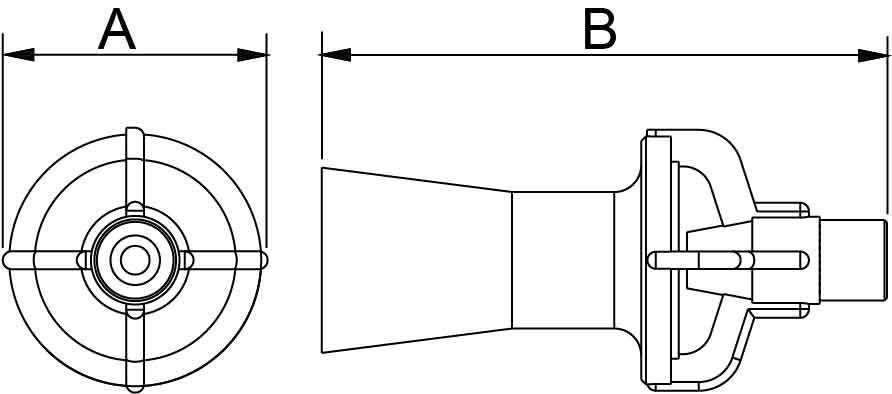

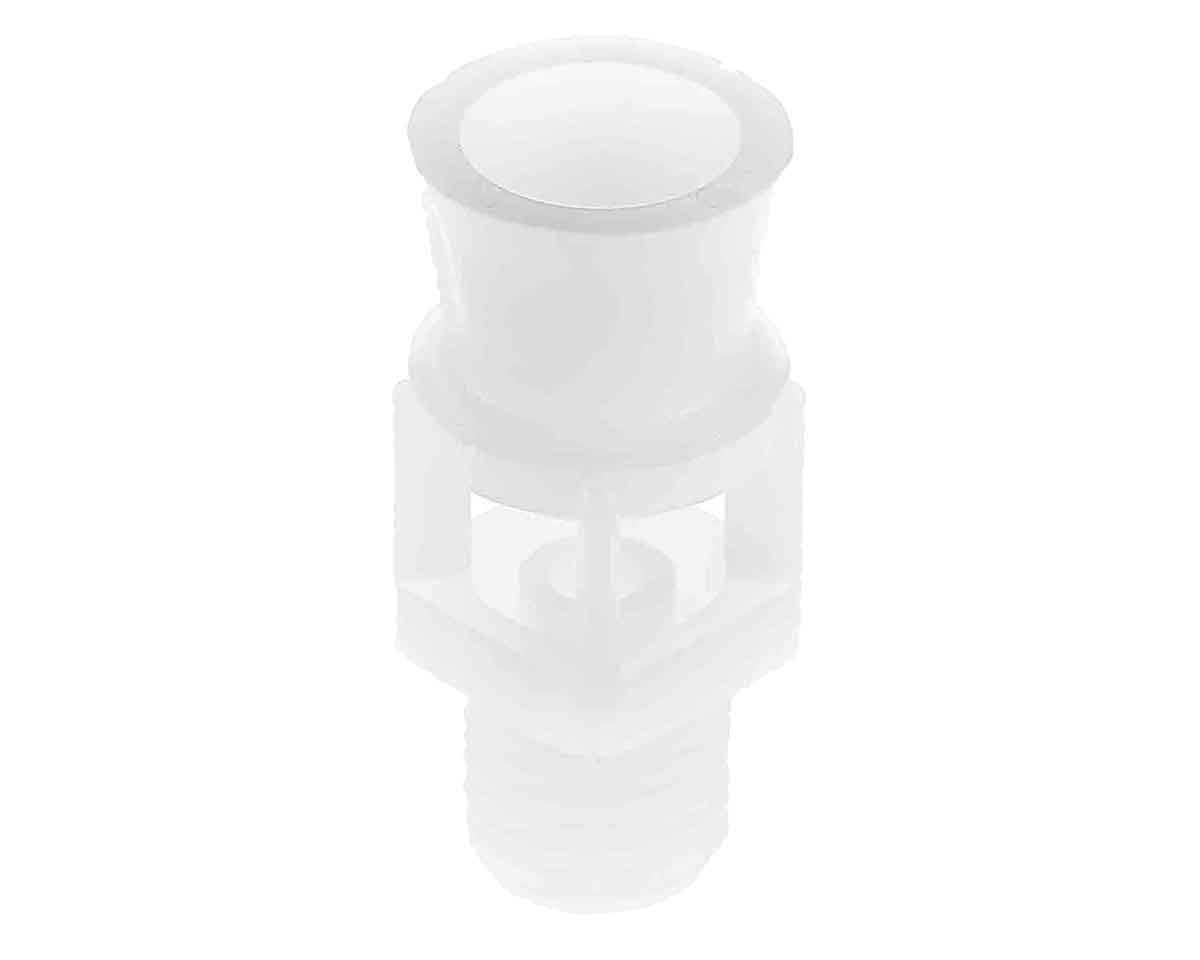

Product Size
Thread
(BSPT)
 Unit(mm)  Weight(g)
  A     B   S316 FRPP
3/8"BSPT
Male
116 53.5 274 -
3/4"BSPT
Male
116 54 - 34
3/8"BSPT
Male
159 74.4 - 84.6

Installation
Easy installing with 2 simple steps !
Step 1

Drill corresponding female threads on your pipe.

Step 2

For better leakproofness, please use Teflon seal tape on nozzle thread.

Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.

Finished

Finished.
