ED Tank Mixing Eductor Nozzle

LORRIC ED eductor stirring spray nozzle create effective agitation and circulation, ensuring thorough mixing of chemicals, directing suspended solids towards filters, and preventing sedimentation. No tools required for installation.

Brand：	LORRIC
Fluid：	Single fluid
Materials：	Fiberglass-reinforced PP (FRPP)
	SS316 (Stainless Steel) (3/8" only)
Thread Standard：	BSPT
Thread Size：	3/8", 3/4"

File download

Inquire now

The Principle

Used for liquid stirring under the liquid surface. Specially designed nozzle that creates a stirring and circulating effect. This nozzle can mix chemicals, direct the suspended substances to a filter and prevent precipitation.
Energy-efficiency of liquid stirring: the eductor nozzles are designed to suck and spray liquid through the amplified nozzle tube to increase liquid flow rate up to 4 times which provides more efficient stirring than aeration or robot arms (Quantity supplied+Intake=Total Flow)

Single piece structure

Single piece structure and hand installable without any tools.

Material Options

Fiber-Reinforced Plastic (FRPP)
SS316 (only 3/8")

Multiple Flow Rates Available

The fan spray nozzle offers a variety of flow rates. For example, at a standard design pressure of 0.5 Kg/cm², the minimum total flow rate is 62.51 Lpm, and the maximum total flow rate is 218.74 Lpm. (For other flow rate requirements, please refer to the specification sheet or contact us directly.)

About engineering tolerance

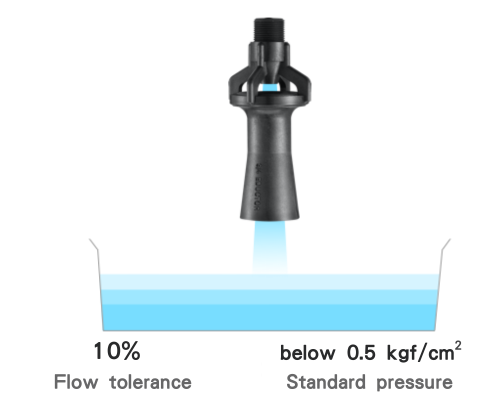

Angle tolerance is within a range of plus or minus 10% of the standard angle.

Material Guarantees

Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic

We promise never to use recycled materials.

High Quality

All material is purchased from world top providers.

Please order the nozzle products you need according to the following information

Please select the appropriate nozzle based on your requirements, following the selection guidelines below, including:
- The suitable nozzle flow rate for your needs. Refer to the "Flow Rate and Angle Reference Table" below to determine the desired spray flow rate per nozzle.
- The suitable nozzle angle for your needs. Refer to the "Flow Rate and Angle Reference Table" below to determine the desired spray coverage area per nozzle.
- The suitable nozzle material for your needs. Different application environments require different materials; please choose the appropriate nozzle material based on your usage environment.
Order example: 3/8” BSPT ED 152 FRPP. The following explains the options and meanings corresponding to each number.

Select
Unit

Thread Size	Capacity Code	Magnification	Quantity of flow	Capacity at Pressure
Thread Size	Capacity Code	Magnification	Quantity of flow	0.1 kgf/cm²	0.25 kgf/cm²	0.5 kgf/cm²	0.75 kgf/cm²	1 kgf/cm²	1.5 kgf/cm²	2 kgf/cm²	3 kgf/cm²	4 kgf/cm²
3/8"	063	5.0	Supplied	5.59	8.84	12.50	15.31	17.68	21.65	25.00	30.62	35.36
3/8"	(FRPP)	5.0	Intake	22.36	35.36	50.01	61.25	70.72	86.61	100.01	122.49	141.44
3/8"		5.0	Total	27.95	44.20	62.51	76.56	88.40	108.27	125.02	153.11	176.80

3/8"	152	5.0	Supplied	10.87	17.18	24.30	29.76	34.36	42.08	48.59	59.51	68.72
3/8"	(FRPP)	5.0	Intake	43.46	68.72	97.18	119.03	137.44	168.33	194.37	238.05	274.88
3/8"		5.0	Total	54.33	85.90	121.48	148.78	171.80	210.41	242.96	297.97	343.60

3/8"	138	5.0	Supplied	12.31	19.44	27.50	33.68	38.89	47.63	55.00	67.33	77.78
3/8"	(SS316)	5.0	Intake	49.21	77.78	110.00	134.46	155.56	190.06	220.00	269.33	311.11
3/8"		5.0	Total	61.52	97.22	137.50	168.14	194.44	237.69	275.00	336.66	388.89

3/4"		5.0	Supplied	19.57	30.94	43.75	53.58	61.87	75.77	87.50	107.16	123.74
3/4"		5.0	Intake	78.26	123.74	174.99	214.32	247.48	303.10	349.99	428.65	494.96
3/4"		5.0	Total	97.83	154.68	218.74	267.90	309.35	378.87	437.49	535.81	618.70

Thread Size	Capacity Code	Magnification	Quantity of flow	Capacity at Pressure
Thread Size	Capacity Code	Magnification	Quantity of flow	0.01 MPa	0.025 MPa	0.05 MPa	0.075 MPa	0.1 MPa	0.15 MPa	0.2 MPa	0.3 MPa	0.4 MPa
3/8"	063	5.0	Supplied	5.65	8.93	12.62	15.46	17.85	21.87	25.25	30.92	35.71
3/8"	(FRPP)	5.0	Intake	22.58	35.71	50.50	61.85	71.41	87.46	100.99	123.69	142.83
3/8"		5.0	Total	28.23	44.63	63.12	77.31	89.27	109.33	126.24	154.62	178.53

3/8"	152	5.0	Supplied	10.97	17.35	24.53	30.05	34.70	42.50	49.07	60.10	69.39
3/8"	(FRPP)	5.0	Intake	43.89	69.39	98.14	120.19	138.79	169.98	196.28	240.39	277.58
3/8"		5.0	Total	54.86	86.74	122.67	150.24	173.49	212.48	245.35	300.49	346.97

3/8"	138	5.0	Supplied	12.31	19.44	27.50	33.68	38.89	47.63	55.00	67.33	77.78
3/8"	(SS316)	5.0	Intake	49.21	77.78	110.00	134.46	155.56	190.06	220.00	269.33	311.11
3/8"		5.0	Total	61.52	97.22	137.50	168.14	194.44	237.69	275.00	336.66	388.89

3/4"		5.0	Supplied	19.76	31.24	44.18	54.11	62.48	76.52	88.36	108.21	124.95
3/4"		5.0	Intake	79.03	124.95	176.71	216.43	249.91	306.07	353.42	432.85	499.82
3/4"		5.0	Total	98.78	156.19	220.89	270.53	312.38	382.59	441.78	541.07	624.77

Thread Size	Capacity Code	Magnification	Quantity of flow	Capacity at Pressure
Thread Size	Capacity Code	Magnification	Quantity of flow	0.1 bar	0.25 bar	0.5 bar	0.75 bar	1 bar	1.5 bar	2 bar	3 bar	4 bar
3/8"	063	5.0	Supplied	5.65	8.93	12.62	15.46	17.85	21.87	25.25	30.92	35.71
3/8"	(FRPP)	5.0	Intake	22.58	35.71	50.50	61.85	71.41	87.46	100.99	123.69	142.83
3/8"		5.0	Total	28.23	44.63	63.12	77.31	89.27	109.33	126.24	154.62	178.53

3/8"	152	5.0	Supplied	10.97	17.35	24.53	30.05	34.70	42.50	49.07	60.10	69.39
3/8"	(FRPP)	5.0	Intake	43.89	69.39	98.14	120.19	138.79	169.98	196.28	240.39	277.58
3/8"		5.0	Total	54.86	86.74	122.67	150.24	173.49	212.48	245.35	300.49	346.97

3/8"	138	5.0	Supplied	12.31	19.44	27.50	33.68	38.89	47.63	55.00	67.33	77.78
3/8"	(SS316)	5.0	Intake	49.21	77.78	110.00	134.46	155.56	190.06	220.00	269.33	311.11
3/8"		5.0	Total	61.52	97.22	137.50	168.14	194.44	237.69	275.00	336.66	388.89

3/4"		5.0	Supplied	19.76	31.24	44.18	54.11	62.48	76.52	88.36	108.21	124.95
3/4"		5.0	Intake	79.03	124.95	176.71	216.43	249.91	306.07	353.42	432.85	499.82
3/4"		5.0	Total	98.78	156.19	220.89	270.53	312.38	382.59	441.78	541.07	624.77

Thread Size	Capacity Code	Magnification	Quantity of flow	Capacity at Pressure
Thread Size	Capacity Code	Magnification	Quantity of flow	1.5 psi	3.5 psi	7 psi	10 psi	15 psi	20 psi	28 psi	40 psi	60 psi
3/8"	063	5.0	Supplied	1.52	2.32	3.28	3.92	4.80	5.54	6.55	7.83	9.59
3/8"	(FRPP)	5.0	Intake	6.07	9.27	13.11	15.66	19.19	22.15	26.21	31.33	38.37
3/8"		5.0	Total	7.58	11.58	16.38	19.58	23.98	27.69	32.77	39.16	47.96

3/8"	152	5.0	Supplied	2.95	4.50	6.37	7.61	9.32	10.76	12.74	15.22	18.64
3/8"	(FRPP)	5.0	Intake	11.79	18.01	25.47	30.44	37.29	43.05	50.94	60.89	74.75
3/8"		5.0	Total	14.74	22.51	31.84	38.05	46.61	53.82	63.68	76.11	93.21

3/8"	138	5.0	Supplied	12.54	19.15	7.24	32.38	39.65	45.80	54.20	64.79	79.31
3/8"	(SS316)	5.0	Intake	50.17	76.60	108.37	129.51	158.60	183.20	216.79	259.16	317.23
3/8"		5.0	Total	62.71	95.75	135.46	161.89	198.25	229.00	270.99	323.95	396.54

3/4"		5.0	Supplied	5.31	8.11	11.47	13.70	16.78	19.38	22.93	27.41	33.57
3/4"		5.0	Intake	21.23	32.43	45.86	54.82	67.14	77.52	91.73	109.64	134.28
3/4"		5.0	Total	26.54	40.54	57.33	68.52	83.92	96.91	114.66	137.05	167.85

* Standard Pressure: Column in red.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.

Applications

Electroplating

Flow meter controls the flow of chemical liquids, ensuring a uniform coating for quality assurance; the nozzle ensuring even coating and consistent quality during electroplating

Automotive Painting

Flow meters ensure precise paint-solvent ratios for quality and eco-friendliness, while nozzles guarantee paint quality and environmental compliance by controlling the mixture

Cleaning: Gas scrubbers, waste gas treatment, etc.
Cooling: Cooling water towers, etc.
Dispersion: Firefighting, Tank mixing, electrostatic coating, ion exchange equipment, cooling water towers, C.I.P tanks, phosphate barrel tanks, slurry barrel tanks, paint barrel tank agitation.

Size

Material	Thread(BSPT)	Size(mm)		Weight(g)
Material	Thread(BSPT)	A	B	SS316	FRPP
Metal	3/8"Male	54	116	274	-
Plastic	3/4"Male	74	159	-	84.6
Plastic	3/8"Male	54	116	-	34

Installation

Easy installing with 2 simple steps !

Step 1

Drill correspon-ding female threads on your pipe.

Step 2

For better leakproof-ness, please use Teflon seal tape on nozzle thread. Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.

Finished

Unable to find the nozzle you need?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.
