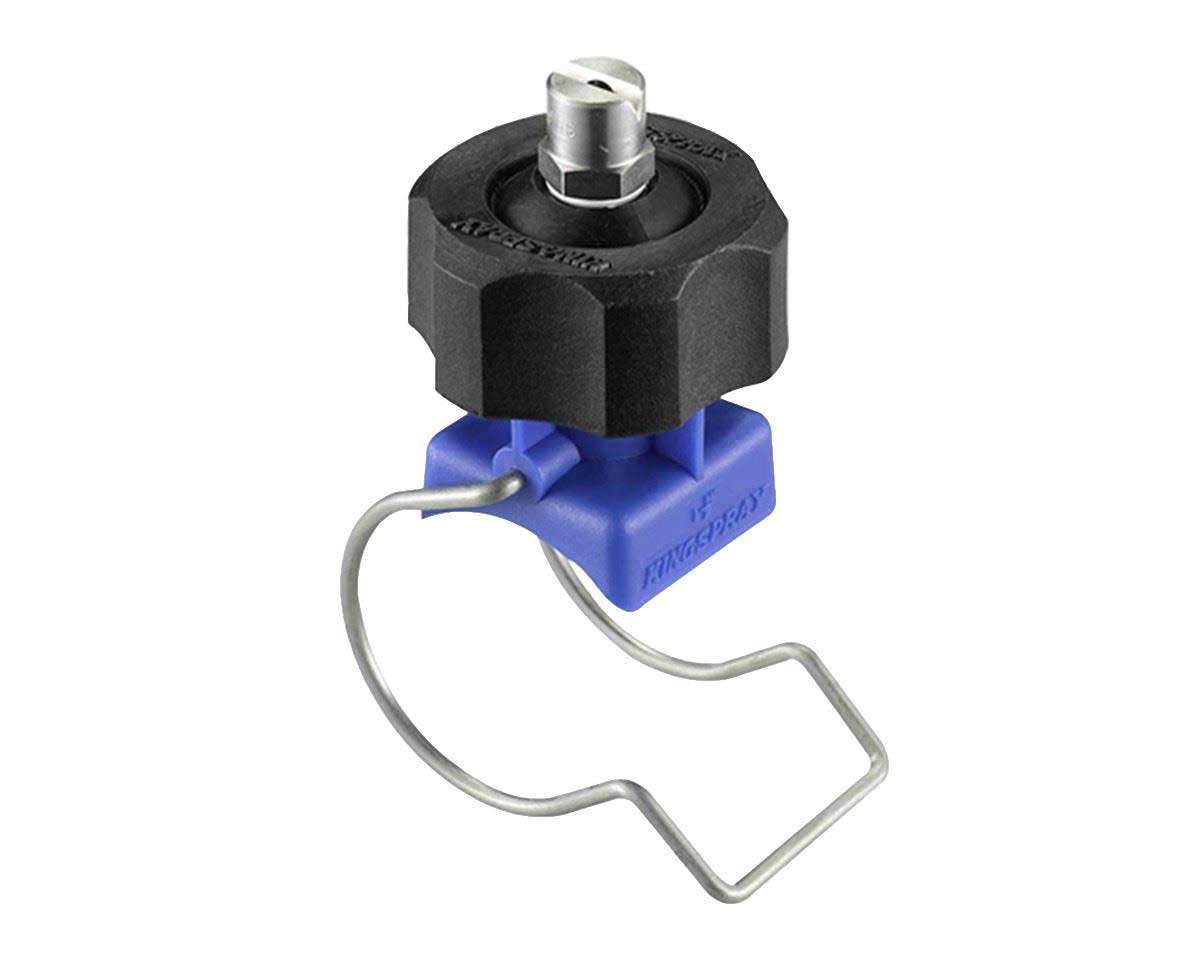

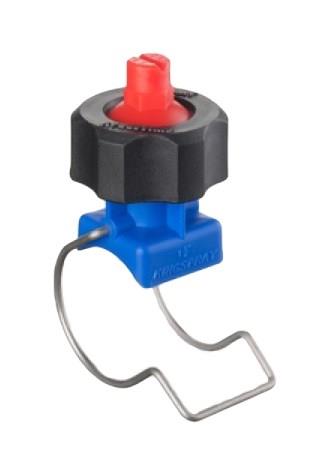

EB+HB Series - Coating Angle Adjustable Flat Fan Pipe Clamp Nozzle

Easy adjustable, Easy installed, Anti-clogging
Well-distributed flat spray
Apply for
Coating│Cleaning

Download Product Catalogue

General Features

  • The spraying type is fan type, and the spray shape is single line and two sides are tapered (tapered edge), which presents a bell curve shape flow field distribution with weaker ends compared to the middle.
  • Unique pipe clamp design allows to be installed by drilling in the pipeline without any tools.

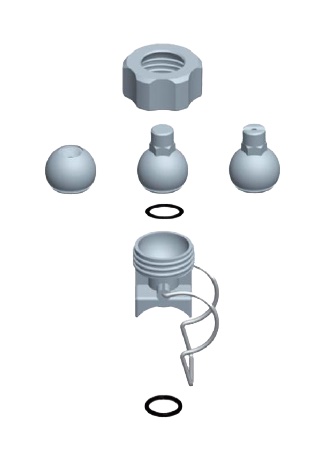

  • Three-piece structure design, divided into nozzle part (HB), base part (EB) and nuts, which facilitates maintenance cleaning and replacement, and can save the cost of replacing the nozzle head.
  • Double gasket seal design, between the nozzle and the base, and between the base and the pipeline, are sealed by NBR gasket to ensure no water leakage.
  • The nozzle part is designed as a sphere, and the nozzle axis is anisotropically adjusted by 50°.
      • Spec of drilling installation hole:

            ● Ø15 (14.3~15mm)

            ● Ø17 (16.4~17mm)

            ● Ø 20 (19.0~20mm)8.35 ∼ 9m/m

        • Size of Pipe clamp:

              ● Ø 1" (OD34 +/-0.3mm)

              ● Ø 1-1/4" (OD42+/-0.3mm)

              ● Ø 1-1/2" (OD48 +/-0.4mm)

          • If there is any other spray type or material request, please choose TB adapter (with choices of 1/4" and 3/8" internal threads) and general fan or cone nozzles with optional materials.
          • Recommended working pressure: 1.0 kgf/cm²
          • Flowrate tolerance: ± 10% @ 1.0 ± 0.1 kgf/cm²
          • Angle tolerance: ± 10° @ 1.0 ± 0.1 kgf/cm²
          • Applications:

                ● Pretreatment for painting in automotive and home appliance manufacturing

                   industries.

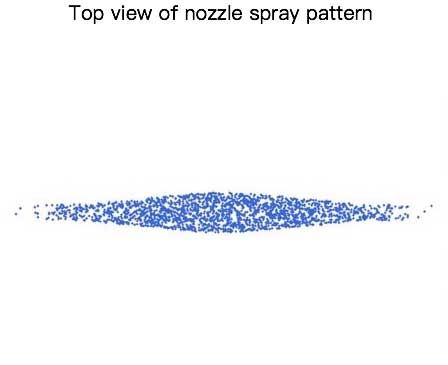

Spray pattern & Flow distribution

Specs

Please place your order according below information.


How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.
  • • Please refer to following order example for placing order to LORRIC.

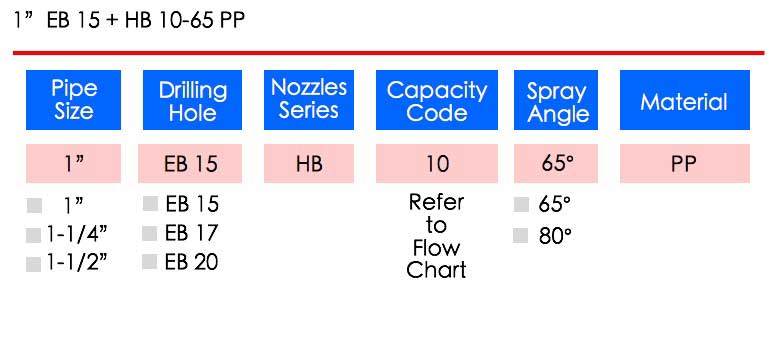

  •   Example :

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Color of HB Capacity at Pressure Capacity at Pressure
0.5
kgf/cm²
0.7
kgf/cm²
1.0
kgf/cm²
1.5
kgf/cm²
2.0
kgf/cm²
2.5
kgf/cm²
3.0
kgf/cm²
3.5
kgf/cm²
4.0
kgf/cm²
65° 10 Sky Blue
1.60 1.89 2.26 2.77 3.20 3.57 3.91 4.23 4.52
65° 20 Red
3.20 3.78 4.52 5.54 6.39 7.15 7.83 8.46 9.04
65° 30 Orange
4.79 5.66 6.77 8.29 9.57 10.70 11.73 12.67 13.54
65° 35 Black
5.59 6.61 7.90 9.68 11.17 12.49 13.68 14.78 15.80
65° 40 Yellow
6.39 7.56 9.03 11.06 12.77 14.28 15.64 16.89 18.06
65° 50 Blue
7.98 9.45 11.29 13.83 15.97 17.85 19.55 21.12 22.58
65° 60 Green
9.58 11.34 13.55 16.60 19.16 21.42 23.74 25.35 27.10
80° 10 Sky Blue
1.60 1.89 2.26 2.77 3.20 3.57 3.91 4.23 4.52
80° 20 Red
3.20 3.78 4.52 5.54 6.39 7.15 7.83 8.46 9.04
80° 30 Orange
4.79 5.66 6.77 8.29 9.57 10.70 11.73 12.67 13.54
80° 35 Black
5.59 6.61 7.90 9.68 11.17 12.49 13.68 14.78 15.80
80° 40 Yellow
6.39 7.56 9.03 11.06 12.77 14.28 15.64 16.89 18.06
80° 50 Blue
7.98 9.45 11.29 13.83 15.97 17.85 19.55 21.12 22.58
80° 60 Green
9.58 11.34 13.55 16.60 19.16 21.42 23.74 25.35 27.10
Spray Angle Capacity Code Color of HB Capacity at Pressure Capacity at Pressure
0.05
MPa
0.07
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.25
MPa
0.3
MPa
0.35
MPa
0.4
MPa
65° 10 Sky Blue
1.61 1.91 2.28 2.80 3.23 3.61 3.95 4.27 4.56
65° 20 Red
3.23 3.82 4.56 5.59 6.45 7.22 7.91 8.54 9.13
65° 30 Orange
4.83 5.72 6.84 8.37 9.67 10.81 11.84 12.79 13.67
65° 35 Black
5.64 6.67 7.98 9.77 11.28 12.61 13.82 14.92 15.95
65° 40 Yellow
6.45 7.63 9.12 11.17 12.90 14.42 15.79 17.06 18.24
65° 50 Blue
8.06 9.54 11.40 13.96 16.12 18.03 19.75 21.33 22.80
65° 60 Green
9.68 11.45 13.68 16.76 19.35 21.63 23.70 25.60 27.37
80° 10 Sky Blue
1.61 1.91 2.28 2.80 3.23 3.61 3.95 4.27 4.56
80° 20 Red
3.23 3.82 4.56 5.59 6.45 7.22 7.91 8.54 9.13
80° 30 Orange
4.83 5.72 6.84 8.37 9.67 10.81 11.84 12.79 13.67
80° 35 Black
5.64 6.67 7.98 9.77 11.28 12.61 13.82 14.92 15.95
80° 40 Yellow
6.45 7.63 9.12 11.17 12.90 14.42 15.79 17.06 18.24
80° 50 Blue
8.06 9.54 11.40 13.96 16.12 18.03 19.75 21.33 22.80
80° 60 Green
9.68 11.45 13.68 16.76 19.35 21.63 23.70 25.60 27.37
Spray Angle Capacity Code Color of HB Capacity at Pressure Capacity at Pressure
0.5
bar
0.7
bar
1.0
bar
1.5
bar
2.0
bar
2.5
bar
3.0
bar
3.5
bar
4.0
bar
65° 10 Sky Blue
1.61 1.91 2.28 2.80 3.23 3.61 3.95 4.27 4.56
65° 20 Red
3.23 3.82 4.56 5.59 6.45 7.22 7.91 8.54 9.13
65° 30 Orange
4.83 5.72 6.84 8.37 9.67 10.8 11.8 12.8 13.7
65° 35 Black
5.64 6.67 7.98 9.77 11.3 12.6 13.8 14.9 16.0
65° 40 Yellow
6.45 7.63 9.12 11.2 12.9 14.4 15.8 17.1 18.2
65° 50 Blue
8.06 9.54 11.4 14.0 16.1 18.0 19.7 21.3 22.8
65° 60 Green
9.68 11.4 13.7 16.8 19.4 21.6 23.7 25.6 27.4
80° 10 Sky Blue
1.61 1.91 2.28 2.80 3.23 3.61 3.95 4.27 4.56
80° 20 Red
3.23 3.82 4.56 5.59 6.45 7.22 7.91 8.54 9.13
80° 30 Orange
4.83 5.72 6.84 8.37 9.67 10.8 11.8 12.8 13.7
80° 35 Black
5.64 6.67 7.98 9.77 11.3 12.6 13.8 14.9 16.0
80° 40 Yellow
6.45 7.63 9.12 11.2 12.9 14.4 15.8 17.1 18.2
80° 50 Blue
8.06 9.54 11.4 14.0 16.1 18.0 19.7 21.3 22.8
80° 60 Green
9.68 11.4 13.7 16.8 19.4 21.6 23.7 25.6 27.4
Spray Angle Capacity Code Color of HB Capacity at Pressure Capacity at Pressure
7
psi
10
psi
15
psi
20
psi
25
psi
30
psi
40
psi
50
psi
60
psi
65° 10 Sky Blue
0.42 0.50 0.61 0.71 0.79 0.87 1.00 1.12 1.23
65° 20 Red
0.84 1.00 1.23 1.42 1.58 1.73 2.00 2.24 2.45
65° 30 Orange
1.25 1.50 1.84 2.12 2.37 2.60 3.00 3.35 3.67
65° 35 Black
1.46 1.75 2.14 2.47 2.77 3.03 3.50 3.91 4.29
65° 40 Yellow
1.67 2.00 2.45 2.83 3.16 3.46 4.00 4.47 4.90
65° 50 Blue
2.09 2.50 3.06 3.54 3.95 4.33 5.00 5.59 6.13
65° 60 Green
2.51 3.00 3.68 4.24 4.75 5.20 6.00 6.71 7.35
80° 10 Sky Blue
0.42 0.50 0.61 0.71 0.79 0.87 1.00 1.12 1.23
80° 20 Red
0.84 1.00 1.23 1.42 1.58 1.73 2.00 2.24 2.45
80° 30 Orange
1.25 1.50 1.84 2.12 2.37 2.60 3.00 3.35 3.67
80° 35 Black
1.46 1.75 2.14 2.47 2.77 3.03 3.50 3.91 4.29
80° 40 Yellow
1.67 2.00 2.45 2.83 3.16 3.46 4.00 4.47 4.90
80° 50 Blue
2.09 2.50 3.06 3.54 3.95 4.33 5.00 5.59 6.13
80° 60 Green
2.51 3.00 3.68 4.24 4.75 5.20 6.00 6.71 7.35
  • * Standard Pressure: Column in red.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
Material
Material Options

  • Nozzle part: 316SUS
  • Clamp, nut: fiberglass, Strengthening PP
  • Pipe clamp:316SUS
  • Sealing ring: NBR






Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials
High Quality
All material is purchased from world top providers.



Product Size
 Unit(mm)  Weight(g)
  A     B     C
52 62 70 62.5



















Hole and Thread

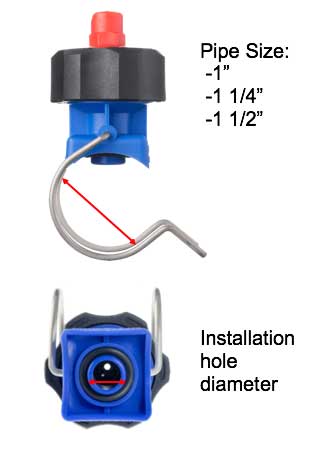

  • Installation hole diameter

      ● Ø 15 (14.3~15m/m)

      ● Ø 17 (16.4~17m/m)

      ● Ø 20 (19.0~20m/m)

  • Fits 1", 1-1/4", 1-1/2" size (Taiwan standard PVC pipe size) pipe.





Installation
Easy installing with 6 simple steps !
Step 1.

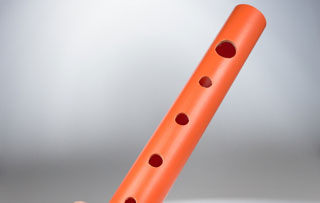

Drill a installation hole in the pipe which match the size of the EB installation hole.

Step 2.

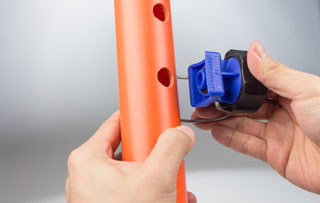

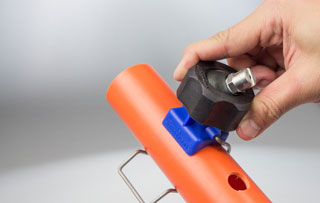

Aim and snap on the installation hole of the EB clamp at the pipe installation hole.

Step 3.

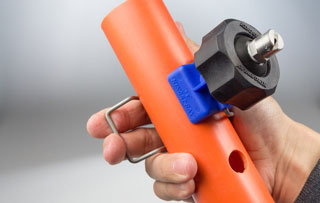

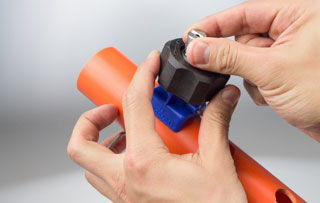

Fasten with the pipe clamp.
Step 4.

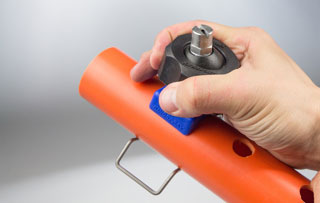

Release the union nut to adjust angle of the TB ball.

Step 5.

Confirm the spray direction.

Step 6.

Tighten the union and finished.
