F22 No Guide Rail Rotameter 1/2"-3/4", 0.3-30 LPM to 80-800 LPM

LORRIC's No Guide Rail Rotameter, ideal for corrosive solutions, offers easy installation, precise flow control, and leak-free operation. It features a dual pointer design and laser-engraved scale for accurate monitoring. An inductive version is available for computer-connected flow alarms.

Brand: LORRIC
Adapter size: 1/2", 3/4"
Body material: PSU
Applicable fluid: Liquid (Highly corrosive)
Float material: PVC, PP, PVDF, Teflon
Measure accuracy: ± 5% F.S.
Pressure resistance:
 5.0kg/cm²

CATALOGUE



Rotameters

The area-type rotameter measures flow by balancing fluid buoyancy and float weight, ideal for direct flow observation. It requires vertical installation with fluid flowing bottom to top. Reading the float position varies by model. Widely used in chemical, pharmaceutical, and food processing industries to monitor liquid or gas flow.
Learn more: How to Read the Float

Rotameters
Patented dual-indicator

Patented dual-indicator

From the user's perspective, LORRIC employs a dual-pointer design to monitor upper and lower limit intervals, enabling users to easily identify the flow status at a glance. Users can simply flick the pointer to instantly set the flow monitoring range.

Laser engraved degree scales

LORRIC precisely calibrates each flow meter at the factory to compensate for float weight variations, ensuring ultimate performance. Unlike competitors using mass printing or stickers, our laser engraving offers both accuracy and durability.

Laser engraved degree scales
No-Guide-Rail Design

No-Guide-Rail Design

The float is made of special materials, particularly suitable for solutions corrosive to metals and environments requiring high chemical resistance.

PSU Body Material for Chemical Solutions

PSU (Polysulfone), which is acid, alkali, and electrolyte resistant, suitable for chemicals like sulfuric acid and sodium hydroxide, etc.

PSU Body Material for Chemical Solutions
Unique Turning Machined Fittings, Smooth Insertion Installation

Unique Turning Machined Fittings, Smooth Insertion Installation

Don't settle for the struggles of traditional intubation joints. LORRIC's innovation brings you turning-processed joints with a specially designed pipe wall, ensuring a silky-smooth installation experience. Say goodbye to tight fits and hello to effortless installation!

Flat Contact Surfaces on Fittings, Paired with Oring for Leak-Proof Assurance

Most market-available fittings are injection molded, leading to wavy surfaces due to cooling shrinkage. LORRIC uniquely produces fittings by turning, resulting in a smooth surface without depressions, paired with an Oring seal for a worry-free, leak-proof experience.

Flat Contact Surfaces on Fittings, Paired with Oring for Leak-Proof Assurance
Flowmeter scale customization

Flowmeter scale customization

Chemicals vary in specific gravity, affecting float buoyancy. LORRIC offers tailored customization for specific gravity, eliminating the need for on-site height adjustments.



Please place your order according below information.

How to place an order for LORRIC flowmeters?
  • Select the ideal flow meter based on your material requirements for each component.
  • Please refer to following order example for placing order to LORRIC.

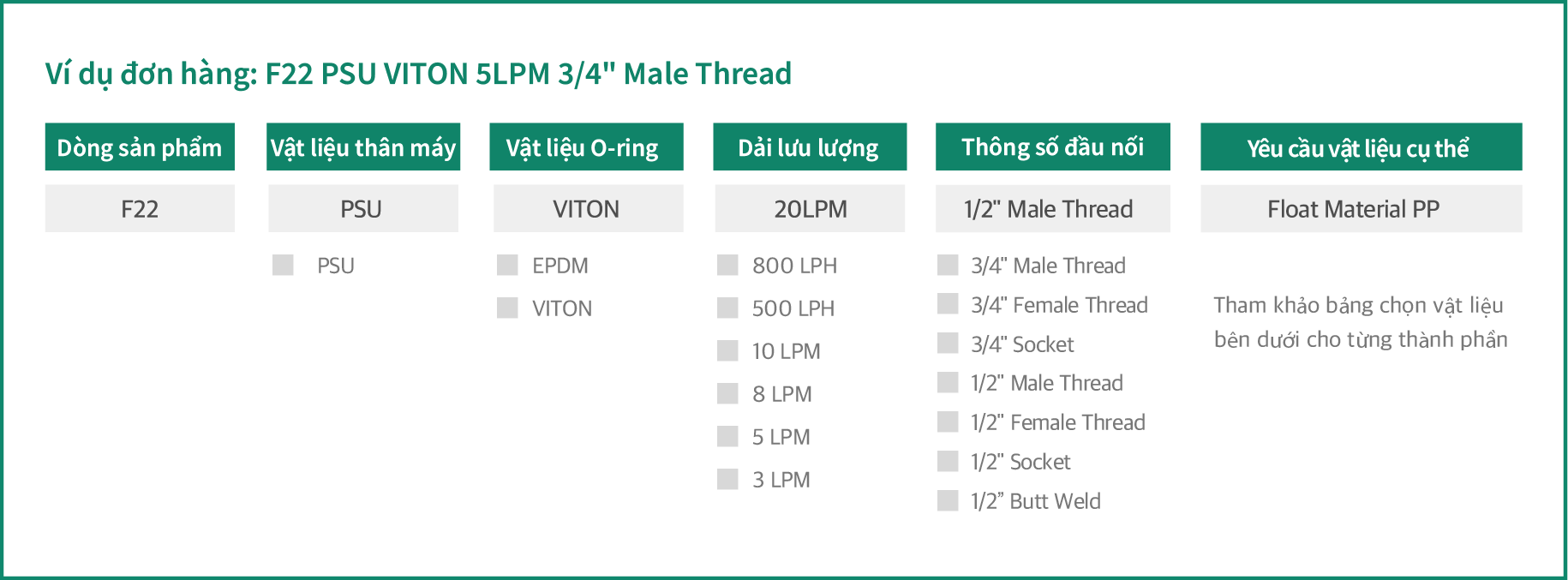

F22 order form
Series F22 PSU F22 w/ Inductor PSU
Applicable Fluid Liquid (Highly corrosive)
Body Material PSU
Float Material PVC / PP / PVDF / Teflon
O-ring Materia
EPDM / VITON
Union Nuts Material UPVC
Guide Rod Bottom Material PP
Scale Rang
(L/min)
0.3 - 3.0 L/min (PVC Float)
0.5 - 5.0 L/min (PVDF Float)

0.8 - 8.0 L/min (Teflon Float)
1.0 - 10 L/min (Teflon Float)
50 - 500 LPH (Teflon Float)

80 - 800 LPH (PVDF Float)
0.5 - 6.0 L/min (PP Float)
1.0 - 11 L/min (PVDF Float)


Adaptor Size and Adaptor Material
1/2"
Male Thread BSPT UPVC / PP
NPT UPVC / PP
Female Thread BSPT UPVC / PP
NPT UPVC / PP
Socket CNS UPVC
JIS UPVC
ANS UPVC
DIN UPVC
Butt Weld  ISO PPH / PVDF
Socket Weld  ISO PPH / PVDF
Adaptor Size and Adaptor Material
3/4"
Male Thread BSPT UPVC / PP
NPT UPVC / PP
Female Thread BSPT UPVC / PP
NPT UPVC / PP
Socket CNS UPVC
JIS UPVC
ANS UPVC
DIN UPVC
Butt Weld  ISO PPH / PVDF
Socket Weld ISO  PPH / PVDF
  • Liquid flow meters are calibrated for 20°C water. Gas flow meters are calibrated for normal conditions. ( 0°C , 1 atm)
  • All adaptors can be manufactured to order, please contact us for price and lead time. Specs: adaptor 1/2" NPT male/ female thread (UPVC / PP / PSU) type is custom made, please contact us for details. Please refer to the chemical resistance chart for understanding if our flowmeters body and parts are acceptable for your solution.
  • Above temperature information is for reference only and may not be applicable for all environments.
  • Above flow rate range and materials is for standard specs. Please choose proper products according to your usage and environment conditions. You are welcome to contact us directly for any requests and advice.

Size

Unit:mm

Adapter Spec A B C D E Butt-fusion
Adaptor(g)

3/4"Female Thread 191 104 43.5 51 54



145


3/4"Male Thread 188 104 42 51 54
3/4"CNS 194 104 45 51 54
3/4"ASTM 195 104 45.5 51 54
3/4"JIS 194 104 45 51 54
3/4"DIN 194 104 45 51 54
1/2"Male Thread 182 104 39 51 54
1/2"Female Thread 191 104 43.5 51 54
1/2"CNS 184 104 40 51 54
1/2"ASTM 184 104 40 51 54
1/2"JIS 183 104 39.5 51 54
1/2"DIN 187 104 41.5 51 54
PP
OD20
ID15.3
184 104 40 51 54

Installation

Three easy steps! Effortlessly install the rotameter!

Step1
Step1

Ensure the main line is vertically installed and that there is ample space to accommodate the flow meter size.

Step2
Step2

Loosen the upper and lower interfaces, including the nuts, and affix them to the pipe using adhesive until the glue sets.

Step3
Step3

Position the body in the center and secure the upper and lower unions.

Applications

Working with sulfuric acid, caustic soda, or unique specialty chemicals? Explore our tailored specific gravity scale customization services

Diverse chemicals, varying specific gravity. LORRIC offers bespoke specific gravity customization to match your chemical needs. No more on-site manual height adjustments!

Working with sulfuric acid, caustic soda, or unique specialty chemicals? Explore our tailored specific gravity scale customization services

What we customize

  • Different measure unit (LPM, LPH, CMPM and more)
  • Main and secondary scale
  • Different liquid proportion
  • Different gas molecular weights
  • Different measuring ranges
What we customize

Customizing Flow Meter Scales: A Step-by-Step Guide

  • Range of customized flow capacity should be stayed within the capacity of existing products.
  • Customizable capacity will be affected by customization of proportion and viscosity, please contact us directly for this service.
  • To customize too compressed flow scales is not suggested, and leads difficulty of on-site observation
