LORRIC Sensor: The Next Level of User Experience

LED’s brightness is best suited for long-distance monitoring. Because of limited display space – numbers are better suited than words: in LORRIC’s design philosophy, consideration of the on-scene pain points users encounter is of main importance, thus we chose to line up a large LED screen to display mostly numerical data for flow monitoring. This allows the users standing further away to at any point clearly observe the immediate flow status without the need to get closer.

Electronic sensory equipment’s initial setup often has a decisive impact on flow monitoring outcome further down the line, what stresses the importance of installation ease. Software interface, screen clarity, and button design are all contributing factors to a superior pre-usage installation experience – especially as such equipment often employs small cramped places for installation. Secondly, in order to adapt the system to different languages used in different work environments, the LCD screen is adept at displaying more complex detailed characters (such as of Chinese, Arabic, Thai etc.). Users of different languages will be able to clearly read the settings, and thus quickly and correctly perform setup and set equipment preferences.

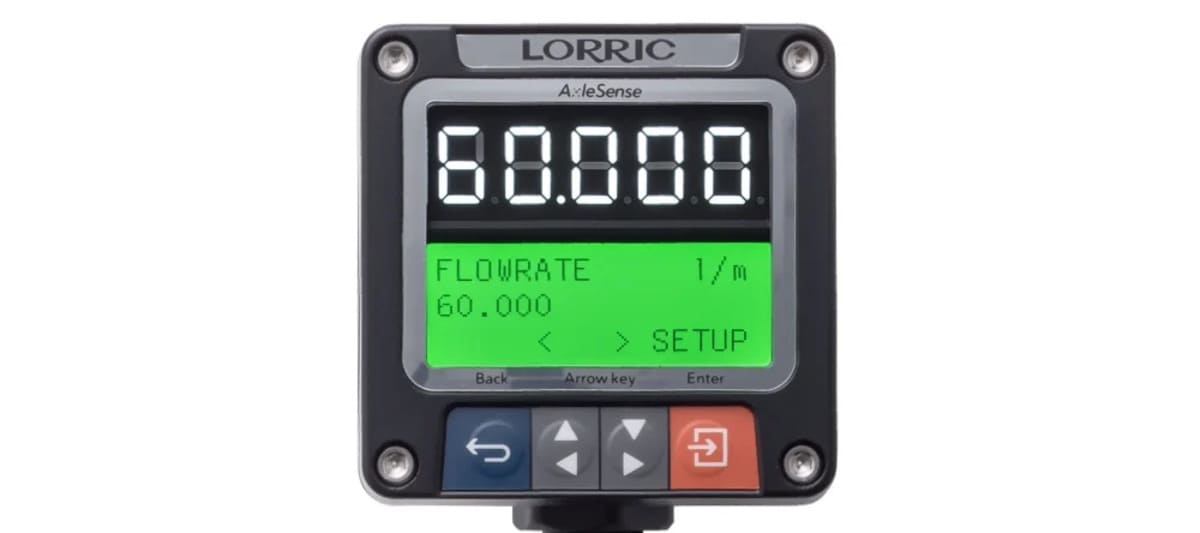

The LCD screen can display three rows of letters, and each of the rows can be defined differently under the setting modes. Basically, the three rows can approximately be defined to display the following kinds of information:

➤ The first row – Current screen status

➤ The second row – Immediate data

➤ The Third row – Displays four different function buttons, each button has different setting modes for different function definitions. Even if equipment settings need to be changed only once in a long time, this row’s display makes usage easy and spares the need to look for the manual.

Electronic monitoring equipment generally needs to be adapted to possible on-site space limitations, and the equipment amount needs to be restricted within a certain threshold, thus the space that can be allocated for the screen and indicator lights is limited. However, holding onto the ideal of not willing to sacrifice screen and indicator lights size, LORRIC combined the screen and indicator lights into a single unit, what allows maximal possible space to be allocated for both – an industry first and currently only such design in the market, all for the purpose of satisfying on-site manager’s requirement of high-efficiency monitoring. In addition, regarding the aforementioned LED/LCD double screen, the LED screen part fulfills the requirement of long-distance observation, designed to provide a bright data monitoring function, thus the three-colored large indicator lights are set-up along with the LED screen as a single unit. During the process of exploring and developing backlight colors, we managed to come up with the green-red-orange three-colored indicator lights. The integration of these three-colored large indicator lights together with the bright LED digital display, allows the user to at any time, even from far away or in dim environments, properly monitor on-site happenings without the need to deliberately get closer to the equipment.

Green, orange and red indicator light color definitions: Red – Major abnormality; Green – Normal operation; Orange – Non-urgent data display. This system’s big advantage is that no matter how far the user stands from the screen, the changing indicator light’s colors can clearly indicate the status of the equipment and whether any abnormality occurs.
