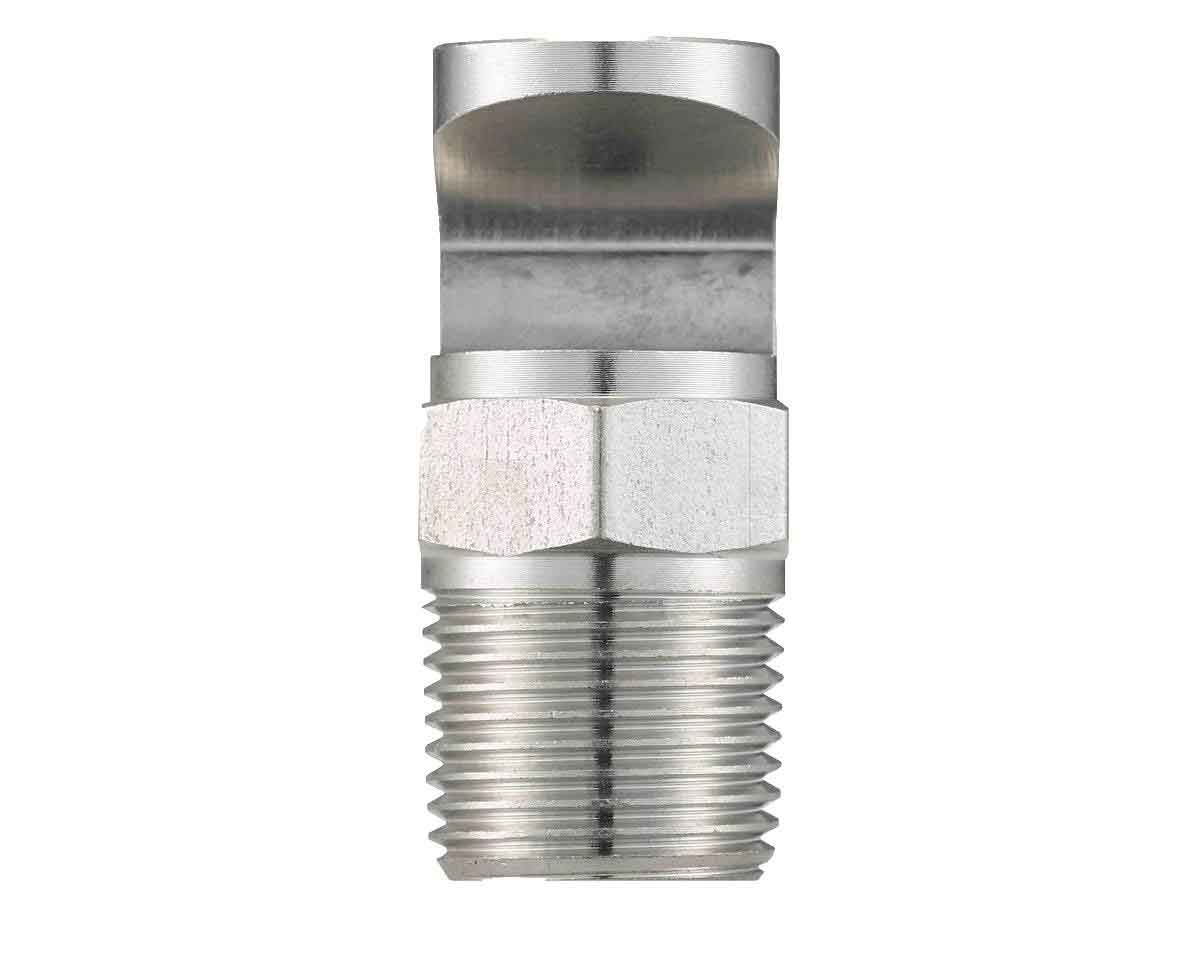

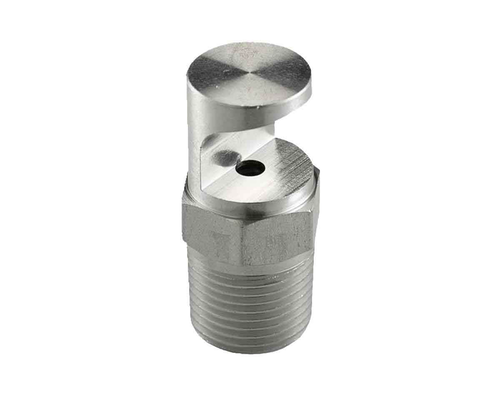

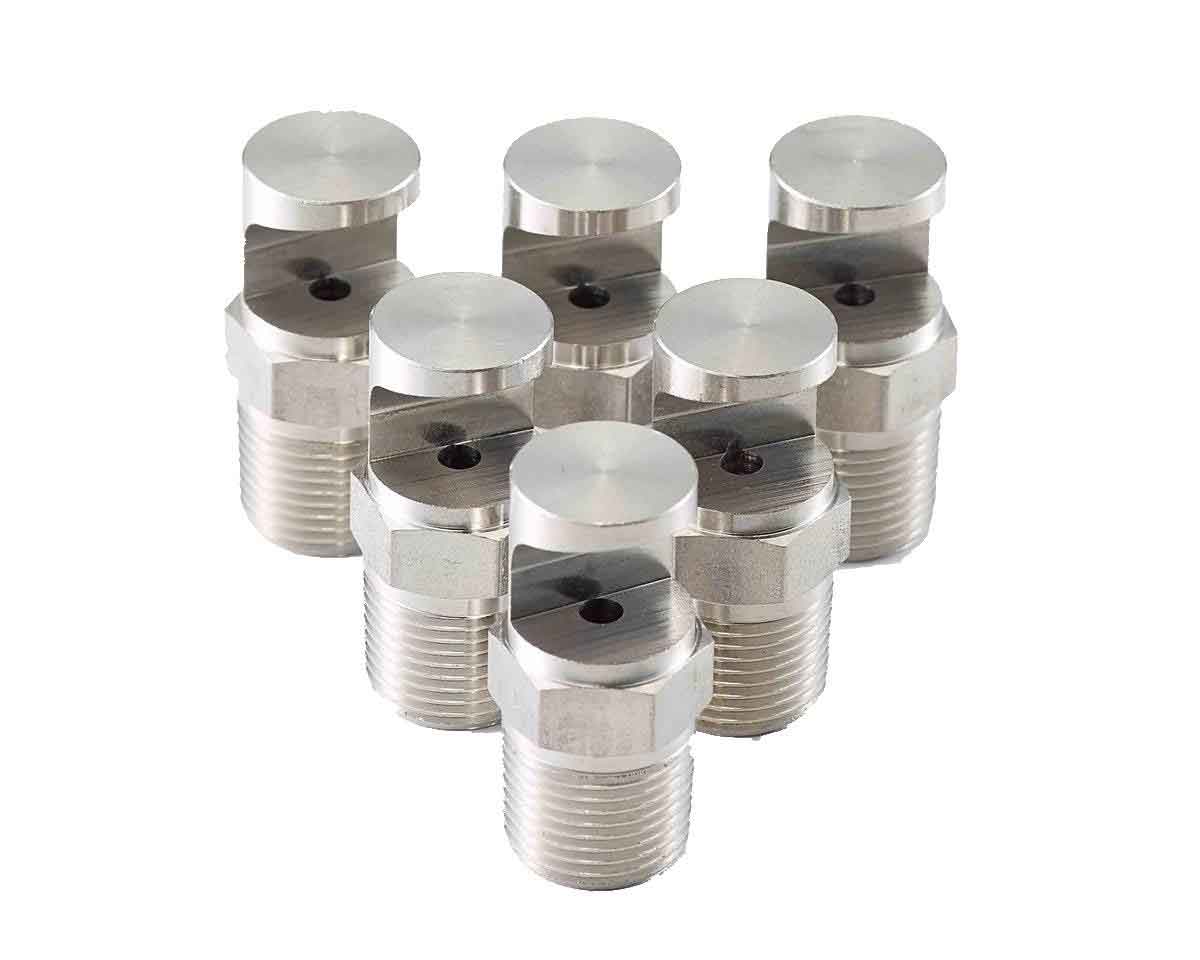

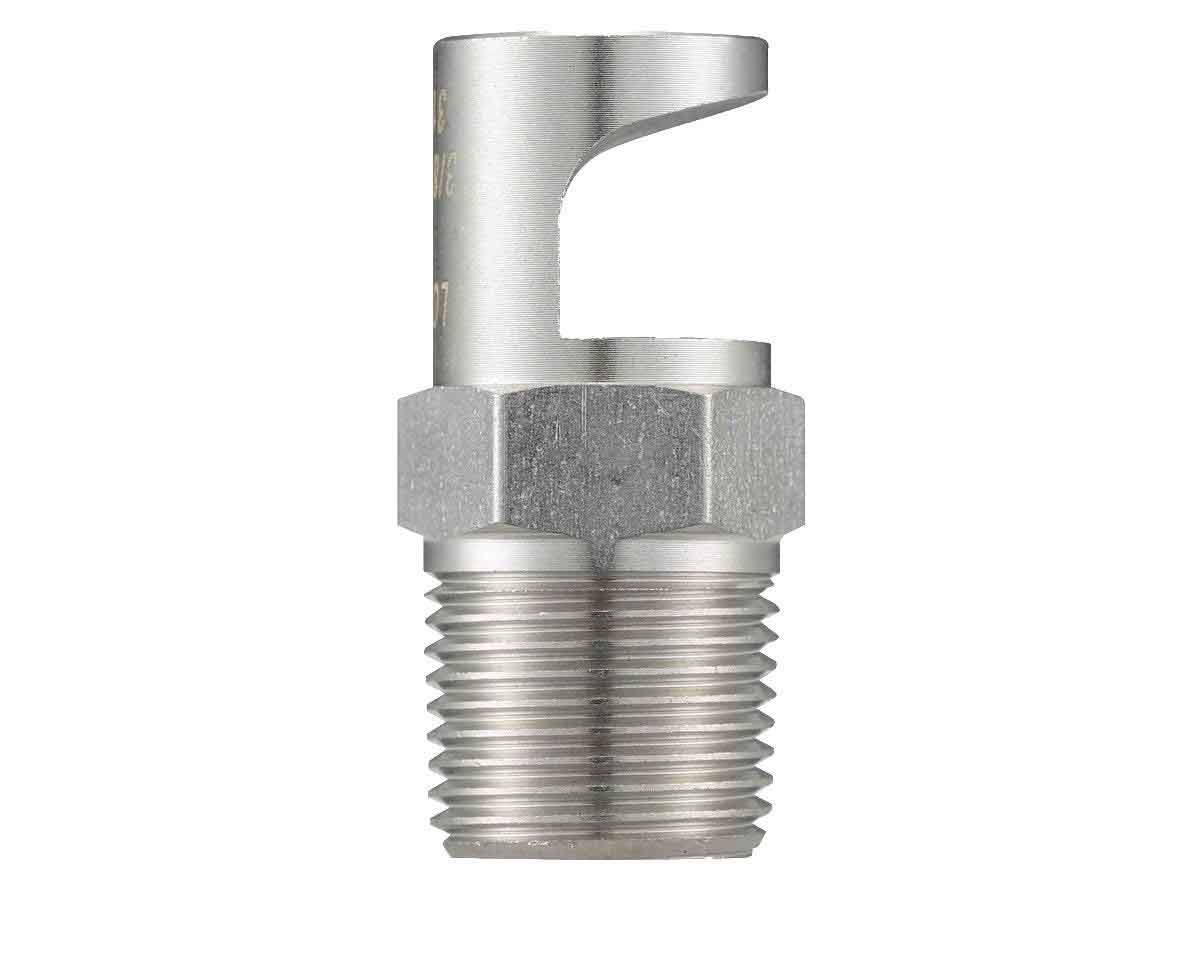

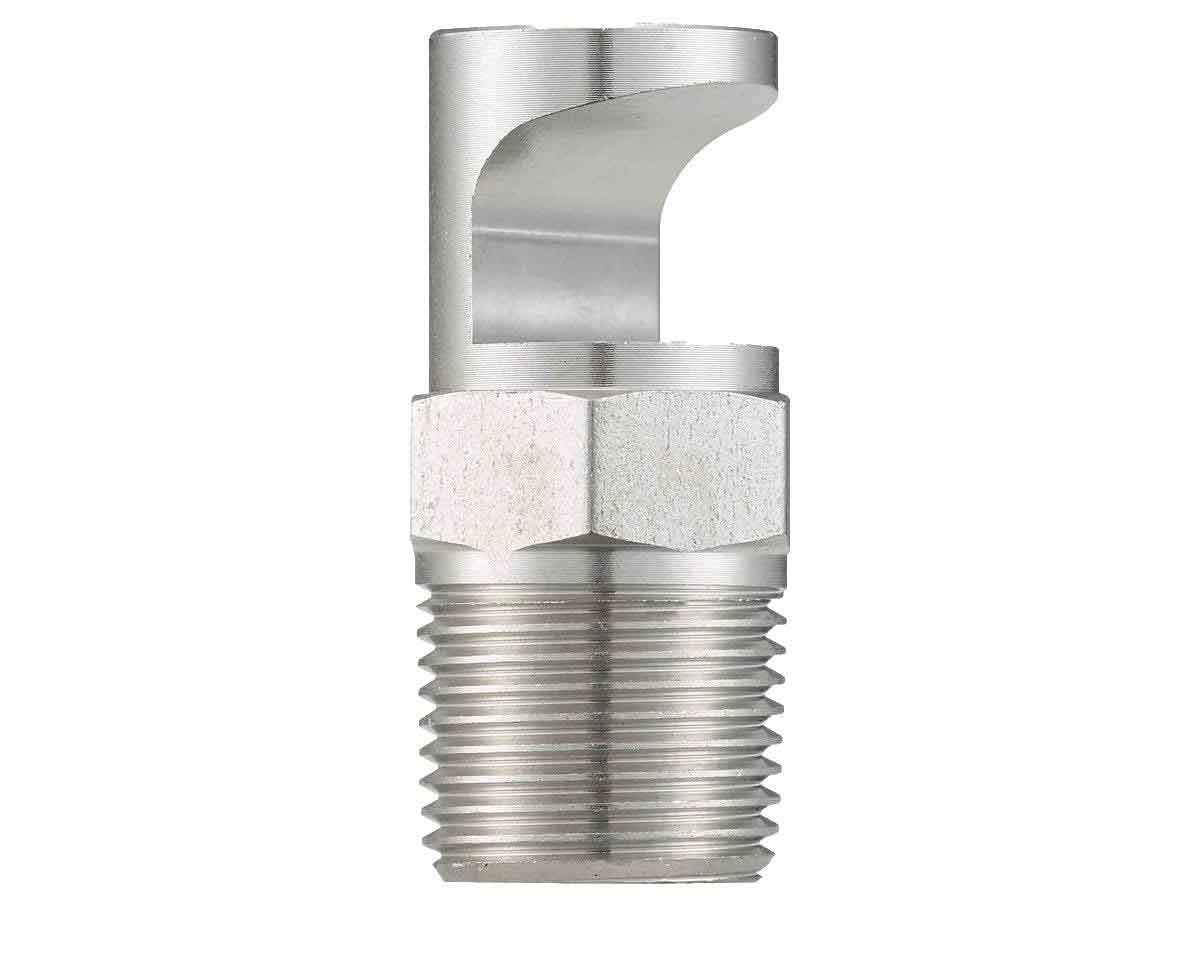

F Low-Pressure Wide-Angle Water Curtain Nozzle - Metal

The metal low-pressure wide-angle water curtain fan spray nozzle generates a 75° coverage angle at 1.5 kg/cm² pressure. The reflective spray design outside the nozzle enhances debris passage, effectively preventing blockages. Suitable for cleaning, firefighting, dust suppression, and odor control applications.

Brand： LORRIC
Nozzle Type： Fan-shaped
Fluid Type： Single-fluid
Materials： SS303, SS316, Brass
Thread Standards： BSPT, NPT
Thread Sizes： 1/8", 1/4", 3/8"

Catalogue

Inquire now

Water Curtain Nozzle

The spray pattern of a water curtain nozzle is a horizontally expanding thin water film, resembling a transparent water wall. This type of spray can create a broad and uniform coverage area within a specific region, making it ideal for applications such as fire prevention, dust suppression, odor control, defoaming, and other scenarios requiring even distribution.

Water Curtain Nozzle
Fan Spray Nozzle Spray Pattern

Fan Spray Nozzle Spray Pattern

A single-fluid fan spray nozzle produces a spray pattern resembling a fan, hence the name. The coverage pattern, when viewed from above the target area, forms a single-line shape with tapered edges on both sides.

Mountain-Shaped Flow Distribution

The fan spray nozzle has maximum spray volume in the center, decreasing towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform spraying, install nozzles closer together to overlap coverage areas and improve uniformity.distribution.

Mountain-Shaped Flow Distribution
Multiple Flow Rates Available

Multiple Flow Rates Available

The fan spray nozzle offers a wide range of flow rates. For example, at a standard design pressure of 1.5 Kg/cm², the flow rates range from 0.28 Lpm to 11.20 Lpm. (For other flow rate requirements, please refer to the specification sheet or contact us directly.)

75-degree angle Spraying

Spraying at a 75-degree angle from the nozzle axis, please ensure that the installation environment allows for this configuration.

75-degree angle Spraying
Multiple angles to choose from

Multiple angles to choose from

The fan-shaped nozzle angle can range from 145° to 160°. Low-pressure wide-angle nozzles can produce a broad coverage area even at a relative low pressure of 1.5kg/cm². This requires a lower operating pressure compared to the standard fan-shaped nozzle at 3kg/cm², making it more suitable for working in low-pressure environments.

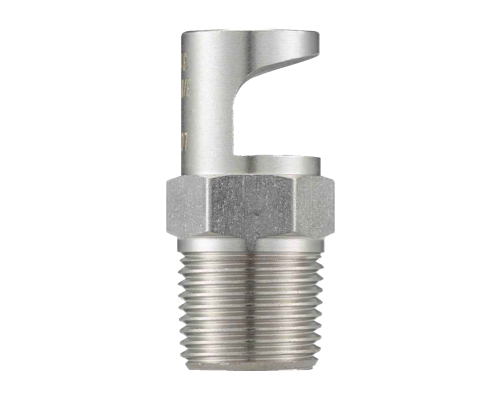

Single-piece design

This nozzle attaches to pipelines directly. Usage time and environment impact spray performance (flow and angle). Regular maintenance or replacement needed. For tougher conditions, we have a quick-release multi-piece nozzle for easy replacement, saving time and effort.

Single-piece design
Material Options

Material Options

About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 10% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 10% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • Choose the nozzle diameter (thread size) and specifications that meet your requirements.
    • Choose the spray flow rate for each nozzle, please refer to the chart below.
    • Select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

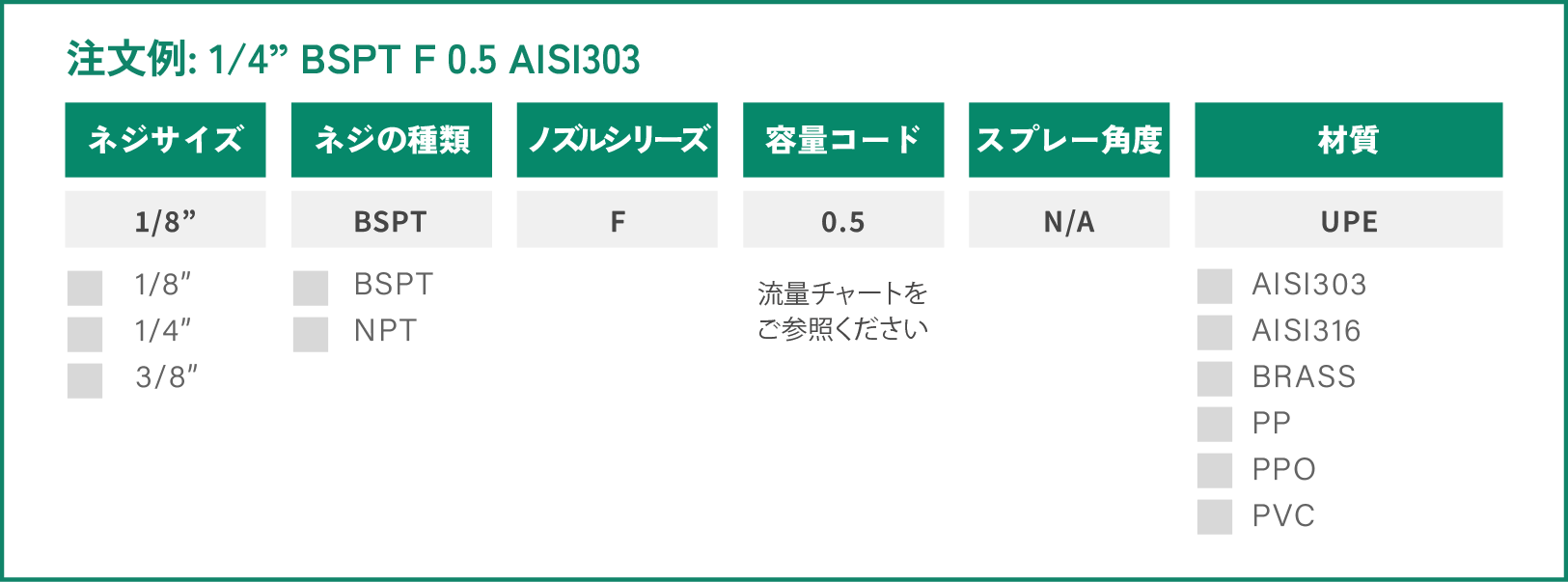

  • Example specification: 1/8” BSPT F 0.5  AISI303. Each number corresponds to the following options and meanings.




Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.5
kgf/cm²		 0.7
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 2.5
kgf/cm²		 3.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²
125° 0.5 V

0.16 0.19 0.23 0.28 0.32 0.36 0.40 0.46 0.56
- 0.75 V

0.24 0.29 0.34 0.42 0.48 0.54 0.59 0.69 0.84
120° 1.0 V

0.32 0.38 0.46 0.56 0.65 0.72 0.79 0.91 1.12
- 1.25 V

0.40 0.48 0.57 0.70 0.81 0.90 0.99 1.14 1.40
- 1.5 V

0.48 0.57 0.69 0.84 0.97 1.08 1.19 1.37 1.68
- 1.75 V

0.57 0.67 0.80 0.98 1.13 1.27 1.39 1.60 1.96
- 2.0 V
 V
0.65 0.77 0.91 1.12 1.29 1.45 1.58 1.83 2.24
- 2.5 V
 V
 0.81 0.96 1.14 1.40 1.62 1.81 1.98 2.29 2.80
- 3.0 V
 V
 0.97 1.15 1.37 1.68 1.94 2.17 2.38 2.74 3.36
- 4.0 V
 V
 1.29 1.53 1.83 2.24 2.59 2.89 3.17 3.66 4.48
170° 5.0 V
 V
 1.62 1.91 2.29 2.80 3.23 3.61 3.96 4.57 5.60
- 6.0 V
 V
 1.94 2.30 2.74 3.36 3.88 4.34 4.75 5.49 6.72
- 7.0 V
 V
 2.26 2.68 3.20 3.92 4.53 5.06 5.54 6.40 7.84
- 7.5 V
 V
 2.42 2.87 3.43 4.20 4.85 5.42 5.94 6.86 8.40
- 8.0 V
 V
 2.59 3.06 3.66 4.48 5.17 5.78 6.34 7.32 8.96
- 9.0 V
 V
 2.91 3.44 4.12 5.04 5.82 6.51 7.13 8.23 10.08
160° 10 V
 V
 3.23 3.83 4.57 5.60 6.47 7.23 7.92 9.14 11.20
- 12.5 V
 V
 4.04 4.78 5.72 7.00 8.08 9.04 9.90 11.43 14.00
- 15 V
 V
 4.85 5.74 6.86 8.40 9.70 10.84 11.88 13.72 16.80
160° 20 V V
 V 6.47 7.65 9.14 11.20 12.93 14.46 15.84 18.29 22.40
- 30

V 9.70 11.48 13.72 16.80 19.40 21.69 23.76 27.43 33.60
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.05
MPa		 0.07
MPa		 0.1
MPa 		0.15
MPa		 0.2
MPa
 0.25
MPa		 0.3
MPa		 0.4
MPa		 0.6
MPa
125° 0.5 V

0.16 0.19 0.23 0.28 0.33 0.37 0.40 0.46 0.57
- 0.75 V

0.24 0.29 0.35 0.42 0.49 0.55 0.60 0.69 0.85
120° 1.0 V

0.33 0.39 0.46 0.57 0.65 0.73 0.80 0.92 1.13
- 1.25 V

0.41 0.48 0.58 0.71 0.82 0.91 1.00 1.15 1.41
- 1.5 V

0.49 0.58 0.69 0.85 0.98 1.10 1.20 1.39 1.70
- 1.75 V

0.57 0.68 0.81 0.99 1.14 1.28 1.40 1.62 1.98
- 2.0 V
 V
0.65 0.77 0.92 1.13 1.31 1.46 1.60 1.85 2.26
- 2.5 V
 V
 0.82 0.97 1.15 1.41 1.63 1.83 2.00 2.31 2.83
- 3.0 V
 V
 0.98 1.16 1.39 1.70 1.96 2.19 2.40 2.77 3.39
- 4.0 V
 V
 1.31 1.55 1.85 2.26 2.61 2.92 3.20 3.69 4.52
170° 5.0 V
 V
 1.63 1.93 2.31 2.83 3.26 3.65 4.00 4.62 5.65
- 6.0 V
 V
 1.96 2.32 2.77 3.39 3.92 4.38 4.80 5.54 6.79
- 7.0 V
 V
 2.29 2.70 3.23 3.96 4.57 5.11 5.60 6.46 7.92
- 7.5 V
 V
 2.45 2.90 3.46 4.24 4.90 5.48 6.00 6.93 8.48
- 8.0 V
 V
 2.61 3.09 3.69 4.52 5.22 5.84 6.40 7.39 9.05
- 9.0 V
 V
 2.94 3.48 4.16 5.09 5.88 6.57 7.20 8.31 10.18
160° 10 V
 V
 3.26 3.86 4.62 5.65 6.53 7.30 8.00 9.23 11.31
- 12.5 V
 V
 4.08 4.83 5.77 7.07 8.16 9.13 10.00 11.54 14.14
- 15 V
 V
 4.90 5.79 6.93 8.48 9.79 10.95 12.00 13.85 16.96
160° 20 V V
 V 6.53 7.73 9.23 11.31 13.06 14.60 15.99 18.47 22.62
- 30

V 9.79 11.59 13.85 16.96 19.59 21.90 23.99 27.70 33.93
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.5
bar
 0.7
bar		 1.0
bar 		1.5
bar		 2.0
bar 		2.5
bar		 3.0
bar		 4.0
bar		 6.0
bar
125° 0.5 V

0.16 0.19 0.23 0.28 0.33 0.37 0.40 0.46 0.57
- 0.75 V

0.24 0.29 0.35 0.42 0.49 0.55 0.60 0.69 0.85
120° 1.0 V

0.33 0.39 0.46 0.57 0.65 0.73 0.80 0.92 1.13
- 1.25 V

0.41 0.48 0.58 0.71 0.82 0.91 1.00 1.15 1.41
- 1.5 V

0.49 0.58 0.69 0.85 0.98 1.10 1.20 1.39 1.70
- 1.75 V

0.57 0.68 0.81 0.99 1.14 1.28 1.40 1.62 1.98
- 2.0 V
 V
0.65 0.77 0.92 1.13 1.31 1.46 1.60 1.85 2.26
- 2.5 V
 V
 0.82 0.97 1.15 1.41 1.63 1.83 2.00 2.31 2.83
- 3.0 V
 V
 0.98 1.16 1.39 1.70 1.96 2.19 2.40 2.77 3.39
- 4.0 V
 V
 1.31 1.55 1.85 2.26 2.61 2.92 3.20 3.69 4.52
170° 5.0 V
 V
 1.63 1.93 2.31 2.83 3.26 3.65 4.00 4.62 5.65
- 6.0 V
 V
 1.96 2.32 2.77 3.39 3.92 4.38 4.80 5.54 6.79
- 7.0 V
 V
 2.29 2.70 3.23 3.96 4.57 5.11 5.60 6.46 7.92
- 7.5 V
 V
 2.45 2.90 3.46 4.24 4.90 5.48 6.00 6.93 8.48
- 8.0 V
 V
 2.61 3.09 3.69 4.52 5.22 5.84 6.40 7.39 9.05
- 9.0 V
 V
 2.94 3.48 4.16 5.09 5.88 6.57 7.20 8.31 10.18
160° 10 V
 V
 3.26 3.86 4.62 5.65 6.53 7.30 8.00 9.23 11.31
- 12.5 V
 V
 4.08 4.83 5.77 7.07 8.16 9.13 10.00 11.54 14.14
- 15 V
 V
 4.90 5.79 6.93 8.48 9.79 10.95 12.00 13.85 16.96
160° 20 V V
 V 6.53 7.73 9.23 11.31 13.06 14.60 15.99 18.47 22.62
- 30

V 9.79 11.59 13.85 16.96 19.59 21.90 23.99 27.70 33.93
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 7
psi		 10
psi		 15
psi 		21
psi		 30
psi 		40
psi		 50
psi		 70
psi		 90
psi
125° 0.5 V

0.04 0.05 0.06 0.07 0.09 0.10 0.11 0.13 0.15
- 0.75 V

0.06 0.08 0.09 0.11 0.13 0.15 0.17 0.20 0.23
120° 1.0 V

0.08 0.10 0.12 0.15 0.18 0.20 0.23 0.27 0.30
- 1.25 V

0.11 0.13 0.16 0.18 0.22 0.25 0.28 0.33 0.38
- 1.5 V

0.13 0.15 0.19 0.22 0.26 0.30 0.34 0.40 0.46
- 1.75 V

0.15 0.18 0.22 0.26 0.31 0.35 0.40 0.47 0.53
- 2.0 V
 V
0.17 0.20 0.25 0.29 0.35 0.41 0.45 0.54 0.61
- 2.5 V
 V
 0.21 0.25 0.31 0.37 0.44 0.51 0.57 0.67 0.76
- 3.0 V
 V
 0.25 0.30 0.37 0.44 0.53 0.61 0.68 0.80 0.91
- 4.0 V
 V
 0.34 0.41 0.50 0.59 0.70 0.81 0.91 1.07 1.22
170° 5.0 V
 V
 0.42 0.51 0.62 0.73 0.88 1.01 1.13 1.34 1.52
- 6.0 V
 V
 0.51 0.61 0.74 0.88 1.05 1.22 1.36 1.61 1.82
- 7.0 V
 V
 0.59 0.71 0.87 1.03 1.23 1.42 1.59 1.88 2.13
- 7.5 V
 V
 0.64 0.76 0.93 1.10 1.32 1.52 1.70 2.01 2.28
- 8.0 V
 V
 0.68 0.81 0.99 1.17 1.40 1.62 1.81 2.14 2.43
- 9.0 V
 V
 0.76 0.91 1.12 1.32 1.58 1.82 2.04 2.41 2.73
160° 10 V
 V
 0.85 1.01 1.24 1.47 1.75 2.03 2.26 2.68 3.04
- 12.5 V
 V
 1.06 1.27 1.55 1.83 2.19 2.53 2.83 3.35 3.80
- 15 V
 V
 1.27 1.52 1.86 2.20 2.63 3.04 3.40 4.02 4.56
160° 20 V V
 V 1.69 2.03 2.48 2.94 3.51 4.05 4.53 5.36 6.08
- 30

V 2.54 3.04 3.72 4.40 5.26 6.08 6.79 8.04 9.12
  • * Standard Pressure: Column in red.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

CCL

CCL

Flow meters monitor chemical liquids to ensure consistent copper foil thickness and quality; nozzles maintain even chemical liquid coverage, ensuring the uniformity of copper foil

PCBs

PCBs

Flow meters in PCB electroplating, developing, and etching processes monitor precise chemical and cleaning fluid flow; nozzles control chemical coating and rinsing

Electroplating

Electroplating

Flow meter controls the flow of chemical liquids, ensuring a uniform coating for quality assurance; the nozzle ensuring even coating and consistent quality during electroplating

Semiconductor

Semiconductor

流量計で化学液体や純水処理液を監視、ノズルで噴霧を制御し、プロセスの安定性と純度を維持

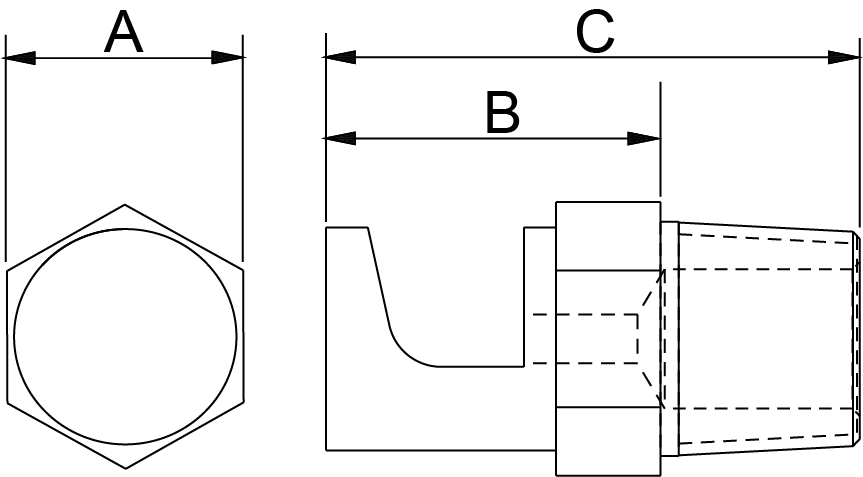

Size

Thread(BSPT) Size(mm) Weight(g)
A B C SS303 SS316 Brass
1/8"Male Thread 10 15 23 7.4 9.2
 12.2
1/4"Male Thread 14 17 28 23.8 20.4 21.8
3/8"Male Thread 17 24 39 42.8 43 47

Thread installation

Easy installing with 2 simple steps!

Step 1
Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2
Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3
Step 3

Complete the installation.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.

Working Process and matters need attention of Nozzle Customization

  • We provide custom nozzle services according to standard operating procedures.
  • Please note
    • There are minimum quantity requirements
    • There are exclusive sales channels must be mutually agreed upon
Working Process and matters need attention of Nozzle Customization
