QFH High impact cleaning easy connect water curtain nozzle

Two piece design, Quick install
Apply for
Washing│Cleaning
Humidifying│Distribution
Cooling│Water Curtain

Features
  • The spraying type is fan type, and the spray shape is single line and two sides are tapered (tapered edge), which presents a bell curve shape flow field distribution with weaker ends compared to the middle. Products with special flow field distribution can be customized.
  • Two-piece quick-release design is divided into two parts: the nozzle and the body. It can be installed and removed without any tools. It is convenient for on-site operation. With three positioning buckle points, the nozzle can be accurately screwed in and positioned to avoid loose nozzles and to ensure the quality of production.
  • The internal gaskets have different options such as EPDM, Viton and FEPM, which can be adapted to various chemical processes. With a special structural design, the nozzles and the base can be closely fitted to avoid water leakage.
  • PVDF is resistant to temperature and corrosive chemical solutions.
  • According to the working environment, the body has two choices of thread type and welding type
  • Recommended working pressure: 3.0 kgf/cm²
  • Flowrate tolerance: ± 5% @ 3.0 ± 0.1 kgf/cm²
  • Angle tolerance: ± 5° @ 3.0 ± 0.1 kgf/cm²
  • Jet angle tolerance: 3°
  • Applications:
    ● Cleaning: Vehicles, Containers, Filters, Dust, Gravel, Metals, Metal Parts, Machinery, Steel Plates, Various Containers, High Pressure Cleaning, Wet Processing Display Pane, machine tool cleaning, etc.
    ● Cooling: gas, tank, machinery, metal, roof etc.
    ● Dispersion: Humidifying, Chemicals (etching solution, Lubrication fluid, insect repellent, etc.), Water Curtain (fire protection, dust prevention, deodorization, etc.).
LORRIC nozzle




Spray pattern & Flow distribution
LORRIC nozzle
LORRIC nozzle



Specs

Please place your order according below information.


How to pleace an order for LORRIC nozzles?

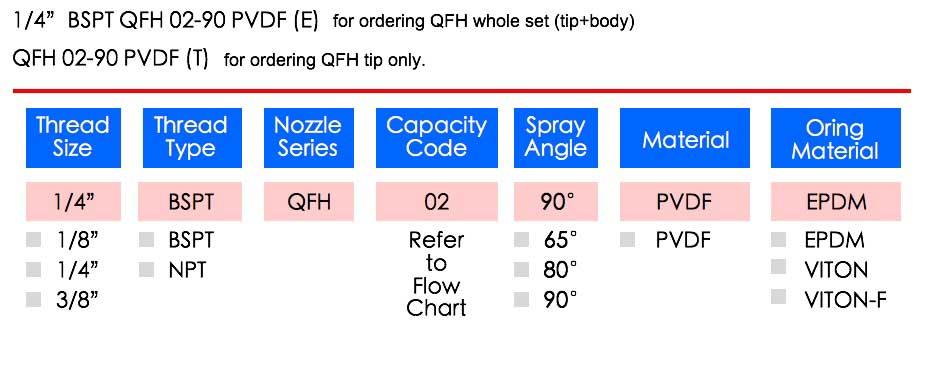

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above. Click to understand how to use the capacity & angle.
  • • Please refer to the following order example for placing order to LORRIC.
  •   Example :
  • LORRIC nozzle






Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 3.0
kgf/cm²		 4.0
kgf/cm²		 5.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²
65° 02 0.32 0.45 0.55 0.64 0.78 0.90 1.01 1.11 1.28
65° 2.5 0.40 0.56 0.69 0.80 0.98 1.13 1.26 1.38 1.60
65° 03 0.48 0.68 0.83 0.96 1.17 1.35 1.51 1.66 1.92
65° 04 0.64 0.90 1.11 1.28 1.56 1.81 2.02 2.21 2.55
65° 05 0.80 1.13 1.38 1.60 1.96 2.26 2.52 2.76 3.19
65° 06 0.96 1.35 1.66 1.92 2.35 2.71 3.03 3.32 3.83
65° 07 1.12 1.58 1.94 2.23 2.74 3.16 3.53 3.87 4.47
65° 7.5 1.20 1.69 2.07 2.39 2.93 3.39 3.79 4.15 4.79
65° 08 1.28 1.81 2.21 2.55 3.13 3.61 4.04 4.42 5.11
65° 09 1.44 2.03 2.49 2.87 3.52 4.06 4.54 4.98 5.75
65° 10 1.60 2.26 2.76 3.19 3.91 4.51 5.05 5.53 6.39
65° 12.5 2.00 2.82 3.46 3.99 4.89 5.64 6.31 6.91 7.98
65° 15 2.39 3.39 4.15 4.79 5.87 6.77 7.57 8.29 9.58
65° 20 3.19 4.51 5.53 6.39 7.82 9.03 10.10 11.06 12.77
65° 25 3.99 5.64 6.91 7.98 9.78 11.29 12.62 13.82 15.96
65° 30 4.79 6.77 8.29 9.58 11.73 13.54 15.14 16.59 19.16
80° 02 0.32 0.45 0.55 0.64 0.78 0.90 1.01 1.11 1.28
80° 2.5 0.40 0.56 0.69 0.80 0.98 1.13 1.26 1.38 1.60
80° 03 0.48 0.68 0.83 0.96 1.17 1.35 1.51 1.66 1.92
80° 04 0.64 0.90 1.11 1.28 1.56 1.81 2.02 2.21 2.55
80° 05 0.80 1.13 1.38 1.60 1.96 2.26 2.52 2.76 3.19
80° 06 0.96 1.35 1.66 1.92 2.35 2.71 3.03 3.32 3.83
80° 07 1.12 1.58 1.94 2.23 2.74 3.16 3.53 3.87 4.47
80° 7.5 1.20 1.69 2.07 2.39 2.93 3.39 3.79 4.15 4.79
80° 08 1.28 1.81 2.21 2.55 3.13 3.61 4.04 4.42 5.11
80° 09 1.44 2.03 2.49 2.87 3.52 4.06 4.54 4.98 5.75
80° 10 1.60 2.26 2.76 3.19 3.91 4.51 5.05 5.53 6.39
80° 12.5 2.00 2.82 3.46 3.99 4.89 5.64 6.31 6.91 7.98
80° 15 2.39 3.39 4.15 4.79 5.87 6.77 7.57 8.29 9.58
80° 20 3.19 4.51 5.53 6.39 7.82 9.03 10.10 11.06 12.77
80° 25 3.99 5.64 6.91 7.98 9.78 11.29 12.62 13.82 15.96
80° 30 4.79 6.77 8.29 9.58 11.73 13.54 15.14 16.59 19.16
90° 02 0.32 0.45 0.55 0.64 0.78 0.90 1.01 1.11 1.28
90° 2.5 0.40 0.56 0.69 0.80 0.98 1.13 1.26 1.38 1.60
90° 03 0.48 0.68 0.83 0.96 1.17 1.35 1.51 1.66 1.92
90° 04 0.64 0.90 1.11 1.28 1.56 1.81 2.02 2.21 2.55
90° 05 0.80 1.13 1.38 1.60 1.96 2.26 2.52 2.76 3.19
90° 06 0.96 1.35 1.66 1.92 2.35 2.71 3.03 3.32 3.83
90° 07 1.12 1.58 1.94 2.23 2.74 3.16 3.53 3.87 4.47
90° 7.5 1.20 1.69 2.07 2.39 2.93 3.39 3.79 4.15 4.79
90° 08 1.28 1.81 2.21 2.55 3.13 3.61 4.04 4.42 5.11
90° 09 1.44 2.03 2.49 2.87 3.52 4.06 4.54 4.98 5.75
90° 10 1.60 2.26 2.76 3.19 3.91 4.51 5.05 5.53 6.39
90° 12.5 2.00 2.82 3.46 3.99 4.89 5.64 6.31 6.91 7.98
90° 15 2.39 3.39 4.15 4.79 5.87 6.77 7.57 8.29 9.58
90° 20 3.19 4.51 5.53 6.39 7.82 9.03 10.10 11.06 12.77
90° 25 3.99 5.64 6.91 7.98 9.78 11.29 12.62 13.82 15.96
90° 30 4.79 6.77 8.29 9.58 11.73 13.54 15.14 16.59 19.16
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.05
MPa		 0.1
MPa		 0.15
MPa		 0.2
MPa		 0.3
MPa		 0.4
MPa		 0.5
MPa		 0.6
MPa		 0.8
MPa
65° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
65° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
65° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
65° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
65° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
65° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
65° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
65° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
65° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
65° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
65° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
65° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
65° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
65° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
65° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
65° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
80° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
80° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
80° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
80° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
80° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
80° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
80° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
80° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
80° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
80° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
80° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
80° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
80° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
80° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
80° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
80° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
90° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
90° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
90° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
90° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
90° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
90° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
90° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
90° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
90° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
90° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
90° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
90° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
90° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
90° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
90° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
90° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
bar
 1.0
bar		 1.5
bar		 2.0
bar		 3.0
bar		 4.0
bar		 5.0
bar		 6.0
bar		 8.0
bar
65° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
65° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
65° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
65° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
65° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
65° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
65° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
65° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
65° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
65° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
65° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
65° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
65° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
65° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
65° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
65° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
80° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
80° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
80° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
80° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
80° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
80° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
80° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
80° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
80° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
80° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
80° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
80° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
80° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
80° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
80° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
80° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
90° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
90° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
90° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
90° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
90° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
90° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
90° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
90° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
90° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
90° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
90° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
90° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
90° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
90° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
90° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
90° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
7
psi		 10
psi		 20
psi		 28
psi		 40
psi		 60
psi 		80
psi		 100
psi		 110
psi
65° 02 0.08 0.10 0.14 0.17 0.20 0.24 0.28 0.32 0.33
65° 2.5 0.10 0.13 0.18 0.21 0.25 0.31 0.35 0.40 0.41
65° 03 0.13 0.15 0.21 0.25 0.30 0.37 0.42 0.47 0.50
65° 04 0.17 0.20 0.28 0.33 0.40 0.49 0.56 0.63 0.66
65° 05 0.21 0.25 0.35 0.42 0.50 0.61 0.71 0.79 0.83
65° 06 0.25 0.30 0.42 0.50 0.60 0.73 0.85 0.95 1.00
65° 07 0.29 0.35 0.50 0.59 0.70 0.86 0.99 1.11 1.16
65° 7.5 0.31 0.38 0.53 0.63 0.75 0.92 1.06 1.19 1.24
65° 08 0.33 0.40 0.57 0.67 0.80 0.98 1.13 1.27 1.33
65° 09 0.38 0.45 0.64 0.75 0.90 1.10 1.27 1.42 1.49
65° 10 0.42 0.50 0.71 0.84 1.00 1.22 1.41 1.58 1.66
65° 12.5 0.52 0.63 0.88 1.05 1.25 1.53 1.77 1.98 2.07
65° 15 0.63 0.75 1.06 1.26 1.50 1.84 2.12 2.37 2.49
65° 20 0.84 1.00 1.41 1.67 2.00 2.45 2.83 3.16 3.32
65° 25 1.05 1.25 1.77 2.09 2.50 3.06 3.54 3.95 4.15
65° 30 1.26 1.50 2.12 2.51 3.00 3.67 4.24 4.74 4.98
80° 02 0.08 0.10 0.14 0.17 0.20 0.24 0.28 0.32 0.33
80° 2.5 0.10 0.13 0.18 0.21 0.25 0.31 0.35 0.40 0.41
80° 03 0.13 0.15 0.21 0.25 0.30 0.37 0.42 0.47 0.50
80° 04 0.17 0.20 0.28 0.33 0.40 0.49 0.56 0.63 0.66
80° 05 0.21 0.25 0.35 0.42 0.50 0.61 0.71 0.79 0.83
80° 06 0.25 0.30 0.42 0.50 0.60 0.73 0.85 0.95 1.00
80° 07 0.29 0.35 0.50 0.59 0.70 0.86 0.99 1.11 1.16
80° 7.5 0.31 0.38 0.53 0.63 0.75 0.92 1.06 1.19 1.24
80° 08 0.33 0.40 0.57 0.67 0.80 0.98 1.13 1.27 1.33
80° 09 0.38 0.45 0.64 0.75 0.90 1.10 1.27 1.42 1.49
80° 10 0.42 0.50 0.71 0.84 1.00 1.22 1.41 1.58 1.66
80° 12.5 0.52 0.63 0.88 1.05 1.25 1.53 1.77 1.98 2.07
80° 15 0.63 0.75 1.06 1.26 1.50 1.84 2.12 2.37 2.49
80° 20 0.84 1.00 1.41 1.67 2.00 2.45 2.83 3.16 3.32
80° 25 1.05 1.25 1.77 2.09 2.50 3.06 3.54 3.95 4.15
80° 30 1.26 1.50 2.12 2.51 3.00 3.67 4.24 4.74 4.98
90° 02 0.08 0.10 0.14 0.17 0.20 0.24 0.28 0.32 0.33
90° 2.5 0.10 0.13 0.18 0.21 0.25 0.31 0.35 0.40 0.41
90° 03 0.13 0.15 0.21 0.25 0.30 0.37 0.42 0.47 0.50
90° 04 0.17 0.20 0.28 0.33 0.40 0.49 0.56 0.63 0.66
90° 05 0.21 0.25 0.35 0.42 0.50 0.61 0.71 0.79 0.83
90° 06 0.25 0.30 0.42 0.50 0.60 0.73 0.85 0.95 1.00
90° 07 0.29 0.35 0.50 0.59 0.70 0.86 0.99 1.11 1.16
90° 7.5 0.31 0.38 0.53 0.63 0.75 0.92 1.06 1.19 1.24
90° 08 0.33 0.40 0.57 0.67 0.80 0.98 1.13 1.27 1.33
90° 09 0.38 0.45 0.64 0.75 0.90 1.10 1.27 1.42 1.49
90° 10 0.42 0.50 0.71 0.84 1.00 1.22 1.41 1.58 1.66
90° 12.5 0.52 0.63 0.88 1.05 1.25 1.53 1.77 1.98 2.07
90° 15 0.63 0.75 1.06 1.26 1.50 1.84 2.12 2.37 2.49
90° 20 0.84 1.00 1.41 1.67 2.00 2.45 2.83 3.16 3.32
90° 25 1.05 1.25 1.77 2.09 2.50 3.06 3.54 3.95 4.15
90° 30 1.26 1.50 2.12 2.51 3.00 3.67 4.24 4.74 4.98
  • * Standard Pressure: Column in red.
  • * This product for spray angle 0°, 15°, 25°, 40°, 50°, 100° and 110° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.



Material



LORRIC nozzle












 * Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.



Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials.
High Quality
All material is purchased from world top providers.





Product Size
Thread
(BSPT) 		Size (mm) Weight (g)
  A     B     C
1/8"Male
 32 27.5 39 17.2
1/4"Male
 32 27.5 42.6 17.6
3/8"Male
 32 27.5 42.6 19.3





















Size of QFSA body

 Thread(mm)  Weight(g)
  A     B     C     D
26.5 10.1 12.0 31.4 8.6

LORRIC nozzle



















Size of QFWG body

 Thread(mm)  Weight(g)
  A     B     C     D
25.6
 16.5 20.4 38.3 12.0

LORRIC nozzle







* Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.



Installation
For nozzle with QF Body (thread)
Step 1

Drill correspon-ding female threads on your pipe

Aim the thread of nozzle body at the female thread.

Step 2

Tightening the body clockwise at the pipe hole.

Step 3

Aim QFH nozzle tip to nozzle body.

LORRIC nozzle
LORRIC nozzle
LORRIC nozzle
Step 4

Put QFH nozzle tip into nozzle body.

Step 5

Fasten the tip and the body clockwise to finish the nozzle installation

Finished If the neighboring nozzles stagger with each other, you should place the nozzles at least 5 degrees of declination. Otherwise, the performance might be affected.

Step 6

Installation completed.

LORRIC nozzle
LORRIC nozzle
LORRIC nozzle
For nozzle with QFSA Body (welding)
Step 1

Drill correspon-ding hole on your pipe

Aim the bottom of QFSA nozzle body at the hole

Step 2

Use welding torch to fix QFSA nozzle body in the pipe hole

Step 3

Aim QFH nozzle tip to nozzle body

LORRIC nozzle
LORRIC nozzle
LORRIC nozzle
Step 4

Put QFH nozzle tip into nozzle body.

Step 5

Fasten the tip and the body clockwise to finish the nozzle installation

Finished If the neighboring nozzles stagger with each other, you should place the nozzles at least 5 degrees of declination. Otherwise, the performance might be affected.

Step 6

Installation completed.

  * Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.






+886-978-005-235
[email protected]
