KOSCN Scientific's MV301 Manual Diaphragm Valve

The KOSCN Control Valves MV301 Manual Diaphragm Valve is our latest innovation, incorporating a multifunctional adjustment module that integrates ergonomic principles, featuring limit and locking functions. Its new diaphragm coupling and void-free suspension structure, along with a smooth flow path, ensure throughput, delivering superior performance.

Apply for
• Landfill leachate, photovoltaics, printed circuit boards, electroplating
• Glass panels, electronic semiconductors
• Power generation, steel metallurgy, petrochemicals
• Papermaking, chlor-alkali, biopharmaceuticals
• Food and beverages

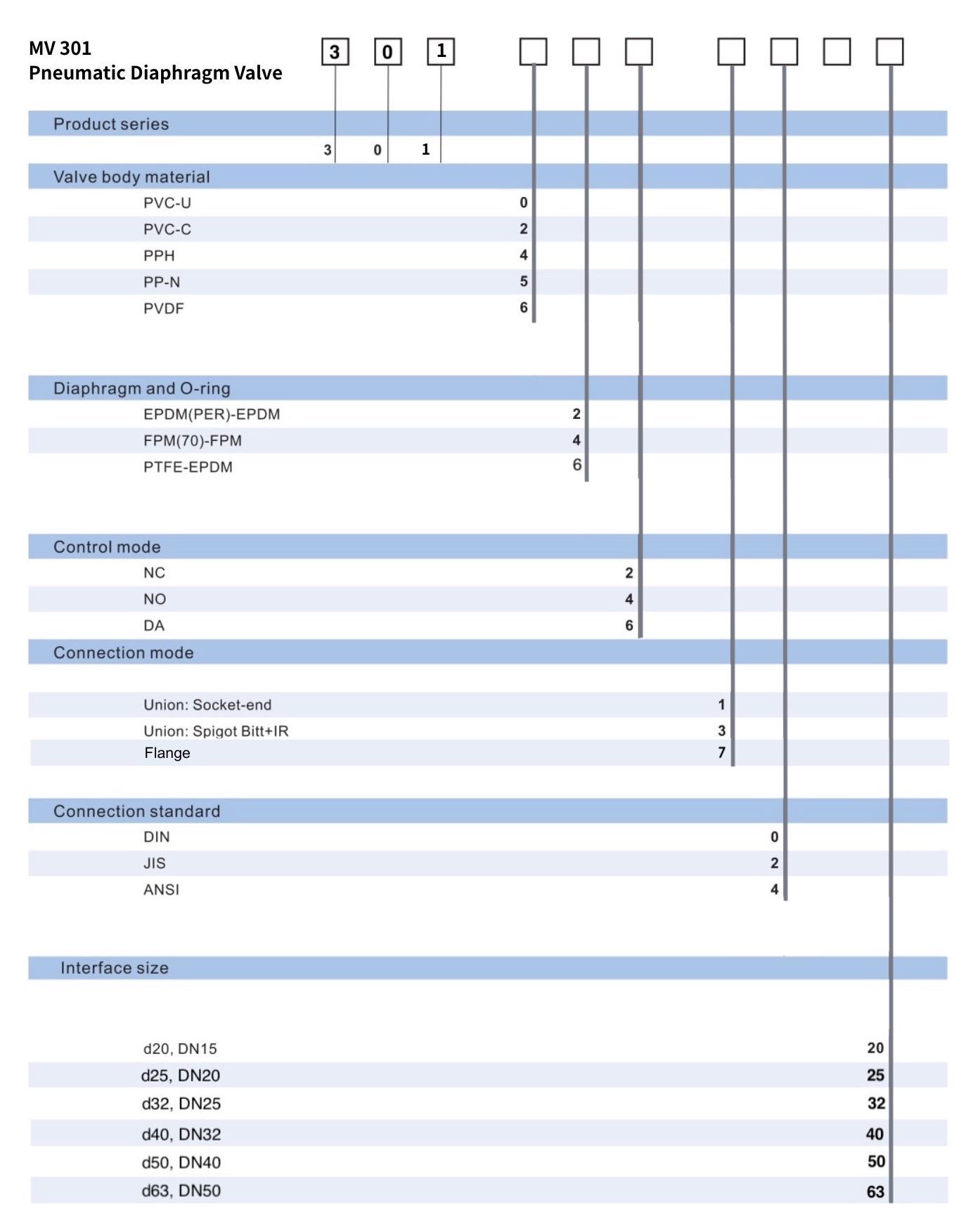

MV301 Catalog Manual


Easy and Convenient Installation and Maintenance

Easy and Convenient Installation and Maintenance

  • Utilizes numerous clasps and threaded connections for easy assembly and disassembly.
  • All-plastic exterior design, aesthetically pleasing and corrosion-resistant.
  • Precise screw fit with minimal gap, smooth operation without the need for maintenance.
  • All connection types and installation lengths are consistent with international market valves.
  • Integrated visual position feedback for easy monitoring.
  • Adjustment module designed for ergonomic operation.
  • Handwheel features locking grooves every 22.5° for precise control of opening and closing.

High Safety Performance

  • Diaphragm stop limit design for torque overload protection.
  • Suspended, air-gap diaphragm coupling mechanism fully protects the diaphragm.
  • Handwheel adjustment module includes an integrated lock switch for lockout capability.
High Safety Performance
High Flexibility

High Flexibility

  • Connection types include order, socket, butt weld, and flange.
  • Interface standards include metric, JIS (Japanese Industrial Standard), and ANSI (American National Standards Institute).
  • Diaphragm materials: EPDM, FPM, EPDM-PTFE.
  • Valve body materials: PVC-U, PVC-C, PP-H, PP-Natural, PVDF.
  • Some products offer an oil-restriction option.

Optimal Flow Performance

  • Good linear fluid characteristics enable regulation function.
  • Smooth transitional duckbill channel provides double the flow capacity of traditional diaphragm valves.
  • Suitable for media containing small particles and solids.
Optimal Flow Performance

Disassembled Components

NO Component Names
1 Indicator Rod
2 Handwheel
3 Lead Screw Nut
4 Lead Screw
5 Coupling
6 Diaphragm Pressure Block
7 Valve Seat Cover
8 Diaphragm
9 Valve Seat
10 Port
11  Base

PVC-U Manual Diaphragm Valve
- Union Socket-end

D DN GD D D1 D2 H H1 L L2 L3 M Z W W1 Lift=Hx
20 15 1 65 37 43 73 14 128 96 25 6 90 57 57 7
25 20 1-1/4 65  37 51 81 18 152 114 25 6 108 70 70 10
32 25 1-1/2 87  54 58 115 26 166 122 40 8 116 82 94 15
40 32 2 87 54 72 115 26 192 140 40 8 134 82 94 15
50 40 2-1/4 135 69 83 166 39 222 160 45 8 154 109 122 22
63 50 2-3/4 135 69 100 166 39 266 190 45 8 184 109 122 22


PVC-U Manual Diaphragm Valve
- Flanged Connection

D DN D D1 D2 D3-DIN D3-JIS D3-ANSI D4 H H1 L L3 M W W1 Lift=Hx
20 15 65 37 95 65 70 60,45 14'16 81 18 145 25 6 70 70 10
25 20 65 37 105 75 75 69,85 14'16 81 18 150 25 6 70 70 10
32 25 87 54 115 85 90 79,25 14'19 115 26 170 40 8 82 94 15
40 32 87 54 140 100 100 88,90 16'19 115 26 180 40 8 82 94 15
50 40 135 69 150 110 105 98,55 16'19 166 39 210 45 8 109 122 23
63 50 135 69 165 125 120 120,65 18'20 166 39 230 45 8 109 122 23
75  65 135 69
185 145 139 139,70 18'20 173 46 245 45 8 109 122 24

PVC-C Manual Diaphragm Valve
- Union Socket-end

D DN GD D D1 D2 H H1 L L2 L3 M Z W W1 Lift=Hx
20 15 1 65 37 43 73 14 128 96 25 6 90 57 57 7
25 20 1-1/4 65 37 51 81 18 152 114 25 6 108 70 70 10
32 25 1-1/2 87 54 58 115 26 166 122 40 8 116 82 94 15
40 32 2 87 54 72 115 26 192 140 40 8 134 82 94 15
50 40 2-1/4 135 69 83 166 39 222 160 45 8 154 109 122 22
63 50 2-3/4 135 69 100 166 39 266 190 45 8 184 109 122 22

PVC-C Manual Diaphragm Valve
- Flanged Connection

D DN D D1 D2 D3-DIN D3-JIS D3-ANSI D4 H H1 L L3 M W W1 Lift=Hx
20 15 65 37 95 65 70 60,45 14'16 81 18 145 25 6 70 70 10
25 20 65 37 105 75 75 69,85 14'16 81 18 150 25 6 70 70 10
32 25 87 54 115 85 90 79,25 14'19 115 26 170 40 8 82 94 15
40 32 87 54 140 100 100 88,90 16'19 115 26 180 40 8 82 94 15
50 40 135 69 150 110 105 98,55 16'19 166 39 210 45 8 109 122 23
63 50 135 69 165 125 120 120,65 18'20 166 39 230 45 8 109 122 23
75  65 135 69
185 145 139 139,70 18'20 173 46 245 45 8 109 122 24

PP-H Manual Diaphragm Valve
- Union Socket-end

D DN GD D D1 D2 H H1 L L2 L3 M Z W W1 Lift=Hx
20 15 1 65 37 43 73 14 128 96 25 6 90 57 57 7
25 20 1-1/4 65  37 51 81 18 152 114 25 6 108 70 70 10
32 25 1-1/2 87  54 58 115 26 166 122 40 8 116 82 94 15
40 32 2 87 54 72 115 26 192 140 40 8 134 82 94 15
50 40 2-1/4 135 69 83 166 39 222 160 45 8 154 109 122 22
63 50 2-3/4 135 69 100 166 39 266 190 45 8 184 109 122 22


PP-H Manual Diaphragm Valve
- Flanged Connection

D DN D D1 D2 D3-DIN D3-JIS D3-ANSI D4 H H1 L L3 M W W1 Lift=Hx
20 15 65 37 95 65 70 60,45 14'16 81 18 145 25 6 70 70 10
25 20 65 37 105 75 75 69,85 14'16 81 18 150 25 6 70 70 10
32 25 87 54 115 85 90 79,25 14'19 115 26 170 40 8 82 94 15
40 32 87 54 140 100 100 88,90 16'19 115 26 180 40 8 82 94 15
50 40 135 69 150 110 105 98,55 16'19 166 39 210 45 8 109 122 23
63 50 135 69 165 125 120 120,65 18'20 166 39 230 45 8 109 122 23
75  65 135 69
185 145 139 139,70 18'20 173 46 245 45 8 109 122 24

PP-Natural Manual Diaphragm Valve
- Union Socket-end

D DN GD D D1 D2 H H1 L L2 L3 M Z W W1 Lift=Hx
20 15 1 65 37 43 73 14 128 96 25 6 90 57 57 7
25 20 1-1/4 65  37 51 81 18 152 114 25 6 108 70 70 10
32 25 1-1/2 87  54 58 115 26 166 122 40 8 116 82 94 15
40 32 2 87 54 72 115 26 192 140 40 8 134 82 94 15
50 40 2-1/4 135 69 83 166 39 222 160 45 8 154 109 122 22
63 50 2-3/4 135 69 100 166 39 266 190 45 8 184 109 122 22


PVDF Manual Diaphragm Valve
- Union Socket-end

D DN GD D D1 D2 H H1 L L2 L3 M Z W W1 Lift=Hx
20 15 1 65 37 43 73 14 128 96 25 6 90 57 57 7
25 20 1-1/4 65  37 51 81 18 152 114 25 6 108 70 70 10
32 25 1-1/2 87  54 58 115 26 166 122 40 8 116 82 94 15
40 32 2 87 54 72 115 26 192 140 40 8 134 82 94 15
50 40 2-1/4 135 69 83 166 39 222 160 45 8 154 109 122 22
63 50 2-3/4 135 69 100 166 39 266 190 45 8 184 109 122 22


PVDF Manual Diaphragm Valve
- Flanged Connection

D DN D D1 D2 D3-DIN D3-JIS D3-ANSI D4 H H1 L L3 M W W1 Lift=Hx
20 15 65 37 95 65 70 60,45 14'16 81 18 145 25 6 70 70 10
25 20 65 37 105 75 75 69,85 14'16 81 18 150 25 6 70 70 10
32 25 87 54 115 85 90 79,25 14'19 115 26 170 40 8 82 94 15
40 32 87 54 140 100 100 88,90 16'19 115 26 180 40 8 82 94 15
50 40 135 69 150 110 105 98,55 16'19 166 39 210 45 8 109 122 23
63 50 135 69 165 125 120 120,65 18'20 166 39 230 45 8 109 122 23
75  65 135 69
185 145 139 139,70 18'20 173 46 245 45 8 109 122 24
Pressure-Temperature Curve

Pressure-Temperature Curve

Data is based on pure water media and a safety lifespan of 25 years; application with other media requires reduced temperature and pressure.

Flow Capacity

Data based on pure water media at 20°C and a pressure differential of 1 bar;
Cv = Kv X 0.07
Fv = Kv X 0.0585
Kv (liters/min)
Cv (gallons/min) US
Fv (gallons/min) GB

Flow Capacity

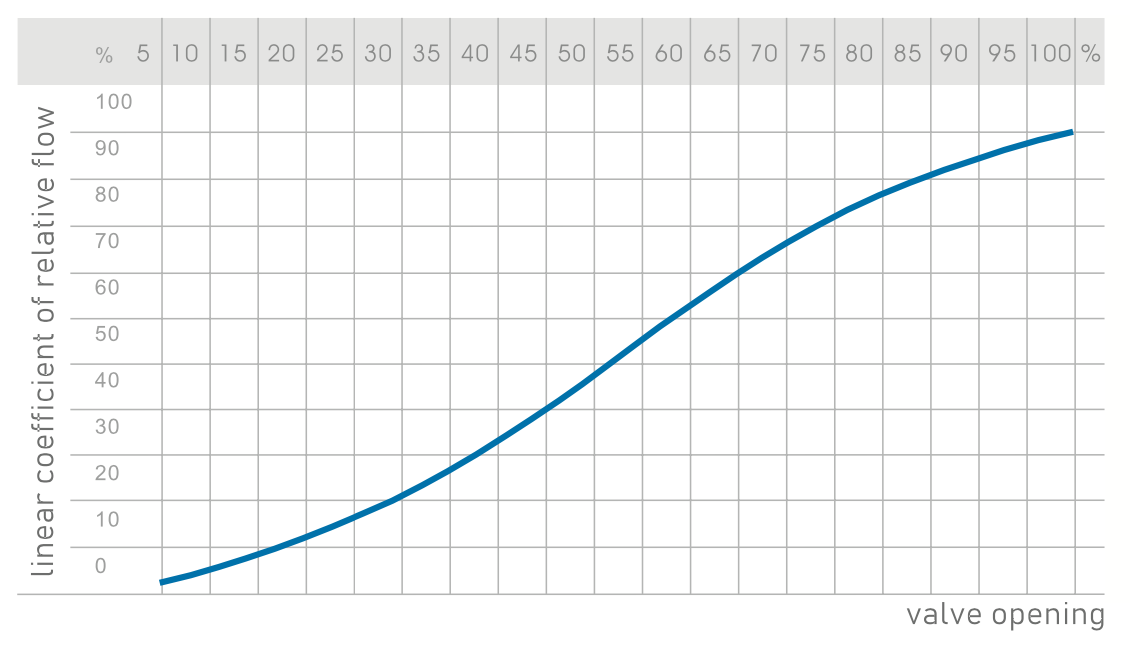

Relative Flow Linearity Graph

Relative Flow Linearity Graph

Relative flow linearity coefficient refers to the change in flow rate as a function of the valve opening stroke.
