KP Plastic Clog-resistant Nozzle for Cleaning

Easy installed, Clog-resistant, Full cone spray

The PVDF plastic single-fluid solid cone nozzle can be assembled using a hexagonal wrench. It features characteristics such as low susceptibility to blockages and uniform spray particles, commonly used in applications such as cleaning, cooling, and the dispersion of chemical treatment agents.

Brand: LORRIC
Nozzle Type: Solid Cone
Fluid: Single-Fluid
Materials: Nozzle - PVDF / Core - PVDF, PP, UPVC
Thread Standard: BSPT
Thread Sizes: 1/8", 1/4", 3/8"
Apply for
Cleaning│Purging│Cooling


Catalogue

Inquire now

About full cone spray

Spray pattern

Spray pattern

A single-fluid nozzle, with a spray pattern in the shape of a cone, is commonly referred to as a solid cone nozzle in the industry. The spray pattern (the shape formed when the nozzle sprays down onto the target) is circular when viewed from above.

Flow distribution

Flow distribution

The flow distribution of a solid cone nozzle exhibits a mountain-shaped pattern with stronger flow in the middle and gradually weakening flow towards both ends.

Single-piece design

Single-piece design

This single-unit product can be directly attached to the pipeline. The nozzle, due to usage and environmental factors, requires regular maintenance or replacement. We also offer multi-part quick-disconnect nozzles for time-saving maintenance.

Material Options

  • Nozzle: PVDF
  • Core: PVDF、PP、UPVC
Material Options
X-shaped core design

X-shaped core design

Unibody design allows for secure and easy installation, and X-shaped core provides minimal clogging.



About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • Choose the nozzle diameter (thread size) and specifications that meet your requirements.
    • Choose the spray flow rate for each nozzle, please refer to the chart below.
    • Select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

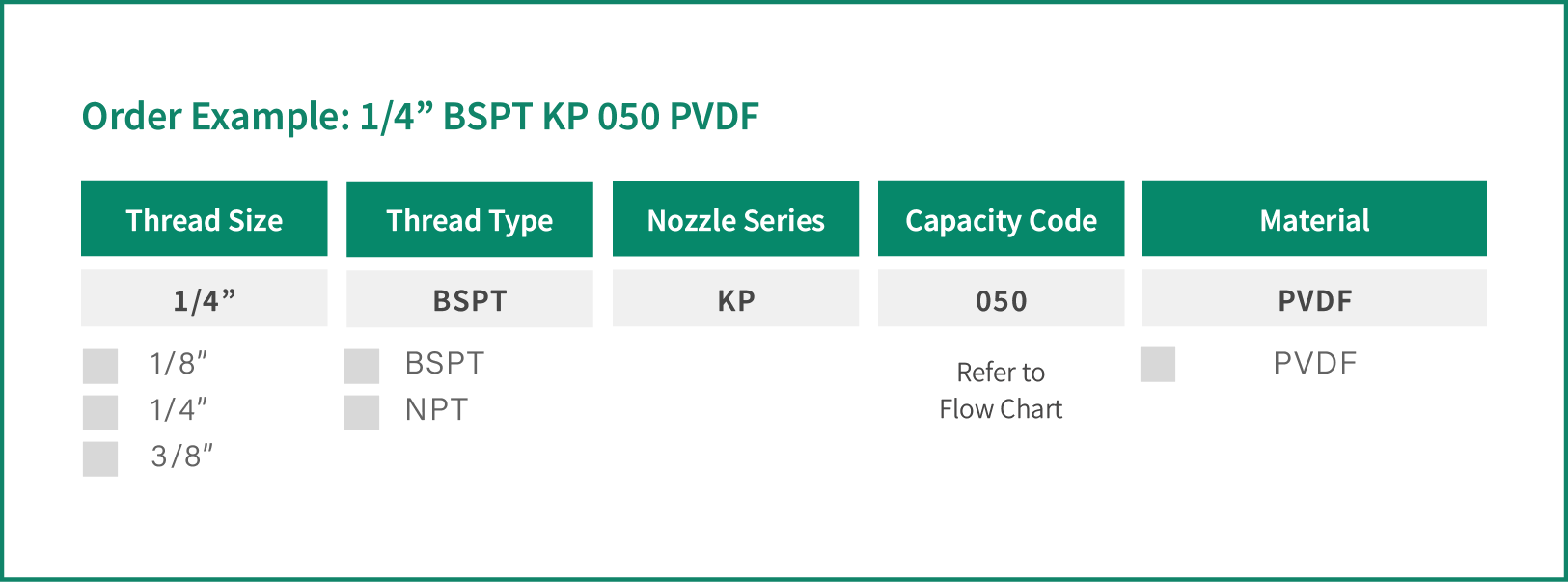

  • Example specification: 1/4” BSPT KP 050 PVDF. Each number corresponds to the following options and meanings.

Select
Unit
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.7
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
50° 010 V

0.59 0.71 0.87 1.00 1.41 1.73 2.00 2.24 2.74
  015


0.89 1.06 1.30 1.50 2.12 2.60 3.00 3.35 4.11
  020
V
1.18 1.41 1.73 2.00 2.83 3.46 4.00 4.47 5.48
  025
V
1.48 1.77 2.17 2.50 3.54 4.33 5.00 5.59 6.85
  030
V
 V
 1.77 2.12 2.60 3.00 4.24 5.20 6.00 6.71 8.22
  035
V
2.07 2.47 3.03 3.50 4.95 6.06 7.00 7.83 9.59
≀
 040
V
2.37 2.83 3.46 4.00 5.68 6.93 8.00 8.94 10.95
  050
V
 V 2.96 3.54 4.33 5.00 7.07 8.66 10.00 11.18 13.69
  060
V
 V 3.55 4.24 5.20 6.00 8.49 10.39 12.00 13.42 16.43
  070
V
 V 4.14 4.95 6.06 7.00 9.90 12.12 14.00 15.65 19.17
  080
V
 V 4.73 5.66 6.93 8.00 11.31 13.86 16.00 17.89 21.91

100

V 5.92 7.07 8.66 10.00 14.14 17.32 20.00 22.36 27.39

120

V
 7.10 8.49 10.39 12.00 16.97 20.78 24.00 26.83 32.86
95° 140

V
 8.28 9.90 12.12 14.00 19.80 24.25 28.00 31.30 38.34
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.7
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
50° 010 V
 V
0.60 0.71 0.87 1.01 1.43 1.75 2.02 2.26 2.77

015 V
 V
0.90 1.07 1.31 1.51 2.14 2.62 3.03 3.39 4.15

020 V
 V
1.19 1.43 1.75 2.02 2.86 3.50 4.04 4.52 5.53

025 V
 V
1.49 1.79 2.19 2.52 3.57 4.37 5.05 5.65 6.91

030 V
 V
1.77 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30

035 V
 V
2.09 2.50 3.06 3.53 5.00 6.12 7.07 7.90 9.68
≀
 040 V
 V
2.39 2.86 3.50 4.04 5.71 7.00 8.08 9.03 11.06

050
V
 V 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.93

060
V
 V 3.58 4.28 5.25 6.06 8.57 10.49 12.12 13.55 16.59

070
V
 V 4.18 5.00 6.12 7.07 10.00 12.24 14.14 15.81 19.36

080
V
 V 4.78 5.71 7.00 8.08 11.42 13.99 16.16 18.06 22.12

100

V 5.97 7.14 8.75 10.10 14.28 17.49 20.20 22.58 27.65

120

V
 7.17 8.57 10.49 12.12 16.14 20.99 24.24 26.10 33.19
95° 140

V
 8.36 10.00 12.24 14.14 19.99 24.49 28.27 31.61 38.72
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.7
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
50° 010 V
 V
0.60 0.71 0.87 1.01 1.43 1.75 2.02 2.26 2.77

015 V
 V
0.90 1.07 1.31 1.51 2.14 2.62 3.03 3.39 4.15

020 V
 V
1.19 1.43 1.75 2.02 2.86 3.50 4.04 4.52 5.53

025 V
 V
1.49 1.79 2.19 2.52 3.57 4.37 5.05 5.65 6.91

030 V
 V
1.79 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30

035 V
 V
2.09 2.50 3.06 3.53 5.00 6.12 7.07 7.90 9.68
≀
 040 V
 V
2.39 2.86 3.50 4.04 5.71 7.00 8.08 9.03 11.06

050
V
 V
 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.83

060
V
 V 3.58 4.28 5.25 6.06 8.57 10.49 12.12 13.55 16.59

070
V
 V 4.18 5.00 6.12 7.07 10.00 12.24 14.14 15.81 19.36

080
V
 V 4.78 5.71 7.00 8.08 11.42 13.99 16.16 18.06 22.12

100

V 5.97 7.14 8.75 10.10 14.28 17.49 20.20 22.58 27.65

120

V
 7.17 8.57 10.49 12.12 17.14 20.99 24.24 27.10 33.19
95° 140

V
 8.36 10.00 12.24 14.14 19.99 24.49 28.27 31.61 38.72
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.7
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
50° 010 V
 V
0.16 0.19 0.22 0.26 0.38 0.47 0.54 0.59 0.70

015 V
 V
0.23 0.29 0.33 0.39 0.58 0.70 0.81 0.88 1.05

020 V
 V
0.31 0.38 0.44 0.52 0.77 0.94 1.09 1.17 1.40

025 V
 V
0.39 0.48 0.55 0.66 0.96 1.17 1.36 1.47 1.75

030 V
 V
0.47 0.58 0.66 0.79 1.15 1.41 1.63 1.76 2.10

035 V
 V
0.55 0.67 0.78 0.92 1.34 1.64 1.90 2.05 2.45
≀
 040 V
 V
0.63 0.77 0.89 1.05 1.53 1.88 2.17 2.34 2.80

050
V
 V
 0.78 0.96 1.11 1.31 1.92 2.35 2.71 2.93 3.50

060
V
 V
 0.94 1.15 1.33 1.57 2.30 2.82 3.26 3.52 4.20

070
V
 V
 1.10 1.34 1.55 1.83 2.69 3.29 3.80 4.10 4.90

080
V
 V 1.25 1.53 1.77 2.10 3.07 3.76 4.34 4.69 5.60

100

V 1.57 1.92 2.22 2.62 3.84 4.70 5.43 5.86 7.00

120

V
 1.88 2.30 2.66 3.15 4.60 5.64 6.51 7.03 8.41
95° 140

V
 2.19 2.69 3.10 3.67 5.37 6.58 7.60 8.20 9.81
  • * Standard Pressure: Column in red.
  • * This product for spray angle 90° and 120° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.


Applications

PCBs

PCBs

Flow meters in PCB electroplating, developing, and etching processes monitor precise chemical and cleaning fluid flow; nozzles control chemical coating and rinsing

Semiconductor

Semiconductor

Flow meters monitor chemical liquids and pure water treatment fluids supply; nozzles control the spraying of chemical liquids to ensure process purity and stability.

Others

  • Cleaning: Gas, exhaust gas, dust, cleaning device, tank cleaning, etc.
  • Cooling: Gas, tank, machinery, metal, roof, etc.
  • Dispersion: humidif ying, chemicals, firefighting, dust suppression, aeration, defoaming, sewage treatment.　　

Size

Thread(BSPT) Size(mm) Weight(g)
A B C
1/8"Male 11.8 10.3 19 1.0
1/4"Male 15 10.5 21.4 5.0
3/8"Male 16.7 13 24.6 5.5

Thread installation

Easy installing with 2 simple steps!

Step 1
Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2
Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3
Step 3

Complete the installation.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.



Working Process and matters need attention of Nozzle Customization



Working Process and matters need attention of Nozzle Customization
