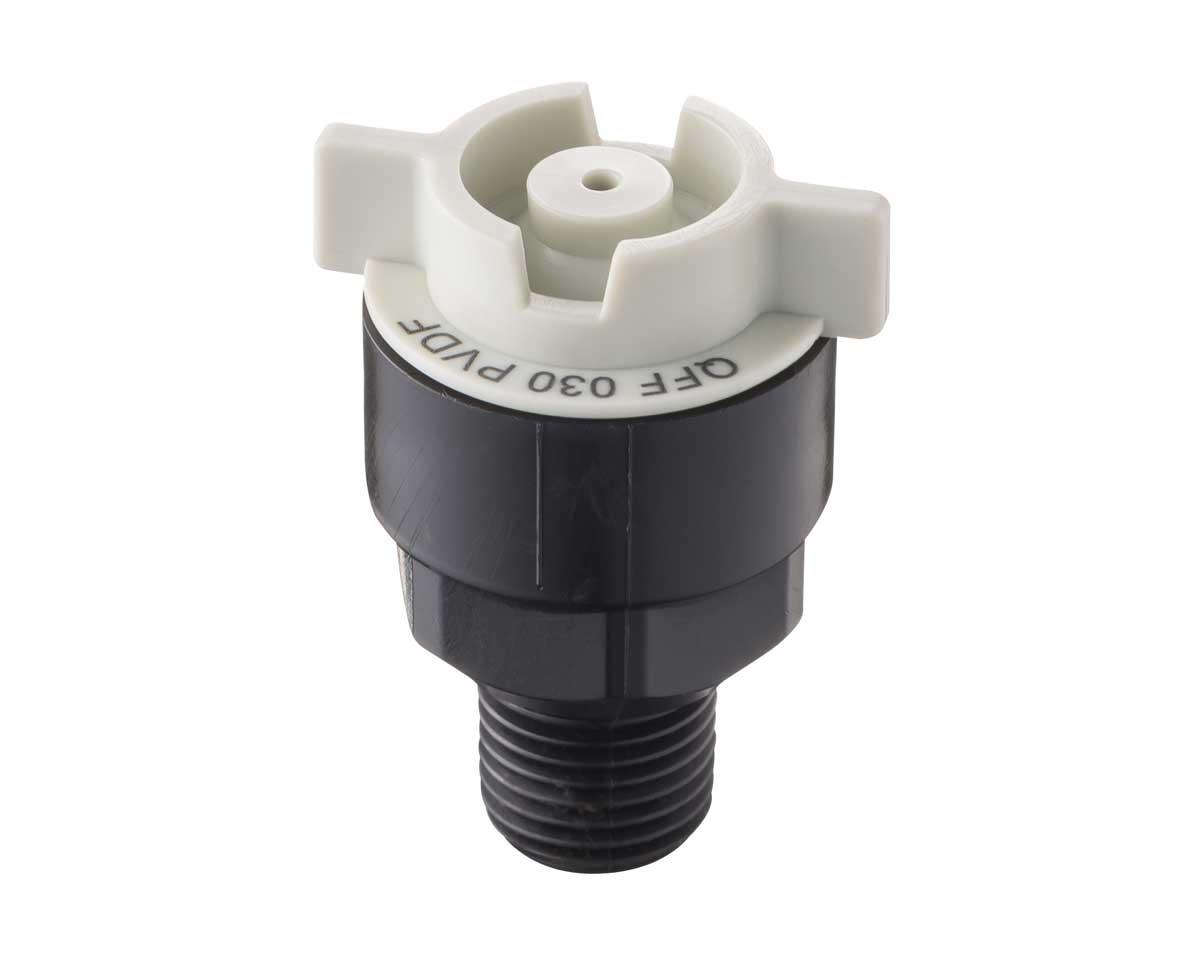

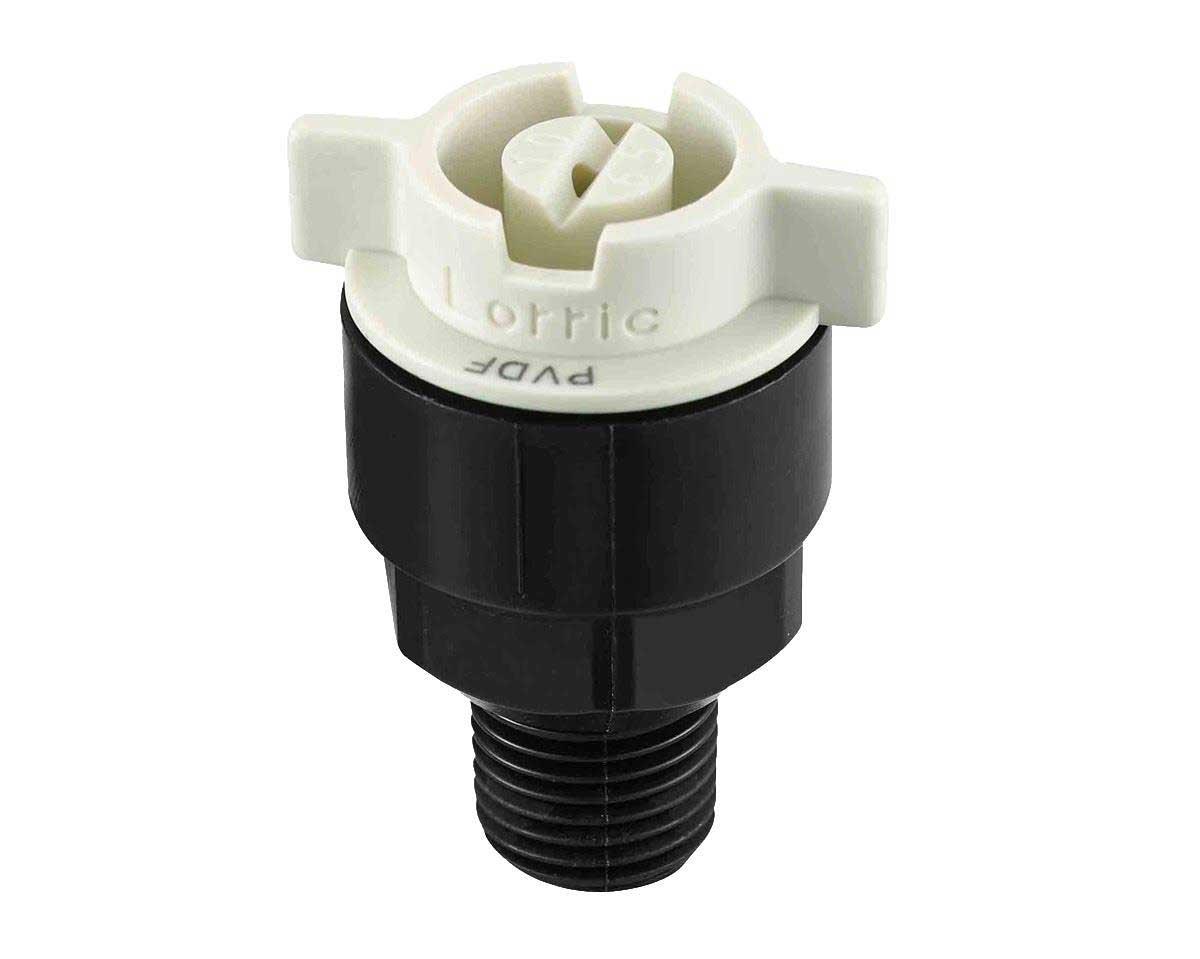

QFF Quick-Release Anti-Clogging Solid Cone Nozzle - QF Series

LORRIC QF Series X-Shaped Core cone spray nozzle features a multi-piece design for quick, tool-free disassembly. It offers uniform flow distribution and spray, making it an ideal choice for low-flow applications. Commonly used in semiconductor and PCB manufacturing, acid washing, and chemical spraying.

Brand：	LORRIC
Nozzle Type：	Solid Cone
Fluid Type：	Single-fluid
Materials：	Nozzle - PP, PVDF
	Center Blade - PP
Thread Standards：	BSPT

File download

X-Shaped Axial Full Cone Nozzle

Liquid passes through multi-porous or X-shaped baffles, creating rotating streams. As it exits, centrifugal force forms a circular spray pattern. The solid cone nozzle works well at low pressure, providing wide coverage and uniform droplets, ideal for semiconductor processes, chemical distribution, and coating.

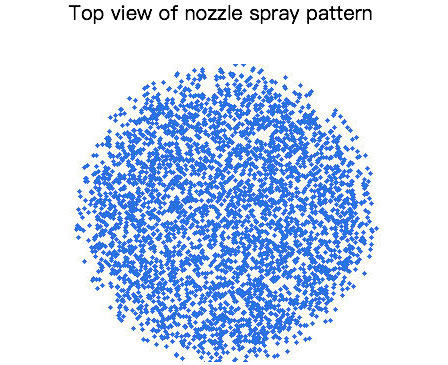

Full Cone Spray Nozzle Spray Pattern

Single-fluid nozzles produce a conical spray shape, known as solid cone nozzles, resulting in a circular pattern.

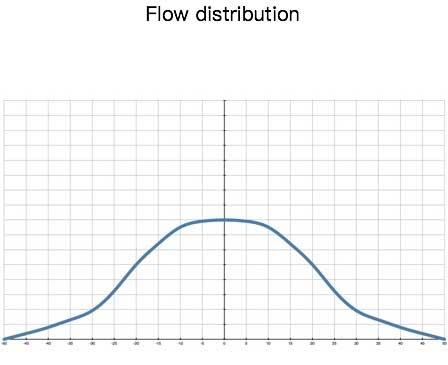

Mountain-Shaped Flow Distribution

The Full Cone Spray Nozzle has maximum spray volume in the center, decreasing towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform spraying, install nozzles closer together to overlap coverage areas and improve uniformity.distribution.

Multiple Flow Rates Available

The fan spray nozzle offers a wide range of flow rates. For example, at a standard design pressure of 2 Kg/cm², the flow rates range from 1 Lpm to 5.5 Lpm. (For other flow rate requirements, please refer to the specification sheet or contact us directly.)

Offers 0° to 120° Spray Angles

The solid cone nozzle offers 0° to 120° spray angles. A 0° angle provides a straight jet with a single-point spray, delivering the highest impact among all nozzle types. The 120° angle offers the widest coverage, while the standard 60° angle provides balanced impact and coverage. For specific specs, contact us.

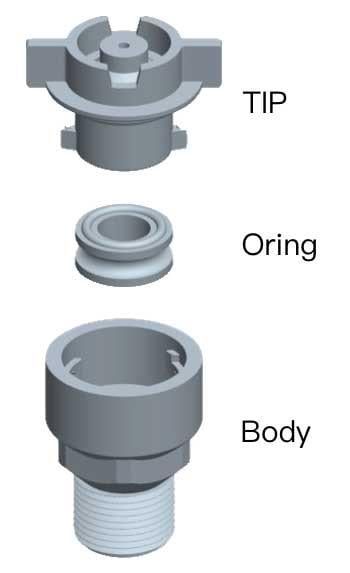

Quick-release design, snap-lock positioning, prevents water leakage

The two-piece quick-release design features three snap-lock points between the nozzle and the base, allowing for tool-free assembly and disassembly, precise positioning, and convenient maintenance.

Nozzle Tip material: PP, PVDF
Oring material: EPDM, Viton, FEPM
Center Blades: PP
Four bodies types available

4 Types of Bodies to Choose From, Meeting Different Needs!

The QF series offers 4 body types, with the QF thread body being the most popular due to its compatibility with various standard fittings and piping systems, alongside 3 welding bodies.

QFSA Welding Body Material: UPVC
QF Thread Body
Material: PVDF, PP, UPVC
Thread Sizes: 1/4", 1/8", 3/8"
QFWG Positioning Welding Body Material: UPVC
QFWG General Welding Body Material: UPVC

4 Types of Bodies to Choose From, Meeting Different Needs!

About engineering tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

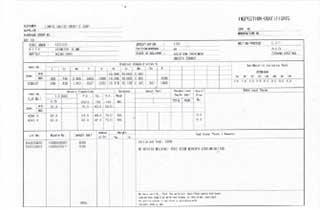

Material Guarantees

Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic

We promise never to use recycled materials.

High Quality

All material is purchased from world top providers.

Please place your order according below information.

Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
- Choose the nozzle diameter (thread size) and specifications that meet your requirements.
- Choose the spray flow rate for each nozzle, please refer to the chart below.
- Select the spray angle for each nozzle, please refer to the chart below.
- Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.
Example specification: 1/4” BSPT QFF 030-60 PVDF (E) - (tip+body)/ QFF 030-60 PVDF (E) - (tip). Each number corresponds to the following options and meanings.

Select
Unit

Spray Angle	Capacity Code	Capacity at Pressure
Spray Angle	Capacity Code	0.7 kgf/cm²	1.0 kgf/cm²	1.5 kgf/cm²	2.0 kgf/cm²	4.0 kgf/cm²	6.0 kgf/cm²	8.0 kgf/cm²	10.0 kgf/cm²	15.0 kgf/cm²
50°	010	0.59	0.71	0.87	1.00	1.41	1.73	2.00	2.24	2.74
	015	0.89	1.06	1.30	1.50	2.12	2.60	3.00	3.35	4.11
	020	1.18	1.41	1.73	2.00	2.83	3.46	4.00	4.47	5.48
	025	1.48	1.77	2.17	2.50	3.54	4.33	5.00	5.59	6.85
≀	030	1.77	2.12	2.60	3.00	4.24	5.20	6.00	6.71	8.22
	035	2.07	2.47	3.03	3.50	4.95	6.06	7.00	7.83	9.59
	040	2.37	2.83	3.46	4.00	5.66	6.93	8.00	8.94	10.95
	045	2.66	3.18	3.90	4.50	6.36	7.79	9.00	10.06	12.32
	050	2.96	3.54	4.33	5.00	7.07	8.66	10.00	11.18	13.69
90°	055	3.25	3.89	4.76	5.50	7.78	9.53	11.00	12.30	15.06

Spray Angle	Capacity Code	Capacity at Pressure
Spray Angle	Capacity Code	0.07 MPa	0.1 MPa	0.15 MPa	0.2 MPa	0.4 MPa	0.6 MPa	0.8 MPa	1.0 MPa	1.5 MPa
50°	010	0.60	0.71	0.87	1.01	1.43	1.75	2.02	2.26	2.77
	015	0.90	1.07	1.31	1.51	2.14	2.62	3.03	3.39	4.15
	020	1.19	1.43	1.75	2.02	2.86	3.50	4.04	4.52	5.53
	025	1.49	1.79	2.19	2.52	3.57	4.37	5.05	5.65	6.91
≀	030	1.79	2.14	2.62	3.03	4.28	5.25	6.06	6.77	8.30
	035	2.09	2.50	3.06	3.53	5.00	6.12	7.07	7.90	9.68
	040	2.39	2.86	3.50	4.04	5.71	7.00	8.08	9.03	11.06
	045	2.69	3.21	3.94	4.54	6.43	7.87	9.09	10.16	12.44
	050	2.99	3.57	4.37	5.05	7.14	8.75	10.10	11.29	13.83
90°	055	3.29	3.93	4.81	5.55	7.85	9.62	11.11	12.42	15.21

Spray Angle	Capacity Code	Capacity at Pressure
Spray Angle	Capacity Code	0.7 bar	1.0 bar	1.5 bar	2.0 bar	4.0 bar	6.0 bar	8.0 bar	10.0 bar	15.0 bar
50°	010	0.60	0.71	0.87	1.01	1.43	1.75	2.02	2.26	2.77
	015	0.90	1.07	1.31	1.51	2.14	2.62	3.03	3.39	4.15
	020	1.19	1.43	1.75	2.02	2.86	3.50	4.04	4.52	5.53
	025	1.49	1.79	2.19	2.52	3.57	4.37	5.05	5.65	6.91
≀	030	1.79	2.14	2.62	3.03	4.28	5.25	6.06	6.77	8.30
	035	2.09	2.50	3.06	3.53	5.00	6.12	7.07	7.90	9.68
	040	2.39	2.86	3.50	4.04	5.71	7.00	8.08	9.03	11.06
	045	2.69	3.21	3.94	4.54	6.43	7.87	9.09	10.16	12.44
	050	2.99	3.57	4.37	5.05	7.14	8.75	10.10	11.29	13.83
90°	055	3.29	3.93	4.81	5.55	7.85	9.62	11.11	12.42	15.21

Spray Angle	Capacity Code	Capacity at Pressure
Spray Angle	Capacity Code	10 psi	15 psi	20 psi	28 psi	60 psi	90 psi	120 psi	140 psi	200 psi
50°	010	0.16	0.19	0.22	0.26	0.38	0.47	0.54	0.59	0.70
	015	0.23	0.29	0.33	0.39	0.58	0.70	0.81	0.88	1.05
	020	0.31	0.38	0.44	0.52	0.77	0.94	1.09	1.17	1.40
	025	0.39	0.48	0.55	0.66	0.96	1.17	1.36	1.47	1.75
≀	030	0.47	0.58	0.66	0.79	1.15	1.41	1.63	1.76	2.10
	035	0.55	0.67	0.78	0.92	1.34	1.64	1.90	2.05	2.45
	040	0.63	0.77	0.89	1.05	1.53	1.88	2.17	2.34	2.80
	045	0.70	0.86	1.00	1.18	1.73	2.11	2.44	2.64	3.15
	050	0.78	0.96	1.11	1.31	1.92	2.35	2.71	2.93	3.50
90°	055	0.86	1.06	1.22	1.44	2.11	2.58	2.98	3.22	3.85

* Standard Pressure: Column in red.
* This product for spray angle 90° and 120° is able to be made to order.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
* Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

PCBs

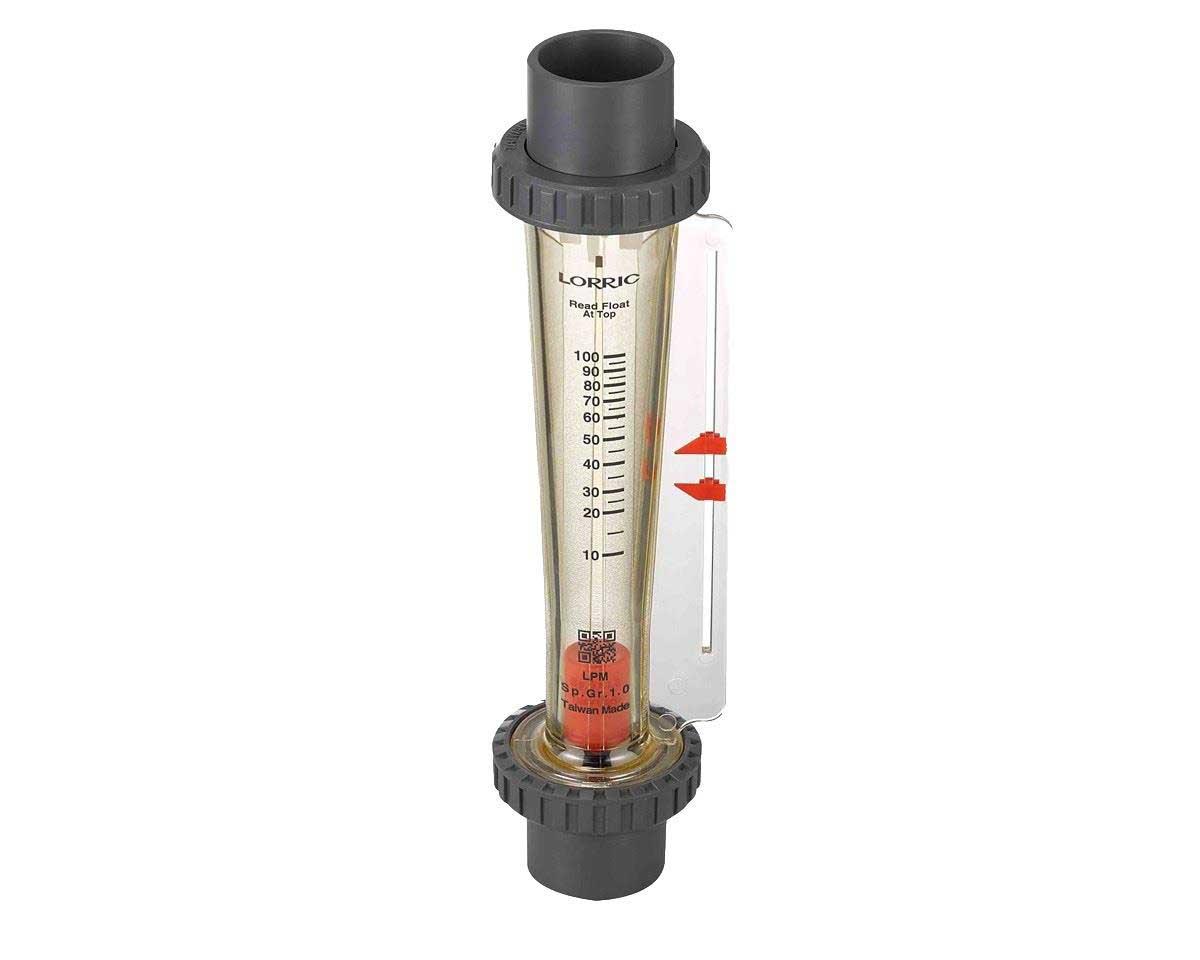

Flow meters in PCB electroplating, developing, and etching processes monitor precise chemical and cleaning fluid flow; nozzles control chemical coating and rinsing

Semiconductor

Flow meters monitor chemical liquids and pure water treatment fluids supply; nozzles control the spraying of chemical liquids to ensure process purity and stability.

Others

Cleaning: Gas, exhaust gas, dust, cleaning device, tank cleaning, etc.
Cooling: Gas, tank, machinery, metal, roof, etc.
Dispersion: Humidifying, chemicals, dust
suppression.

Size

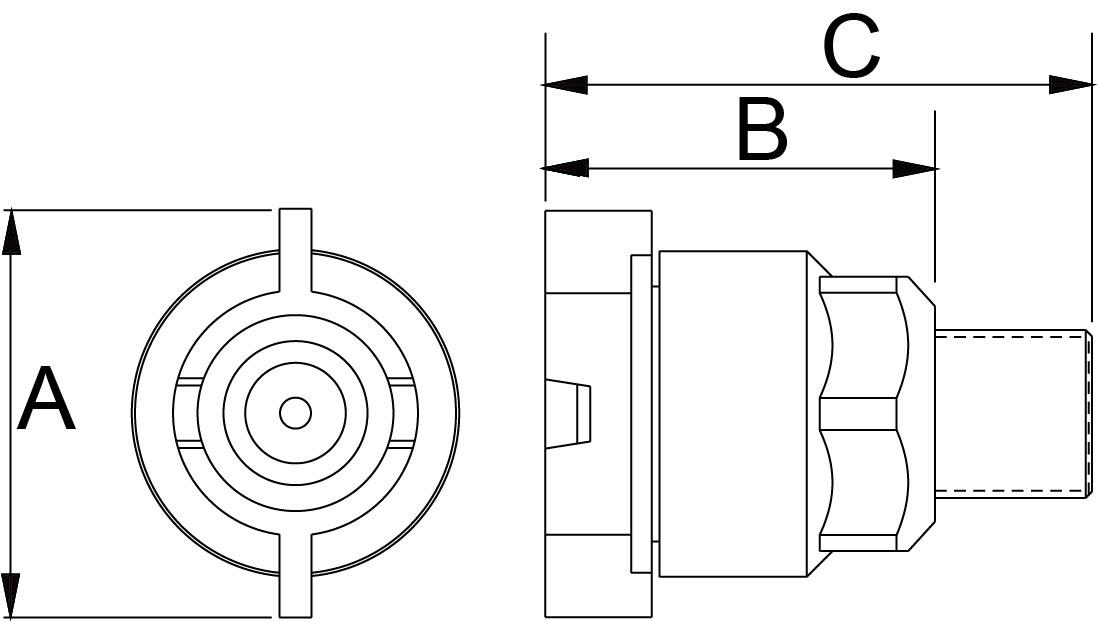

Thread(BSPT)	Size(mm)			Weight(g)
Thread(BSPT)	A	B	C	Weight(g)
1/8"外牙	31.6	27.5	39	17.5
1/4"外牙	31.6	27.5	42.6	17.9
3/8"外牙	31.6	27.5	42.6	19.6

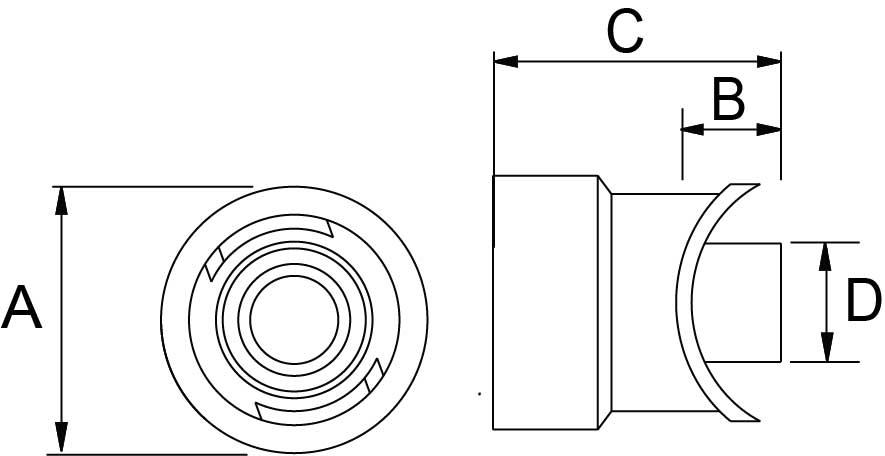

QFSA Body Size

Size(mm)				Weight(g)
A	B	C	D	Weight(g)
26.5	10.1	12.0	31.4	8.6

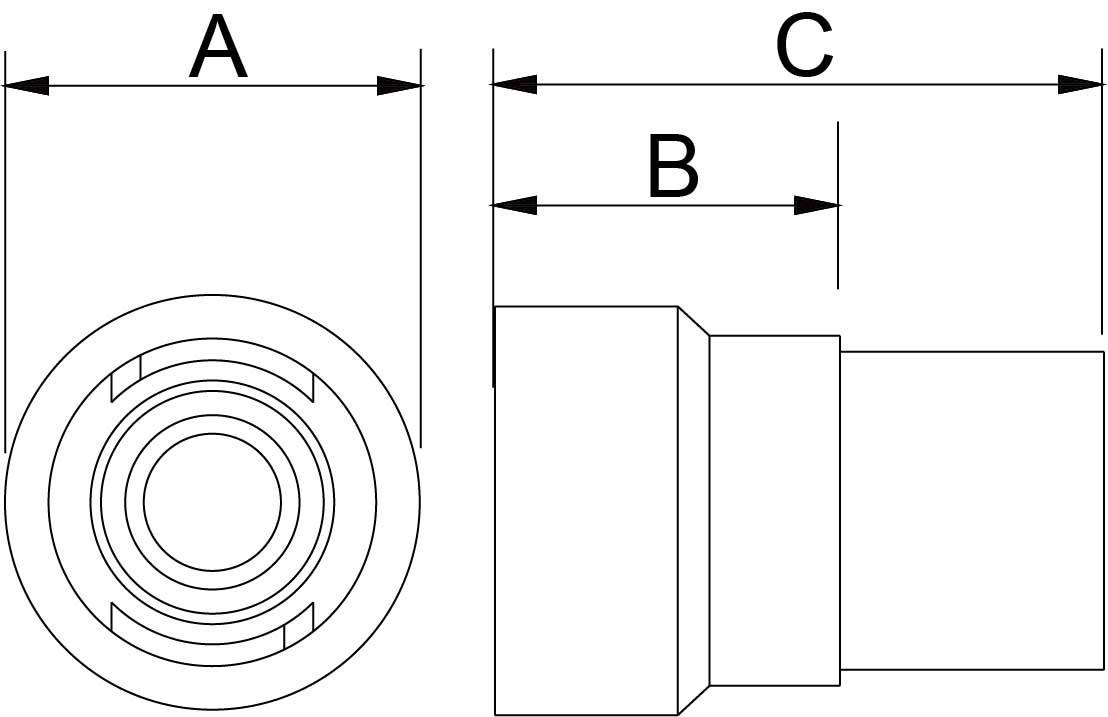

QFWG Body Size

Size(mm)				Weight(g)
A	B	C	D	Weight(g)
25.6	16.5	20.4	38.3	12.0

Installation

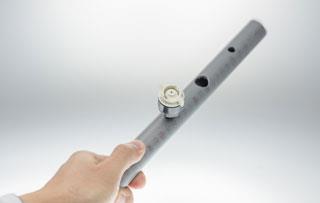

For nozzle with QF Body (thread)

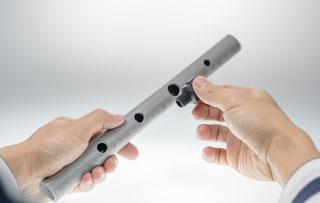

Step 1

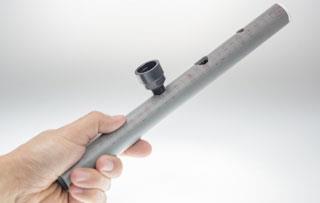

Drill correspon-ding female threads on your pipe

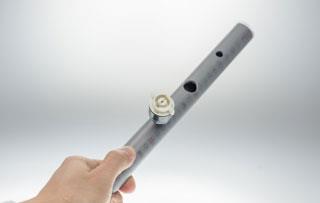

Step 2

Aim the thread of nozzle body at the female thread. Tightening the body clockwise at the pipe hole.

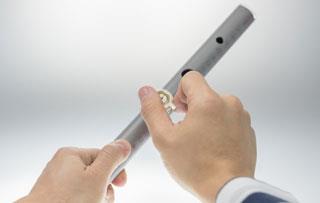

Step 3

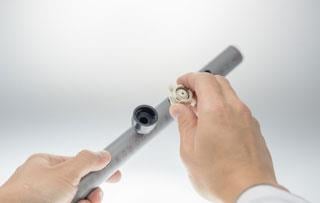

Aim QFH nozzle tip to nozzle body.

Step 4

Put QFH nozzle tip into nozzle body.

Step 5

Fasten the tip and the body clockwise to finish the nozzle installation.Finished If the neighboring nozzles stagger with each other, you should place the nozzles at least 5 degrees of declination. Otherwise, the performance might be affected. Finished If the neighboring nozzles stagger with each other, you should place the nozzles at least 5 degrees of declination. Otherwise, the performance might be affected.

Step 6

Installation completed.

For nozzle with QFSA Body (welding)

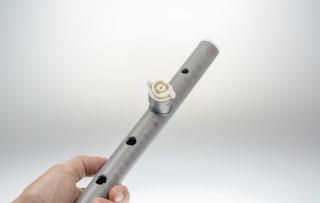

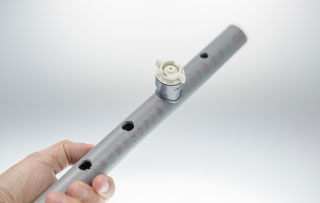

Step 1

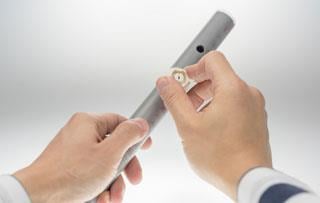

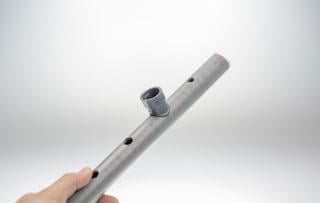

Drill correspon-ding hole on your pipe.Aim the bottom of QFSA nozzle body at the hole

Step 2

Use welding torch to fix QFSA nozzle body in the pipe hole

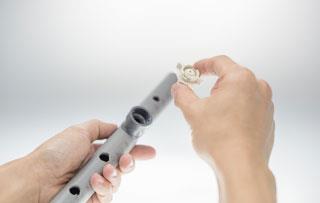

Step 3

Aim QFH nozzle tip to nozzle body

Step 4

Put QFH nozzle tip into nozzle body.

Step 5

Fasten the tip and the body clockwise to finish the nozzle installation Finished If the neighboring nozzles stagger with each other, you should place the nozzles at least 5 degrees of declination. Otherwise, the performance might be affected.

Step 6

Installation completed.
