MWT Stainless Steel Hollow Cone Spray Nozzle

Metal single-fluid hollow cone nozzle, providing uniform impact force and a larger foreign object passage diameter, with fine spray droplets. Two-piece design for easy disassembly and cleaning. Commonly used for applications such as gas washing, dust suppression, and cooling.

Brand: LORRIC
Nozzle Type: Hollow Cone
Fluid Type: Single-fluid
Materials: SS303, SS316, Brass
Thread Standards: BSPT, NPT
Thread Sizes: 1/4"

Catalogue



Hollow Cone Nozzles

The liquid forms a vortex inside the nozzle's cavity, creating a hollow cone spray through the curved opening. Commonly used in scrubbers, cooling, dust suppression, and humidification, hollow cone nozzles have large channels that prevent clogging and produce fine atomized spray.

Hollow Cone Nozzles
Hollow Cone Nozzle Spray Pattern

Hollow Cone Nozzle Spray Pattern

A single-fluid nozzle, known as a hollow cone nozzle, produces a spray pattern shaped like a hollow cone. The coverage pattern, when viewed from above, forms a hollow circular shape on the target surface.

Donut-shaped Flow Distribution

The flow distribution of a hollow cone nozzle features a donut-shaped pattern, with stronger flow at the edges and weaker flow in the center.

Donut-shaped Flow Distribution

 Two-Piece design nozzle enables users to clean and installed  easily.

Material Options

Material Options

The direction of the spray is 90 degrees to the mounting direction. Please confirm that the installation environment meets the requirements.

Recommended working pressure: 2.0 kgf/cm²



About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • To choose the spray flow rate for each nozzle, please refer to the chart below.
    • To select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

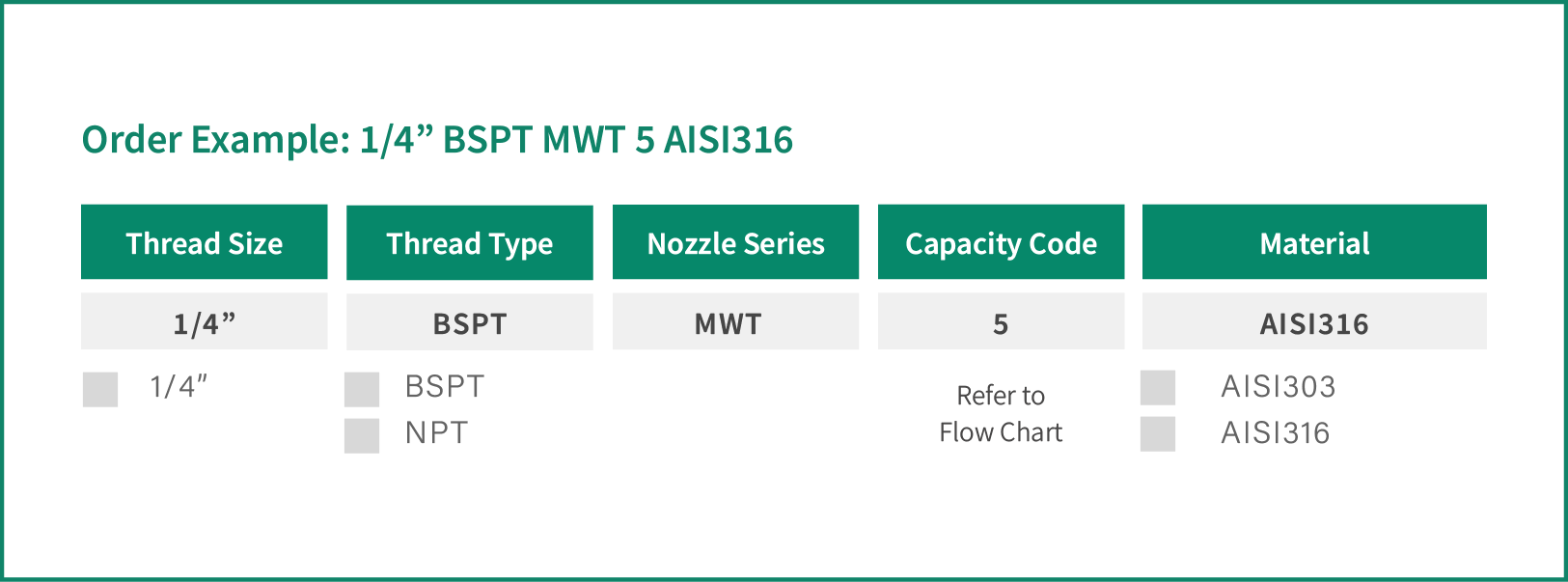

  • Specification example: 1/4” BSPT MWT 05 AISI316. Each number corresponds to the following options and meanings.

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.7
kgf/cm²
1.0
kgf/cm²
1.5
kgf/cm²
2.0
kgf/cm²
4.0
kgf/cm²
6.0
kgf/cm²
8.0
kgf/cm²
10
kgf/cm²
15
kgf/cm²
60° 3 1.77 2.12 2.60 3.00 4.24 5.20 6.00 6.71 8.22
60° 5 2.96 3.54 4.33 5.00 7.07 8.66 10.00 11.18 13.69
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.07
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.4
MPa
0.6
MPa
0.8
MPa
1.0
MPa
1.5
MPa
60° 3 1.79 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
60° 5 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.83
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.7
bar
1
 bar
1.5
 bar
2
 bar
4
 bar
6
 bar
8
 bar
10
 bar
15
 bar
60° 3 1.79 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
60° 5 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.83
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
10
psi
15
psi
20
psi
28
psi
60
psi
90
psi
120
psi
140
psi
200
psi
60° 3 0.47 0.58 0.66 0.79 1.15 1.41 1.63 1.76 2.10
60° 5 0.78 0.96 1.11 1.31 1.92 2.35 2.71 2.93 3.50
  • * Standard Pressure: Column in red.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

Steel Industries

Steel Industries

Flow meters monitor cooling water and gas flow, ensuring accuracy and optimal efficiency; nozzles precisely control chemical liquid spraying, making even coating and stable quality

Size

Thread(BSPT) Size(mm) Weight(g)
A B C D SS303 SS316 Brass
1/8"male thread 13 22.2 15.2 16.2 - - -
1/4"male thread 16 28.6 17.6 20.8 - 39.5 -
3/8"male thread 19 34.9 19.9 24 - - -

Thread installation

Easy installing with 2 simple steps!

Step 1
Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2
Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3
Step 3

Complete the installation.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.
