KH Universal Type Plastic Clog-resistant Nozzle

Plastic solid cone nozzle, easily assembled with a hex wrench, features a PP single-fluid design with an FRPP (glass fiber reinforced PP) core option. It offers clog resistance and uniform spray droplets, commonly used for cleaning and cooling applications.

Brand： LORRIC
Nozzle Type： Solid Cone
Fluid Type： Single-fluid
Materials： Nozzle Head - PP
Core - PP, FRPP

Catalogue

Inquire now

X-Shaped Axial Full Cone Nozzle

Liquid passes through multi-porous or X-shaped baffles, creating rotating streams. As it exits, centrifugal force forms a circular spray pattern. The solid cone nozzle works well at low pressure, providing wide coverage and uniform droplets, ideal for semiconductor processes, chemical distribution, and coating.

X-Shaped Axial Full Cone Nozzle
Full Cone Spray Nozzle Spray Pattern

Full Cone Spray Nozzle Spray Pattern

Single-fluid nozzles produce a conical spray pattern, commonly referred to as full cone nozzles in the industry. The coverage shape (as seen from above after spraying onto the target) is circular.
Learn more: Nozzle Spray Patterns

Mountain-Shaped Flow Distribution

The spray volume peaks at the center and tapers off towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform coverage, reduce nozzle spacing to overlap spray areas and enhance consistency.
Learn more: Nozzle Flow Field Distribution

Mountain-Shaped Flow Distribution
Multiple Flow Rates Available

Multiple Flow Rates Available

The fan spray nozzle offers a wide range of flow rates. For example, at a standard design pressure of 2 Kg/cm², the flow rates range from 1 Lpm to 14 Lpm. (For other flow rate requirements, please refer to the specification sheet or contact us directly.)

Single-piece design

Single-piece design

This single-unit product can be directly attached to the pipeline. The nozzle, due to usage and environmental factors, requires regular maintenance or replacement. We also offer multi-part quick-disconnect nozzles for time-saving maintenance.

Material Options

Material Options

About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 10% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 10% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • Choose the nozzle diameter (thread size) and specifications that meet your requirements.
    • Choose the spray flow rate for each nozzle, please refer to the chart below.
    • Select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

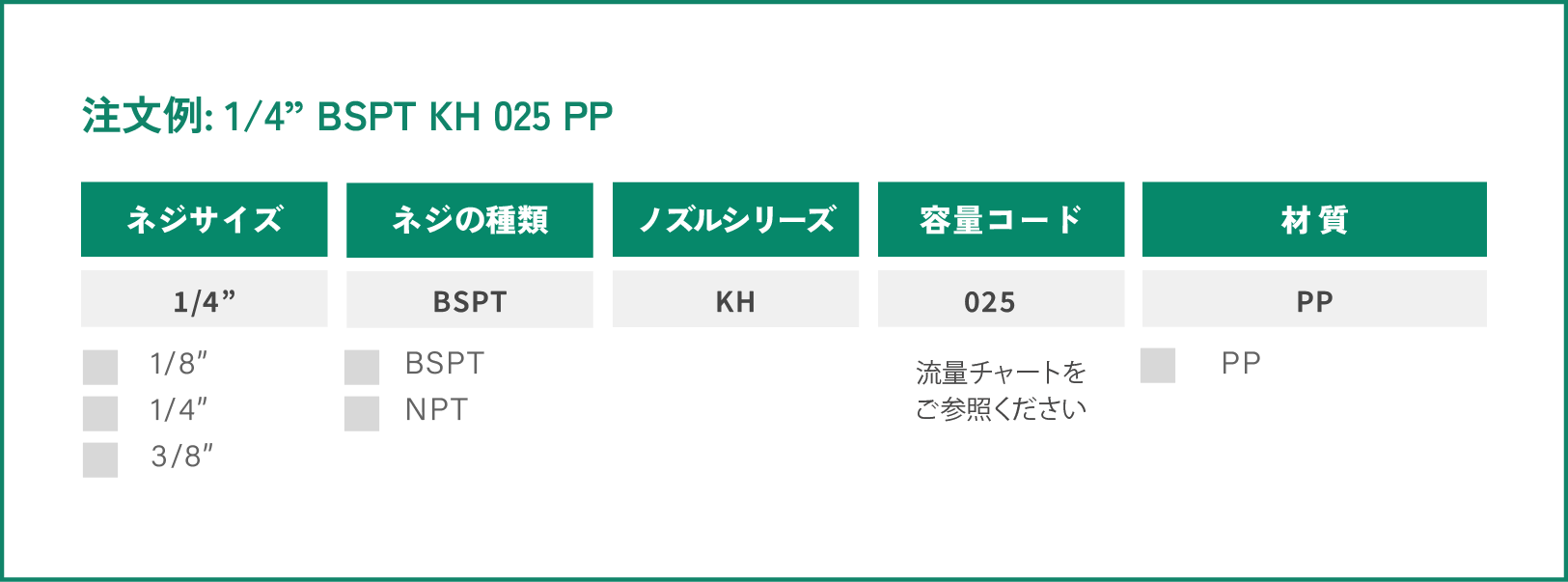

  • Example specification: 1/4” BSPT KH 025 PP. Each number corresponds to the following options and meanings.




Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.7
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
50° 010 V
 V
0.59 0.71 0.87 1.00 1.41 1.73 2.00 2.24 2.74
  015 V
 V
0.89 1.06 1.30 1.50 2.12 2.60 3.00 3.35 4.11
020 V
 V
1.18 1.41 1.73 2.00 2.83 3.46 4.00 4.47 5.48
025 V
 V
1.48 1.77 2.17 2.50 3.54 4.33 5.00 5.59 6.85
030 V
 V
1.77 2.12 2.60 3.00 4.24 5.20 6.00 6.71 8.22
035 V
 V
2.07 2.47 3.03 3.50 4.95 6.06 7.00 7.83 9.59
≀
 040 V
 V
2.37 2.83 3.46 4.00 5.68 6.93 8.00 8.94 10.95
050
V
 V 2.96 3.54 4.33 5.00 7.07 8.66 10.00 11.18 13.69
060
V
 V 3.55 4.24 5.20 6.00 8.49 10.39 12.00 13.42 16.43
070
V
 V 4.14 4.95 6.06 7.00 9.90 12.12 14.00 15.65 19.17
080
V
 V 4.73 5.66 6.93 8.00 11.31 13.86 16.00 17.89 21.91
100

V 5.92 7.07 8.66 10.00 14.14 17.32 20.00 22.36 27.39
120

V
 7.10 8.49 10.39 12.00 16.97 20.78 24.00 26.83 32.86
95° 140

V
 8.28 9.90 12.12 14.00 19.80 24.25 28.00 31.30 38.34
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.07
MPa		 0.1
MPa		 0.15
MPa 		0.2
MPa		 0.4
MPa
 0.6
MPa		 0.8
MPa		 1.0
MPa		 1.5
MPa
50° 010 V
 V
0.60 0.71 0.87 1.01 1.43 1.75 2.02 2.26 2.77
015 V
 V
0.90 1.07 1.31 1.51 2.14 2.62 3.03 3.39 4.15
020 V
 V
1.19 1.43 1.75 2.02 2.86 3.50 4.04 4.52 5.53
025 V
 V
1.49 1.79 2.19 2.52 3.57 4.37 5.05 5.65 6.91
030 V
 V
1.77 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
035 V
 V
2.09 2.50 3.06 3.53 5.00 6.12 7.07 7.90 9.68
≀
 040 V
 V
2.39 2.86 3.50 4.04 5.71 7.00 8.08 9.03 11.06
050
V
 V 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.93
060
V
 V 3.58 4.28 5.25 6.06 8.57 10.49 12.12 13.55 16.59
070
V
 V 4.18 5.00 6.12 7.07 10.00 12.24 14.14 15.81 19.36
080
V
 V 4.78 5.71 7.00 8.08 11.42 13.99 16.16 18.06 22.12
100

V 5.97 7.14 8.75 10.10 14.28 17.49 20.20 22.58 27.65
120

V
 7.17 8.57 10.49 12.12 16.14 20.99 24.24 26.10 33.19
95° 140

V
 8.36 10.00 12.24 14.14 19.99 24.49 28.27 31.61 38.72
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.7
bar
 1.0
bar		 1.5
bar 		2.0
bar		 4.0
bar 		6.0
bar		 8.0
bar		 10.0
bar		 15.0
bar
50° 010 V
 V
0.60 0.71 0.87 1.01 1.43 1.75 2.02 2.26 2.77
015 V
 V
0.90 1.07 1.31 1.51 2.14 2.62 3.03 3.39 4.15
020 V
 V
1.19 1.43 1.75 2.02 2.86 3.50 4.04 4.52 5.53
025 V
 V
1.49 1.79 2.19 2.52 3.57 4.37 5.05 5.65 6.91
030 V
 V
1.79 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
035 V
 V
2.09 2.50 3.06 3.53 5.00 6.12 7.07 7.90 9.68
≀
 040 V
 V
2.39 2.86 3.50 4.04 5.71 7.00 8.08 9.03 11.06
050
V
 V
 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.83
060
V
 V 3.58 4.28 5.25 6.06 8.57 10.49 12.12 13.55 16.59
070
V
 V 4.18 5.00 6.12 7.07 10.00 12.24 14.14 15.81 19.36
080
V
 V 4.78 5.71 7.00 8.08 11.42 13.99 16.16 18.06 22.12
100

V 5.97 7.14 8.75 10.10 14.28 17.49 20.20 22.58 27.65

120

V
 7.17 8.57 10.49 12.12 17.14 20.99 24.24 27.10 33.19
95° 140

V
 8.36 10.00 12.24 14.14 19.99 24.49 28.27 31.61 38.72
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 10
psi		 15
psi		 20
psi 		28
psi		 60
psi 		90
psi		 120
psi		 140
psi		 200
psi
50° 010 V
 V
0.16 0.19 0.22 0.26 0.38 0.47 0.54 0.59 0.70
015 V
 V
0.23 0.29 0.33 0.39 0.58 0.70 0.81 0.88 1.05
020 V
 V
0.31 0.38 0.44 0.52 0.77 0.94 1.09 1.17 1.40
025 V
 V
0.39 0.48 0.55 0.66 0.96 1.17 1.36 1.47 1.75
030 V
 V
0.47 0.58 0.66 0.79 1.15 1.41 1.63 1.76 2.10
035 V
 V
0.55 0.67 0.78 0.92 1.34 1.64 1.90 2.05 2.45
≀
 040 V
 V
0.63 0.77 0.89 1.05 1.53 1.88 2.17 2.34 2.80
050
V
 V
 0.78 0.96 1.11 1.31 1.92 2.35 2.71 2.93 3.50
060
V
 V
 0.94 1.15 1.33 1.57 2.30 2.82 3.26 3.52 4.20
070
V
 V
 1.10 1.34 1.55 1.83 2.69 3.29 3.80 4.10 4.90
080
V
 V 1.25 1.53 1.77 2.10 3.07 3.76 4.34 4.69 5.60
100

V 1.57 1.92 2.22 2.62 3.84 4.70 5.43 5.86 7.00
120

V
 1.88 2.30 2.66 3.15 4.60 5.64 6.51 7.03 8.41
95° 140

V
 2.19 2.69 3.10 3.67 5.37 6.58 7.60 8.20 9.81
  • * Standard Pressure: Column in red.
  • * This product for spray angle 90° and 120° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.


Application

Size

Thread(BSPT) Size(mm) Weight(g)
A B C
1/8" 11.8 10.3 19 1.0
1/4" 15 11.3 21.4 1.8
3/8" 16.7 13 26.4 3.0

Thread installation

Easy installing with 2 simple steps!

Step 1
Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2
Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3
Step 3

Complete the installation.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.

Working Process and matters need attention of Nozzle Customization

  • We provide custom nozzle services according to standard operating procedures.
  • Please note
    • There are minimum quantity requirements
    • There are exclusive sales channels must be mutually agreed upon
Working Process and matters need attention of Nozzle Customization
