ST Patented Cooling Tower Spray Nozzle

Taiwan-made FRPP single-fluid hollow cone nozzle with fine spray droplets, clog-resistant, and operable at low pressure. Features a 40mm debris passage. Ideal for exhaust gas scrubbing, gas dispersion, machinery cooling, and liquid/gas cooling applications.

Brand：	LORRIC
Nozzle Type：	Hollow Cone
Fluid Type：	Single-fluid
Materials：	Glass Fiber-Reinforced PP (FRPP)
Thread Standards：	BSPT
Thread Sizes：	1-1/2"

File download

Hollow Cone Nozzles

The liquid forms a vortex inside the nozzle's cavity, creating a hollow cone spray through the curved opening. Commonly used in scrubbers, cooling, dust suppression, and humidification, hollow cone nozzles have large channels that prevent clogging and produce fine atomized spray.

Hollow Cone Nozzle Spray Pattern

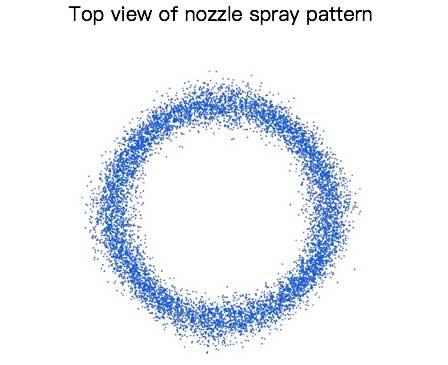

A single-fluid nozzle, known as a hollow cone nozzle, produces a spray pattern shaped like a hollow cone. The coverage pattern, when viewed from above, forms a hollow circular shape on the target surface.

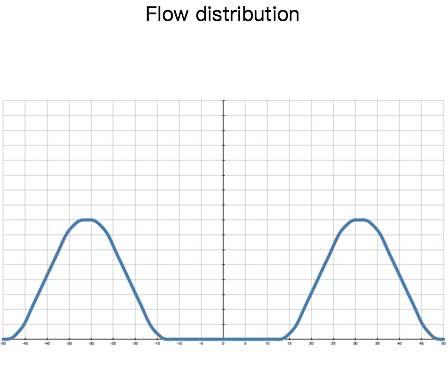

Donut-shaped Flow Distribution

The flow distribution of a hollow cone nozzle features a donut-shaped pattern, with stronger flow at the edges and weaker flow in the center.

Shark teeth design

Shark teeth design provides a more liquid surface for better cooling performance. No complicated structure in the nozzle flow path provides the maximum free passage of 40mm which effectively avoids clogging.

Two-piece design

Two pieces nozzle design enables easy cleaning and installation.

About engineering tolerance

The flow tolerance is within a range of plus or minus 10% of the standard flow rate.

Material Options

Strengthened Fiberglass PP (FRPP)

Material Guarantees

Metal

We take high-quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic

We promise never to use recycled materials.

High Quality

All material is purchased from world's top providers.

Please place your order according below information.

Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
- To choose the spray flow rate for each nozzle, please refer to the chart below.
- To select the spray angle for each nozzle, please refer to the chart below.
- Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

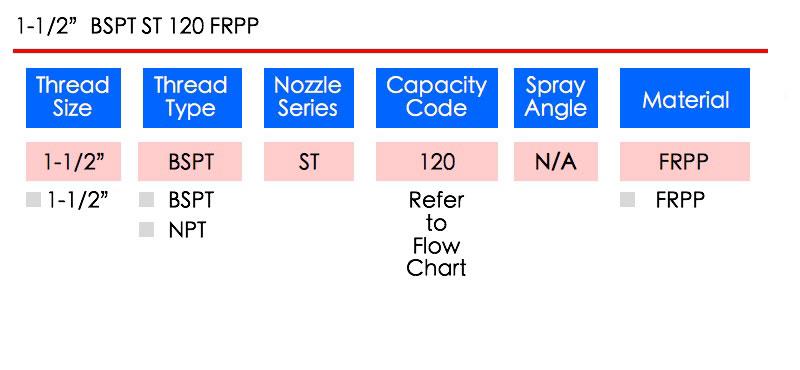

Example specification: 1-1/2” BSPT ST 120 FRPP. Each number corresponds to the following options and meanings.

Select
Unit

Spray Angle	Capacity Code	Thread Size	Capacity at Pressure
Spray Angle	Capacity Code	1-1/2"	0.05 kgf/cm²	0.07 kgf/cm²	0.1 kgf/cm²	0.2 kgf/cm²	0.3 kgf/cm²	0.5 kgf/cm²	0.7 kgf/cm²	1 kgf/cm²	2 kgf/cm²
	120	v	84.9	100	120	170	208	268	317	379	537
	122	v	86.3	102	122	173	211	273	323	386	546
	147	v	104	123	147	208	255	329	389	465	657

Spray Angle	Capacity Code	Thread Size	Capacity at Pressure
Spray Angle	Capacity Code	1-1/2"	0.005 MPa	0.007 MPa	0.01 MPa	0.02 MPa	0.03 MPa	0.05 MPa	0.07 MPa	0.1 MPa	0.07 MPa
	120	v	85.7	101	121	171	210	271	321	383	321
	122	v	87.1	103	123	171	213	275	326	390	326
	147	v	105	124	148	210	257	332	393	469	393

Spray Angle	Capacity Code	Thread Size	Capacity at Pressure
Spray Angle	Capacity Code	1-1/2"	0.05 bar	0.07 bar	0.1 bar	0.2 bar	0.3 bar	0.5 bar	0.7 bar	1 bar	2 bar
	120	v	85.7	101	121	171	210	271	321	383	542
	122	v	87.1	103	123	171	213	275	326	390	551
	147	v	105	124	148	210	257	332	393	469	664

Spray Angle	Capacity Code	Thread Size	Capacity at Pressure
Spray Angle	Capacity Code	1-1/2"	0.5 psi	1 psi	1.5 psi	2 psi	5 psi	7 psi	10 psi	15 psi	30 psi
	120	v	18.8	26.6	32.6	37.6	59.4	70.3	84.1	103	146
	122	v	19.1	27.0	33.1	38.2	60.4	71.5	85.5	105	148
	147	v	23.0	32.6	39.9	46.0	72.8	86.1	103	126	178

* Standard Pressure: Column in red.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
* Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Size

Thread(BSPT)	Size(mm)				Weight(g)
Thread(BSPT)	A	B	C	D	Weight(g)
1-1/2"	165	175	119	26	376

Thread installation

Easy installing with 2 simple steps!

Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3

Complete the installation.

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution

The distribution of particle on surface by sprayed up liquid.
