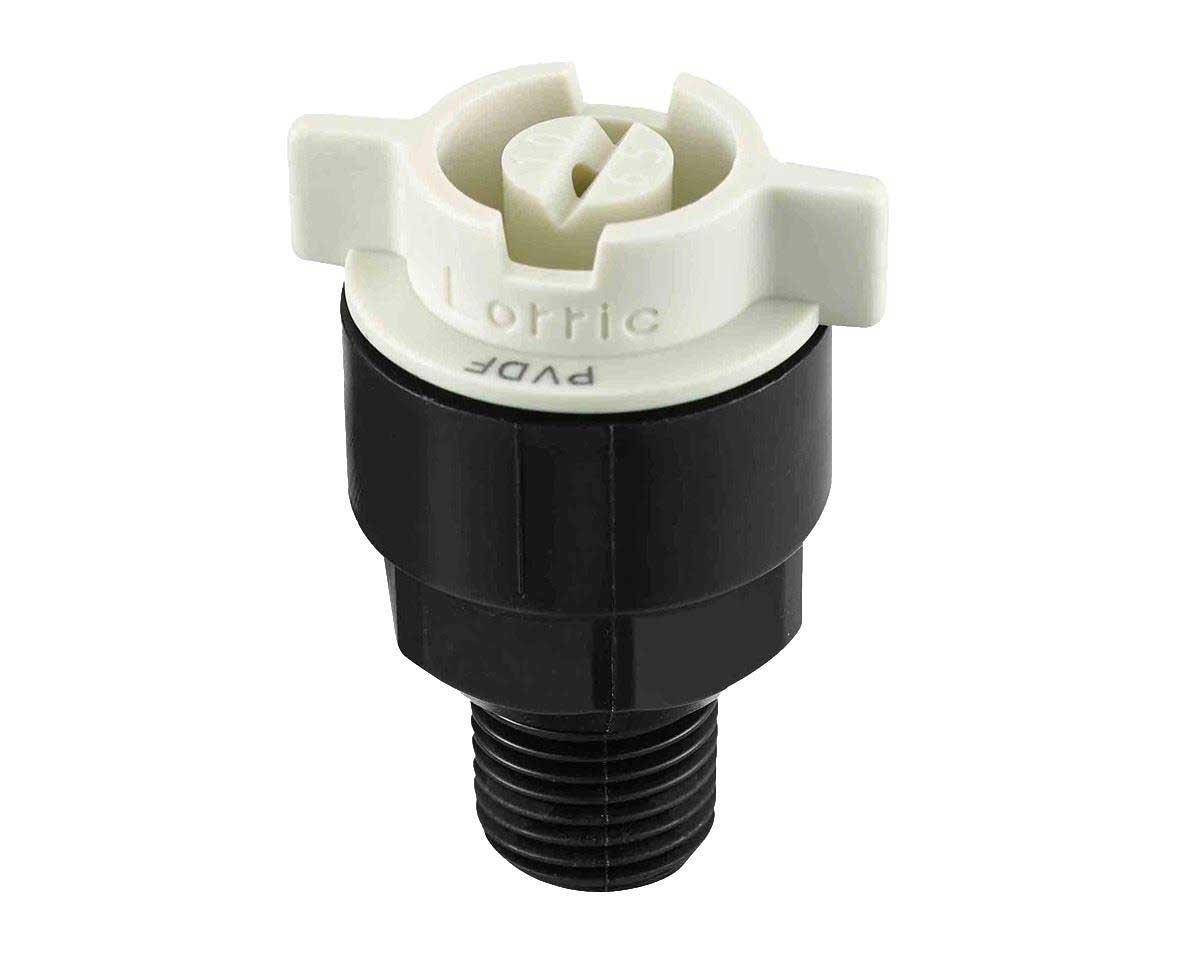

QFMF Series - Small flowrates easy install cone spray nozzle for Acid-Washing Chemical Treatment & Chemical Distribution

Easy install, Clog-resistant, Full cone spray
Apply for
Acid-Washing Chemical Treatment
Chemical Distribution│Etching

Download Product Catalogue

Features
  • Full cone spray.
  • Adopts a Holeless ­multi-slotted core, possess a more uniform impact than other standard solid cone nozzles of the same type.

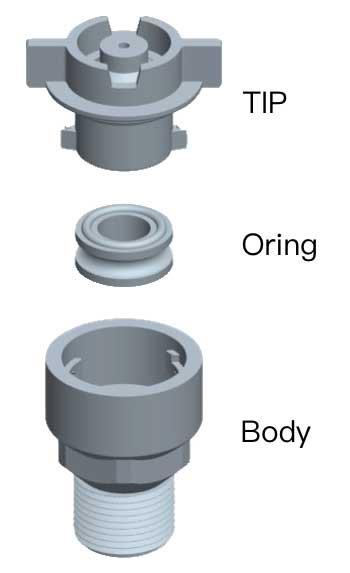

  • Two piece nozzle design which includes nozzle and the body allows quick and accurate installation by hand. It is convenient for on-site management. Nozzle tip is secured into the body and fastened by three buckle points to avoid the nozzle tip loosening and ensure the performance quality.
  • The internal gaskets are available in various options such as EPDM, Viton and Viton-F, which can be adapted to various types of chemicals. With special structural design, the nozzles can be closely attached to the base to avoid water leakage.
  • Recommended working pressure: 2.0 kgf/cm²
  • Flowrate tolerance: ± 5% @ 2.0 ± 0.1 kgf/cm²
  • Angle tolerance: ± 5° @ 2.0 ± 0.1 kgf/cm²
  • Applications:

      ● Cleaning: Gas, exhaust gas, dust, cleaning device, tank cleaning, etc.

      ● Cooling: gas, tank, machinery, metal, roof etc.

      ● Dispersion: Humidifying, dust suppression.

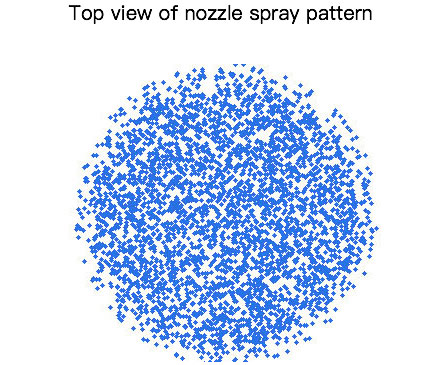

Spray pattern & Flow distribution

Specs

Please place your order according below information.

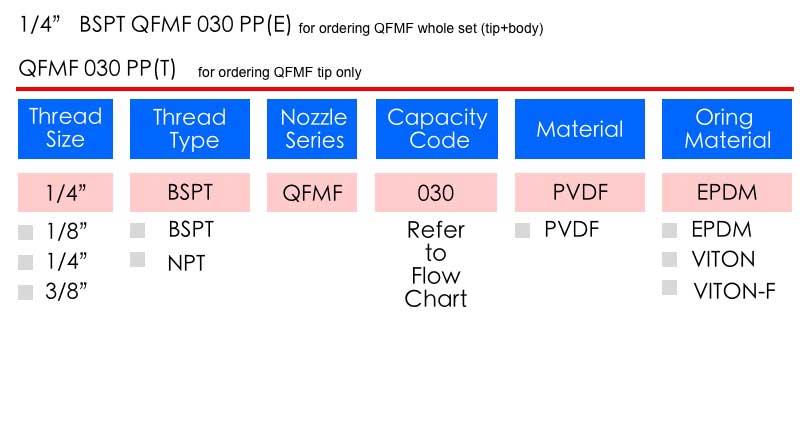

How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.
  • • Please refer to following order example for placing order to LORRIC.
  •   Example :
  •
  •

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.7
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
50° 010 0.59 0.71 0.87 1.00 1.41 1.73 2.00 2.24 2.74
015 0.89 1.06 1.30 1.50 2.12 2.60 3.00 3.35 4.11
020 1.18 1.41 1.73 2.00 2.83 3.46 4.00 4.47 5.48
025 1.48 1.77 2.17 2.50 3.54 4.33 5.00 5.59 6.85
≀
 030 1.77 2.12 2.60 3.00 4.24 5.20 6.00 6.71 8.22
035 2.07 2.47 3.03 3.50 4.95 6.06 7.00 7.83 9.59
040 2.37 2.83 3.46 4.00 5.66 6.93 8.00 8.94 10.95
045 2.66 3.18 3.90 4.50 6.36 7.79 9.00 10.06 12.32
050 2.96 3.54 4.33 5.00 7.07 8.66 10.00 11.18 13.69
90° 055 3.25 3.89 4.76 5.50 7.78 9.53 11.00 12.30 15.06
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.07
MPa		 0.1
MPa		 0.15
MPa 		0.2
MPa		 0.4
MPa
 0.6
MPa		 0.8
MPa		 1.0
MPa		 1.5
MPa
50° 010 0.60 0.71 0.87 1.01 1.43 1.75 2.02 2.26 2.77
015 0.90 1.07 1.31 1.51 2.14 2.62 3.03 3.39 4.15
020 1.19 1.43 1.75 2.02 2.86 3.50 4.04 4.52 5.53
025 1.49 1.79 2.19 2.52 3.57 4.37 5.05 5.65 6.91
≀
 030 1.79 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
035 2.09 2.50 3.06 3.53 5.00 6.12 7.07 7.90 9.68
040 2.39 2.86 3.50 4.04 5.71 7.00 8.08 9.03 11.06
045 2.69 3.21 3.94 4.54 6.43 7.87 9.09 10.16 12.44
050 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.83
90° 055 3.29 3.93 4.81 5.55 7.85 9.62 11.11 12.42 15.21
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.7
bar
 1.0
bar		 1.5
bar 		2.0
bar		 4.0
bar 		6.0
bar		 8.0
bar		 10.0
bar		 15.0
bar
50° 010 0.60 0.71 0.87 1.01 1.43 1.75 2.02 2.26 2.77
015 0.90 1.07 1.31 1.51 2.14 2.62 3.03 3.39 4.15
020 1.19 1.43 1.75 2.02 2.86 3.50 4.04 4.52 5.53
025 1.49 1.79 2.19 2.52 3.57 4.37 5.05 5.65 6.91
≀
 030 1.79 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
035 2.09 2.50 3.06 3.53 5.00 6.12 7.07 7.90 9.68
040 2.39 2.86 3.50 4.04 5.71 7.00 8.08 9.03 11.06
045 2.69 3.21 3.94 4.54 6.43 7.87 9.09 10.16 12.44
050 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.83
90° 055 3.29 3.93 4.81 5.55 7.85 9.62 11.11 12.42 15.21
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
10
psi		 15
psi		 20
psi 		28
psi		 60
psi 		90
psi		 120
psi		 140
psi		 200
psi
50° 010 0.16 0.19 0.22 0.26 0.38 0.47 0.54 0.59 0.70
015 0.23 0.29 0.33 0.39 0.58 0.70 0.81 0.88 1.05
020 0.31 0.38 0.44 0.52 0.77 0.94 1.09 1.17 1.40
025 0.39 0.48 0.55 0.66 0.96 1.17 1.36 1.47 1.75
≀
 030 0.47 0.58 0.66 0.79 1.15 1.41 1.63 1.76 2.10
035 0.55 0.67 0.78 0.92 1.34 1.64 1.90 2.05 2.45
040 0.63 0.77 0.89 1.05 1.53 1.88 2.17 2.34 2.80
045 0.70 0.86 1.00 1.18 1.73 2.11 2.44 2.64 3.15
050 0.78 0.96 1.11 1.31 1.92 2.35 2.71 2.93 3.50
90° 055 0.86 1.06 1.22 1.44 2.11 2.58 2.98 3.22 3.85
  • * Standard Pressure: Column in red.
  • * This product for spray angle 90° and 120° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
Material
Material Options
  • TIP：PVDF
  • Core: UPVC, PEEK (for temperature up to 250°C/482°F and highly corrosive chemicals, by Custom order.)























































 * Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.



Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials
High Quality
All material is purchased from world top providers.

Product Size
Thread
(BSPT) 		 Unit(mm)  Weight(g)
  A     B     C
1/8"Male
 31.6 27.5 42.6 17.2
1/4"Male
 31.6 27.5 42.6 17.6
3/8"Male
 31.6 27.5 42.6 19.3

























Size of QFSA body

 Thread(mm)  Weight(g)
  A     B     C     D
26.5 10.1 12.0 31.4 8.6

























Size of QFWG body

 Thread(mm)  Weight(g)
  A     B     C     D
25.6
 16.5 20.4 38.3 12.0







* Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.

Installation
For nozzle with QF Body (thread)

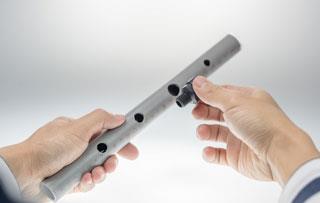

Step 1

Drill corresponding female threads on your pipe

Aim the thread of nozzle body at the female thread

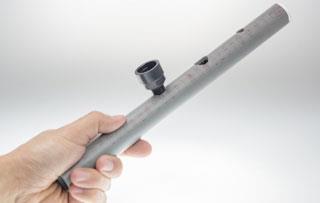

Step 2

Tightening the body clockwise at the pipe hole

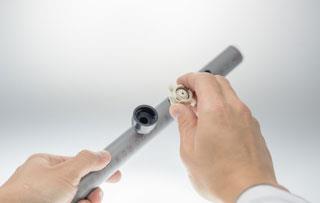

Step 3

Aim QFMF nozzle tip to nozzle body

Step 4

Put QFMF nozzle tip into nozzle body

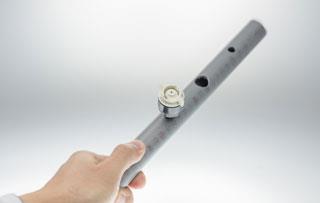

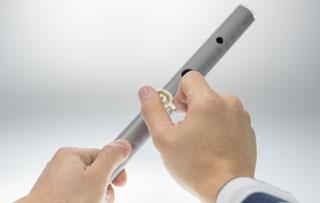

Step 5

Fasten the tip and the body clockwise to finish the nozzle installation

Finished If the neighboring nozzles stagger with each other, you should place the nozzles at least 5 degrees of declination. Otherwise, the performance might be affected

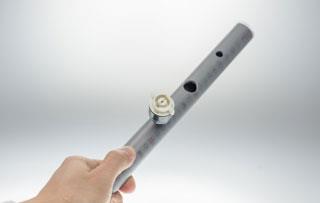

Step 6

Installation completed

For nozzle with QFSA Body (welding)

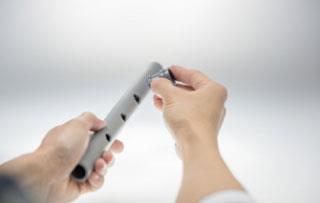

Step 1

Drill corresponding hole on your pipe

Aim the bottom of QFSA nozzle body at the hole

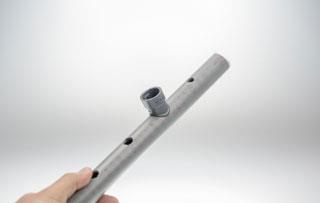

Step 2

Use welding torch to fix QFSA nozzle body in the pipe hole

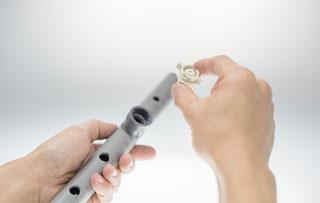

Step 3

Aim QFMF nozzle tip to nozzle body

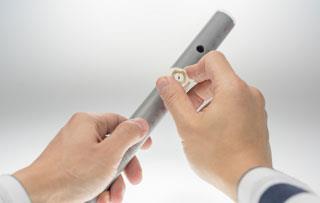

Step 4

Put QFMF nozzle tip into nozzle body

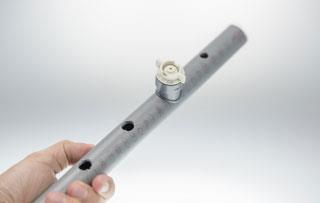

Step 5

Fasten the tip and the body clockwise to finish the nozzle installation

Finished If the neighboring nozzles stagger with each other, you should place the nozzles at least 5 degrees of declination. Otherwise, the performance might be affected

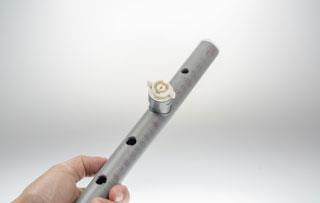

Step 6

Installation completed

  * Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.
