KPMF Series - Metal multi-slotted core full cone spray nozzle for cleaning, purging, cooling

Full cone spray, Uniform impact, Easy installed
Apply for
Semicon│PCB
Cleaning│Purging
Cooling Etching│Developing

Download Product Catalogue

General Features
  • Full cone spray.
  • Adopts a Holeless ­multi-slotted core, possess a more uniform impact than other standard solid cone nozzles of the same type.
  • Recommended working pressure: 2.0 kgf/cm²
  • Flowrate tolerance: ± 5% @ 2.0 ± 0.1 kgf/cm²
  • Angle tolerance: ± 5° @ 2.0 ± 0.1 kgf/cm²
  • Applications:

      ● Cleaning: Gas, exhaust gas, dust, cleaning device, tank cleaning, etc.

      ● Cooling: gas, tank, machinery, metal, roof etc.

      ● Dispersion: Humidifying, Chemicals, firefighting, dust suppression, aeration,

        defoaming, sewage treatment.

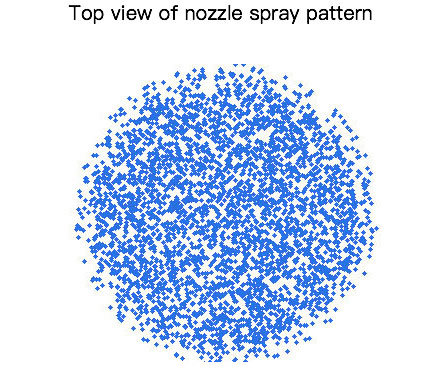

Spray pattern & Flow distribution

Specs

Please place your order according below information.

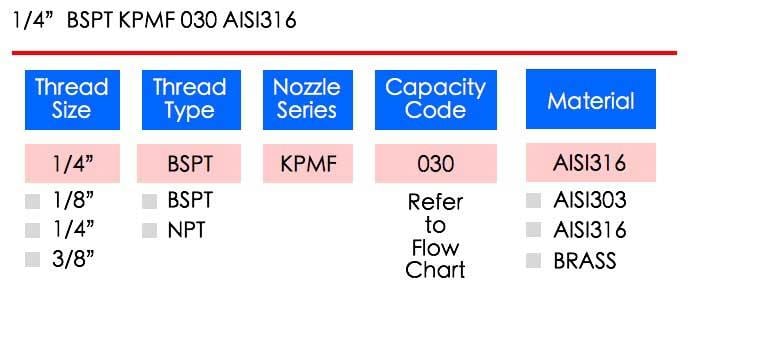

How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.
  • • Please refer to following order example for placing order to LORRIC.
  •   Example :

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.7
kgf/cm²
1.0
kgf/cm²
1.5
kgf/cm²
2.0
kgf/cm²
4.0
kgf/cm²
6.0
kgf/cm²
8.0
kgf/cm²
10.0
kgf/cm²
15.0
kgf/cm²
60° 010 V
V

0.59 0.71 0.87 1.00 1.41 1.73 2.00 2.24 2.74

015 V
V

0.89 1.06 1.30 1.50 2.12 2.60 3.00 3.35 4.11
  020 V
V

1.18 1.41 1.73 2.00 2.83 3.46 4.00 4.47 5.48
  025 V
V

1.48 1.77 2.17 2.50 3.54 4.33 5.00 5.59 6.85
  030 V
V

1.77 2.12 2.60 3.00 4.24 5.20 6.00 6.71 8.22
  035 V
V

2.07 2.47 3.03 3.50 4.95 6.06 7.00 7.83 9.59

040 V
V

2.37 2.83 3.46 4.00 5.68 6.93 8.00 8.94 10.95
  050
V
V 2.96 3.54 4.33 5.00 7.07 8.66 10.00 11.18 13.69

060
V
V 3.55 4.24 5.20 6.00 8.49 10.39 12.00 13.42 16.43
  070
V
V 4.14 4.95 6.06 7.00 9.90 12.12 14.00 15.65 19.17
  080
V
V 4.73 5.66 6.93 8.00 11.31 13.86 16.00 17.89 21.91
  100

V 5.92 7.07 8.66 10.00 14.14 17.32 20.00 22.36 27.39
  120

V
7.10 8.49 10.39 12.00 16.97 20.78 24.00 26.83 32.86
90° 140

V
8.28 9.90 12.12 14.00 19.80 24.25 28.00 31.30 38.34
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.07
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.4
MPa
0.6
MPa
0.8
MPa
1.0
MPa
1.5
MPa
60° 010 V
V

0.60 0.71 0.87 1.01 1.43 1.75 2.02 2.26 2.77
  015 V
V

0.90 1.07 1.31 1.51 2.14 2.62 3.03 3.39 4.15

020 V
V

1.19 1.43 1.75 2.02 2.86 3.50 4.04 4.52 5.53
  025 V
V

1.49 1.79 2.19 2.52 3.57 4.37 5.05 5.65 6.91
  030 V
V

1.77 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
  035 V
V

2.09 2.50 3.06 3.53 5.00 6.12 7.07 7.90 9.68

040 V
V

2.39 2.86 3.50 4.04 5.71 7.00 8.08 9.03 11.06
  050
V
V 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.93
  060
V
V 3.58 4.28 5.25 6.06 8.57 10.49 12.12 13.55 16.59
  070
V
V 4.18 5.00 6.12 7.07 10.00 12.24 14.14 15.81 19.36
  080
V
V 4.78 5.71 7.00 8.08 11.42 13.99 16.16 18.06 22.12
  100

V 5.97 7.14 8.75 10.10 14.28 17.49 20.20 22.58 27.65
  120

V
7.17 8.57 10.49 12.12 16.14 20.99 24.24 26.10 33.19
90° 140

V
8.36 10.00 12.24 14.14 19.99 24.49 28.27 31.61 38.72
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.7
bar
1.0
bar
1.5
bar
2.0
bar
4.0
bar
6.0
bar
8.0
bar
10.0
bar
15.0
bar
60° 010 V
V

0.60 0.71 0.87 1.01 1.43 1.75 2.02 2.26 2.77
  015 V
V

0.90 1.07 1.31 1.51 2.14 2.62 3.03 3.39 4.15
  020 V
V

1.19 1.43 1.75 2.02 2.86 3.50 4.04 4.52 5.53
  025 V
V

1.49 1.79 2.19 2.52 3.57 4.37 5.05 5.65 6.91
  030 V
V

1.79 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
  035 V
V

2.09 2.50 3.06 3.53 5.00 6.12 7.07 7.90 9.68

040 V
V

2.39 2.86 3.50 4.04 5.71 7.00 8.08 9.03 11.06
  050
V
V
2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.83
  060
V
V 3.58 4.28 5.25 6.06 8.57 10.49 12.12 13.55 16.59
  070
V
V 4.18 5.00 6.12 7.07 10.00 12.24 14.14 15.81 19.36

080
V
V 4.78 5.71 7.00 8.08 11.42 13.99 16.16 18.06 22.12
  100

V 5.97 7.14 8.75 10.10 14.28 17.49 20.20 22.58 27.65
  120

V
7.17 8.57 10.49 12.12 17.14 20.99 24.24 27.10 33.19
90° 140

V
8.36 10.00 12.24 14.14 19.99 24.49 28.27 31.61 38.72
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 10
psi
15
psi
20
psi
28
psi
60
psi
90
psi
120
psi
140
psi
200
psi
60° 010 V
V

0.16 0.19 0.22 0.26 0.38 0.47 0.54 0.59 0.70
  015 V
V

0.23 0.29 0.33 0.39 0.58 0.70 0.81 0.88 1.05
  020 V
V

0.31 0.38 0.44 0.52 0.77 0.94 1.09 1.17 1.40
  025 V
V

0.39 0.48 0.55 0.66 0.96 1.17 1.36 1.47 1.75
  030 V
V

0.47 0.58 0.66 0.79 1.15 1.41 1.63 1.76 2.10
  035 V
V

0.55 0.67 0.78 0.92 1.34 1.64 1.90 2.05 2.45

040 V
V

0.63 0.77 0.89 1.05 1.53 1.88 2.17 2.34 2.80
  050
V
V
0.78 0.96 1.11 1.31 1.92 2.35 2.71 2.93 3.50
  060
V
V
0.94 1.15 1.33 1.57 2.30 2.82 3.26 3.52 4.20
  070
V
V
1.10 1.34 1.55 1.83 2.69 3.29 3.80 4.10 4.90
  080
V
V 1.25 1.53 1.77 2.10 3.07 3.76 4.34 4.69 5.60

100

V 1.57 1.92 2.22 2.62 3.84 4.70 5.43 5.86 7.00
  120

V
1.88 2.30 2.66 3.15 4.60 5.64 6.51 7.03 8.41
90° 140

V
2.19 2.69 3.10 3.67 5.37 6.58 7.60 8.20 9.81
  • * Standard Pressure: Column in red.
  • * This product for spray angle 90° and 120° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.

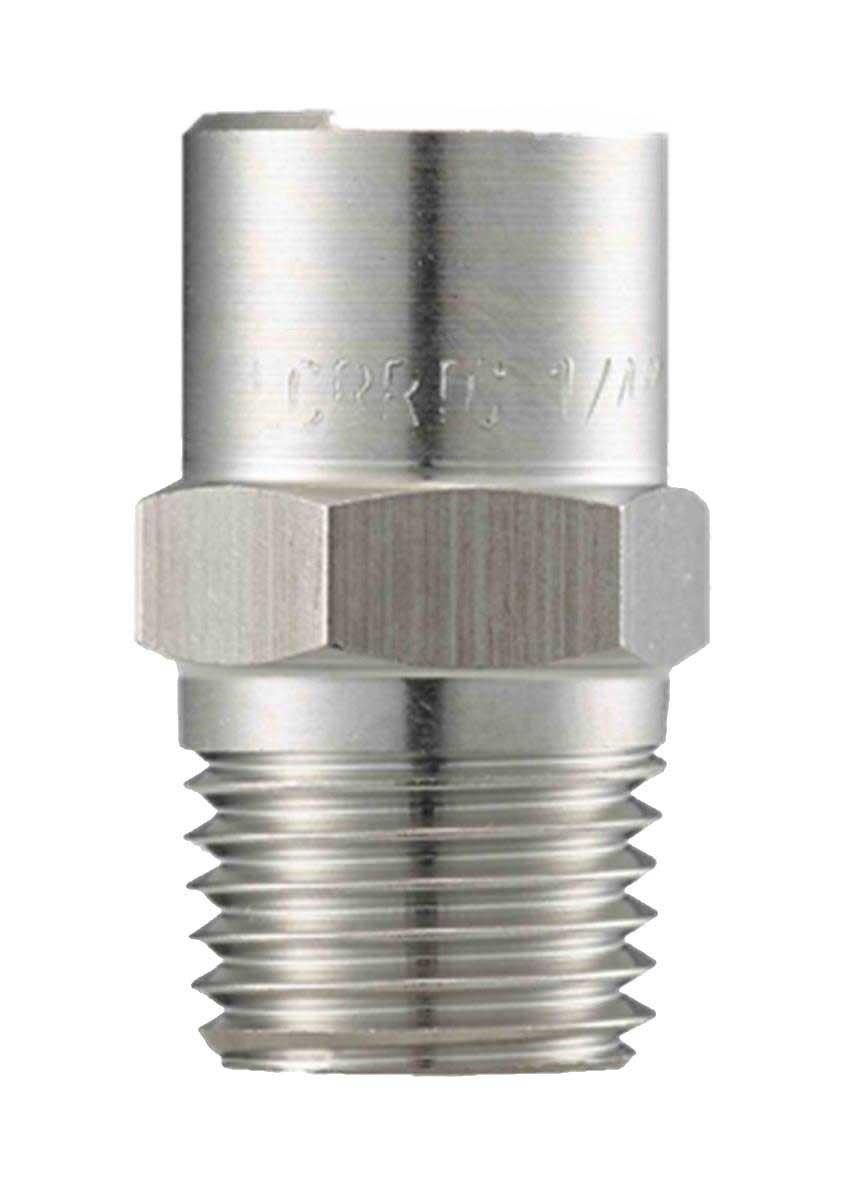

Material






Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials
High Quality
All material is purchased from world top providers.



Product Size
Thread
(BSPT)
 Unit(mm)  Weight(g)
  A     B     C   S303 S316 Brass
1/8"Male
12 12 19 10 10.3 11.2
1/4"Male
14 15 26 20 20 19
3/8"Male 18 15 30 33 34 37

Installation
Easy installing with 2 simple steps !
Step 1

Drill corresponding female threads on your pipe.

Step 2

For better leakproofness, please use Teflon seal tape on nozzle thread.

Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.

Finished

Finished.
