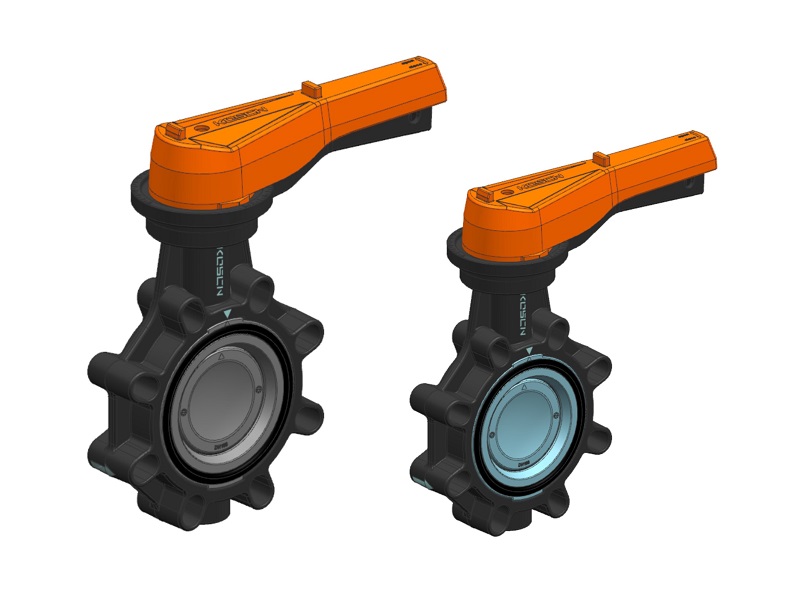

KOSCN KV400 Manual Plastic Butterfly Valve

Economical choice for water industry applications, suitable for pure wastewater systems and mildly corrosive media. Features a double-ring valve body design for enhanced durability and low torque.

Apply for
• Environmental protection
• Water treatment
• Electroplating
• Circuit boards
• Renewable energy
• Leachate filtration

Data Sheet Company Product Brochure


Easy Installation and Maintenance

Easy Installation and Maintenance

  • Valve bodies conform to ISO and GB mounting standards, with universal through-holes for easy installation.
  • Handles indicate switch direction.
  • Designed according to ISO5211 standard for easy maintenance.
  • Manual and automatic modules are interchangeable, facilitating upgrades.

High Safety Performance

  • Valve shafts made of stainless steel are corrosion and deformation resistant.
  • The valve seat's dual-seal groove design ensures low torque and no internal leakage.
  • Materials and seals are selectable to meet the needs of general applications, excluding pure chemical systems.
High Safety Performance
High Flexibility

High Flexibility

  • Valve body materials: PVC-U, PP-H
  • Seal materials: EPDM, FPM
  • Connection: Clamp-on flange connection
  • Interface standards include metric, ANSI, and JIS.

Size

d DN H H1 H2 H3 D K S n-DIN n-JIS
n-ANSI
I L
L1 W b
63 50 249 114 55 80 165 123 54 4 4 4 20 293 210 115 44
75 65 276 128 55 93 185 143 67 4 4 4 21 303 210 115 48
90 80 295 140 55 100 200 157 83 8 8 4 21 350 250 115 53
110 100 333 160 55 118 229 186 101 8 8 8 21 365 250 115 57
140 125 364 167 70 127 257 213 127 8 8 8 24 449 320 155 68
160 150 385 170 70 145 285 240 152 8 8 8 24 463 320 155 73
225 200 455 213 70 172 343 296 200 8 12 8 24 572 400 155 92
Unit:mm
Pressure-Temperature Curves

Pressure-Temperature Curves

Data based on clean water medium and a 25-year safety lifespan; applications with other media require reduced temperature and pressure.

Flow Capacity

Data based on 20°C clean water medium and a 1bar pressure differential
Cv = Kv X 0.07
Fv = Kv X 0.0585
Kv (liters/min)
Cv (gallons/min) US
Fv (gallons/min) GB

Flow Capacity
Relative Flow Linearity Graph

Relative Flow Linearity Graph

Relative flow linearity coefficient refers to the change in flow rate as a function of valve opening travel.
