V Small Flowrates PVDF Plastic Fan Spray Nozzle

PVDF single-piece single-fluid fan nozzle. Under pressure, liquid enters the nozzle and is compressed through an oval orifice, creating a fan-shaped spray. The flow pattern is strongest in the middle and weaker at the edges. This nozzle offers high efficiency, precise control, and strong impact, making it ideal for various applications.

Brand： LORRIC
Nozzle Type： Fan-shaped
Fluid Type： Single-fluid
Materials： PVDF
Thread Standards： BSPT
Thread Sizes： 1/8", 1/4"

Catalogue

Inquire now

Fan Spray Nozzle

Under pressure, liquid enters the fan nozzle and is compressed through an elliptical outlet to form a fan-shaped spray. The flow pattern is strong in the center and weak at the edges. Fan nozzles are commonly used in industries such as semiconductors, PCB production, and car washing for spraying, cooling, or high-pressure cleaning.
Advantages of Fan Nozzles Disadvantages of Fan Nozzles
  1. Uniform spray providing even coverage.   1. Limited flow, unsuitable for high flow or pressure.
  2. Precise control, easy to adjust spray range and flow.   2. Prone to clogging, sensitive to fluids with particles.
  3. Versatile, suitable for cleaning, cooling, and spraying.   3. Fixed spray angle, less flexibility.
  4. Material-saving, improves efficiency, reduces waste.   4. Durable materials needed for abrasive fluids.
  5. Simple structure, easy to install and replace.   5. Affected by pressure changes, which impact spray quality.

About flat fan nozzles

Pros And Cons Of Fan Spray Nozzle Spray Type and Patterns

Spray Type and Patterns

Fan, single-line shape with tapered sides. Nozzle forms bell curve flow, stronger center.

Pros And Cons Of Fan Spray Nozzle Flow Distribution

Flow Distribution

The nozzle presents a bell curve shape flow field distribution with weaker ends compared to the middle.

Multiple Flow Rates Available

The fan spray nozzle offers a wide range of flow rates. For example, at a standard design pressure of 3 Kg/cm², the flow rates range from 0.39 Lpm to 39.1 Lpm. (For other flow rate requirements, please refer to the specification sheet or contact us directly.)

Pros And Cons Of Fan Spray Nozzle Multiple Flow Rates Available
Pros And Cons Of Fan Spray Nozzle Single-piece design

Single-piece design

This nozzle attaches to pipelines directly. Usage time and environment impact spray performance (flow and angle). Regular maintenance or replacement needed. For tougher conditions, we have a quick-release multi-piece nozzle for easy replacement, saving time and effort.

Material Options

Pros And Cons Of Fan Spray Nozzle Material Options

About engineering tolerance

Pros And Cons Of Fan Spray Nozzle Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Pros And Cons Of Fan Spray Nozzle Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Pros And Cons Of Fan Spray Nozzle Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Pros And Cons Of Fan Spray Nozzle Plastic
Plastic

We promise never to use recycled materials.

Pros And Cons Of Fan Spray Nozzle High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • Choose the nozzle diameter (thread size) and specifications that meet your requirements.
    • Choose the spray flow rate for each nozzle, please refer to the chart below.
    • Select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

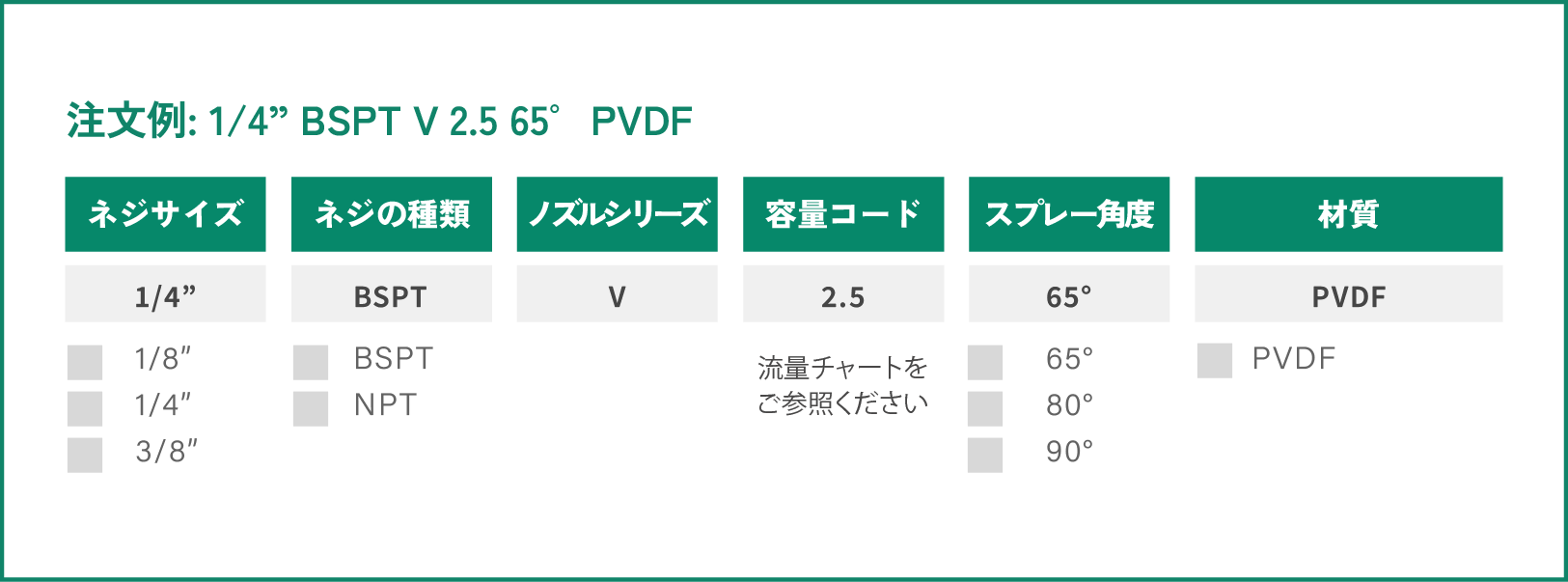

  • Example specification: 1/4” BSPT V 2.5 65° PVDF. Each number corresponds to the following options and meanings.

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.5
kgf/cm²		 1.0
kgf/cm²		 2.0
kgf/cm²		 3.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
65° 01 V
 V
0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
65° 02 V
 V
0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
65° 2.5 V
 V
0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
65° 03 V
 V
0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
65° 04 V
 V
0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
65° 05 V
 V
0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
65° 06 V
 V
0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
65° 07 V V
1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
65° 7.5 V V
1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
65° 08 V V
1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
65° 09 V V
1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
65° 10 V V
1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
65° 12.5 V V
2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
65° 15 V V
2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
65° 20 V V
3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
65° 25
V
3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
65° 30
V V
 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
65° 35
V V
 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
65° 40
V V
 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
65° 50
V V
 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
65° 60

V
 9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
65° 80

V
 12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
65° 100

V
 15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
80° 01 V
 V
0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
80° 02 V
 V
0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
80° 2.5 V
 V
0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
80° 03 V
 V
0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
80° 04 V
 V
0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
80° 05 V
 V
0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
80° 06 V
 V
0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
80° 07 V V
1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
80° 7.5 V V
1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
80° 08 V V
1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
80° 09 V V
1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
80° 10 V V
1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
80° 12.5 V V
2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
80° 15 V V
2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
80° 20 V V
3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
80° 25
V
3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
80° 30
V V
 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
80° 35
V V
 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
80° 40
V V
 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
80° 50
V V
 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
80° 60

V
 9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
80° 80

V
 12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
80° 100

V
 15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
90° 01 V
 V
0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
90° 02 V
 V
0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
90° 2.5 V
 V
0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
90° 03 V
 V
0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
90° 04 V
 V
0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
90° 05 V
 V
0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
90° 06 V
 V
0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
90° 07 V V
1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
90° 7.5 V V
1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
90° 08 V V
1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
90° 09 V V
1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
90° 10 V V
1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
90° 12.5 V V
2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
90° 15 V V
2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
90° 20 V V
3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
90° 25
V
3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
90° 30
V V
 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
90° 35
V V
 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
90° 40
V V
 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
90° 50
V V
 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
90° 60

V
 9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
90° 80

V
 12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
90° 100

V
 15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.05
MPa		 0.1
MPa		 0.2
MPa 		0.3
MPa		 0.4
MPa
 0.6
MPa		 0.8
MPa		 1.0
MPa		 1.5
MPa
65° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 V
 V
0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
65° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 V V
3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
65° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
65° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
65° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
65° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
65° 60

V
 9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
65° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
65° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
80° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 V
 V
0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
80° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 V V
3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
80° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
80° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
80° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
80° 60

V
 9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
80° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
80° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
90° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 V
 V
0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
90° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 V V
3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
90° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
90° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
90° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
90° 60

V
 9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
90° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
90° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.5
bar
 1.0
bar		 2.0
bar 		3.0
bar		 4.0
bar 		6.0
bar		 8.0
bar		 10.0
bar		 15.0
bar
65° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 V
 V
0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
65° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 V V
3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
65° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
65° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
65° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
65° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
65° 60

V
 9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
65° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
65° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
80° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 V
 V
0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
80° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 V V
3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
80° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
80° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
80° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
80° 60

V
 9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
80° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
80° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
90° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 V
 V
0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
90° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
90° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 V V
3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
90° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
90° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
90° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
90° 60

V
 9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
90° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
90° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 7
psi		 10
psi		 28
psi 		40
psi		 60
psi 		80
psi		 100
psi		 150
psi		 200
psi
65° 01 V
 V
0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
65° 02 V
 V
0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
65° 2.5 V
 V
0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
65° 03 V
 V
0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
65° 04 V
 V
0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
65° 05 V
 V
0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
65° 06 V
 V
0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
65° 07 V V
0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
65° 7.5 V V
0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
65° 08 V V
0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
65° 09 V V
0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
65° 10 V V
0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
65° 12.5 V V
0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
65° 15 V V
0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
65° 20 V V
0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
65° 25
V
1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
65° 30
V V
 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
65° 35
V V
 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
65° 40
V V
 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
65° 50
V V
 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
65° 60

V
 2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
65° 80

V
 3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
65° 100

V
 4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
80° 01 V
 V
0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
80° 02 V
 V
0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
80° 2.5 V
 V
0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
80° 03 V
 V
0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
80° 04 V
 V
0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
80° 05 V
 V
0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
80° 06 V
 V
0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
80° 07 V V
0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
80° 7.5 V V
0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
80° 08 V
 V
0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
80° 09 V V
0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
80° 10 V V
0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
80° 12.5 V V
0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
80° 15 V V
0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
80° 20 V V
0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
80° 25 V
 V
1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
80° 30
V V
 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
80° 35
V V
 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
80° 40
V V
 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
80° 50
V V
 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
80° 60

V
 2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
80° 80

V
 3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
80° 100

V
 4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
90° 01 V
 V
0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
90° 02 V
 V
0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
90° 2.5 V
 V
0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
90° 03 V
 V
0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
90° 04 V
 V
0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
90° 05 V
 V
0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
90° 06 V
 V
0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
90° 07 V V
0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
90° 7.5 V V
0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
90° 08 V V
0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
90° 09 V V
0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
90° 10 V V
0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
90° 12.5 V V
0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
90° 15 V V
0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
90° 20 V V
0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
90° 25
V
1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
90° 30
V V
 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
90° 35
V V
 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
90° 40
V V
 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
90° 50
V V
 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
90° 60

V
 2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
90° 80

V
 3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
90° 100

V
 4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
  • * Standard Pressure: Column in red.
  • * This product for spray angle 0°, 15°, 25°, 40°, 50°, 100° and 110° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

Automotive Painting

Automotive Painting

Flow meters ensure precise paint-solvent ratios for quality and eco-friendliness, while nozzles guarantee paint quality and environmental compliance by controlling the mixture

CCL

CCL

Flow meters monitor chemical liquids to ensure consistent copper foil thickness and quality; nozzles maintain even chemical liquid coverage, ensuring the uniformity of copper foil

Electroplating

Electroplating

Flow meter controls the flow of chemical liquids, ensuring a uniform coating for quality assurance; the nozzle ensuring even coating and consistent quality during electroplating

Size

Thread(BSPT) Size(mm) Weight(g)
A B C
1/4"外牙 14 13.7 25 4.0

Thread installation

Easy installing with 2 simple steps!

Step 1
Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2
Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3
Step 3

Complete the installation.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.



Working Process and matters need attention of Nozzle Customization



Working Process and matters need attention of Nozzle Customization
Products you may also like
F Low-Pressure Wide-Angle Water Curtain Nozzle - Metal F Low-Pressure Wide-Angle Water Curtain Nozzle - Metal
NH Steel Fan Spray Nozzle for Wide-Angle Spraying NH Steel Fan Spray Nozzle for Wide-Angle Spraying
FU-ES EchoSense 超音波流量計 クランプオン FU-ES EchoSense 超音波流量計 クランプオン
Related articles
Why LORRIC Nozzles Outperform Generic Brands: A Detailed Comparison Why LORRIC Nozzles Outperform Generic Brands: A Detailed Comparison
How to Calculate How to Calculate "Spray Angle" and "Spray Coverage Area"?
The Seven Cornerstones for Choosing the Correct Nozzle The Seven Cornerstones for Choosing the Correct Nozzle
Inquire now
