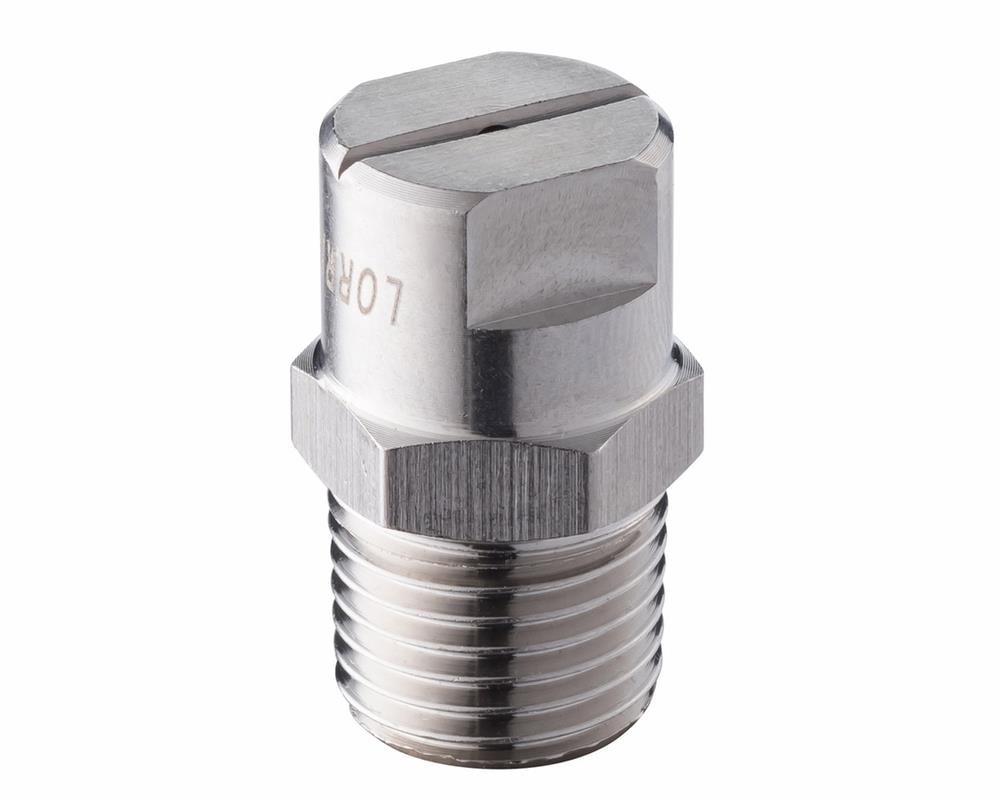

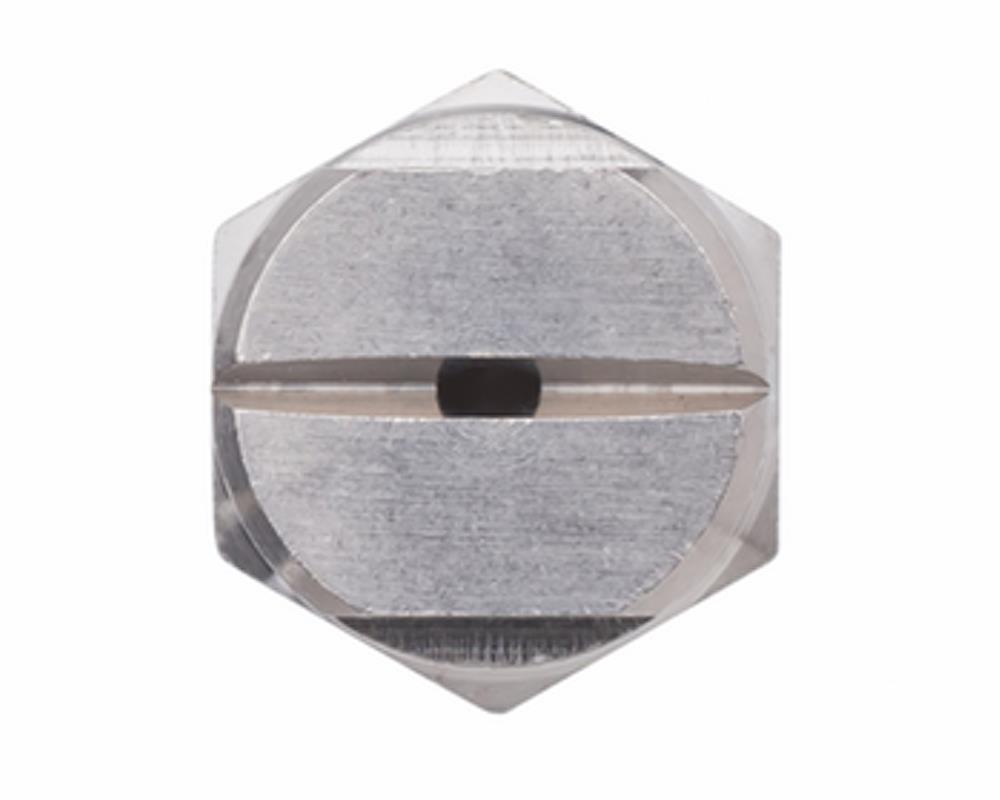

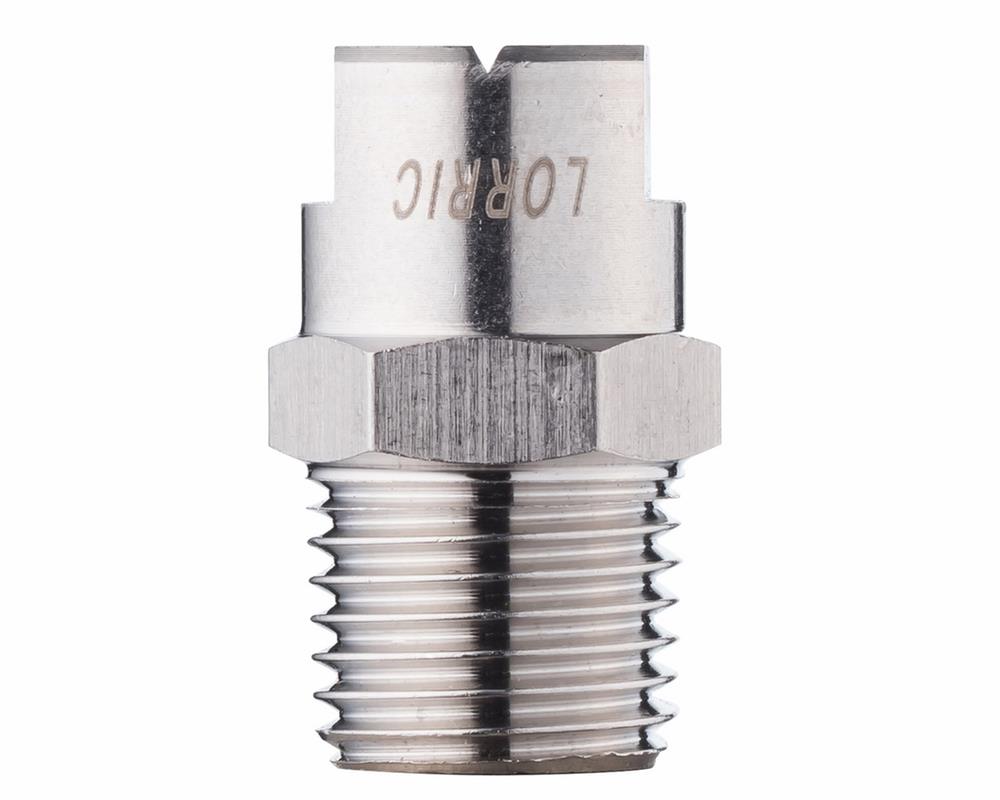

AH Stainless Steel Water Flat Fan Spray Nozzle

Stainless steel single-fluid single-piece fan-shaped nozzle, widely used in PCB, steel industry, and applicable in various fields and applications such as cleaning, cooling, and dispersion.

Brand: LORRIC
Nozzle Type: Fan-shaped
Fluid: Single-fluid
Materials: SS303, SS316, Brass, HSS, PP
Thread Standard: BSPT
Thread Size: 1/8", 1/4", 3/8"

Catalogue

Dapatkan Penawaran Sekarang

About flat fan nozzles

Spray type and pattern

Spray type and pattern

Spray type: fan, single-line shape with tapered sides. Nozzle forms bell curve flow, stronger center.

Flow distribution

Flow distribution

The nozzle presents a bell curve shape flow field distribution with weaker ends compared to the middle.

Single-piece design

Single-piece design

This nozzle attaches to pipelines directly. Usage time and environment impact spray performance (flow and angle). Regular maintenance or replacement needed. For tougher conditions, we have a quick-release multi-piece nozzle for easy replacement, saving time and effort.

Material Options

  • AISI303
  • AISI316
  • BRASS
  • HSS
  • PP
Material Options
Providing 0°~110° angle spray

Providing 0°~110° angle spray

Fan nozzle angle can be 0°~110°, 0° spray angle spray type is straight column, spray Fog shape is a single point, providing the best impact in all nozzle types.

Able to be used under high pressure

When the fan nozzle is used in a high pressure environment, choose HSS material (hardened stainless steel Steel), which can operate under 200Kg/cm² pressure.


Able to be used under high pressure

About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.

    • Choose the nozzle diameter (thread size) and specifications that meet your requirements.
    • Choose the spray flow rate for each nozzle, please refer to the chart below.
    • Select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

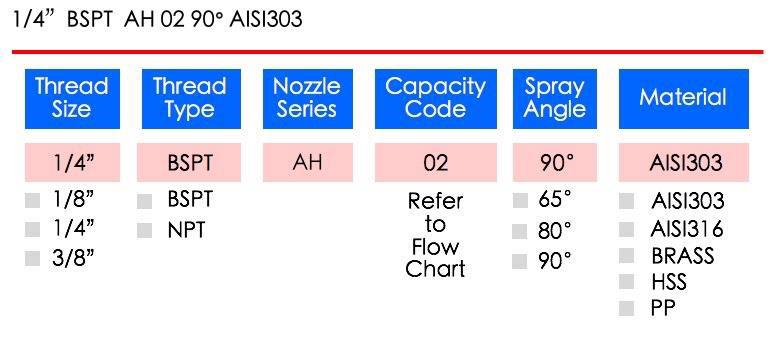

    • Example specification: 1/4” BSPT AH 02 90° AISI303. Each number corresponds to the following options and meanings.
Select
Unit
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.5
kgf/cm² 		1.0
kgf/cm² 		2.0
kgf/cm² 		3.0
kgf/cm² 		4.0
kgf/cm² 		6.0
kgf/cm² 		8.0
kgf/cm² 		10.0
kgf/cm² 		15.0
kgf/cm²
65° 01 V
 V
0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
65° 02 V
 V
0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
65° 2.5 V
 V
0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
65° 03 V
 V
0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
65° 04 V
 V
0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
65° 05 V
 V
0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
65° 06 V
 V
0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
65° 07 V V
1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
65° 7.5 V V
1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
65° 08 V V
1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
65° 09 V V
1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
65° 10 V V
1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
65° 12.5 V V
2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
65° 15 V V
2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
65° 20 V V
3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
65° 25
V
3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
65° 30
V V
 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
65° 35
V V
 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
65° 40
V V
 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
65° 50
V V
 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
65° 60

V
 9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
65° 80

V
 12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
65° 100

V
 15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
80° 01 V
 V
0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
80° 02 V
 V
0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
80° 2.5 V
 V
0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
80° 03 V
 V
0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
80° 04 V
 V
0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
80° 05 V
 V
0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
80° 06 V
 V
0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
80° 07 V V
1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
80° 7.5 V V
1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
80° 08 V V
1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
80° 09 V V
1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
80° 10 V V
1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
80° 12.5 V V
2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
80° 15 V V
2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
80° 20 V V
3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
80° 25
V
3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
80° 30
V V
 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
80° 35
V V
 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
80° 40
V V
 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
80° 50
V V
 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
80° 60

V
 9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
80° 80

V
 12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
80° 100

V
 15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
90° 01 V
 V
0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
90° 02 V
 V
0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
90° 2.5 V
 V
0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
90° 03 V
 V
0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
90° 04 V
 V
0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
90° 05 V
 V
0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
90° 06 V
 V
0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
90° 07 V V
1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
90° 7.5 V V
1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
90° 08 V V
1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
90° 09 V V
1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
90° 10 V V
1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
90° 12.5 V V
2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
90° 15 V V
2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
90° 20 V V
3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
90° 25
V
3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
90° 30
V V
 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
90° 35
V V
 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
90° 40
V V
 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
90° 50
V V
 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
90° 60

V
 9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
90° 80

V
 12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
90° 100

V
 15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.05
MPa 		0.1
MPa 		0.2
MPa 		0.3
MPa 		0.4
MPa
 0.6
MPa 		0.8
MPa 		1.0
MPa 		1.5
MPa
65° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 V
 V
0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
65° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 V V
3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
65° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
65° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
65° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
65° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
65° 60

V
 9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
65° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
65° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
80° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 V
 V
0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
80° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 V V
3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
80° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
80° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
80° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
80° 60

V
 9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
80° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
80° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
90° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 V
 V
0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
90° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 V V
3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
90° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
90° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
90° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
90° 60

V
 9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
90° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
90° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.5
bar
 1.0
bar 		2.0
bar 		3.0
bar 		4.0
bar 		6.0
bar 		8.0
bar 		10.0
bar 		15.0
bar
65° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 V
 V
0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
65° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 V V
3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
65° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
65° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
65° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
65° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
65° 60

V
 9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
65° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
65° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
80° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 V
 V
0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
80° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 V V
3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
80° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
80° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
80° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
80° 60

V
 9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
80° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
80° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
90° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 V
 V
0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
90° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
90° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 V V
3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
90° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
90° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
90° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
90° 60

V
 9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
90° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
90° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 7
psi 		10
psi 		28
psi 		40
psi 		60
psi 		80
psi 		100
psi 		150
psi 		200
psi
65° 01 V
 V
0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
65° 02 V
 V
0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
65° 2.5 V
 V
0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
65° 03 V
 V
0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
65° 04 V
 V
0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
65° 05 V
 V
0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
65° 06 V
 V
0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
65° 07 V V
0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
65° 7.5 V V
0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
65° 08 V V
0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
65° 09 V V
0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
65° 10 V V
0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
65° 12.5 V V
0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
65° 15 V V
0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
65° 20 V V
0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
65° 25
V
1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
65° 30
V V
 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
65° 35
V V
 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
65° 40
V V
 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
65° 50
V V
 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
65° 60

V
 2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
65° 80

V
 3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
65° 100

V
 4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
80° 01 V
 V
0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
80° 02 V
 V
0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
80° 2.5 V
 V
0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
80° 03 V
 V
0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
80° 04 V
 V
0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
80° 05 V
 V
0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
80° 06 V
 V
0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
80° 07 V V
0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
80° 7.5 V V
0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
80° 08 V
 V
0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
80° 09 V V
0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
80° 10 V V
0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
80° 12.5 V V
0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
80° 15 V V
0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
80° 20 V V
0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
80° 25 V
 V
1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
80° 30
V V
 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
80° 35
V V
 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
80° 40
V V
 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
80° 50
V V
 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
80° 60

V
 2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
80° 80

V
 3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
80° 100

V
 4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
90° 01 V
 V
0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
90° 02 V
 V
0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
90° 2.5 V
 V
0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
90° 03 V
 V
0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
90° 04 V
 V
0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
90° 05 V
 V
0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
90° 06 V
 V
0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
90° 07 V V
0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
90° 7.5 V V
0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
90° 08 V V
0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
90° 09 V V
0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
90° 10 V V
0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
90° 12.5 V V
0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
90° 15 V V
0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
90° 20 V V
0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
90° 25
V
1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
90° 30
V V
 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
90° 35
V V
 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
90° 40
V V
 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
90° 50
V V
 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
90° 60

V
 2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
90° 80

V
 3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
90° 100

V
 4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36

* Standard Pressure: Column in red.
* This product for spray angle 0°, 15°, 25°, 40°, 50°, 100° and 110° is able to be made to order.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
* Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

PCB

PCB

Flow meter dalam proses elektroplating, pengembangan, dan etsa PCB memonitor aliran cairan kimia dan pembersih yang tepat; nozel mengontrol pelapisan kimia dan pembilasan

Industri Baja

Industri Baja

Flowmeter memantau aliran air dan gas untuk efisiensi optimal, sedangkan nozzle mengontrol penyemprotan cairan kimia untuk kualitas lapisan yang merata.

Cuci Mobil

Cuci Mobil

Flowmeter memastikan efisiensi pembersihan dan mengurangi pemborosan air; nozzle mendistribusikan air secara merata, meningkatkan efek pembersihan sekaligus mengurangi konsumsi air

  • Cleaning: Containers, filters, dust, gravel, metal parts, machinery, steel plates, various containers, high-pressure cleaning, circuit board film peeling processes, machine tool cleaning, etc.
  • Cooling: Gases, tanks, mechanical devices, roofs, etc.
  • Dispersion: Wetting, chemical substances (etching solutions, lubricants, insecticides, etc.), water curtains (fire prevention, dust control, odor control, etc.).

Size

Material Tread(BSPT) Size(mm) Weight(g)
A B C SS303 SS316 Brass HSS PP
Metal 1/8"male thread 12 12 19 10.2 - - - -
1/4"male thread 14 15 26 20 21 5.4 5.4 -
3/8"male thread 18 15 30 - - - - -
Plastic 1/8"male thread 11.8 10.3 19 - - - - -
1/4"male thread  13.7 13.7
 25
 - - - - -

Thread installation

Easy installing with 2 simple steps!

Step 1
Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2
Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3
Step 3

Complete the installation.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.



Working Process and matters need attention of Nozzle Customization



Working Process and matters need attention of Nozzle Customization
Anda Mungkin Juga Tertarik
ANH Stainless Steel Water Flat Fan Spray Nozzle ANH Stainless Steel Water Flat Fan Spray Nozzle
H-Nozzle Spray Flat Fan Stainless Steel Metal H-Nozzle Spray Flat Fan Stainless Steel Metal
FU-ES EchoSense Clamp on Ultrasonic Flow Meter FU-ES EchoSense Clamp on Ultrasonic Flow Meter
Artikel Terkait
Why LORRIC Nozzles Outperform Generic Brands: A Detailed Comparison Why LORRIC Nozzles Outperform Generic Brands: A Detailed Comparison
Bagaimana cara menghitung Bagaimana cara menghitung "sudut semprotan" dan "area cakupan semprotan"?
The Seven Cornerstones for Choosing the Correct Nozzle The Seven Cornerstones for Choosing the Correct Nozzle
Dapatkan Penawaran Sekarang
