Taiwan-made plastic solid cone nozzle, available in KD (X-shaped core) and KDMF (multi-slotted core) versions. This two-piece PVDF nozzle, designed for tubing installation, is easy to maintain and cost-effective, delivering impactful spray. Commonly used in PCB etching, developing, and cleaning processes.
Catalogue
KD adopts an X-shaped core, increasing the passage diameter of foreign objects and reduce blockage. It is often used in etching and developing processes for semiconductors and printed circuit boards that require extremely high spray uniformity.
KDMF adopts a holeless multi-slotted core, possessing a more uniform impact than other standard solid cone nozzles of the same type. It is often used in semiconductor and printed circuit board etching and developing processes where spraying uniformity is extremely demanding.
Single-fluid nozzles produce a conical spray shape, known as solid cone nozzles, resulting in a circular pattern.
The Full Cone Spray Nozzle has maximum spray volume in the center, decreasing towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform spraying, install nozzles closer together to overlap coverage areas and improve uniformity.distribution.

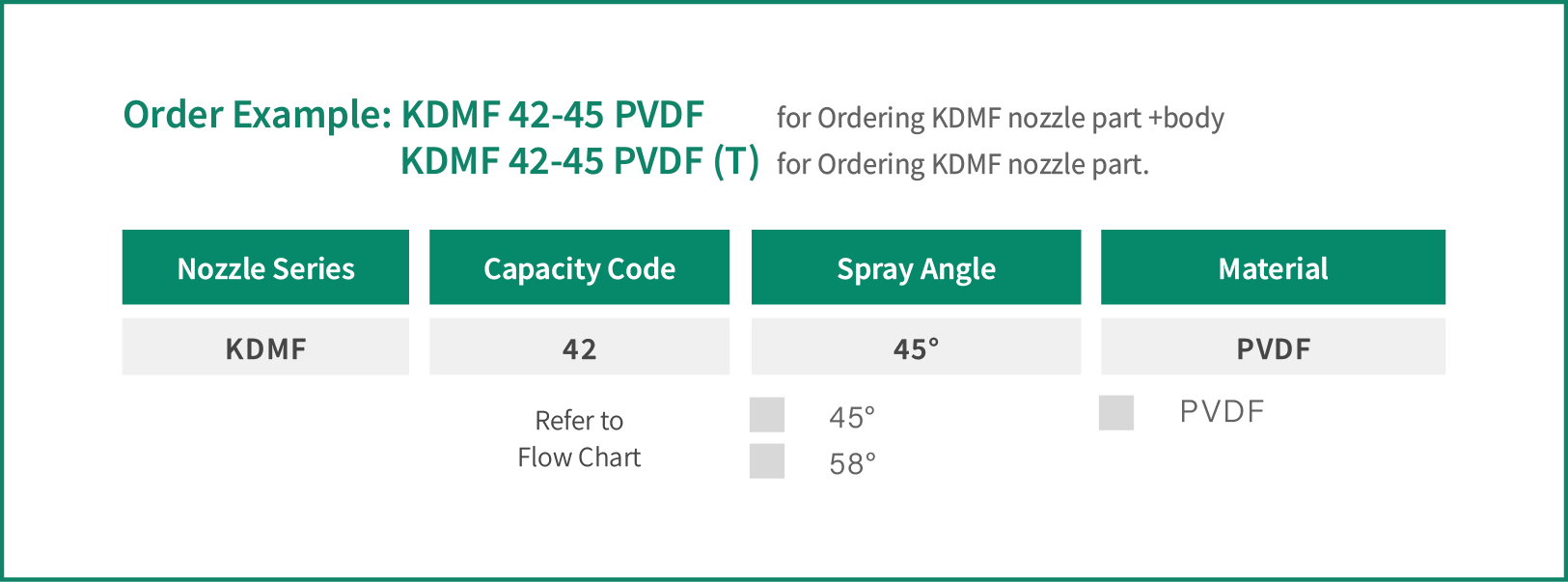

The fan spray nozzle offers a range of flow rates. At a standard design pressure of 2 Kg/cm², the KDMF provides flow rates from 4.2 Lpm to 6.5 Lpm, while the KD offers a 5.3 Lpm flow rate. For other flow rate requirements, please refer to the specification sheet or contact us directly.
Two piece nozzle design which includes nozzle and the body allows quick and accurate installation by hand. No rubber Orings are used, and there is no problem of Oring aging, which can extend the service life.
The flow tolerance is within a range of plus or minus 5% of the standard flow rate.
Angle tolerance is within a range of plus or minus 5% of the standard angle.
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
We promise never to use recycled materials.
All material is purchased from world top providers.
Flow meters in PCB electroplating, developing, and etching processes monitor precise chemical and cleaning fluid flow; nozzles control chemical coating and rinsing
With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!
LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.
Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.
It is the angle by orifice and the loop of gas or liquid sprayed out.
The distribution of particle on surface by sprayed up liquid.
Testing in extreme environments demands data to aid nozzle development.
