The simple clamp design allows for tool-free nut removal. Just drill a hole in the water pipe, and the nozzle can be securely attached without any additional tools.

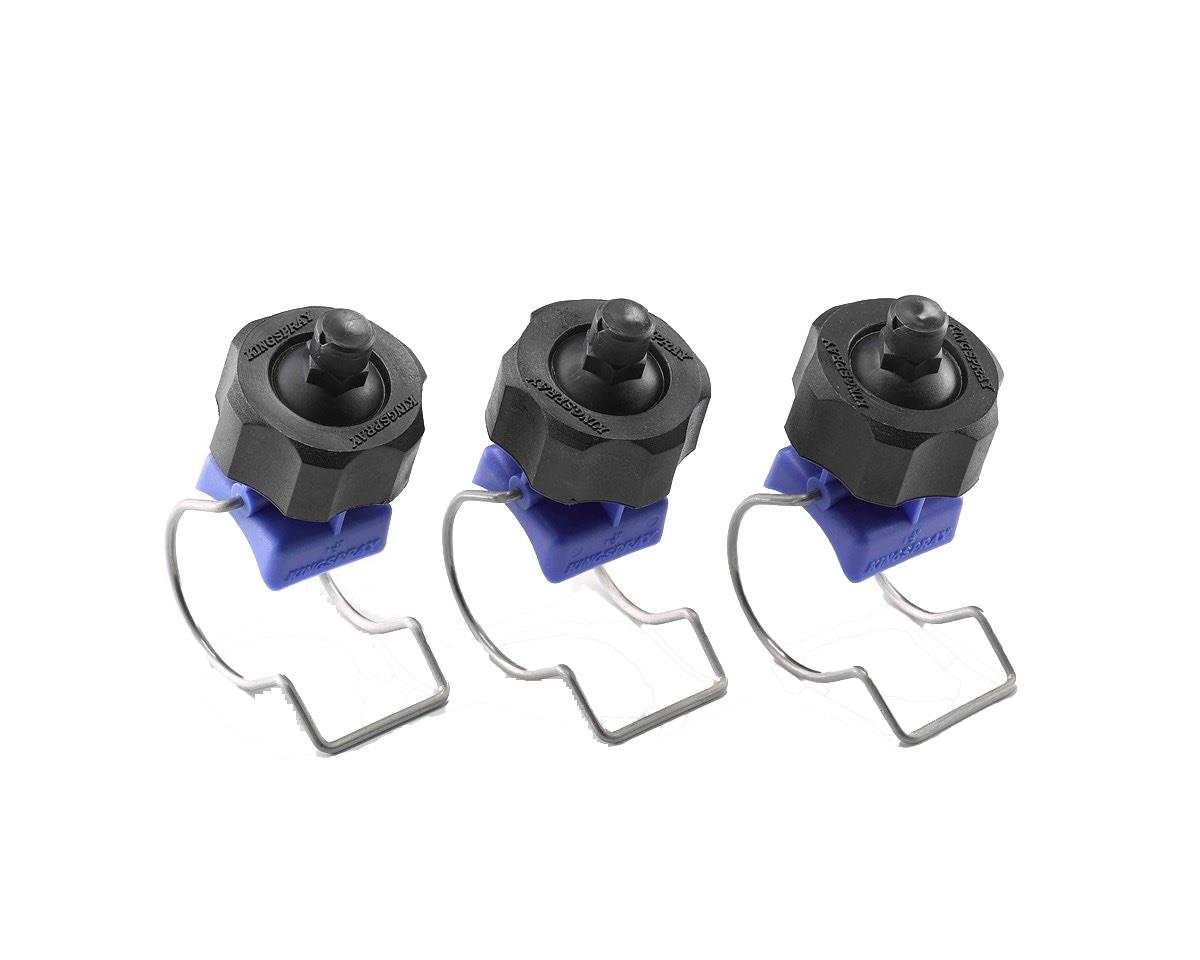

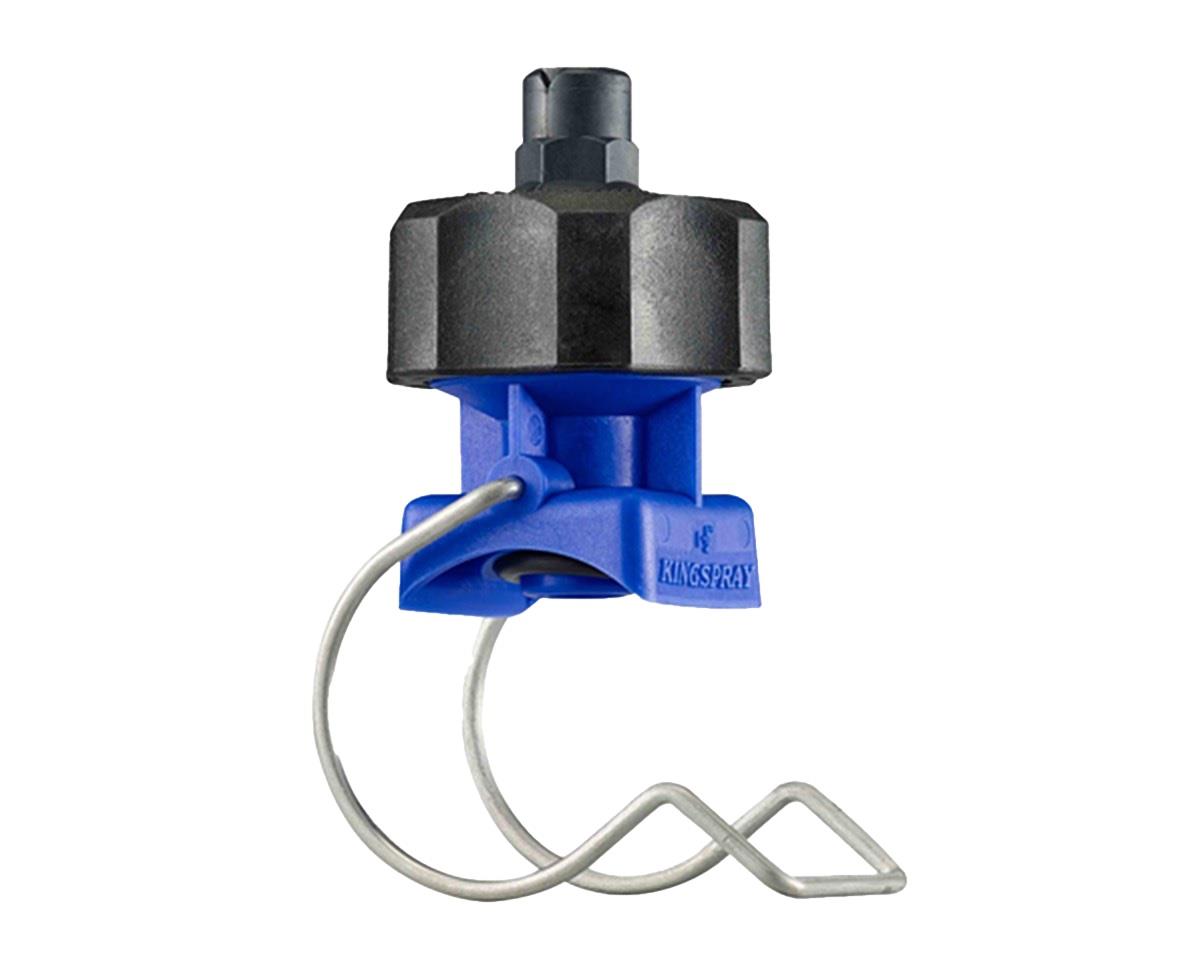

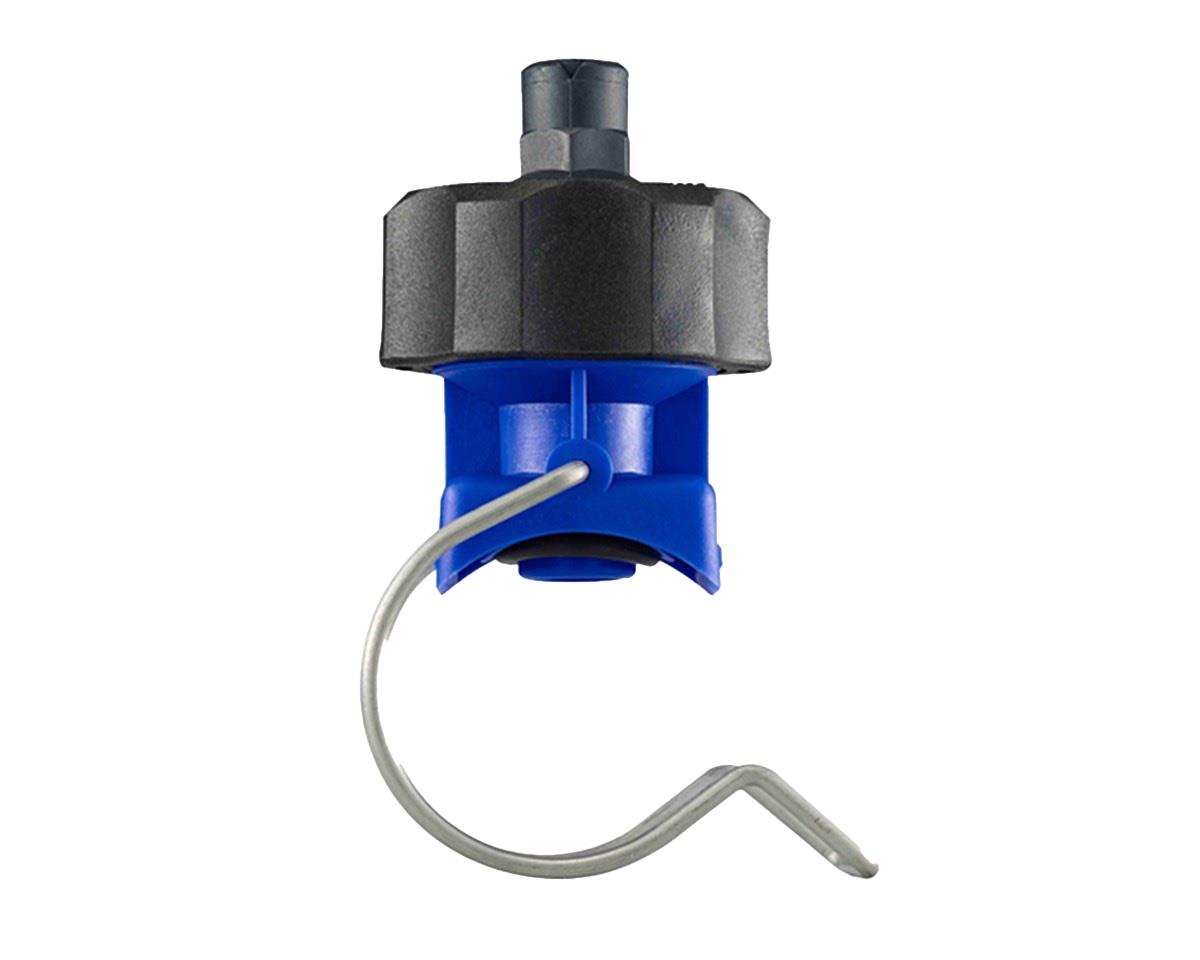

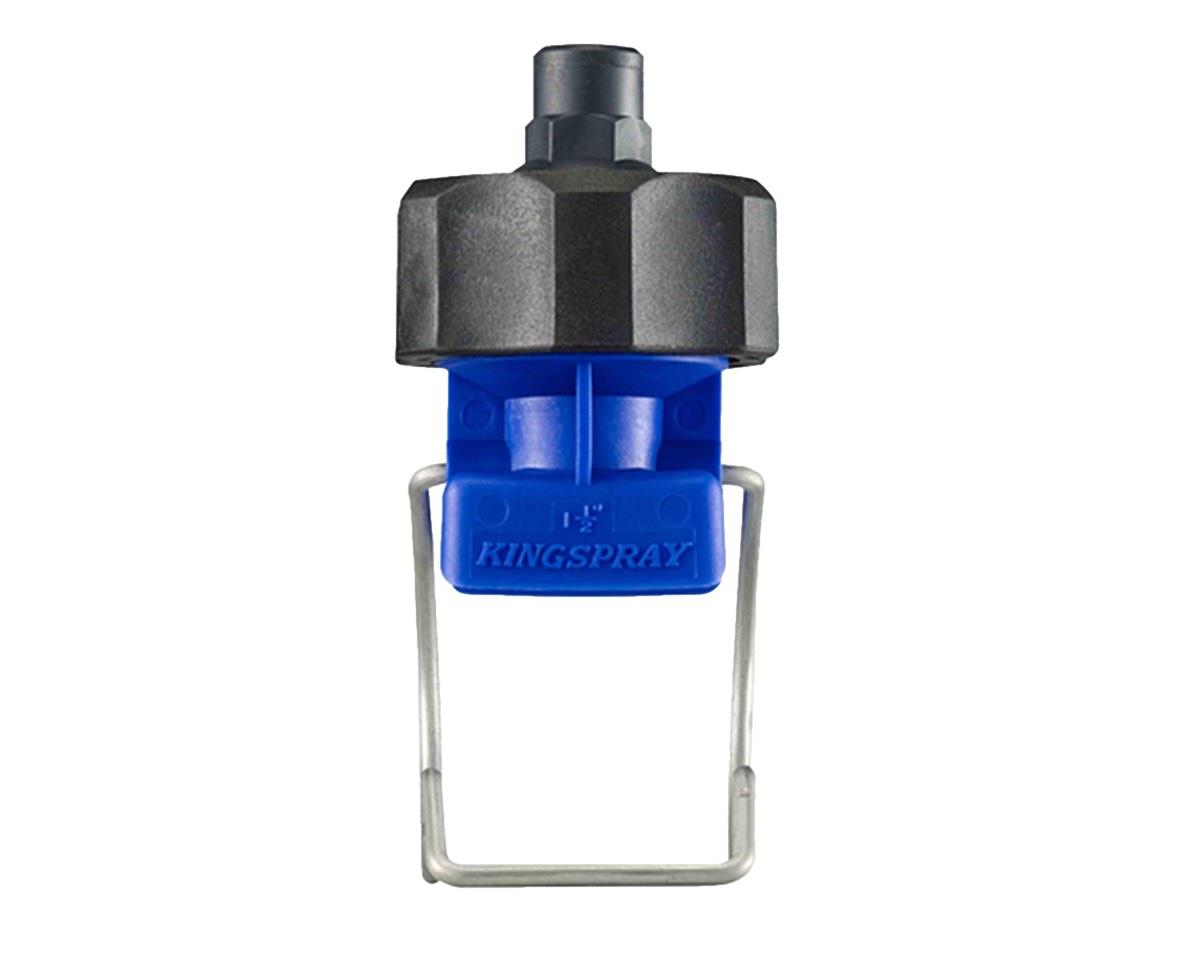

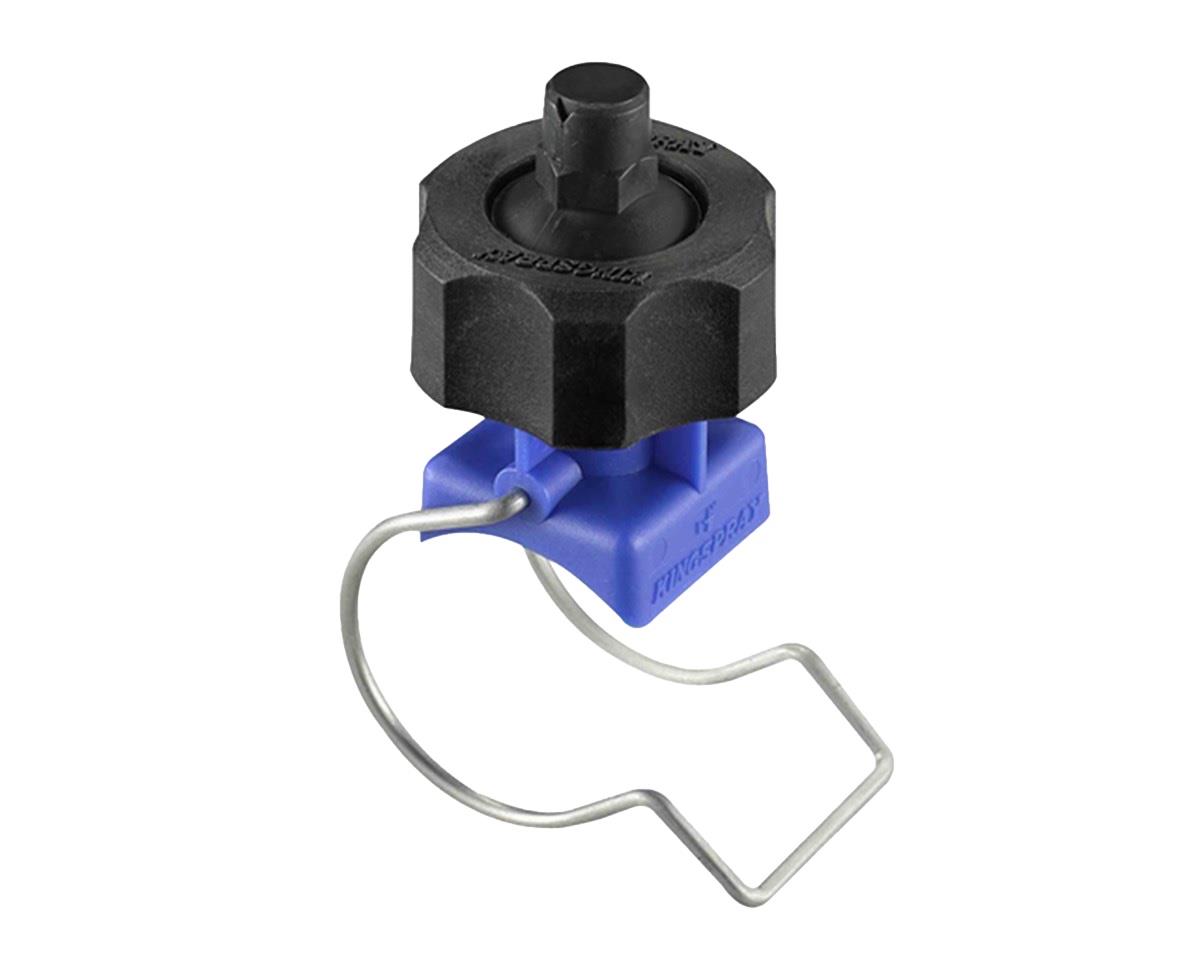

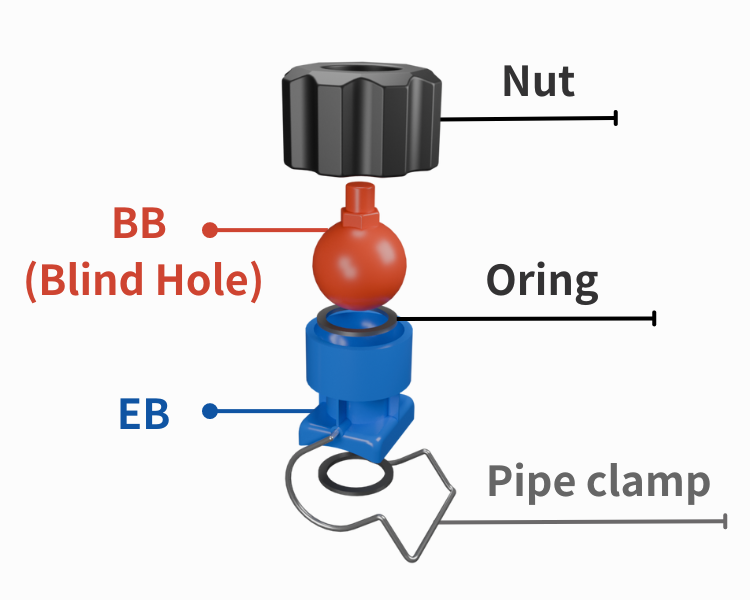

EB series are three-piece clamp-type nozzles, designed for easy assembly and maintenance.

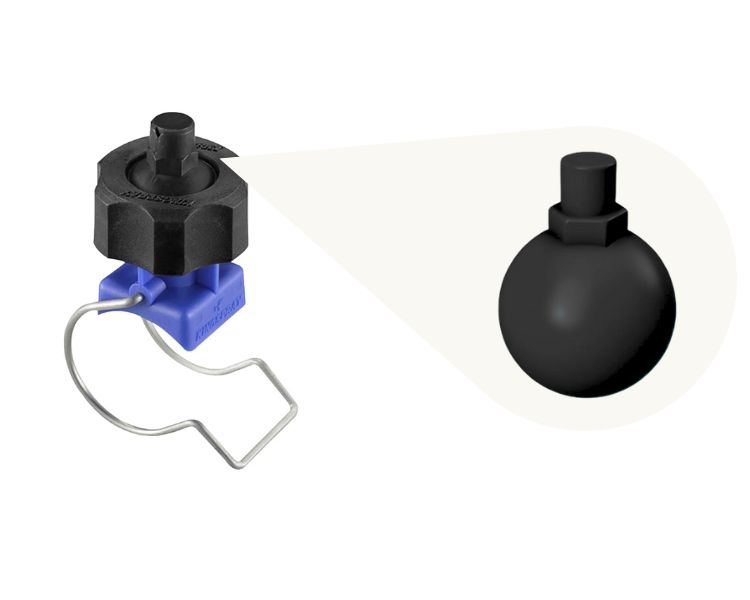

The blind hole design is used to seal the pipe end and prevent any liquid from spraying out. If you need spray nozzles, please refer to EB+HB or EB+TB+Nozzles.
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
We promise never to use recycled materials.
All material is purchased from world top providers.
Pipe Sizes： 1"（OD34 +/-0.3mm） 1-1/4"（OD42+/-0.3mm） 1-1/2"（OD48 +/-0.4mm）
Drilling Specifications： Ø 15 (14.3~15m/m) Ø 17 (16.4~17m/m) Ø 20 (19.0~20m/m)
เครื่องวัดการไหลช่วยควบคุมสัดส่วนสีและตัวทำละลายให้แม่นยำ เพื่อคุณภาพและความเป็นมิตรต่อสิ่งแวดล้อม ขณะที่หัวฉีดช่วยควบคุมส่วนผสมให้ได้คุณภาพและปฏิบัติตามมาตรฐานสิ่งแวดล้อม
Easy installing with 6 simple steps !
Drill a installation hole in the pipe which match the size of the EB installation hole
Aim and snap on the installation hole of the EB clamp at the pipe installation hole
Fasten with the pipe clamp
Release the union nut to adjust angle of the TB ball
Confirm the spray direction
Tighten the union and finished
With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!
LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.
Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.
It is the angle by orifice and the loop of gas or liquid sprayed out.
The distribution of particle on surface by sprayed up liquid.
Testing in extreme environments demands data to aid nozzle development.
