KAD High Quality Stainless Steel Flat Fan Spray Nozzle

Name: KAD High Quality Stainless Steel Flat Fan Spray Nozzle
Brand: LORRIC
Price: Please inquire

Stainless steel single-fluid fan-shaped nozzle, featuring a multi-part structure for easy maintenance, cleaning, and replacement. Widely used in PCB and steel industries.

Brand: LORRIC
Nozzle Type: Fan-shaped
Fluid Type: Single-fluid
Materials: SS303, SS316, Brass

File download

Catalogue

Inquire now

About flat fan nozzles

Spray type and pattern

Spray type: fan, single-line shape with tapered sides. Nozzle forms bell curve flow, stronger center.

Flow distribution

The nozzle presents a bell curve shape flow field distribution with weaker ends compared to the middle.

Three-piece structure designed

Three-piece structure facilitates maintenance cleaning and replacement, and can save the cost of replacing the nozzle head. The base must be connected to the pipeline by welding. Please confirm that the installation environment meets the requirements.

Material Options

SS303
SS316
BRASS

About engineering tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic

We promise never to use recycled materials.

High Quality

All material is purchased from world top providers.

Please place your order according below information.

Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
- Choose the nozzle diameter (thread size) and specifications that meet your requirements.
- Choose the spray flow rate for each nozzle, please refer to the chart below.
- Select the spray angle for each nozzle, please refer to the chart below.
- Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

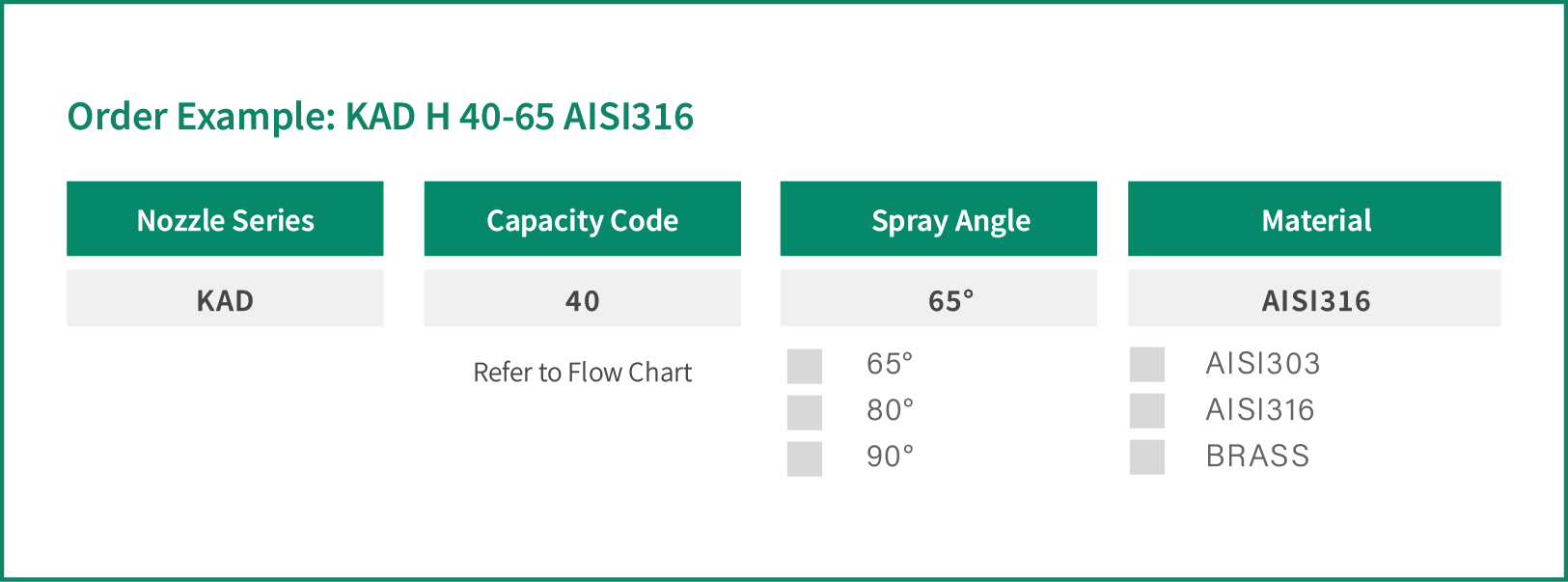

Example specification: KAD 40 65 AISI316. Each number corresponds to the following options and meanings.

Select
Unit

Spray Angle	Capacity Code	Capacity at Pressure
Spray Angle	Capacity Code	0.7 kgf/cm²	1.0 kgf/cm²	1.5 kgf/cm²	2.0 kgf/cm²	3.0 kgf/cm²	4.0 kgf/cm²	5.0 kgf/cm²	6.0 kgf/cm²	8.0 kgf/cm²
65°	40	7.55	9.03	11.06	12.77	15.64	18.06	20.19	22.12	25.54
50°	50	9.44	11.29	13.82	15.96	19.55	22.57	25.24	27.65	31.93

Spray Angle	Capacity Code	Capacity at Pressure
Spray Angle	Capacity Code	0.07 MPa	0.1 MPa	0.15 MPa	0.2 MPa	0.3 MPa	0.4 MPa	0.5 MPa	0.6 MPa	0.8 MPa
65°	40	7.63	9.12	11.17	12.90	15.79	18.24	20.39	22.34	25.79
50°	50	9.54	11.40	13.96	16.12	19.74	22.80	25.49	27.92	32.24

Spray Angle	Capacity Code	Capacity at Pressure
Spray Angle	Capacity Code	0.7 bar	1 bar	1.5 bar	2.0 bar	3.0 bar	4.0 bar	5.0 bar	6.0 bar	8.0 bar
65°	40	7.63	9.12	11.17	12.90	15.79	18.24	20.39	22.34	25.79
50°	50	9.54	11.40	13.96	16.12	19.74	22.80	25.49	27.92	32.24

Spray Angle	Capacity Code	Capacity at Pressure
Spray Angle	Capacity Code	10 psi	15 psi	20 psi	28 psi	40 psi	60 psi	70 psi	80 psi	90 psi
65°	40	2.00	2.45	2.83	3.35	4.00	4.90	5.29	5.66	6.00
50°	50	2.50	3.06	3.54	4.18	5.00	6.12	6.61	7.07	7.50

* Standard Pressure: Column in red.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
* Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

PCBs

Flow meters in PCB electroplating, developing, and etching processes monitor precise chemical and cleaning fluid flow; nozzles control chemical coating and rinsing

Car Wash

Flow meters ensure cleaning efficiency and reduce water wastage; nozzles uniformly distribute water, enhancing the cleaning effect while simultaneously reducing water consumption

Steel Industries

Flow meters monitor cooling water and gas flow, ensuring accuracy and optimal efficiency; nozzles precisely control chemical liquid spraying, making even coating and stable quality

Cleaning: Containers, filters, dust, gravel, metal parts, machinery, steel plates, various containers, high-pressure cleaning, circuit board film-stripping processes, machine tool cleaning, and more.
Cooling: Gas, tanks, mechanical devices, rooftops, and others.
Dispersion: Wetting, chemical substances (etching solutions, lubricants, insect repellents, etc.), water curtains (fire prevention, dust control, odor control, etc.).

Size

Size(mm)			Weight(g)
A	B	C	SS303	SS316	Brass
32	37.6	27.5	162	165	180

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.
