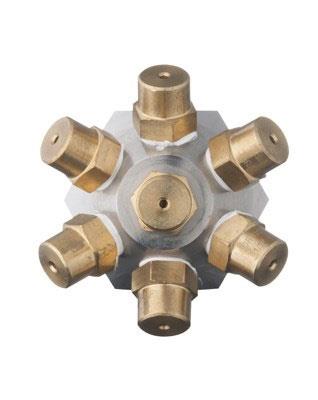

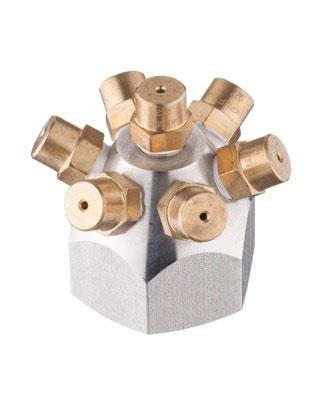

7-Head Adapter for Cassette

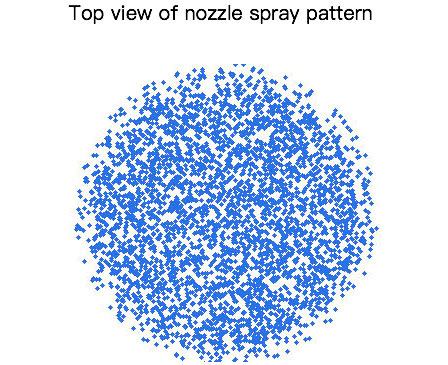

Seven 1/8" nozzles can be mounted on the seven-hole base, providing uniform cleaning over a large area and wide angle when used with solid cone single-fluid nozzles. The seven-hole base does not include nozzles.

Brand: LORRIC
Body Material: 316SUS
Thread Size: 1/8"
Base Thread Size: 3/4"


The seven-hole seat base has internal threads with a size of 3/4", while the nozzle interface has internal threads with a size of 1/8". You can install a 1/8" solid cone nozzle onto the seven-hole base to ensure even cleaning over a large area and at a wide angle.

Material Options

AISI 316

Material Options

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Applications

Semiconductor

Semiconductor

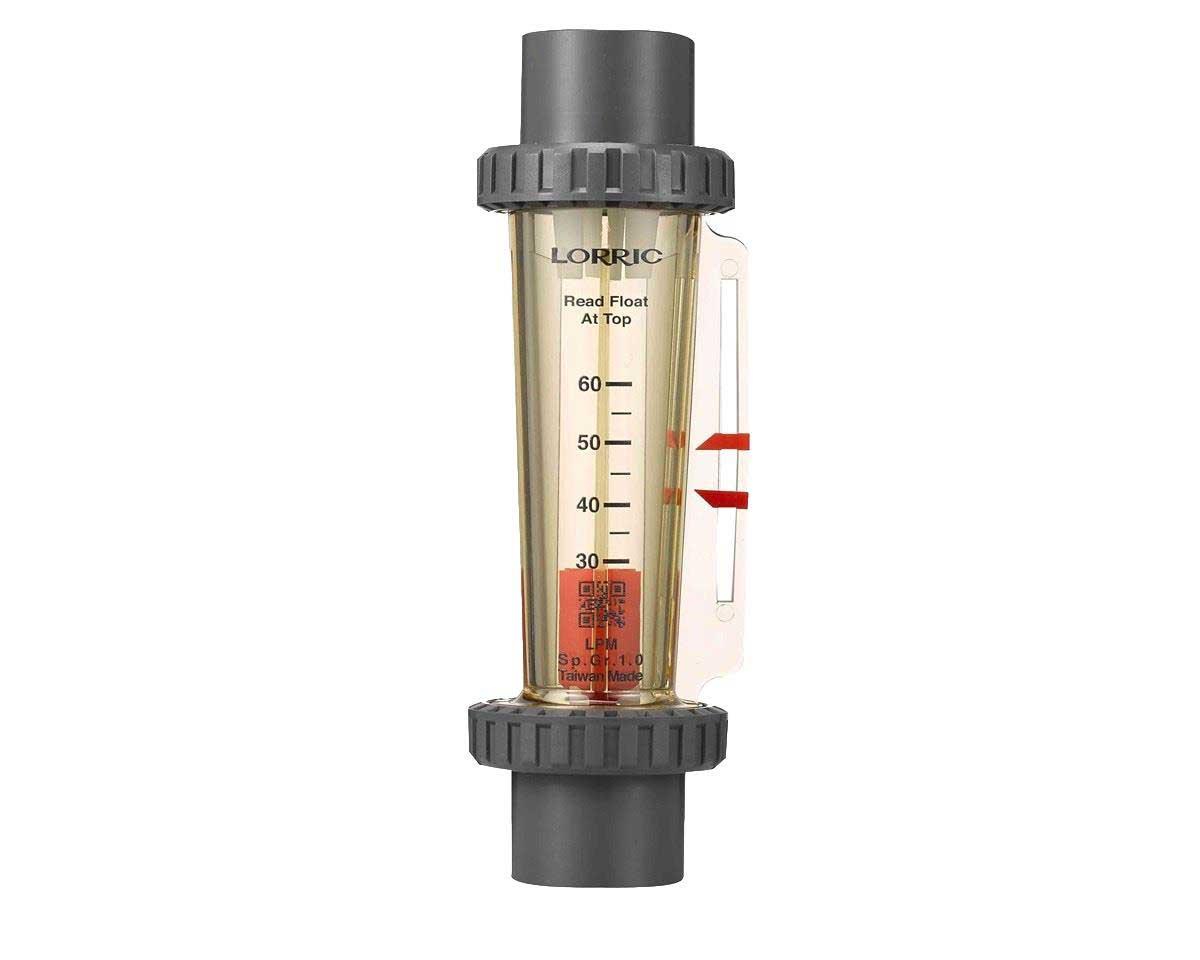

Flow meters monitor chemical liquids and pure water treatment fluids supply; nozzles control the spraying of chemical liquids to ensure process purity and stability.

Others

  • Cleaning: Container, filter screens, oil storage tanks, machinery, metal components, steel plates, machine tool cleaning, and more.

Size

Material Thread(BSPT) Size(mm)  Angle Weight(g)
Metal Base : 3/4"
 Nozzles : 1/8"
  B  166
  38   38    60°
Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

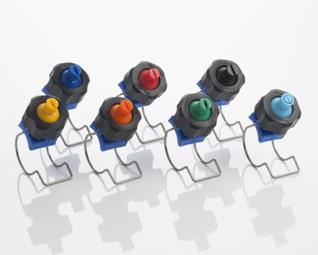

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

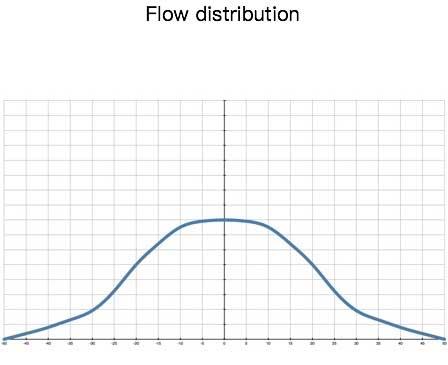

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.



Working Process and matters need attention of Nozzle Customization



Working Process and matters need attention of Nozzle Customization
