PT High-Flow Fine Droplet Hollow Cone Nozzle

Glass Fiber-Reinforced PP (FRPP) Single-Fluid Hollow Conical Nozzle is designed with fine spray particle size, making it suitable for low-pressure applications and resistant to clogging. It is commonly used in applications such as Waste gas cleaning, gas dispersion, mechanical cooling, and gas-liquid cooling.

Brand：	LORRIC
Nozzle Type：	Hollow Cone
Fluid Type：	Single-fluid
Materials：	Glass Fiber-Reinforced PP (FRPP)
Thread Standards：	NPT
Thread Sizes：	1-1/2"

File download

Inquire now

Hollow Cone Nozzles

The liquid forms a vortex inside the nozzle's cavity, creating a hollow cone spray through the curved opening. Commonly used in scrubbers, cooling, dust suppression, and humidification, hollow cone nozzles have large channels that prevent clogging and produce fine atomized spray.

Hollow Cone Nozzle Spray Pattern

A single-fluid nozzle, known as a hollow cone nozzle, produces a spray pattern shaped like a hollow cone. The coverage pattern, when viewed from above, forms a hollow circular shape on the target surface.

Donut-shaped Flow Distribution

The flow distribution of a hollow cone nozzle features a donut-shaped pattern, with stronger flow at the edges and weaker flow in the center.

Small spray particle size

This PT high-flow hollow cone nozzle is suitable for applications requiring extremely fine spray droplets, especially for coating uniformity and gas scrubbing.

Material Option

Fiber-Reinforced Plastic (FRPP)

Right-angle design

Clog-resistant performance with right-angle design; it can be used at low pressure.

Two-piece design

Two-pieces nozzle design allows quick and easy to maintain.

Material Guarantees

Metal

We take high-quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic

We promise never to use recycled materials.

High Quality

All material is purchased from world's top providers.

Please place your order according below information.

Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
- To choose the spray flow rate for each nozzle, please refer to the chart below.
- To select the spray angle for each nozzle, please refer to the chart below.
- Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

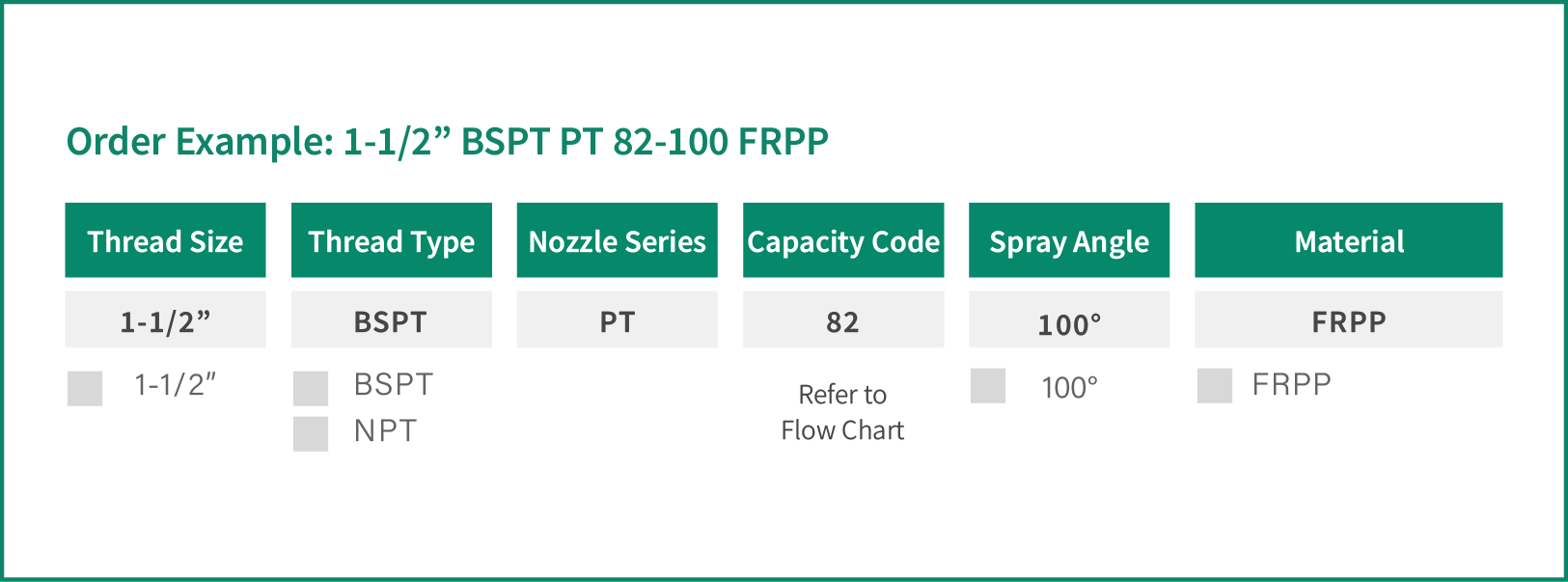

Specification example: 1-1/2” BSPT PT 82-100° FRPP. Each number corresponds to the following options and meanings.

Select
Unit

Spray Angle	Capacity Code	Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	0.05 kgf/cm²	0.1 kgf/cm²	0.2 kgf/cm²	0.2 kgf/cm²	0.3 kgf/cm²	0.5 kgf/cm²	0.6 kgf/cm²	0.7 kgf/cm²	1 kgf/cm²
100	82	57.98	82	115.97	142.03	164	183.36	200.86	216.95	259.31

Spray Angle	Capacity Code	Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	0.005 MPa	0.01 MPa	0.02 MPa	0.03 MPa	0.04 MPa	0.05 MPa	0.06 MPa	0.07 MPa	0.1 MPa
100	82	58.55	82.80	117.10	143.42	165.61	185.16	202.83	219.08	261.85

Spray Angle	Capacity Code	Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	0.05 bar	0.1 bar	0.2 bar	0.3 bar	0.4 bar	0.5 bar	0.6 bar	0.7 bar	1 bar
100	82	58.55	82.80	117.10	143.42	165.61	185.16	202.83	219.08	261.85

Spray Angle	Capacity Code	Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	0.7 psi	1 psi	1.5 psi	3 psi	5 psi	7 psi	10 psi	15 psi	20 psi
100	82	15.20	18.16	22.25	31.46	40.61	48.06	57.44	70.35	81.23

* Standard Pressure: Column in red.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
* Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Size

Thread(BSPT)	Size(mm)
Thread(BSPT)	A	B	C	D
1/8"Male	89	147	117	118

Thread installation

Easy installing with 2 simple steps!

Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3

Complete the installation.

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.

Working Process and matters need attention of Nozzle Customization

We provide custom nozzle services according to standard operating procedures.
Please note
- There are minimum quantity requirements
- There are exclusive sales channels must be mutually agreed upon
