VH Chemical-Resistant PVDF Fan Nozzle

PVDF single-piece single-fluid fan nozzle. PVDF offers excellent chemical resistance, high hardness, and long lifespan. It's widely used in the PCB and steel industries and suitable for cleaning, cooling, and dispersion applications

Brand： LORRIC
Nozzle Type： Fan-shaped
Fluid Type： Single-fluid
Materials： PVDF
Thread Standards： BSPT
Thread Sizes： 1/8", 1/4"

Catalogue

Inquire now

What is Flat Fan Nozzle

  • Operating Principle: Liquid is pressurized through an elliptical nozzle, creating a fan-shaped spray with a strong center and weaker edges.
  • Applications: Commonly used in industries like semiconductor manufacturing, PCB production, car washing for spraying, cooling, and high-pressure cleaning.
  • Advantages: High efficiency, precise control, strong impact.
  • Disadvantages: Prone to clogging, limited flow rate, fixed spray angle, less flexibility.

About flat fan nozzles

Spray Type and Patterns

Spray Type and Patterns

Fan, single-line shape with tapered sides. Nozzle forms bell curve flow, stronger center.

Flow Distribution

Flow Distribution

The nozzle presents a bell curve shape flow field distribution with weaker ends compared to the middle.

Multiple Flow Rates Available

Multiple Flow Rates Available

The fan spray nozzle offers a wide range of flow rates. For example, at a standard design pressure of 3 Kg/cm², the flow rates range from 0.39 Lpm to 39.1 Lpm. (For other flow rate requirements, please refer to the specification sheet or contact us directly.)

Offers 0° to 110° Spray Angles

The fan spray nozzle provides various angle options, with 0° producing a straight jet for maximum impact, and 110° offering the widest coverage. For specific inventory details, please contact us.

Offers 0° to 110° Spray Angles
Single-piece design

Single-piece design

This nozzle attaches to pipelines directly. Usage time and environment impact spray performance (flow and angle). Regular maintenance or replacement needed. For tougher conditions, we have a quick-release multi-piece nozzle for easy replacement, saving time and effort.

Material Options

Material Options

About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below information.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • Choose the nozzle diameter (thread size) and specifications that meet your requirements.
    • Choose the spray flow rate for each nozzle, please refer to the chart below.
    • Select the spray angle for each nozzle, please refer to the chart below.
    • Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

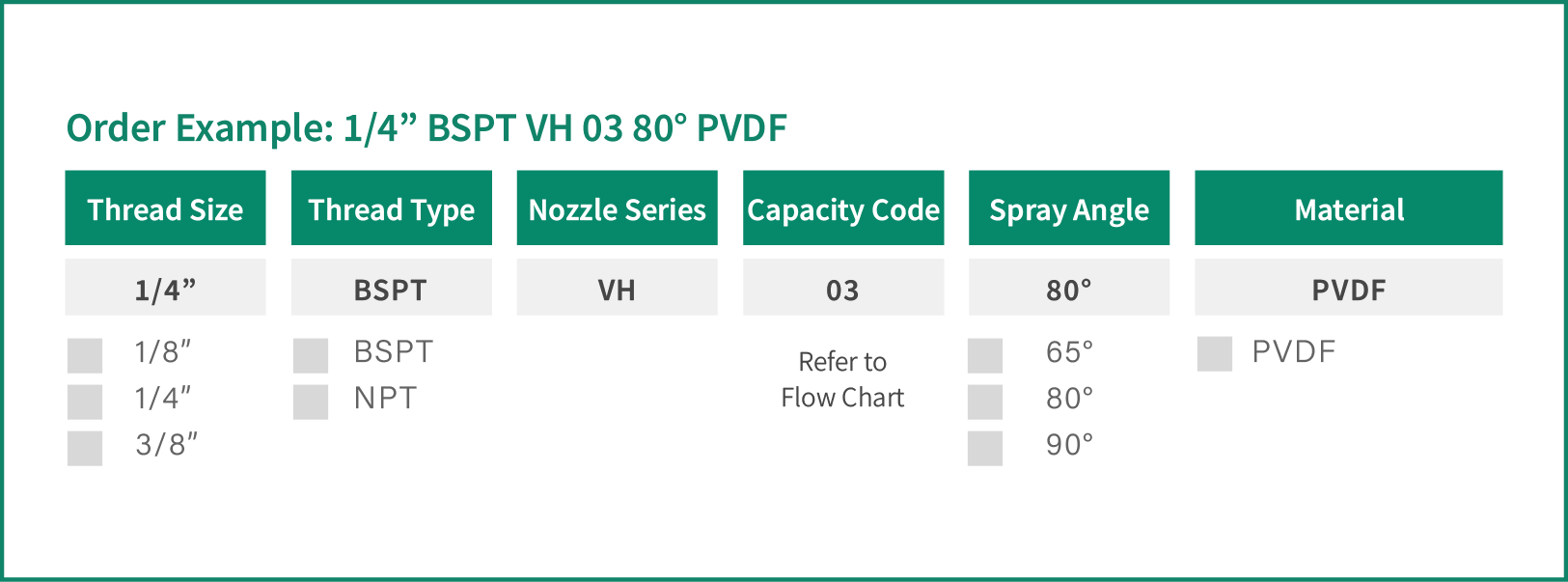

  • Example specification: 1/4” BSPT VH 03 80° PVDF. Each number corresponds to the following options and meanings.

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.5
kgf/cm²		 1.0
kgf/cm²		 2.0
kgf/cm²		 3.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
65° 01 V
 V
0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
65° 02 V
 V
0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
65° 2.5 V
 V
0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
65° 03 V
 V
0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
65° 04 V
 V
0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
65° 05 V
 V
0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
65° 06 V
 V
0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
65° 07 V V
1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
65° 7.5 V V
1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
65° 08 V V
1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
65° 09 V V
1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
65° 10 V V
1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
65° 12.5 V V
2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
65° 15 V V
2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
65° 20 V V
3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
65° 25
V
3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
65° 30
V V
 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
65° 35
V V
 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
65° 40
V V
 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
65° 50
V V
 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
65° 60

V
 9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
65° 80

V
 12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
65° 100

V
 15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
80° 01 V
 V
0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
80° 02 V
 V
0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
80° 2.5 V
 V
0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
80° 03 V
 V
0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
80° 04 V
 V
0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
80° 05 V
 V
0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
80° 06 V
 V
0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
80° 07 V V
1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
80° 7.5 V V
1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
80° 08 V V
1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
80° 09 V V
1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
80° 10 V V
1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
80° 12.5 V V
2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
80° 15 V V
2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
80° 20 V V
3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
80° 25
V
3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
80° 30
V V
 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
80° 35
V V
 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
80° 40
V V
 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
80° 50
V V
 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
80° 60

V
 9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
80° 80

V
 12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
80° 100

V
 15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
90° 01 V
 V
0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
90° 02 V
 V
0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
90° 2.5 V
 V
0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
90° 03 V
 V
0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
90° 04 V
 V
0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
90° 05 V
 V
0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
90° 06 V
 V
0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
90° 07 V V
1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
90° 7.5 V V
1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
90° 08 V V
1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
90° 09 V V
1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
90° 10 V V
1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
90° 12.5 V V
2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
90° 15 V V
2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
90° 20 V V
3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
90° 25
V
3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
90° 30
V V
 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
90° 35
V V
 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
90° 40
V V
 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
90° 50
V V
 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
90° 60

V
 9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
90° 80

V
 12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
90° 100

V
 15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.05
MPa		 0.1
MPa		 0.2
MPa 		0.3
MPa		 0.4
MPa
 0.6
MPa		 0.8
MPa		 1.0
MPa		 1.5
MPa
65° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 V
 V
0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
65° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 V V
3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
65° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
65° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
65° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
65° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
65° 60

V
 9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
65° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
65° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
80° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 V
 V
0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
80° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 V V
3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
80° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
80° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
80° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
80° 60

V
 9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
80° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
80° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
90° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 V
 V
0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
90° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 V V
3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
90° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
90° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
90° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
90° 60

V
 9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
90° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
90° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.5
bar
 1.0
bar		 2.0
bar 		3.0
bar		 4.0
bar 		6.0
bar		 8.0
bar		 10.0
bar		 15.0
bar
65° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 V
 V
0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
65° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 V V
3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
65° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
65° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
65° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
65° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
65° 60

V
 9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
65° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
65° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
80° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 V
 V
0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
80° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 V V
3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
80° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
80° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
80° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
80° 60

V
 9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
80° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
80° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
90° 01 V
 V
0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 V
 V
0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 V
 V
0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 V
 V
0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 V
 V
0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
90° 05 V
 V
0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 V
 V
0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 V V
1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 V V
1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
90° 08 V V
1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 V V
1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 V V
1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 V V
2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 V V
2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 V V
3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
90° 25
V
4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30
V V
 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 35
V V
 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
90° 40
V V
 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
90° 50
V V
 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
90° 60

V
 9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
90° 80

V
 12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
90° 100

V
 16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 7
psi		 10
psi		 28
psi 		40
psi		 60
psi 		80
psi		 100
psi		 150
psi		 200
psi
65° 01 V
 V
0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
65° 02 V
 V
0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
65° 2.5 V
 V
0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
65° 03 V
 V
0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
65° 04 V
 V
0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
65° 05 V
 V
0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
65° 06 V
 V
0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
65° 07 V V
0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
65° 7.5 V V
0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
65° 08 V V
0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
65° 09 V V
0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
65° 10 V V
0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
65° 12.5 V V
0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
65° 15 V V
0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
65° 20 V V
0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
65° 25
V
1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
65° 30
V V
 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
65° 35
V V
 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
65° 40
V V
 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
65° 50
V V
 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
65° 60

V
 2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
65° 80

V
 3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
65° 100

V
 4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
80° 01 V
 V
0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
80° 02 V
 V
0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
80° 2.5 V
 V
0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
80° 03 V
 V
0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
80° 04 V
 V
0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
80° 05 V
 V
0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
80° 06 V
 V
0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
80° 07 V V
0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
80° 7.5 V V
0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
80° 08 V
 V
0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
80° 09 V V
0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
80° 10 V V
0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
80° 12.5 V V
0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
80° 15 V V
0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
80° 20 V V
0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
80° 25 V
 V
1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
80° 30
V V
 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
80° 35
V V
 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
80° 40
V V
 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
80° 50
V V
 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
80° 60

V
 2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
80° 80

V
 3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
80° 100

V
 4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
90° 01 V
 V
0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
90° 02 V
 V
0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
90° 2.5 V
 V
0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
90° 03 V
 V
0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
90° 04 V
 V
0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
90° 05 V
 V
0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
90° 06 V
 V
0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
90° 07 V V
0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
90° 7.5 V V
0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
90° 08 V V
0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
90° 09 V V
0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
90° 10 V V
0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
90° 12.5 V V
0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
90° 15 V V
0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
90° 20 V V
0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
90° 25
V
1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
90° 30
V V
 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
90° 35
V V
 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
90° 40
V V
 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
90° 50
V V
 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
90° 60

V
 2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
90° 80

V
 3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
90° 100

V
 4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
  • * Standard Pressure: Column in red.
  • * This product for spray angle 0°, 15°, 25°, 40°, 50°, 100° and 110° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • * Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

Electroplating

Electroplating

Flow meter controls the flow of chemical liquids, ensuring a uniform coating for quality assurance; the nozzle ensuring even coating and consistent quality during electroplating

CCL

CCL

Flow meters monitor chemical liquids to ensure consistent copper foil thickness and quality; nozzles maintain even chemical liquid coverage, ensuring the uniformity of copper foil

Automotive Painting

Automotive Painting

Flow meters ensure precise paint-solvent ratios for quality and eco-friendliness, while nozzles guarantee paint quality and environmental compliance by controlling the mixture

Size

Thread(BSPT) Size(mm) Weight(g)
A B C
1/8" Male thread 11.8 10.3 19 2.2
1/4" Male thread 15 10.5 21.4 3.7
3/8" Male thread 16.7 13 24.6 14

Thread installation

Easy installing with 2 simple steps!

Step 1
Step 1

Please ensure that the nozzle size matches the thread size on the pipes.

Step 2
Step 2

Apply Teflon tape, tighten nozzle clockwise for no leaks.

Step 3
Step 3

Complete the installation.

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.



Working Process and matters need attention of Nozzle Customization



Working Process and matters need attention of Nozzle Customization
Products you may also like
V Small Flowrates PVDF Plastic Fan Spray Nozzle V Small Flowrates PVDF Plastic Fan Spray Nozzle
NH Steel Fan Spray Nozzle फैन नोजल for Wide-Angle Spraying NH Steel Fan Spray Nozzle फैन नोजल for Wide-Angle Spraying
FU-ES EchoSense Clamp on Ultrasonic Flow Meter FU-ES EchoSense Clamp on Ultrasonic Flow Meter
Related articles
Why LORRIC Nozzles Outperform Generic Brands: A Detailed Comparison Why LORRIC Nozzles Outperform Generic Brands: A Detailed Comparison
3 facts you must know about “spray angle” 3 facts you must know about “spray angle”
The Seven Cornerstones for Choosing the Correct Nozzle The Seven Cornerstones for Choosing the Correct Nozzle
Inquire now
