Easy to adjust, easy to install, easy to maintain, non-clogging, and even distribution fan-shaped single-fluid nozzles, commonly used in the pre-treatment processes of the painting industry.
Catalogue
The simple clamp design allows for tool-free nut removal. Just drill a hole in the water pipe, and the nozzle can be securely attached without any additional tools.
EB+HB is a three-piece clamp-type nozzle, designed for easy assembly and maintenance.
The TB Adapter can accommodate fan nozzles with external thread sizes of 1/4" or 3/8". The most commonly chosen option is the 1/4" H fan nozzle.
The EB base offers various pipe and hole sizes. The most commonly selected option is a 1" EB clamp, Ø 15 drilling, paired with an HB 65° flat fan nozzle, flow code 10.
The flow tolerance is within a range of plus or minus 5% of the standard flow rate.
Angle tolerance is within a range of plus or minus 5% of the standard angle.
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
We promise never to use recycled materials.
All material is purchased from world top providers.
Flow meters ensure precise paint-solvent ratios for quality and eco-friendliness, while nozzles guarantee paint quality and environmental compliance by controlling the mixture
Easy installing with 6 simple steps !

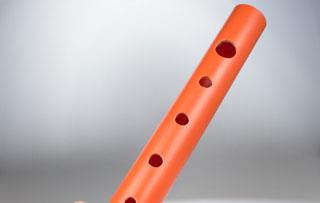

Drill a installation hole in the pipe which match the size of the EB installation hole

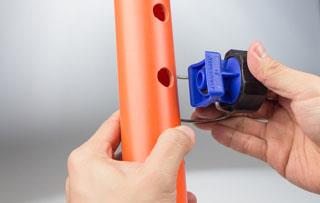

Aim and snap on the installation hole of the EB clamp at the pipe installation hole

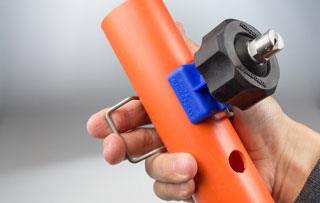

Fasten with the pipe clamp

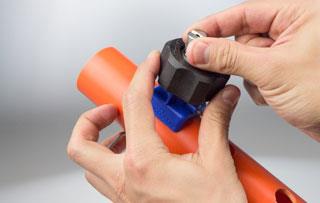

Release the union nut to adjust angle of the TB ball

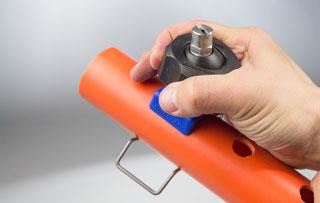

Confirm the spray direction

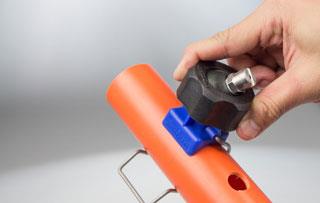

Tighten the union and finished
With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!
LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.
Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.
It is the angle by orifice and the loop of gas or liquid sprayed out.
The distribution of particle on surface by sprayed up liquid.
Testing in extreme environments demands data to aid nozzle development.
